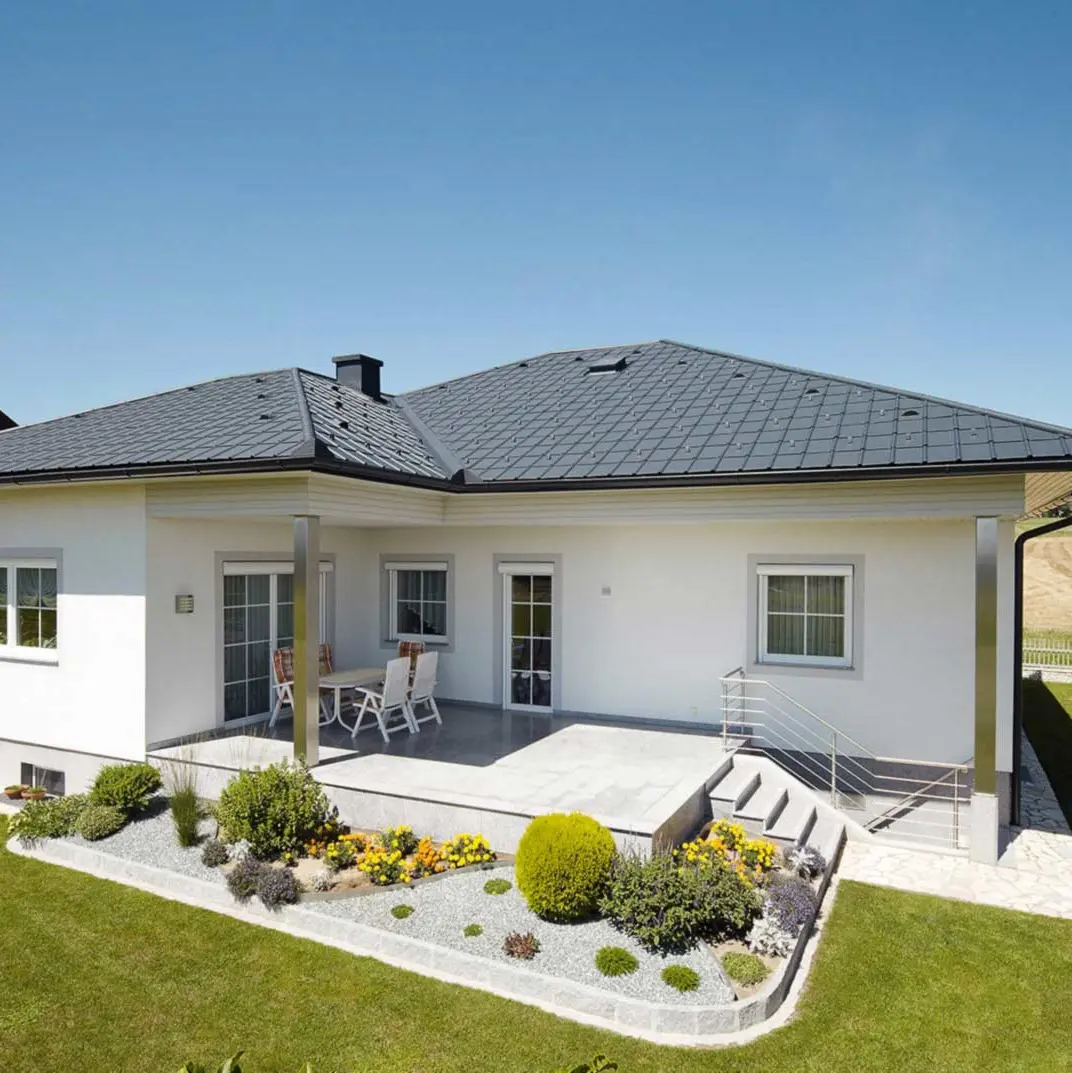

Hier sieht man eine PREFA Dachplatte in der Farbe anthrazit auf einem Einfamilienhaus

Home Product catalogue Roof systems Roof tile

Roof tile

A classic with decades of in-the-field experience: the roof tile has stood for the unique quality of PREFA products for more than 75 years.

Contact & information

Advantages
Colours
References
Technical information
Planning & Application
Accessories

At just 2.3 kg/m², PREFA roof tiles are among the lightest yet most durable roof coverings out there. A much-loved classic among PREFA roof products that has stood the test of time. With these reliable aluminium roof tiles, even roofs with intact older trusses can be renovated easily and affordably. Just four roof tiles is enough to cover a full square metre of roof surface for renovations or new-builds.

Available in several standard colours

and the particularly durable P.10 colour quality: stucco surface as standard.
From the classic tile effect to timeless grey and brown hues – the much-loved PREFA roof tiles offer a reliable solution for your new roof.

Tried-and-tested product

PREFA roof tiles have been produced in Germany and Austria for over 75 years and protect the homes of thousands of happy customers across Europe.

Wide range of accessories

From fasteners to snow guards to roof safety – original PREFA accessories are perfectly coordinated pieces of tech.

40-year guarantee

on material and colour

Available in several standard colours

Tried-and-tested product

PREFA roof tiles have been produced in Germany and Austria for over 75 years and protect the homes of thousands of happy customers across Europe.

Wide range of accessories

From fasteners to snow guards to roof safety – original PREFA accessories are perfectly coordinated pieces of tech.

40-year guarantee

on material and colour

Lightweight and durable

The PREFA roof tiles was developed over 75 years ago. In the post-war years, tinsmith Alois Gödl was on the hunt for robust roofing tiles that wouldn’t break. He landed on a metal roof because it is durable but at the same time lightweight. Aluminium fulfils these criteria perfectly. We’ve been refining our aluminium roof tiles ever since, in particular with a view to making installation simpler and quicker. Our lightweight PREFA aluminium roof tiles can be laid on flat roofs with a pitch of just 12°.

Aluminium tiles from PREFA are distinguished by being very low-maintenance and give roofs a subtle, reserved and traditional look reminiscent of the classic brick tile roof. The high-quality P.10 surface has a matte finish but is still resistant to frost damage, rust, cracking, splitting and blistering, making it extremely weather-proof.

Einzelne PREFA Dachplatte im Detail, genaue Darstellung der Rillen und Erhebungen, in Stucco Oberläche

Years of valuable experience gathered in the Alps

Thanks to the patented fold-and-fasten system, roofs covered with PREFA roof tiles can withstand even extreme wind speeds. Their widespread use, especially in the Alpine regions, has been giving us valuable insights for decades in terms of the storm-proofing and durability of PREFA products, even in extreme situations. The advantage: PREFA offers a 40-year guarantee on its aluminium even under extreme conditions.

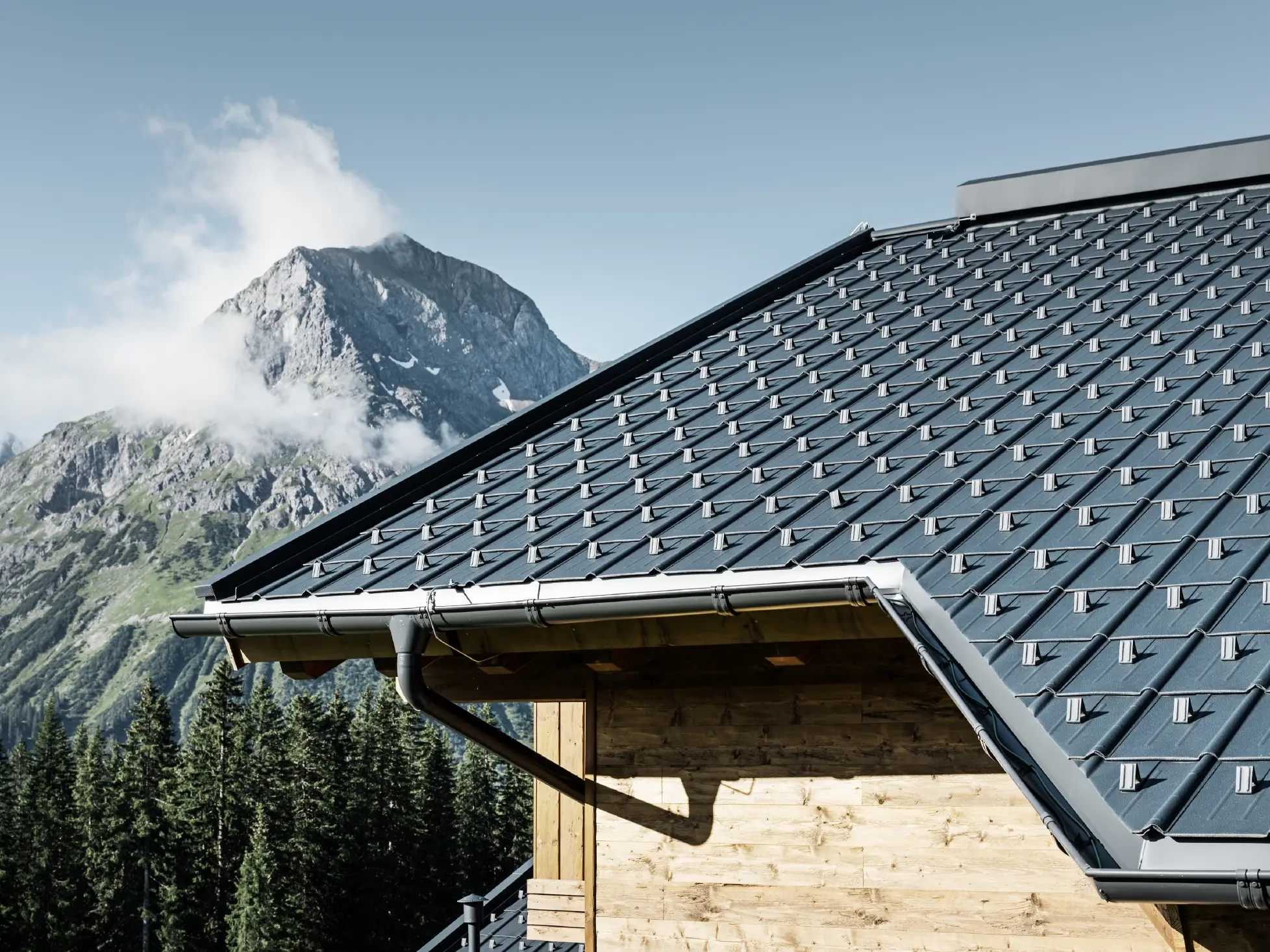

PREFA Dachplatte im alpinen Einsatz - Dachplatte in Anthrazit verlegt auf Hütte in Lech am Arlberg mit Berge im Hintergrund; PREFA Dachrinne in Anthrazit; Holzfassade

The PREFA roof tile colour palette ranges from traditional tiled effects to modern grey tones and shades of brown. The following PREFA roof colours are available as standard:

Color	Code	~ RAL
	P.10 brown	7013
	P.10 anthracite	7016
	P.10 black	9005
	P.10 brick red	8004
	P.10 oxide red	3009
	P.10 moss green	6005
	P.10 light grey	7005
	P.10 nut brown	8019
	P.10 dark grey	7043
	P.10 stone grey	7031

Notes

The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
Metallic colors may vary in shade.
To identify exact colors for complementary components please consult original samples.

Whether you’re re-laying your roof from scratch or renovating your old roof, you’ll find tons of inspiring projects using aluminium roof tiles from PREFA in our Reference Gallery and Renovation Gallery. Check out a few examples here:

Das Bild zeigt ein modernes Einfamilienhaus in einer idyllischen Landschaft mit einer klaren Sicht auf bewaldete Hügel im Hintergrund. Das Haus zeichnet sich durch eine Kombination aus weißen Putzwänden und einer markanten Fassadenverkleidung mit PREFA Siding.X in P.10 Anthrazit aus, die für einen modernen und langlebigen Look sorgt. Die dunkle Färbung der Fassadenelemente bildet einen ansprechenden Kontrast zum hellen Außendesign und zur natürlichen Umgebung. Die Anordnung der Siding.X Fassadenpaneele ist präzise und verleiht der Immobilie einen strukturierten und hochwertigen Charakter, der typisch für PREFA Produkte ist. Das Dach des Gebäudes wurde mit der bewährten PREFA Dachplatte eingedeckt. Die Dachentwässerung erfolgt durch das Ablaufrohr und die Hängerinne von PREFA.

New-build with PREFA roof tiles in P.10 Anthracite

Old small farmhouse in the country beautifully refurbished with the PREFA roof tile in oxide red.

Roof renovation using PREFA roof tile in P.10 Oxide Red

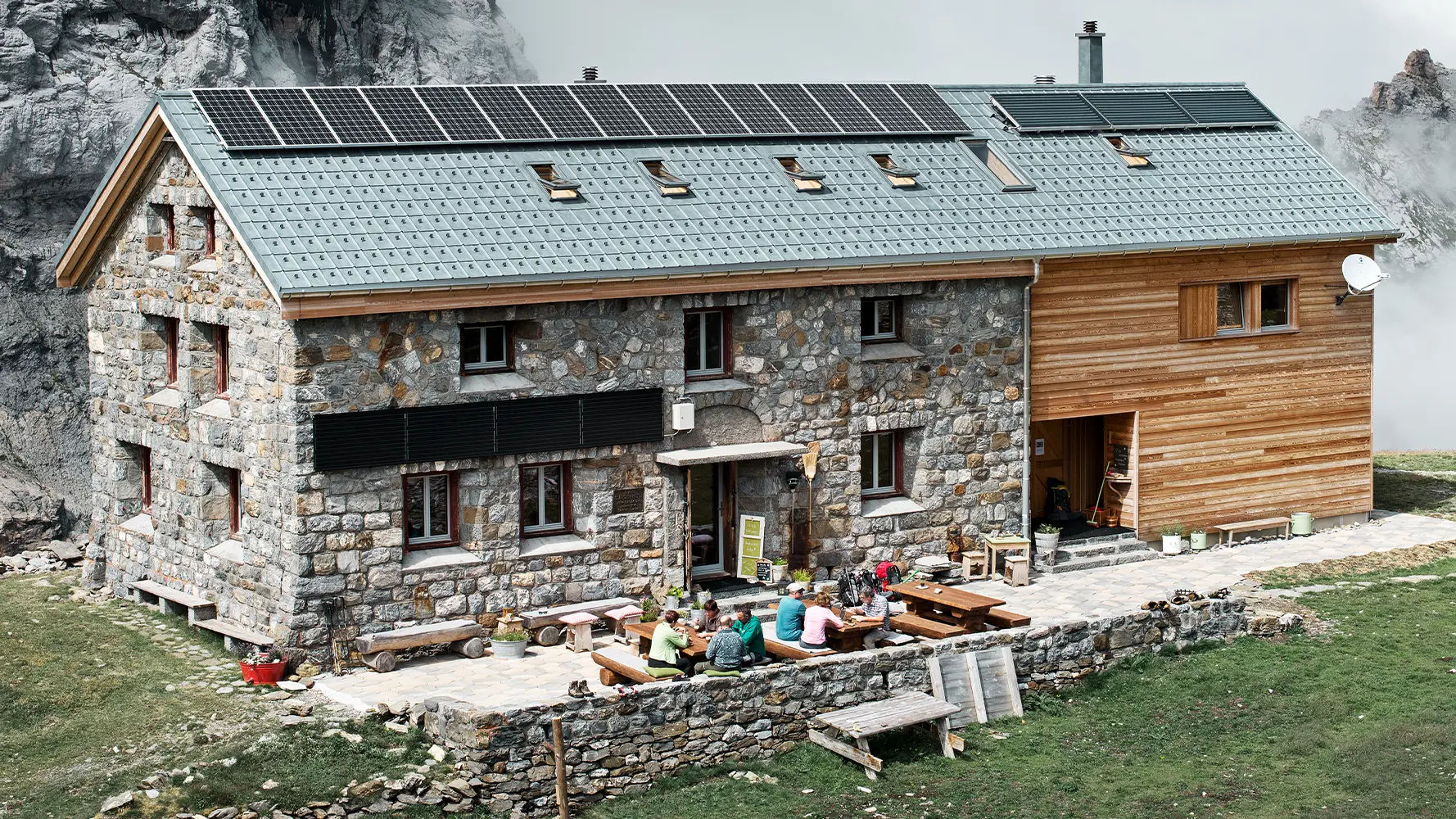

Die Schweizer Claridenhütte liegt auf über 2000 Metern und wurde eingedeckt mit PREFA Dachplatten in P.10 Steingrau

Claridenhütte, 2,457 m above sea level, with PREFA roof tiles in P.10 Stone Grey

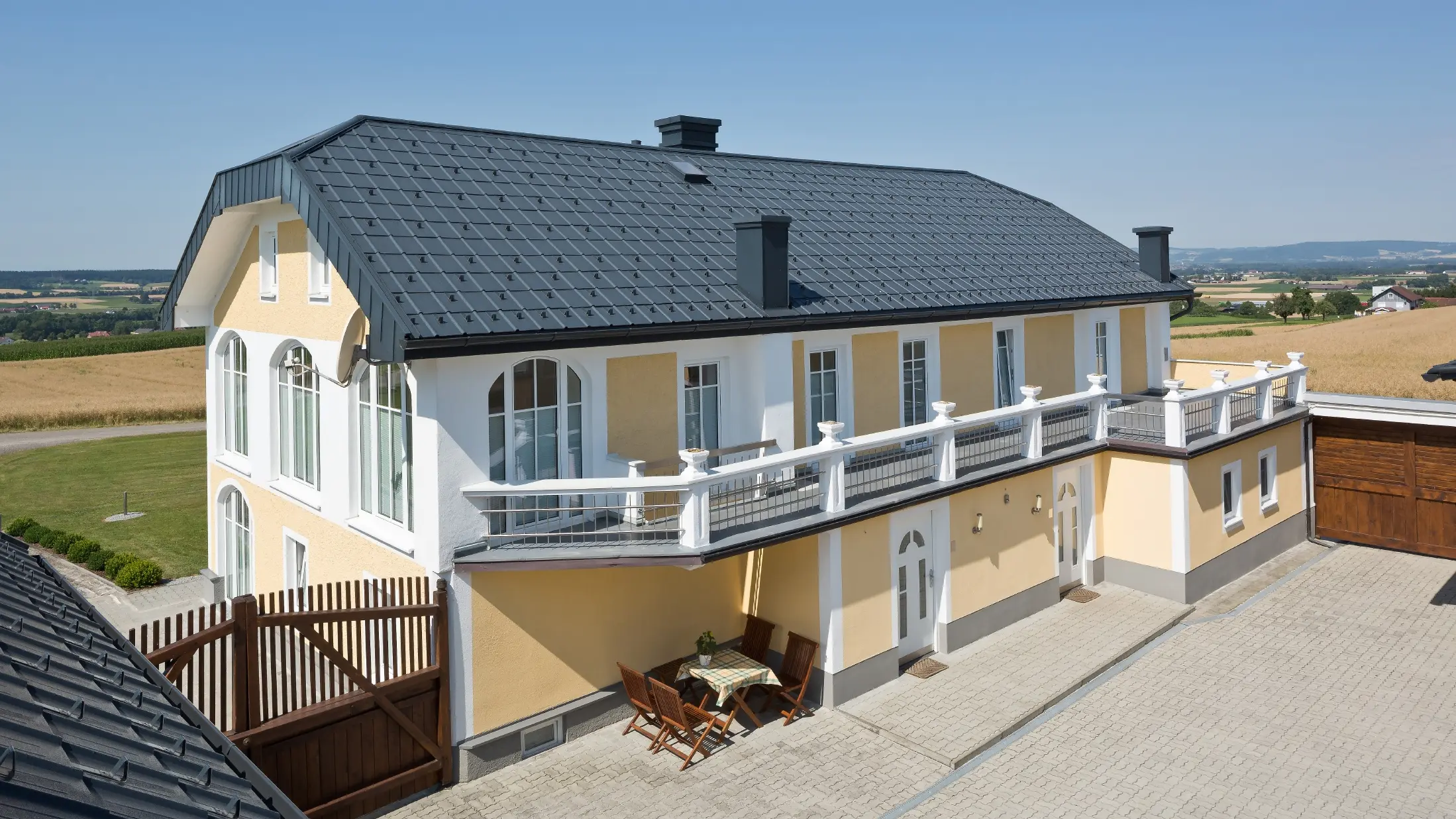

Neu sanierter Bauernhof mit der Dachplatte in Anthrazit und neu sanierter Putzfassade

Farmstead with PREFA roof tiles in P.10 Anthracite

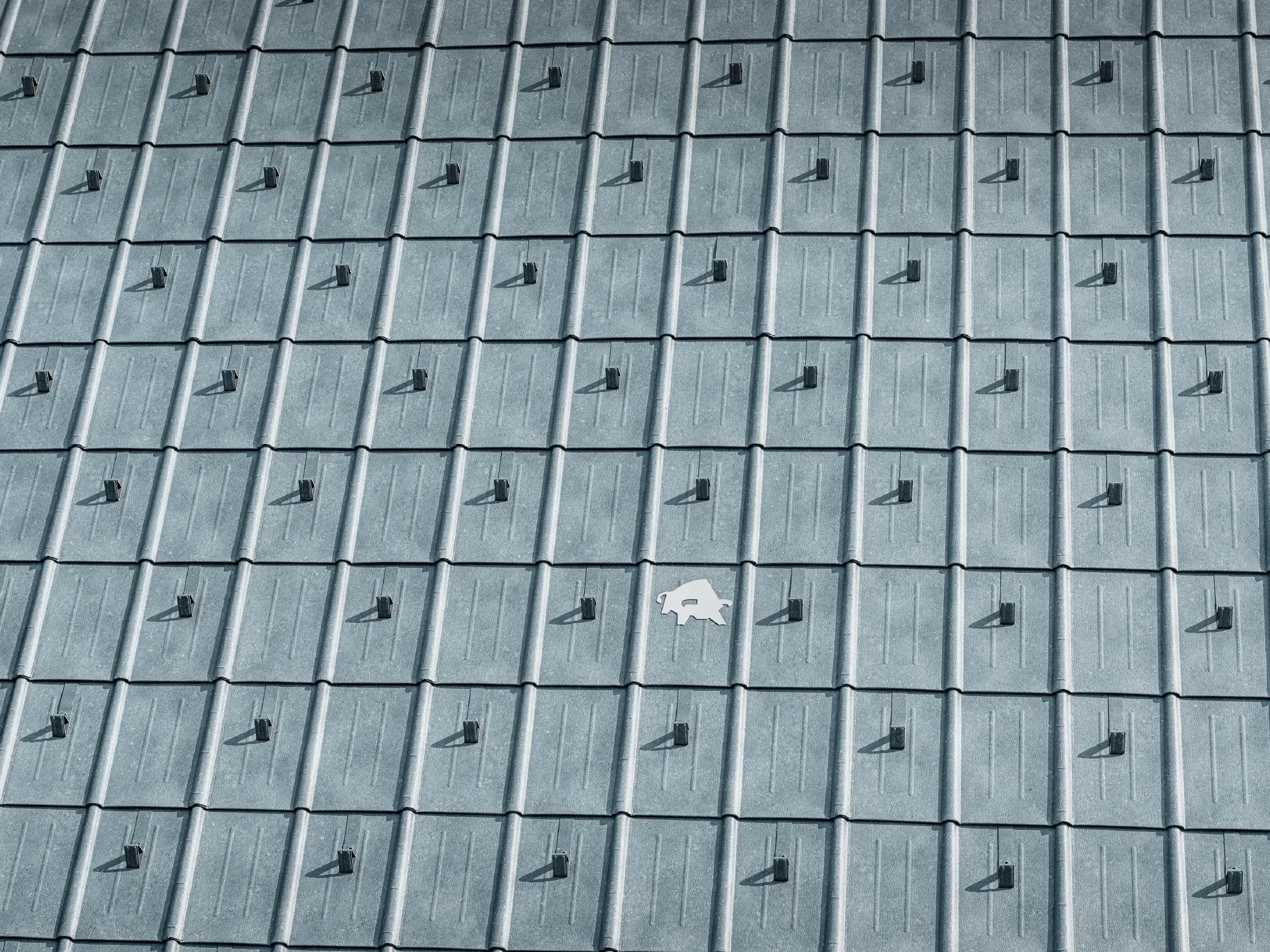

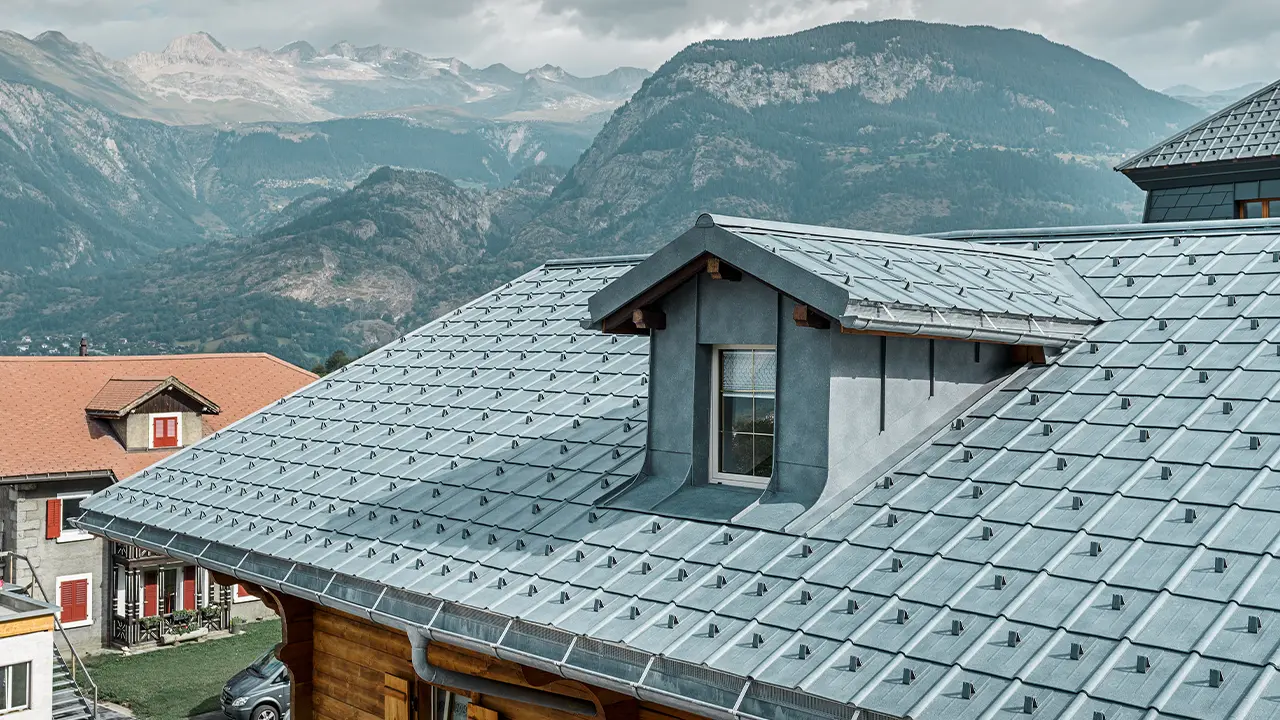

Gabled roof with dormers. A PREFA sheet metal roof is installed on the roof area with the roof tiles in stone grey. The dormer is clad in a PREFA angular standing seam in stone grey.

Timber chalet with dormers, covered with PREFA roof tiles in P.10 Stone Grey

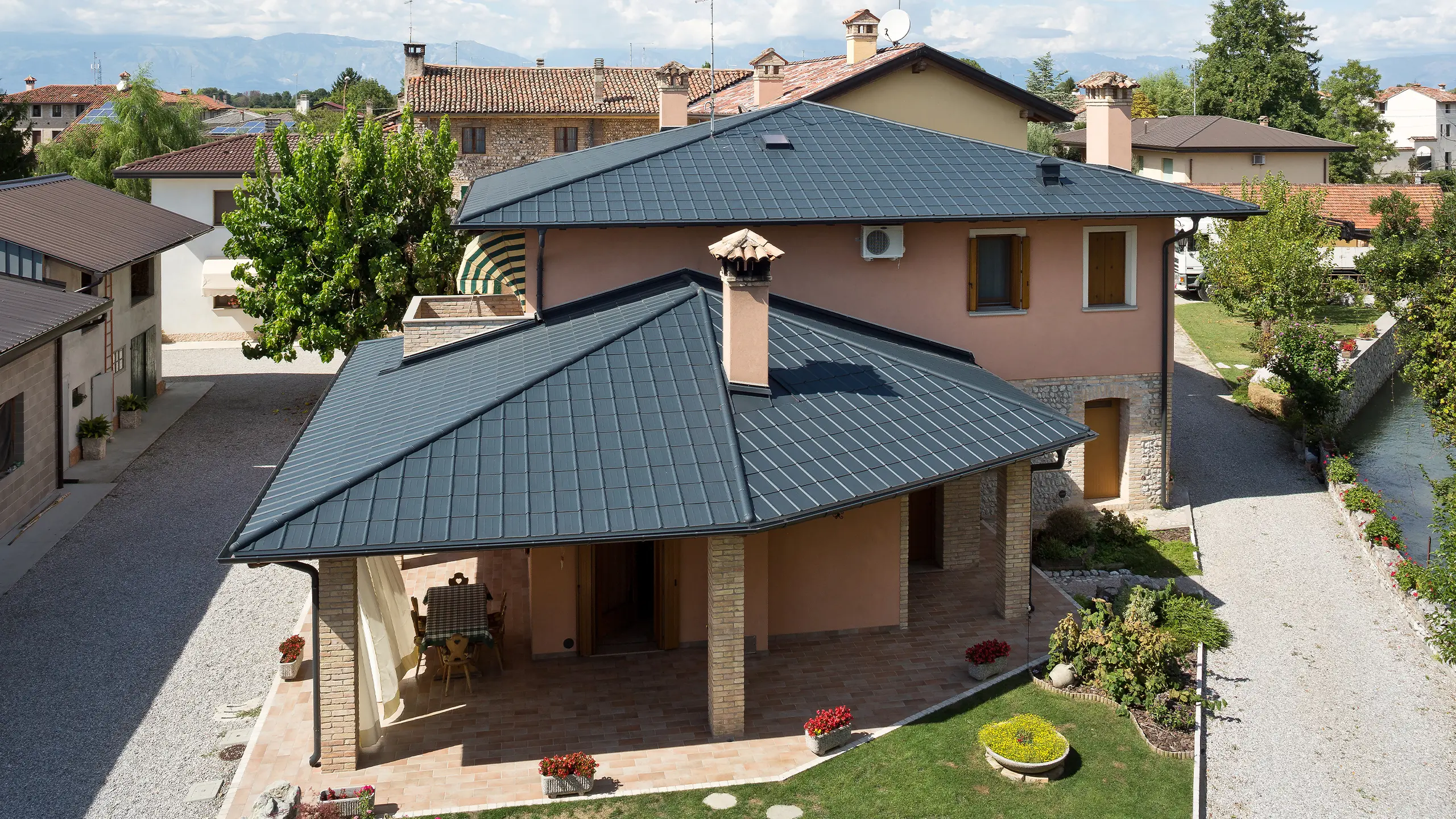

Italienische Villa mit typischem Zeltdach mit PREFA Dachplatte in P.10 Anthrazit

Italian villa with PREFA roof tiles in P.10 Anthracite

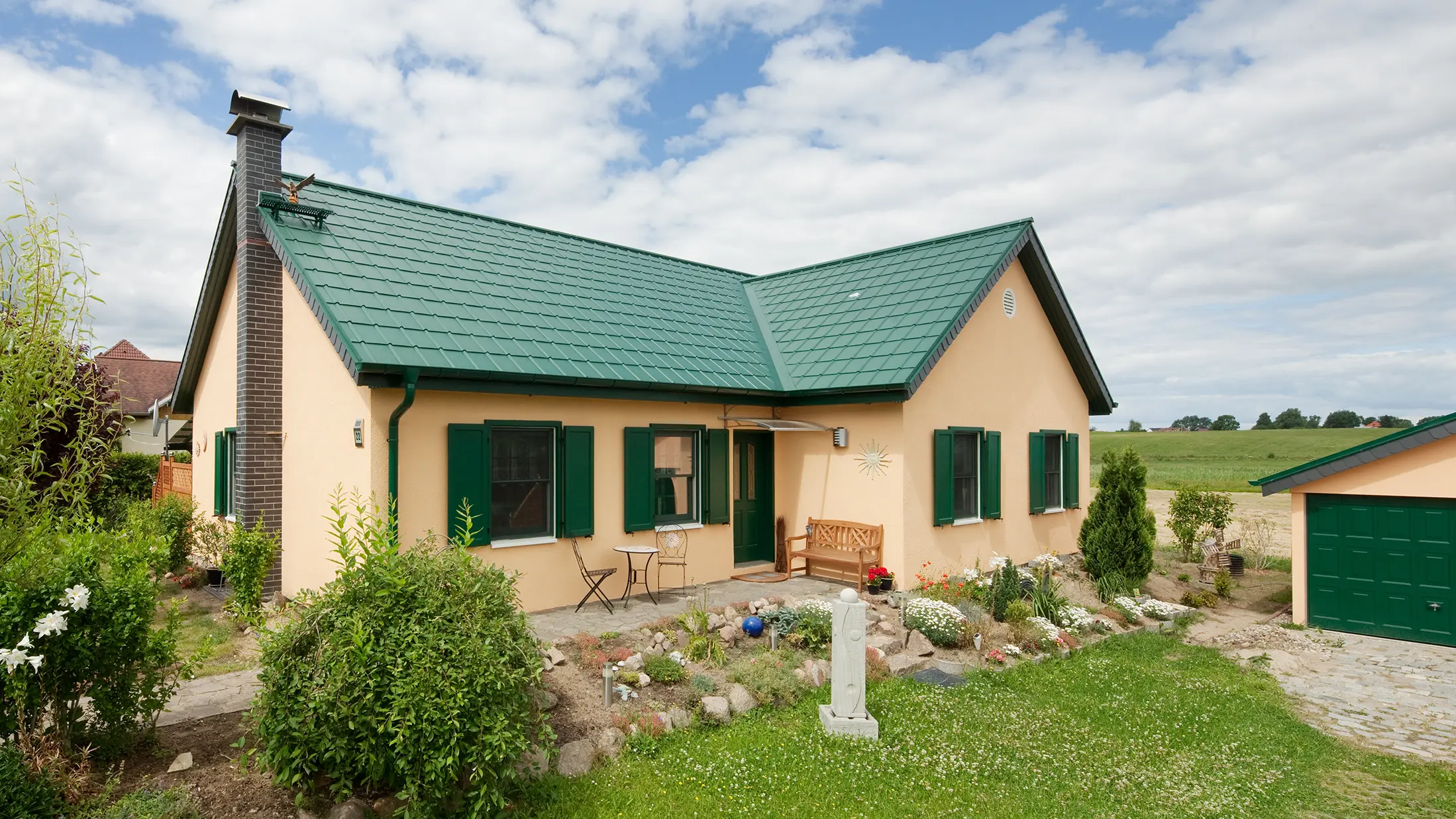

erweitertes Satteldach; Satteldach in L-Form; mit der PREFA Dachplatte in P.10 Moosgrün; hübsches ländliches Häuschen mit zum PREFA Dach passenden grünen Fensterläden.

Small house with PREFA roof tiles in P.10 Moss Green

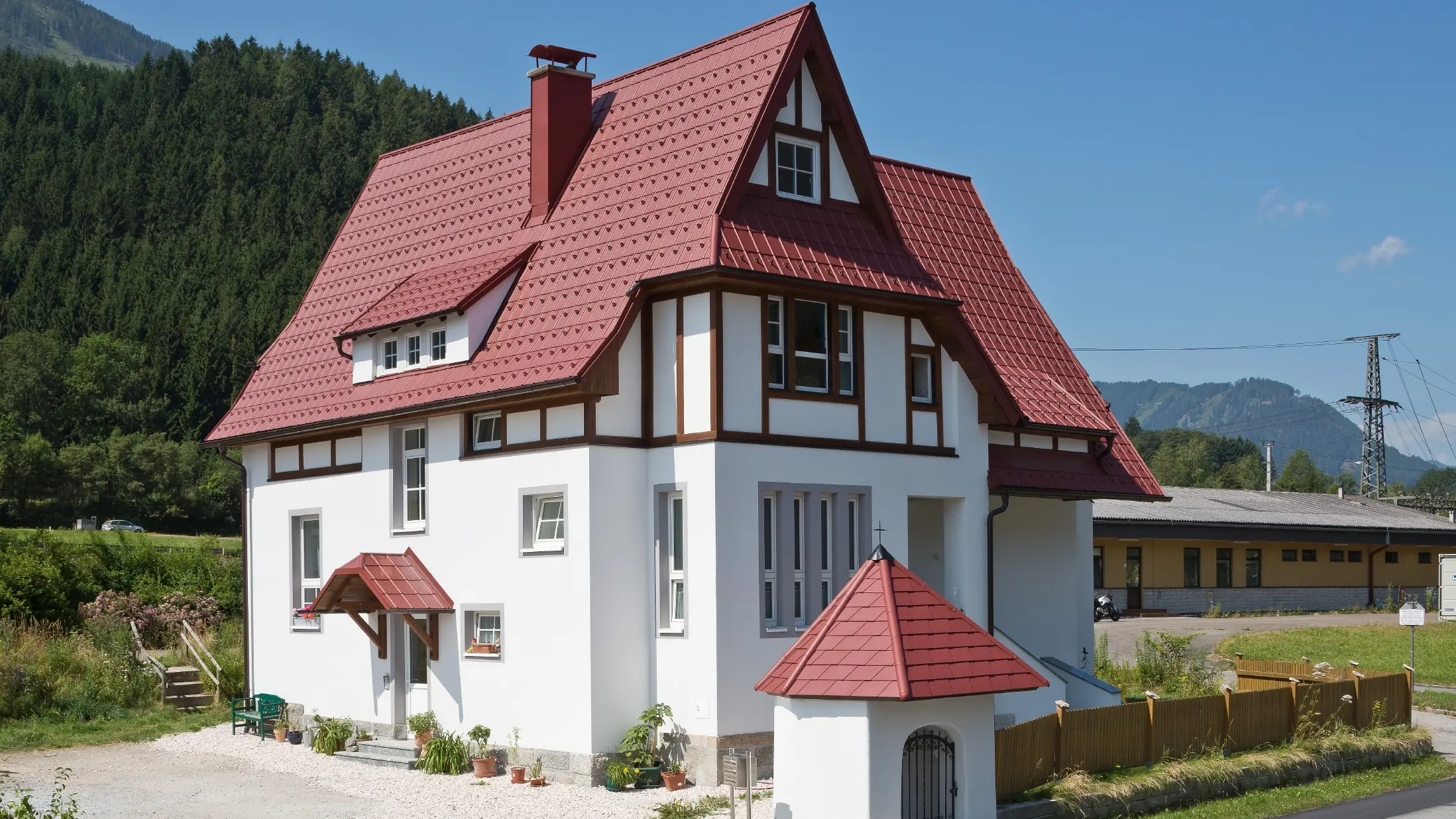

Verwinkeltes Steildach mit PREFA Dachplatte in P.10 Oxydrot mit vielen Details wie Gauben, Türmchen und Kamineinfassungen. Auch das Vordach und das Marterl vor dem Haus sind mit PREFA Blechdach eingedeckt.

Steep roof with PREFA roof tile in P.10 Oxide Red

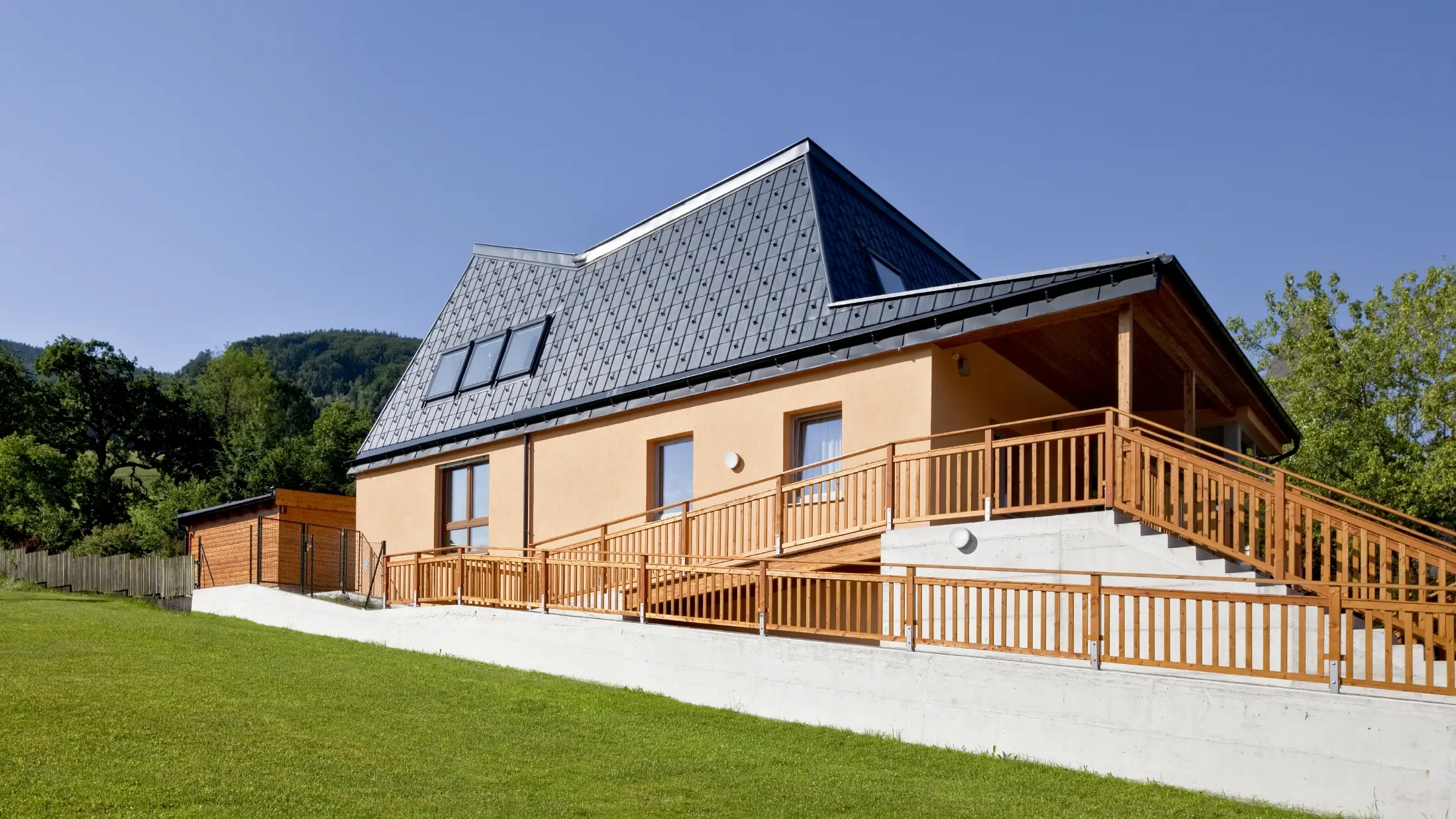

Kindergarten mit oranger Putzfassaade und verwinkeltem Dach, gedeckt mit der PREFA Dachplatte in P.10 Anthrazit;

Kindergarten with PREFA roof tiles in P.10 Anthracite

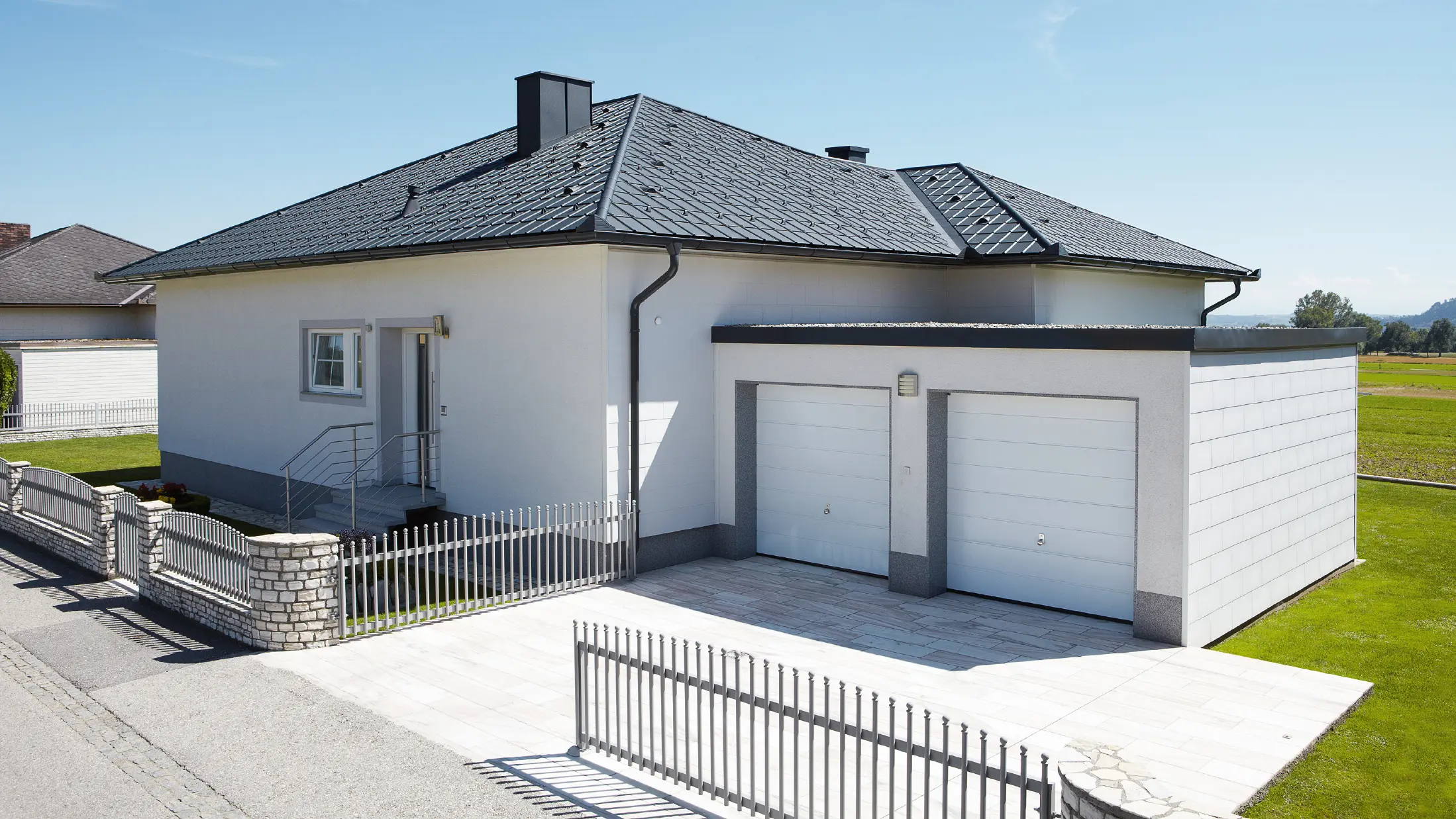

Der neugebaute Bungalow mit Zeltdach wurde mit der PREFA Dachplatte in P.10 Anthrazit eingedeckt. Rechts daneben wurde eine Doppelgarage angebaut, fotografiert wurde von der Straße aus.

Bungalow with PREFA roof tiles in P.10 Anthracite

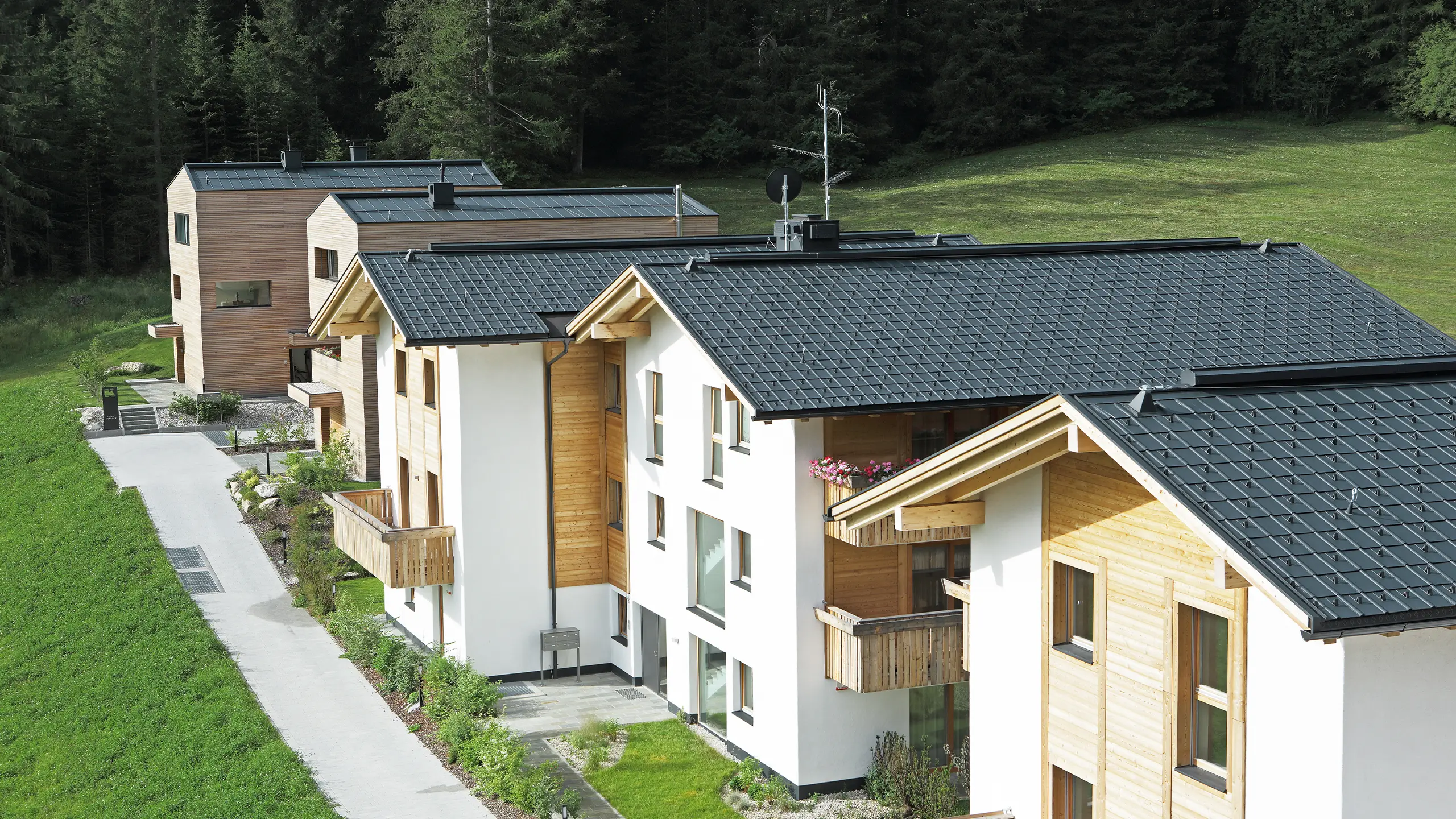

Aufnahme der fünf Wohnbauten in Corvara, eingedeckt mit der PREFA Dachplatte und Stehfalz in Anthrazit aus sturmsicherem Aluminium

Residential complex with PREFA roof tiles and PREFALZ in P.10 Anthracite

Aufwändiger Neubau mit vielen Details, Das Dach ist mit der PREFA Dachplatte in P.10 Anthrazit eingedeckt, teile der Fassade wurden mit den PREFA Sidings, ebenfalls in P.10 Anthrazit, verkleidet.

Modern new-build with PREFA roof tiles in P.10 Anthracite

Das Einfamilienhaus in Hohenems präsentiert sich in einer modernen und stilvollen Fassade aus PREFA Aluminium Verbundplatten in Bronzemetallic, mit einem darüberliegenden Dach aus PREFA Dachplatten in P.10 Anthrazit. Die klare Linienführung und das durchdachte Farbkonzept des Designs integrieren das Gebäude nahtlos in die natürliche Umgebung. Die Gestaltung zeigt die Kombination aus Funktionalität und Ästhetik, die PREFA Produkte für zeitgemäße Wohnarchitektur bieten.

PREFA roof tiles in P.10 Anthracite combined with PREFABOND façade

Expert tip: The noise-insulating strips make the PREFA roof tile quieter

Aluminium roofs are quieter than their reputation would have you believe. Everyone perceives noise differently. The PREFA roof tile has noise-insulating strips (FD.TEC) to keep noise levels to a minimum. For even more comfort in residential buildings, we recommend additionally using a thicker separation layer.

Material	coil-coated aluminium, 0.7 mm thick
Standard finish	stucco
Dimensions	600×420 mm (cover), i.e. 4 pc./m²
Weight	approx. 2.3 kg/m²
Minimum roof pitch	12° (approx. 21% ) — rafter length: up to 7 m 14° (approx. 25% ) — rafter length: 7–12 m 16° (approx. 29%) — rafter length: over 12 m
Supporting substrate and separation layer*	On fully boarded substrate (at least 24 mm) or battens (30×50 mm); with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required. * Observe country-specific standards and specialist guidelines.
Standard fastening	indirect fastening, 2 PREFA patent clips and PREFA ring nails per roof tile (i.e. 8 PREFA patent clips and ring nails per m²)

PREFA aluminium roofs are produced with a ventilated sub-structure, with the roof cover and thermal insulation layer separated by a ventilated gap. This means any occasional condensation, for example, can be wicked away.

It is mostly the roof membrane that is ventilated, as shown in the first two pictures. However, the entire attic can be ventilated too (third picture).

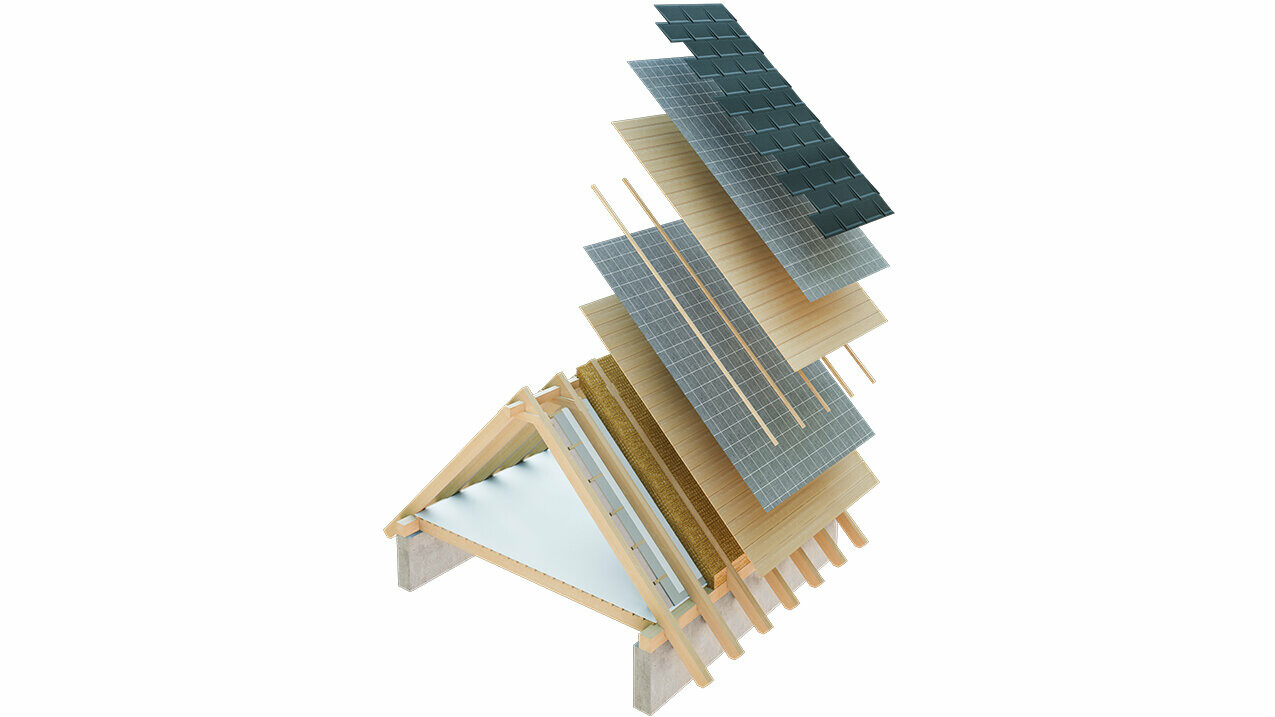

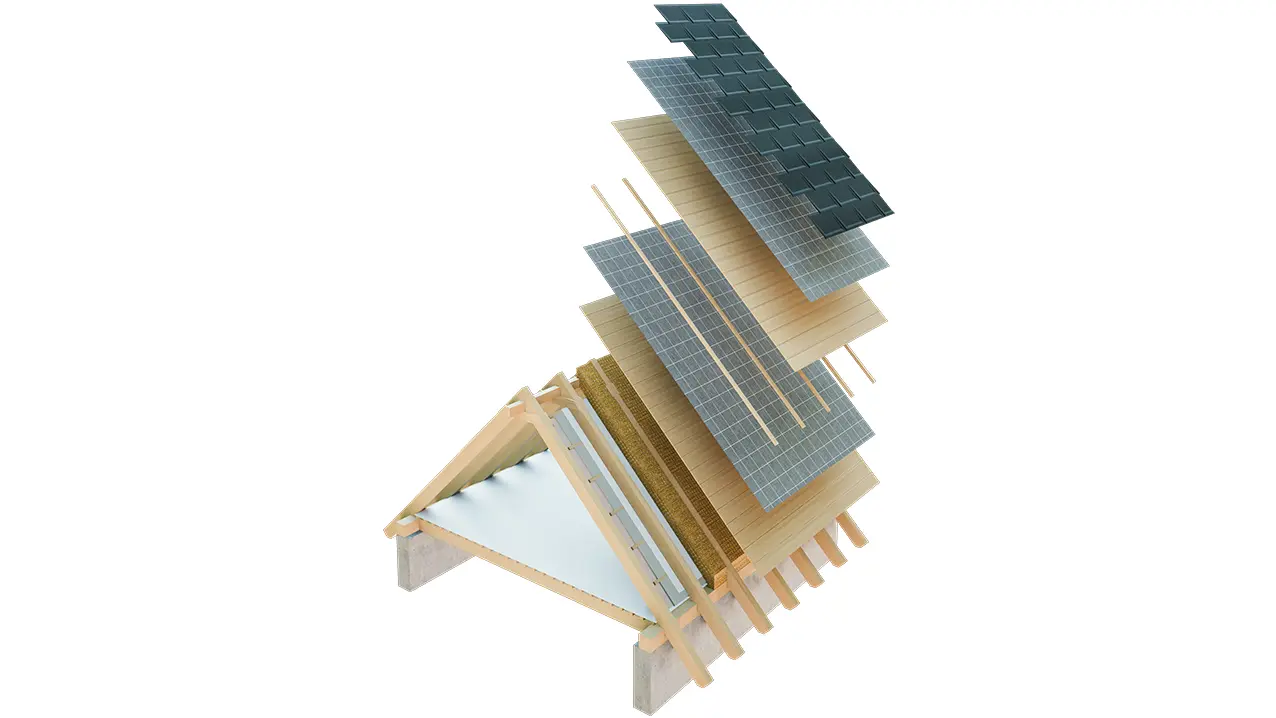

Technical drawing of a cold roof structure, multi-skin roof structure with battens, full casing, separation layer, truss; attic can be used as living space; double-skin roof structure, ventilated roof construction; counter battens

The attic can also be used as a living space (PREFA roof plate only)

Attic can also be used as a living space

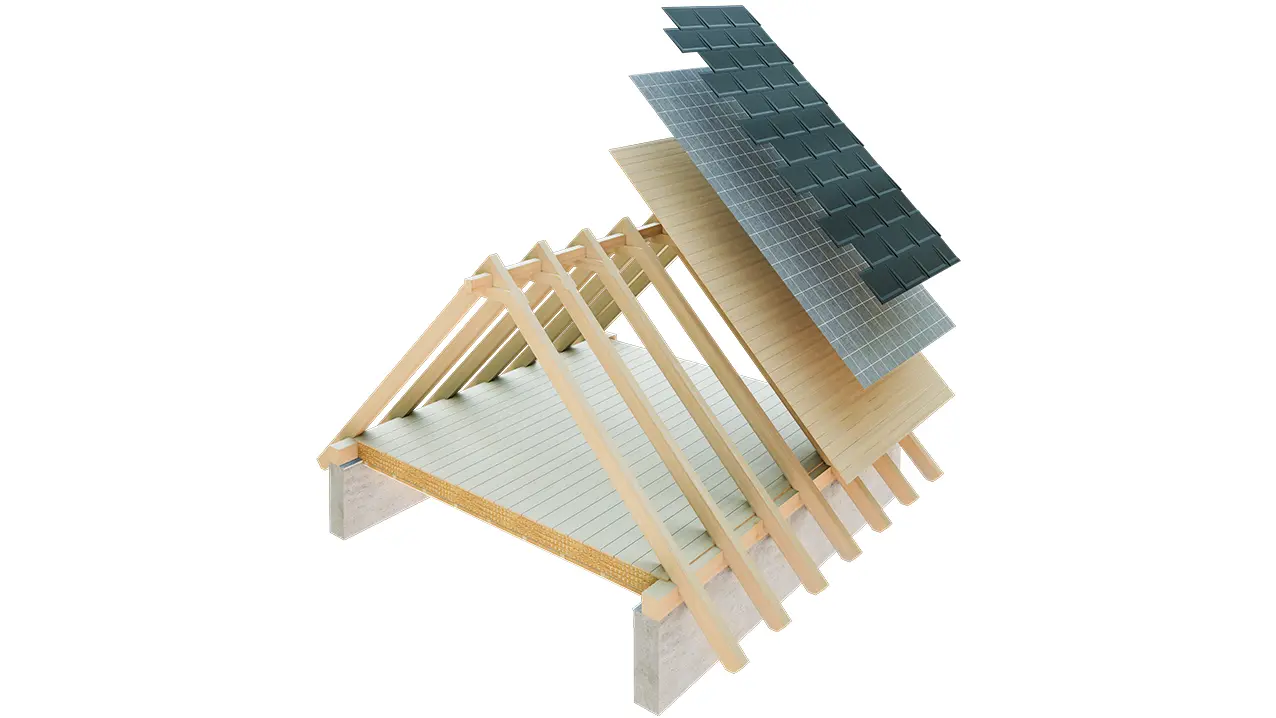

PREFA technical drawing of a single-skin roof structure – the attic cannot be used as a living space because it acts as the ventilation layer for the metal roof; full casing and separation layer without battens; warm roof

Attic is not used as a living space

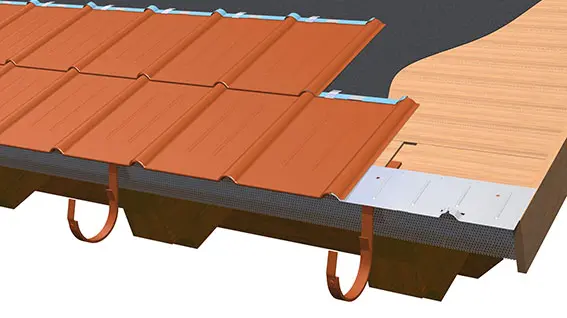

Dachaufbau bei Verlegung der PREFA Dachplatte auf Vollschalung mit Trennlage inklusive Rinnenhaken, Saumstreifen und Lochblech; Die Dachplatten werden mit Haften auf der Vollschalung befestigt.

Roof structure when using roof tiles

You can find specification documents from our tinsmiths and architects and download details on our PREFA roof tiles here.

docx

PREFA Tender Texts Roof Roof Tile 2018 06 EN 64 kb

pdf

PREFA Tender Texts Roof Roof Tile 2018 06 EN 703 kb

dwg

Details Roof Tile PREFA 2 mb

dxf

Details Roof Tile PREFA 15 mb

pdf

Details Roof Tile PREFA 2 mb

Below you will find a list of PREFA roof tile accessories, from verge trim and ridge vents, to roof safety products like snow stoppers and walkways. Gutters and drainpipes in matching colours can be found under “Roof drainage”. The PREFA range also includes façade systems, flood protection and photovoltaic products.

Starter strip for roof tile

1806 × 150 × 1,20 mm, pre-drilled

Starter strip (grooved) for roof tile

600 × 150 mm, for step work with roof tiles

Patent clip

for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel

Ridge vent

3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs

Ridge vent end cap

Hip and ridge cap

500 × 1,00 mm

Hip cap end cap

Verge flashing

95 × 2.000 × 0,70 mm, with cleat strip

Safety valley

3.000 mm, with double lock standing seam (canted)

Bird screen

125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm

Ventilation screen

with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm

Eaves drip edge

230 × 2.000 × 0,70 mm

PREFA Schneestopper für die Produkte Dachplatte und Dachraute 29 × 29 mit zusätzlicher Verlegeausklinkung zur genauen Ausrichtung auf die Schnürung.

Snow guard for roof tile and rhomboid roof tile 29 × 29

Bracket for pipe-style snow guard system

3 pipe openings

XL bracket for pipe-style snow guard system

with 5 pull-through openings, ideal for PV on-roof systems

Solarhalter für Photovoltaikanlagen auf PREFA Dächern inklusive Abdeckkappe

Solar bracket with protective cap

length: 260 mm

Sunny solar bracket

suitable for all PREFA small format products and standing seam systems.

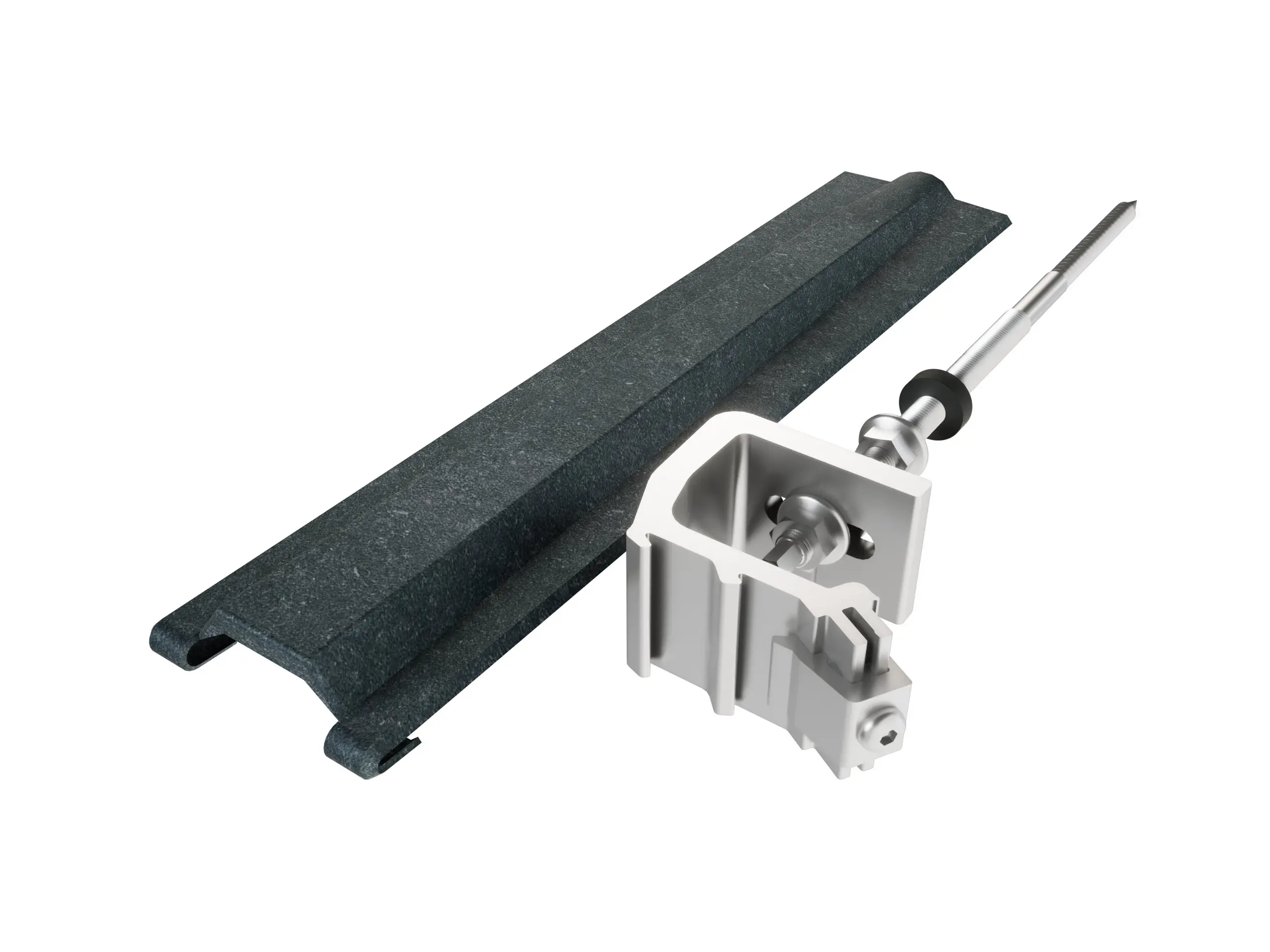

Sunny special solar bracket

suitable for PREFA roof tile

Zu sehen ist der PREFA Solarhalter Fix ohne Kreuzverbinder.

Fix solar bracket

Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Zu sehen ist der PREFA Solarhalter Vario ohne Kreuzverbinder.

Vario solar bracket

Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Snow guard pipe

3.000 mm; 25/25

Ice-retention bracket

Suitable for removable pipe

end piece for pipe-style snow guard system

for removable pipe

End piece XL for pipe-style snow guard system

for insert profile

Mountain snow guard bracket

For 140 mm log diameter

Safety tread

Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A

Walkway support on one mount

250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A

Walkway support on two mounts

360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B

Walkway

250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B

Roof anchor hook

tested according to EN 517 – B

Walkway connector

Roof anchor hook with mounts

tested according to EN 517 – B

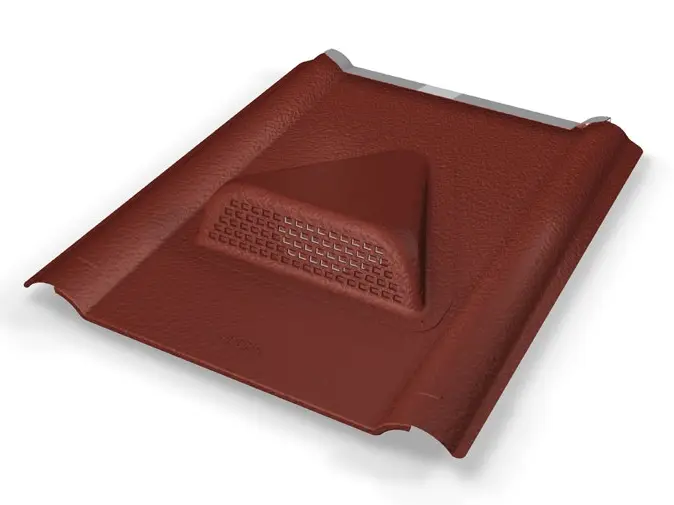

Frog-mouth vent

300 × 420 mm, air intake section approx. 30 cm²

Frog-mouth vent cover

for riveting, air intake section approx. 30 cm²

Vent pipe

Ø 100 mm, Ø 120 mm including EPDM seal and cover

Flexible pipe collar 100

Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay

Vent pipe cover for roof tile

roof pitches between 12° - 52°, Ø 80 - 125 mm

Universal vent pipe cover 2 parts

roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm

Base plate

lenth: 540 mm, width: 125 mm

Vario flashing

width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°

Roof hatch

Window surrounds for Roto & Roto-Q-series

available in many dimensions

Velux window surroundings

available in many dimensions

Chimney cap

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

Roof conductor holder for lightning protection wire

clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :

Special adhesive kit

Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
