Benefits of the extruded profiles
Variety of customised designs
Can be combined and installed in a modular manner (ripple & serrated profiles, horizontal, vertical, diagonal)
High resistance
1.8 mm profiles (vandalism protection in ground floor zones)
Durable, corrosion-resistant, virtually maintenance-free
Variety of colours (powder-coated) or plain aluminium (anodisable)
Easy to install
Same visible widths, low weight
Uniform, high-quality appearance due to concealed fastening
The combination creates exciting visual effects.: Expert tip
Thanks to the uniform visible width and suitable exterior, the different variants of an extruded profile, as well as serrated and ripple profiles on the rainscreen, can be combined in a modular manner – and installed vertically, horizontally or diagonally.
Ideal for balcony cladding
The extruded profiles from PREFA are extremely robust and unbreakable due to their profile thickness of 1.8 mm, allowing even sensitive areas of a building to be clad permanently and durably.
As balcony cladding, the system is impressive in terms of its functional and aesthetic privacy and wind protection. At the same time, it meets the legal requirements for fall-through protection.
You also have free rein when it comes to the colour scheme
Thanks to the colour coordination with the PREFA complete system, an aesthetically sophisticated building shell has been achieved. The ripple and serrated extruded profiles are easy to clean and available in an endless variety of colours:
- in all PREFA P.10 colours
- powder-coated in all available RAL or NCS colours
- plain aluminium (anodisable)
This ensures an attractive appearance and high resistance.
Get inspired by real-life properties that have already been implemented!
A façade made of PREFA extruded profiles is a very robust option to clad the exterior wall. It is irrelevant whether the entire façade or just a section of it is implemented.

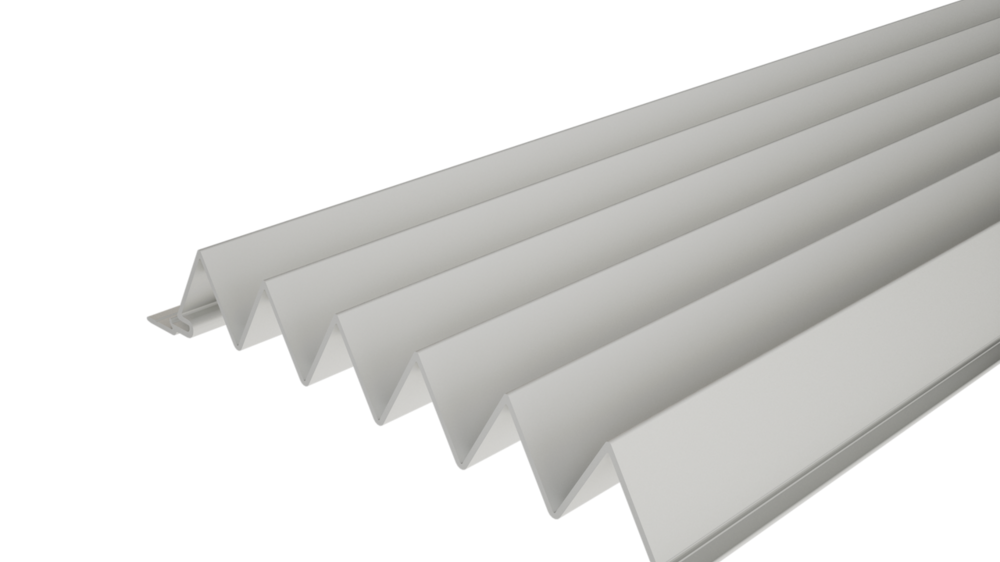

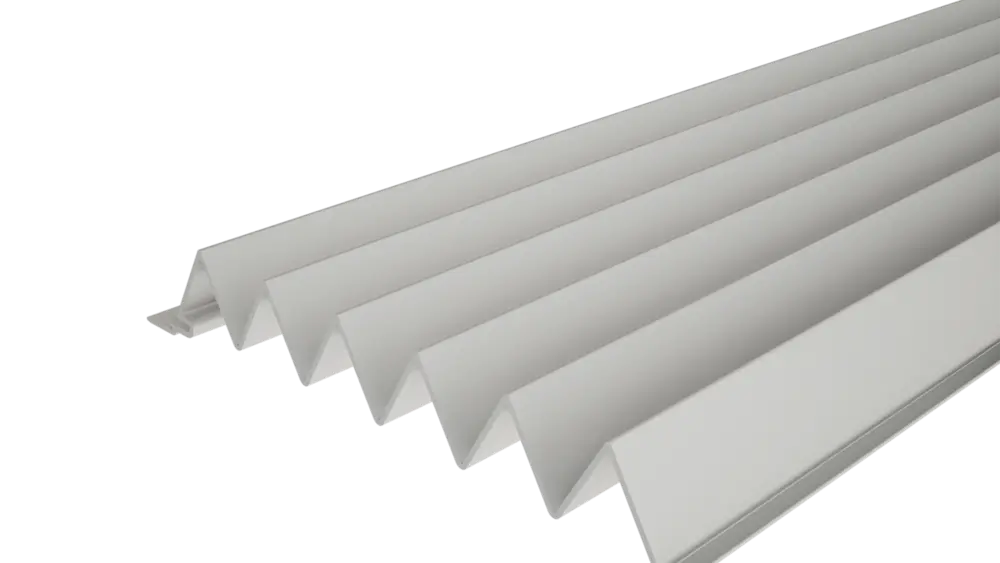

Serrated extruded profile

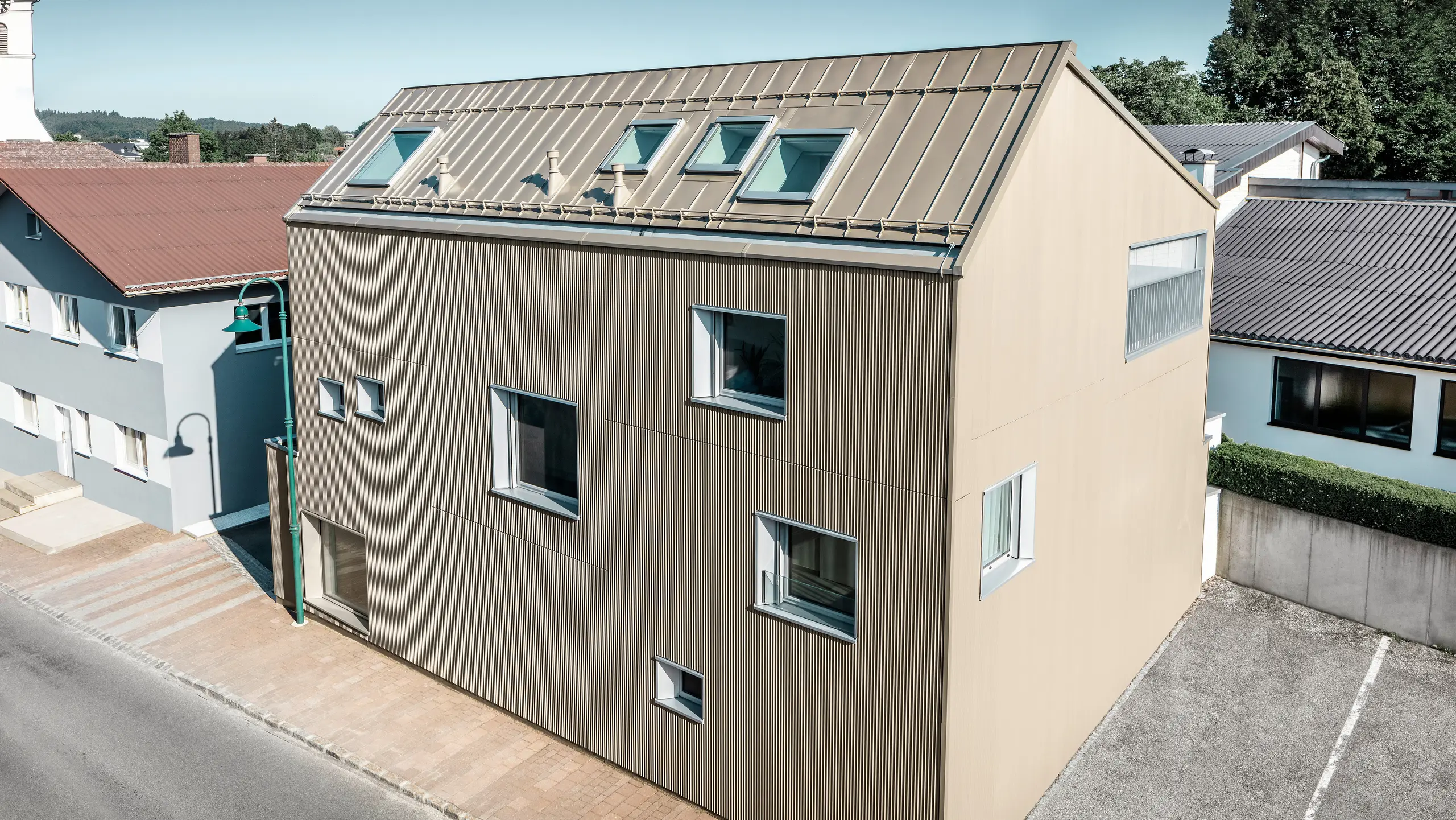

Contemporary detached house with a PREFA serrated profile and PREFALZ
This modern detached house features distinctive design accents. The rainscreen was clad with high-quality PREFA serrated extruded profiles in the colour bronze. PREFALZ was used on the roof, its colour matched to the façade.

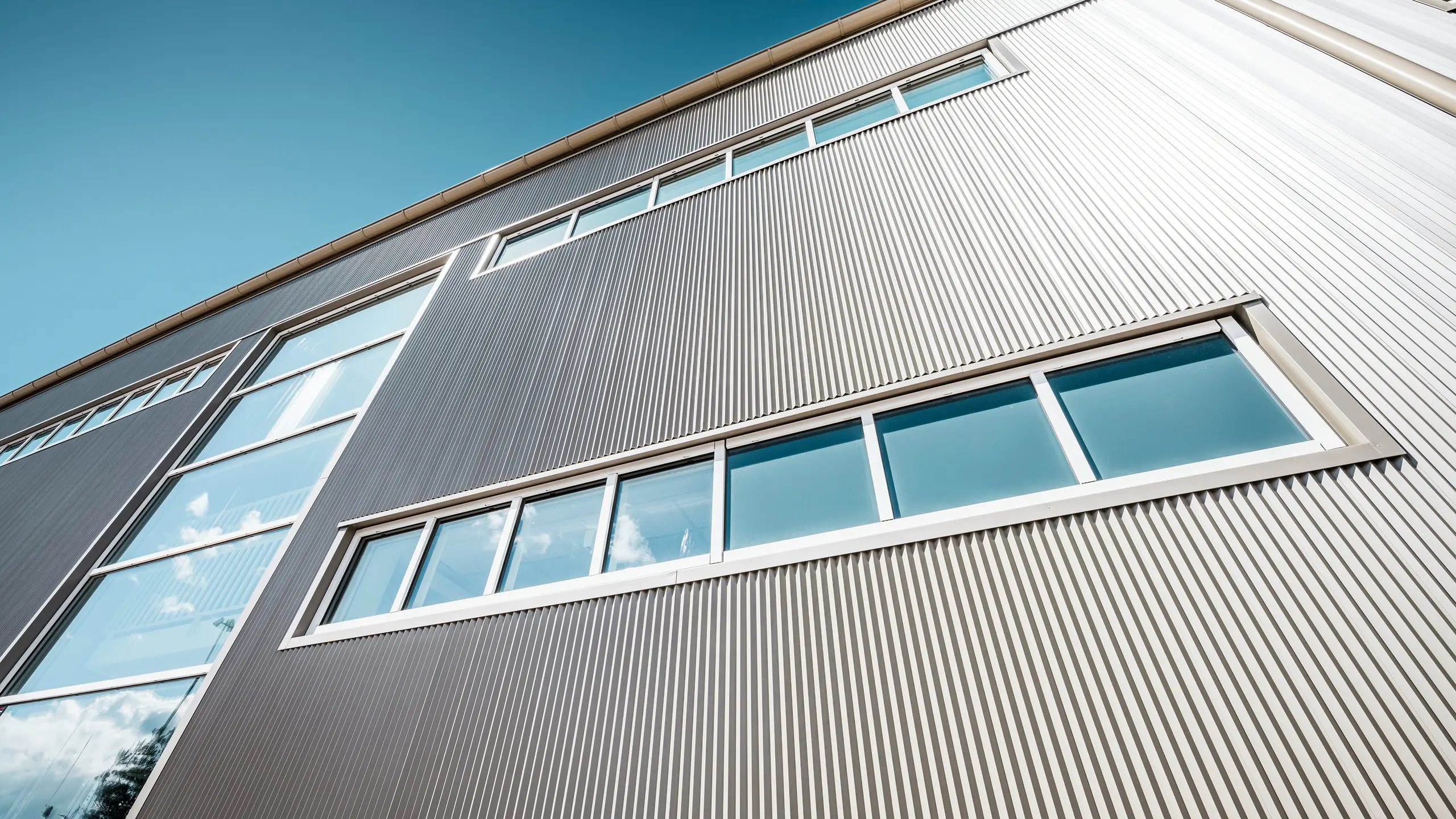

Sports facility in Sweden with the PREFA serrated extruded profile in the elegant bronze colour
The modern façade profile made of extruded aluminium creates interesting light and shade effects, giving the building not only an elegant appearance but also ensuring durability and resistance.

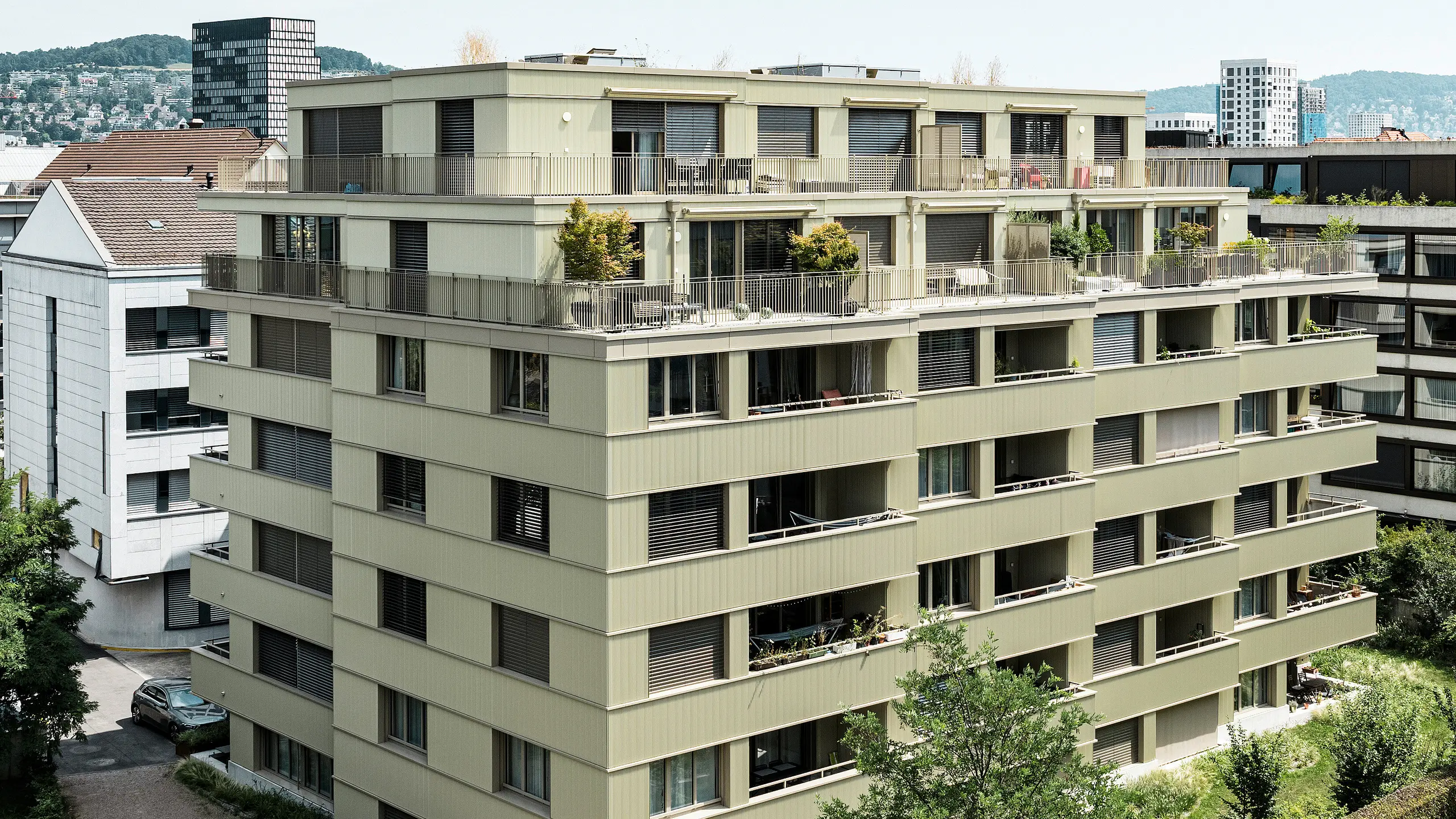

“Stetterhaus” with the PREFA serrated profile
The property is covered in a unique façade in the form of the PREFA serrated extruded profile in the special colour pearl metallic.

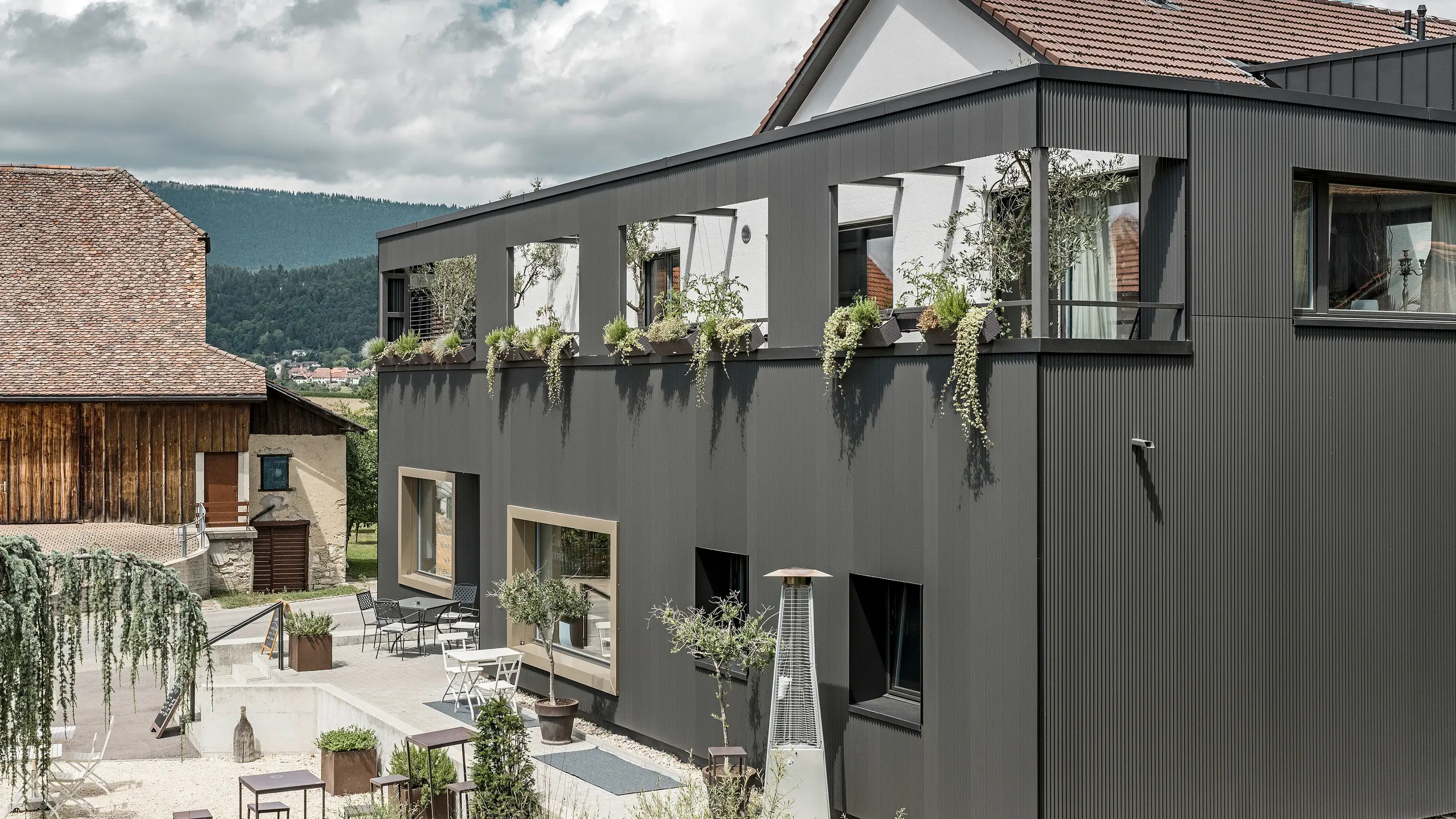

Hôtel de l’Ours Prêles
The PREFA serrated profile in the special colour black grey was installed over an area of around 350m² on the Hôtel de l'Ours in Prêles.

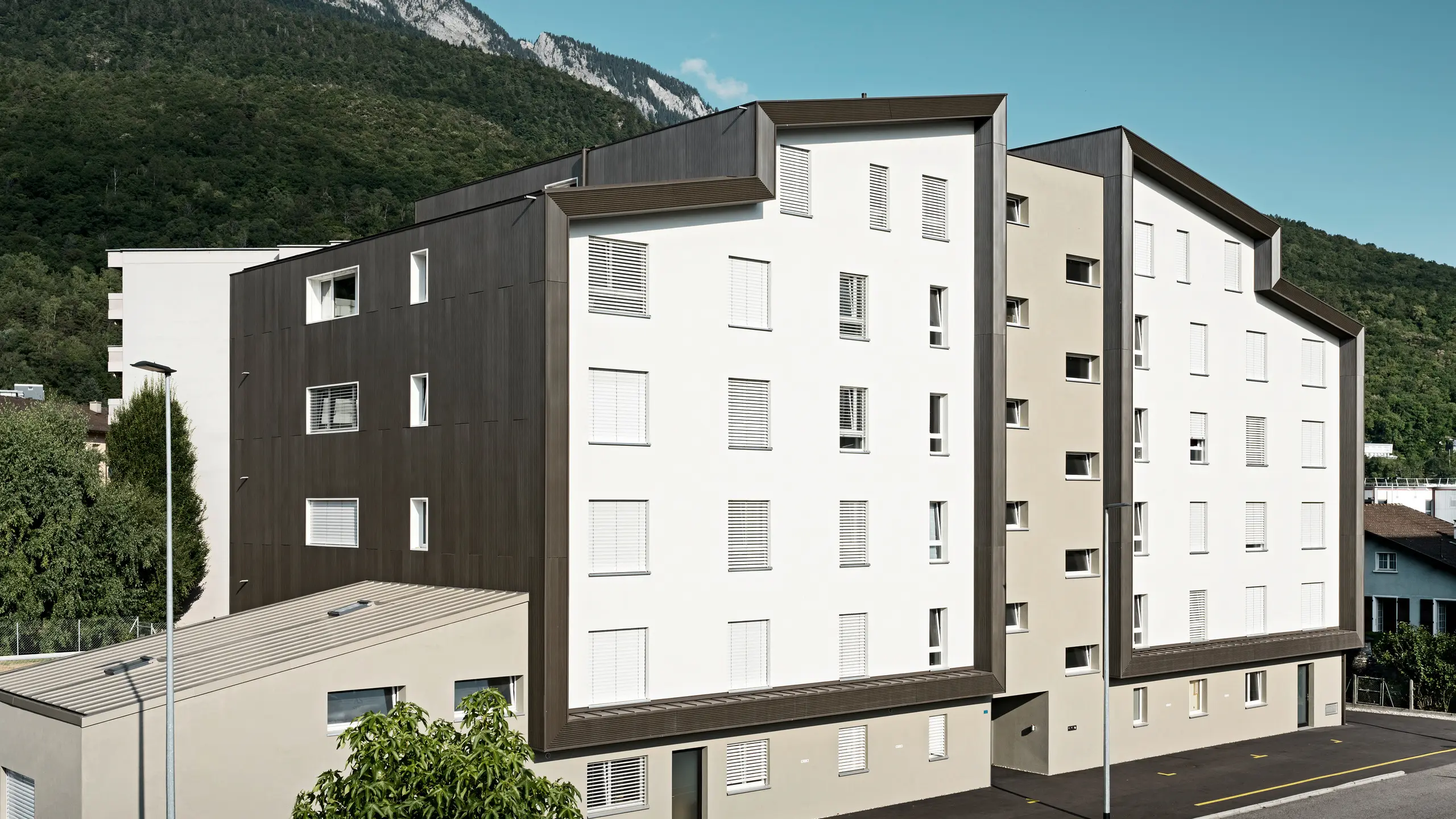

“Les Dailles” apartment complex with the PREFA serrated profile
The façade of the “Les Dailles” apartment complex in Monthey (Switzerland) was extensively clad with the PREFA serrated extruded profile in the special colour bronze.

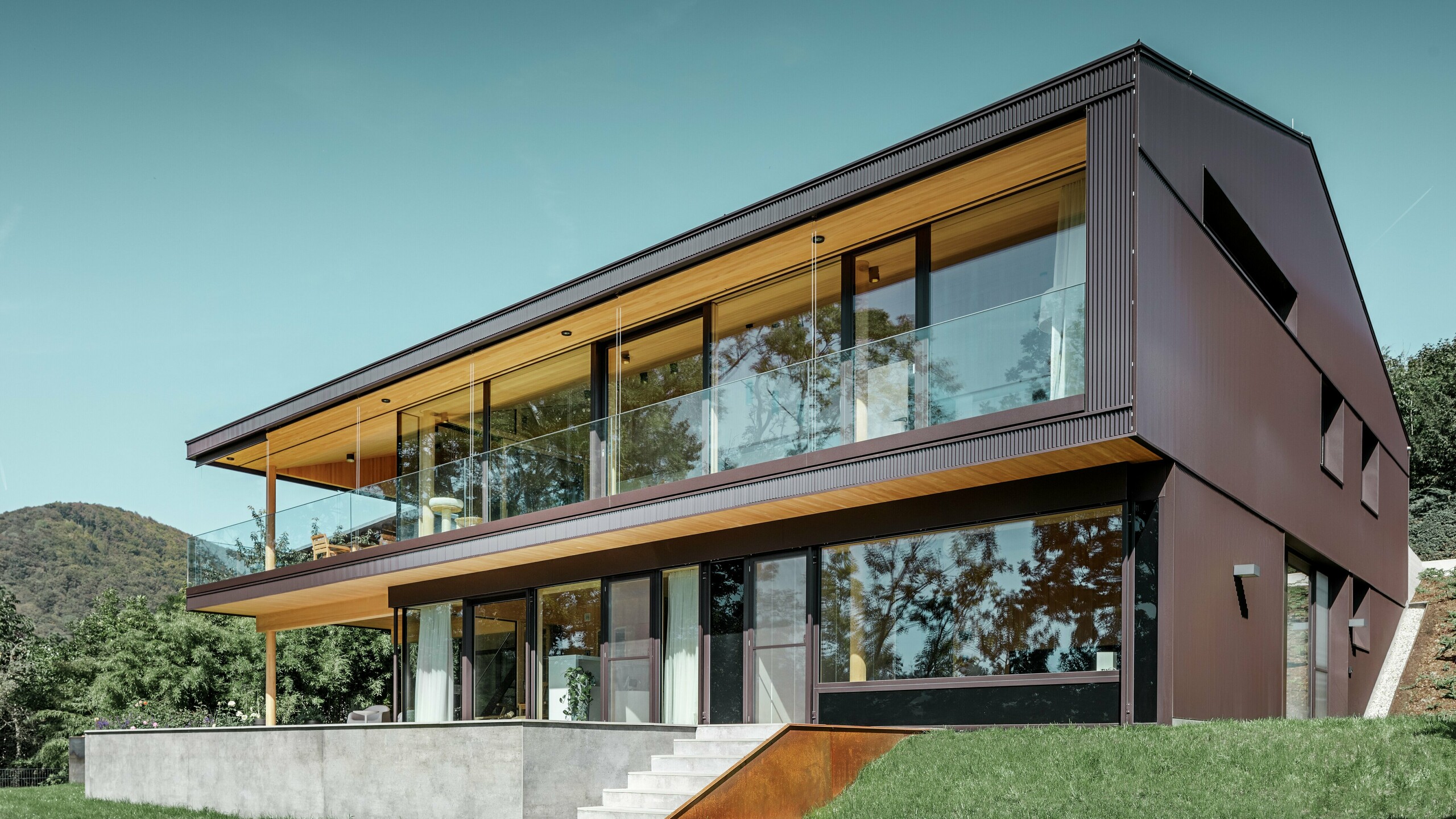

PREFA serrated profile in nut brown as façade cladding
This modern detached house is located in the heart of the countryside. The façade of the building was clad with the PREFA serrated profile in nut brown. The cladding thus fits both the house and the surrounding landscape.

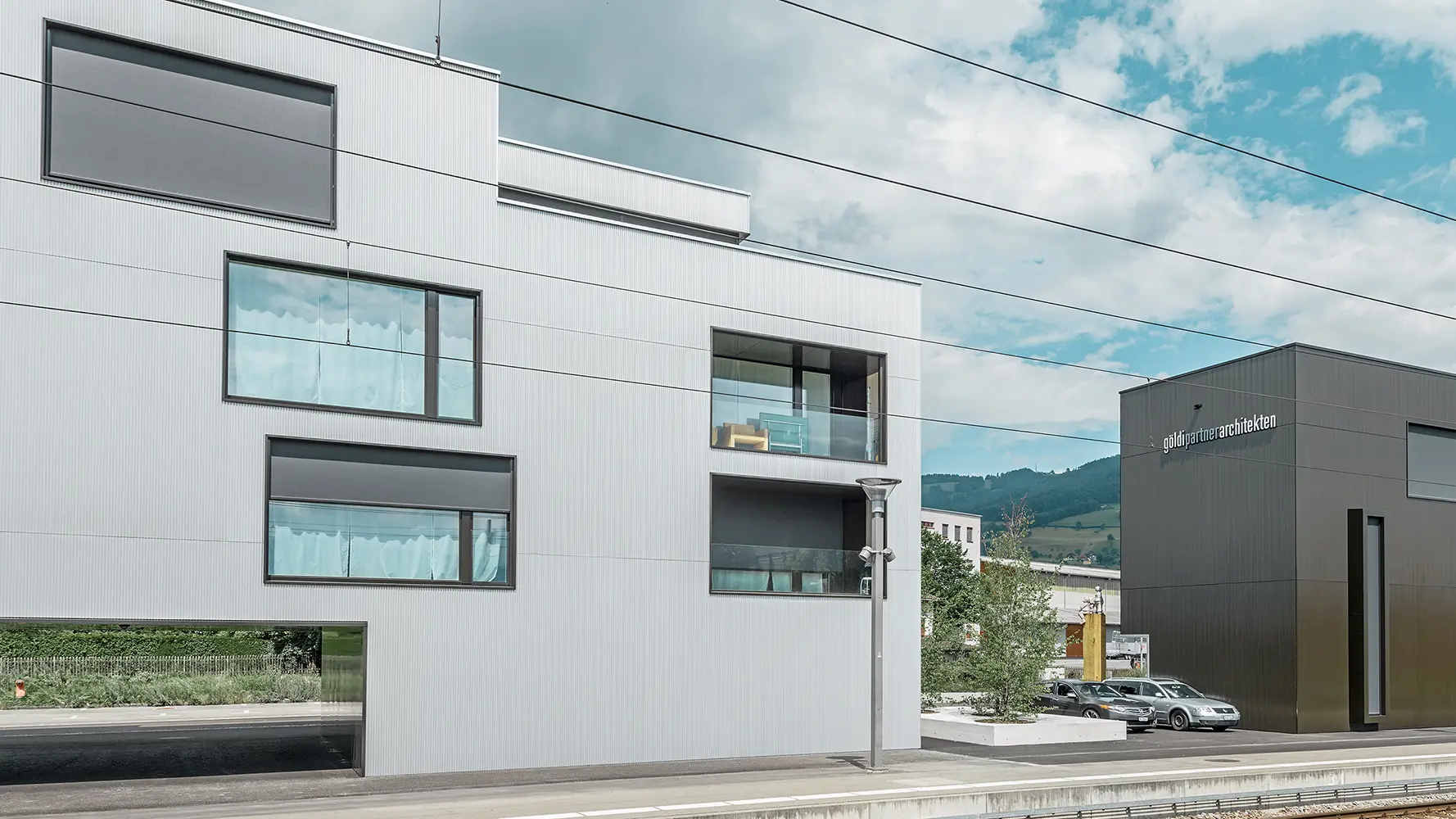

Apartment and office buildings with the PREFA serrated profile
These apartment and office buildings are clad with the PREFA serrated profile in the colours anodised plain aluminium and Umbra dark grey.

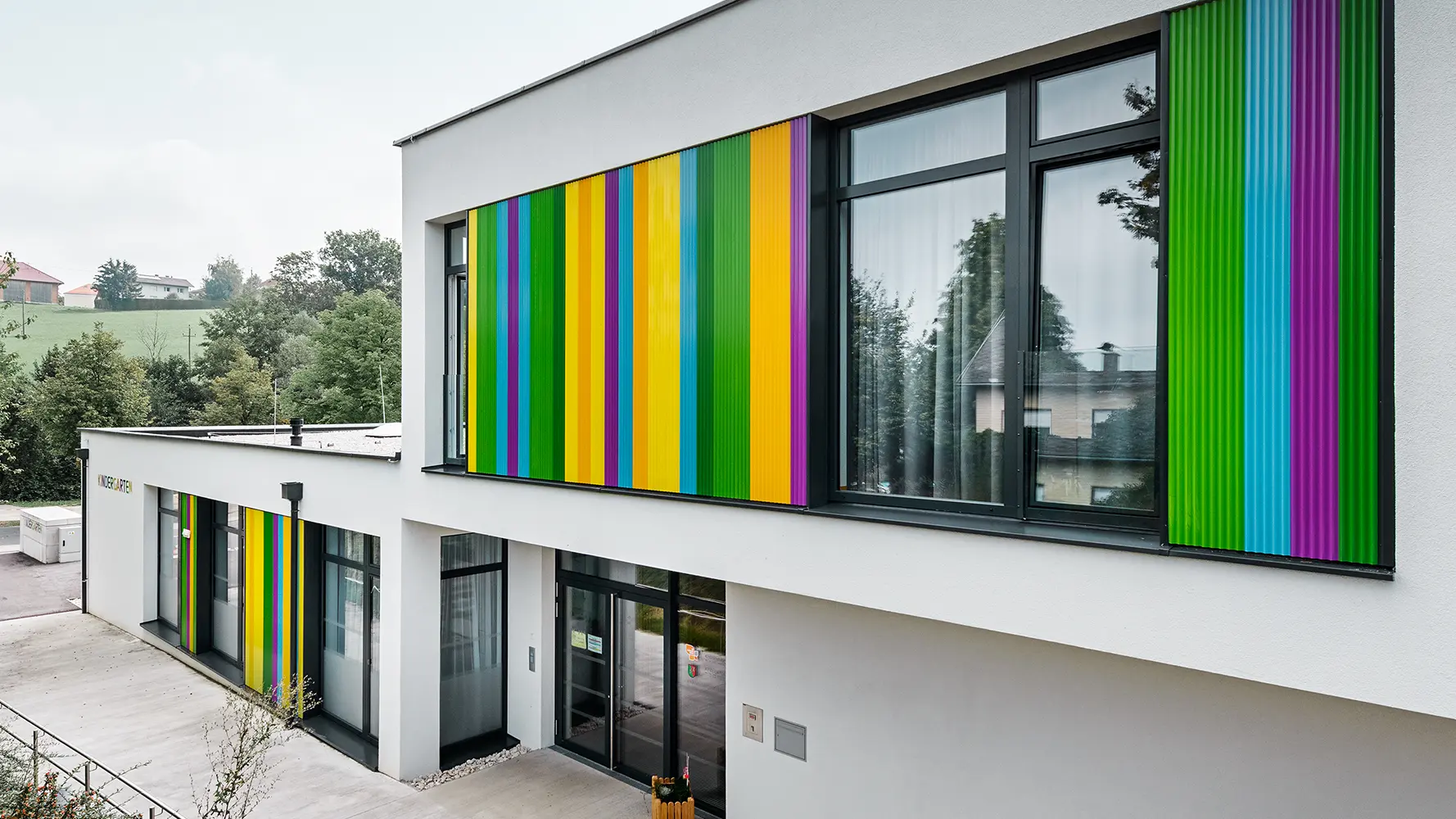

Colourful façade cladding with the PREFA serrated profile
At this kindergarten in Hargelsberg, Austria, playful accents were added to the façade using the PREFA serrated extruded profile. The colourful PREFA façade elements combined with stucco give the building an extraordinary appearance.
Detached house with the PREFA serrated profile in bronze
Amman coffee shop with the PREFA serrated profile in black

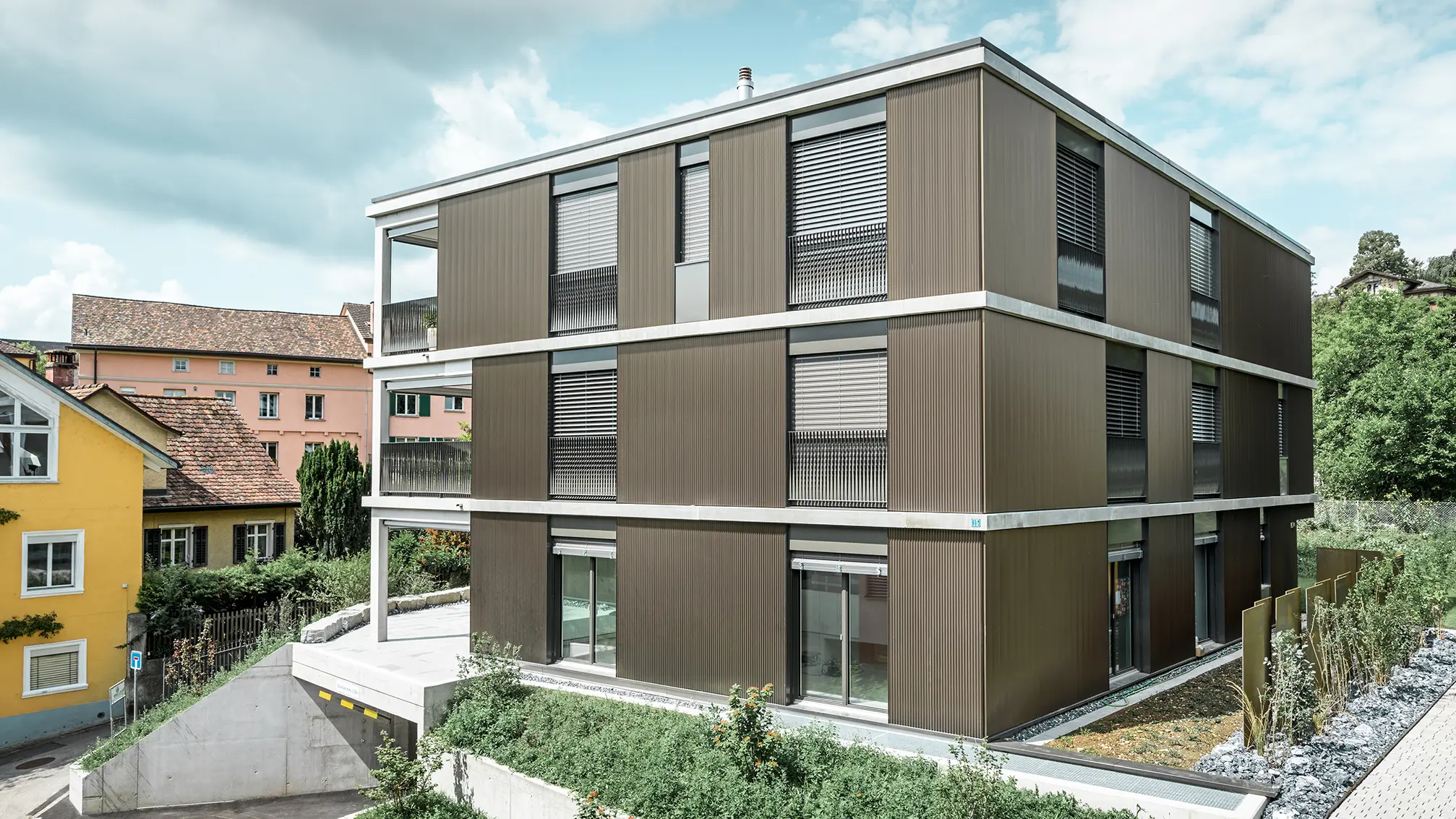

Apartment building in Schaffhausen with the PREFA serrated extruded profile
The vertical alignment breaks the proportions and makes the building appear visually compact. The colour adds a pleasant elegance to the neighbourhood.
Technical information

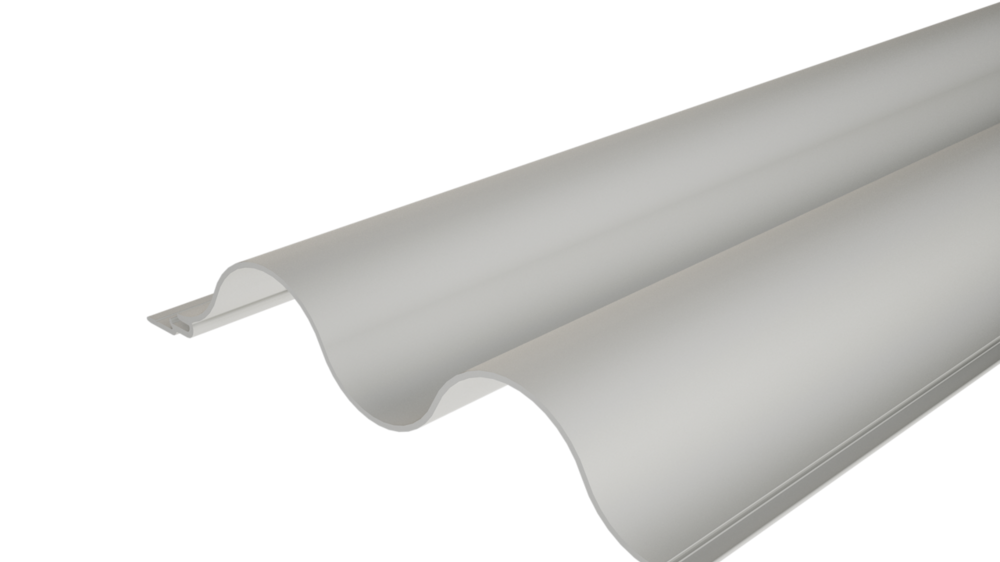

Ripple |
Serrated |
|
Material |
Extruded aluminium with a thickness of 1.8 mm |
Extruded aluminium with a thickness of 1.8 mm |
Dimensions (profile height/spacing/material thickness) |

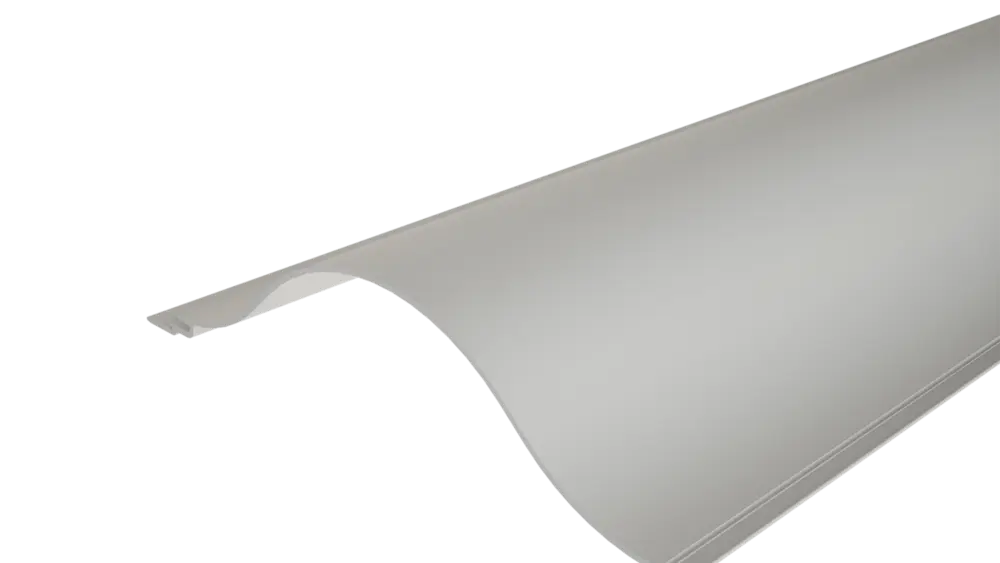

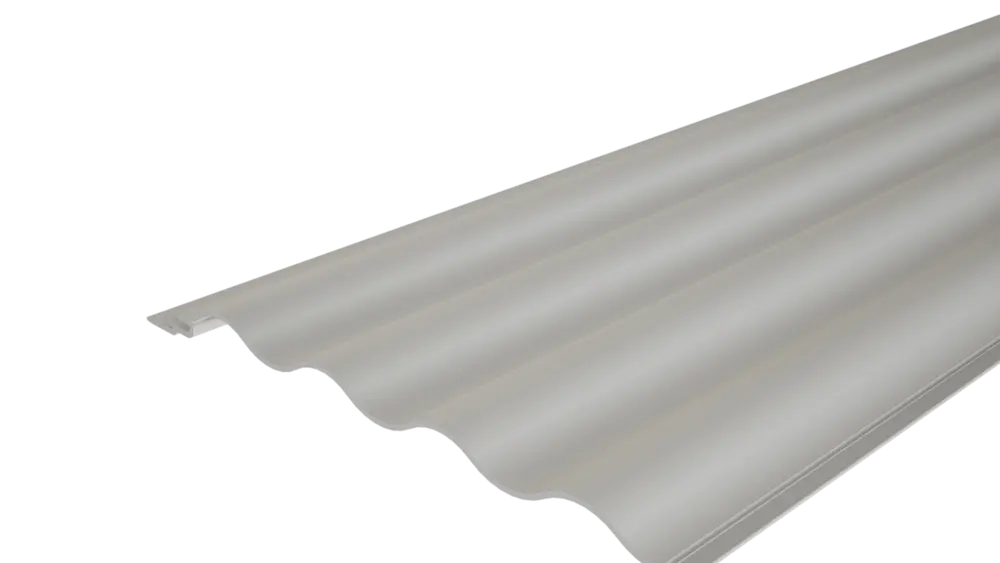

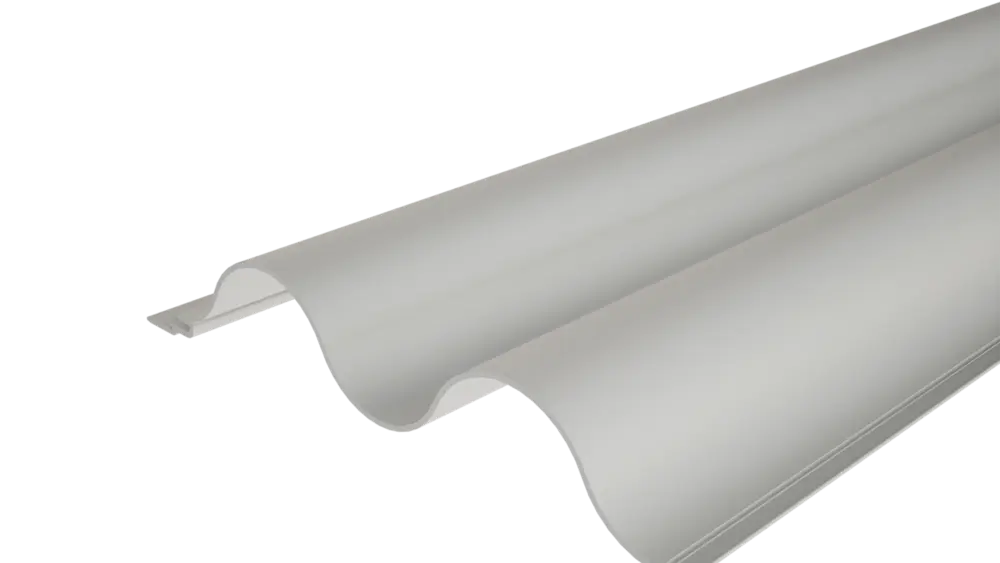

Ripple 10/50/1,8 mm Ripple 22/100/1,8 mm Ripple 34/100/1,8 mm Ripple 44/200/1,8 mm |
Serrated 18/40/1,8 mm Serrated 29/33/1,8 mm |
Weight |
Ripple 10/50: 6,4 kg/m² Ripple 22/100: 6,6 kg/m² Ripple 34/100: 7,3 kg/m² Ripple 44/200: 6,6 kg/m² |
Serrated 18/40: 7,4 kg/m² Serrated 29/33: 10,5 kg/m² |
visible width |
uniform 200 mm |
uniform 200 mm |
Laying directions |
horizontal, vertical or diagonal |
horizontal, vertical or diagonal |
Fastening |
screwed in a concealed manner with the sliding clip to the aluminium, steel or timber supporting sub-structure according to static requirements |
screwed in a concealed manner with the sliding clip to the aluminium, steel or timber supporting sub-structure according to static requirements |
Lengths |
Uncoated piece lengths: up to max. 6,200 mm Powder-coated piece lengths: up to max. 6,200 mm |
Uncoated piece lengths: up to max. 6,200 mm Powder-coated piece lengths: up to max. 6,200 mm |
Planning
Here, our installers and architects can download specification documents and details about extruded profiles.
Technical details
Accessories for extruded profiles
The range of accessories for extruded profiles with starter, junction and corner profiles ensures easy, trouble-free installation. For aesthetically pleasing joints and end pieces, colour-coordinated flashings are available – they give the façade a particularly harmonious surface effect. The system is technically advanced, as it can be installed in such a manner with a sliding clip that it can expand, thus balancing out temperature-induced pressures and deformations.
Sliding clip for PREFA ripple and serrated profiles
Allows sufficient expansion of

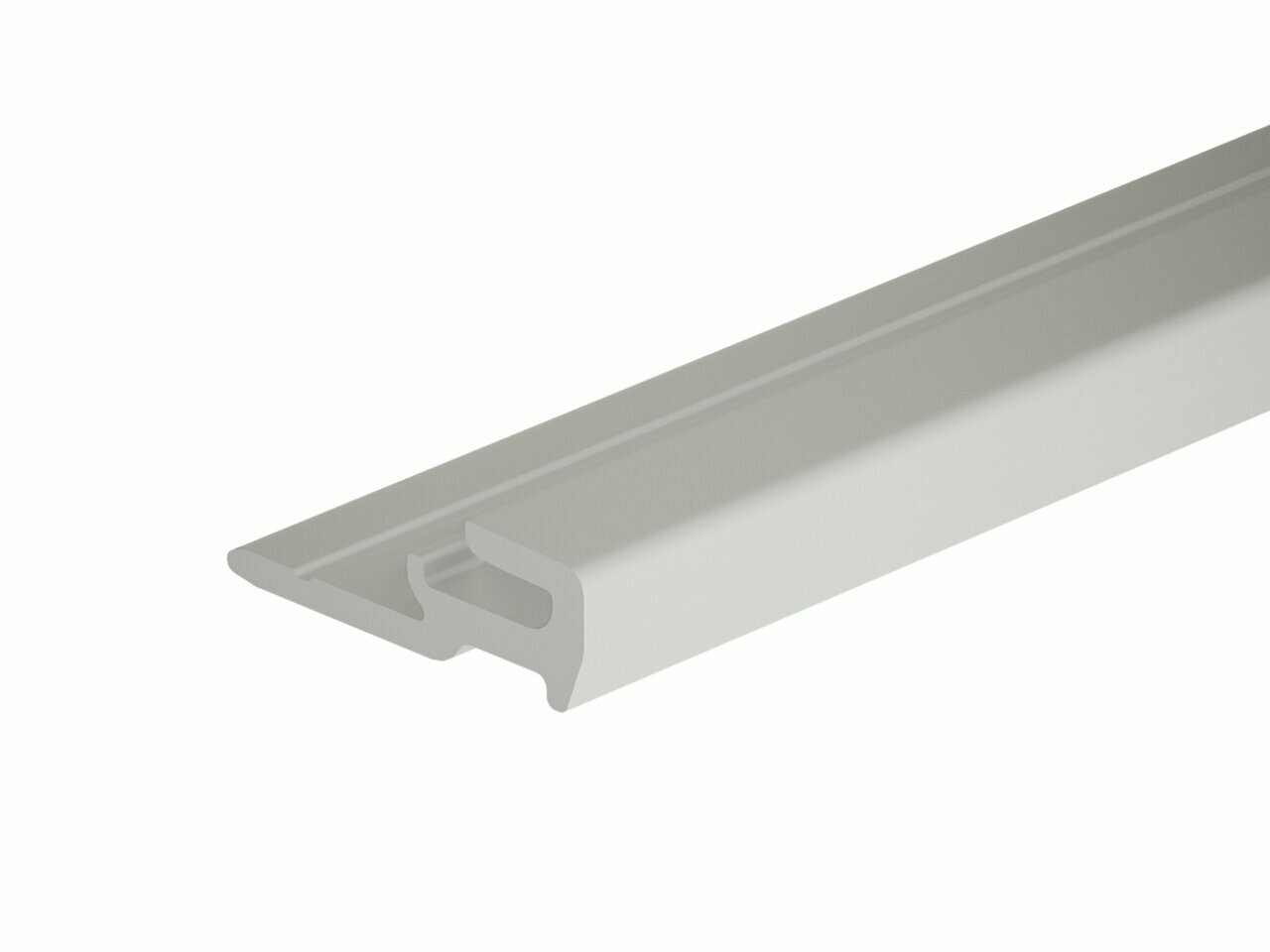

Starter profile for PREFA ripple and serrated profiles
3.000 mm
Balcony rivet
5 × 14 mm, head diameter: 15 mm

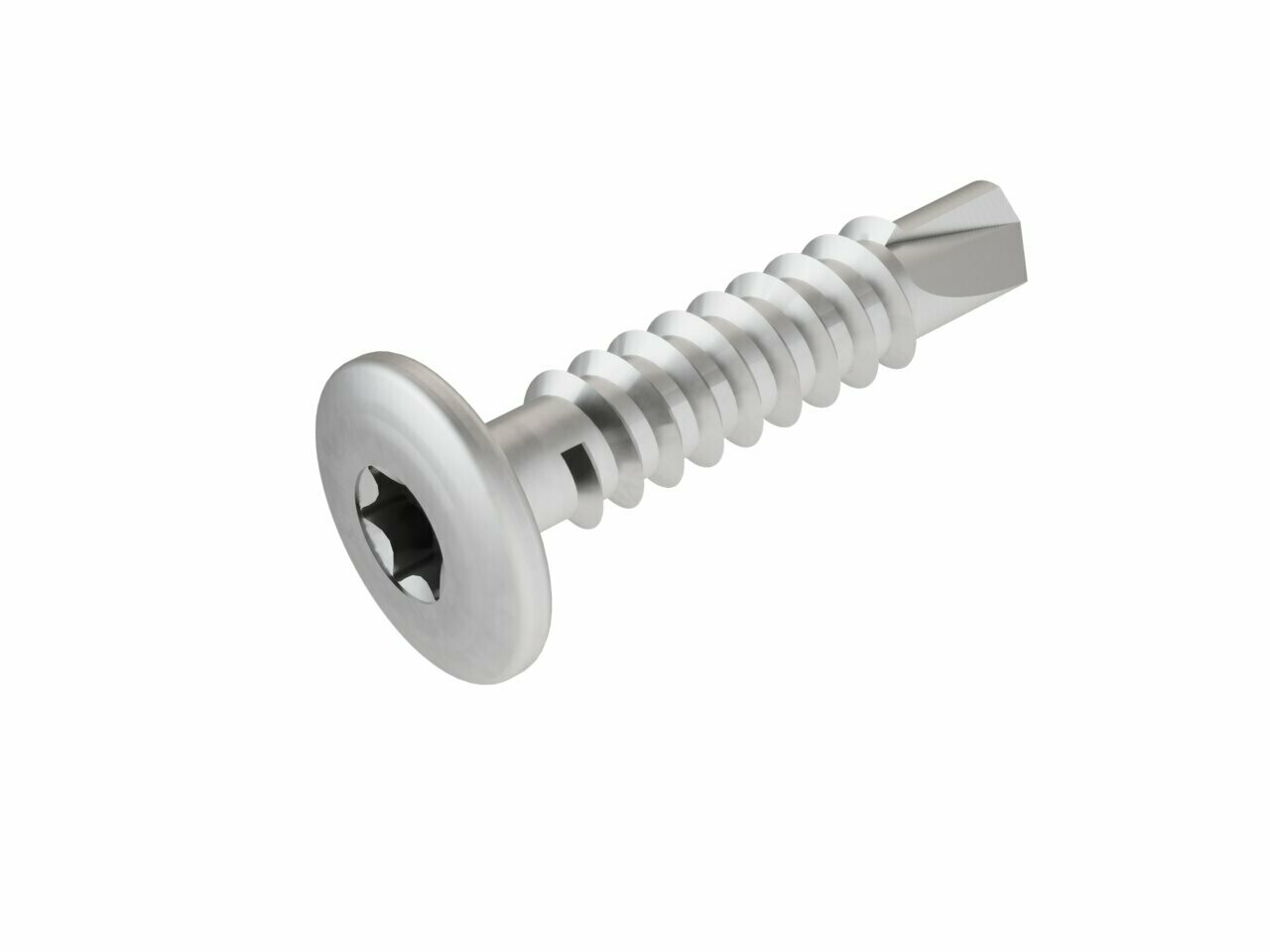

Special screw for aluminium sub-structure framework
For fastening extruded profiles, with hardened drill point.

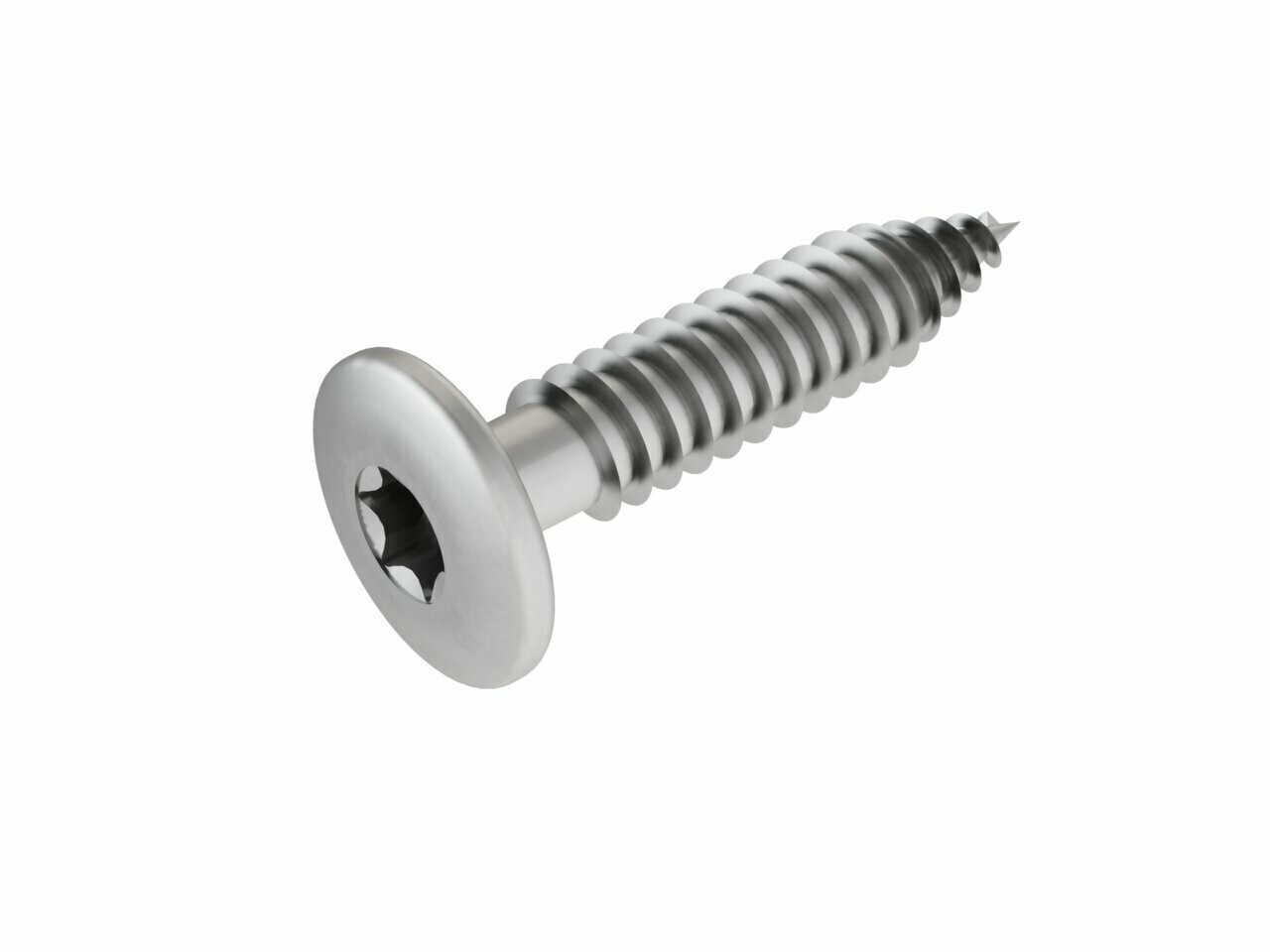

Special screw for steel sub-structure framework
For fastening extruded profiles, with hardened drill point.
Special screw for timber sub-structure framework
For fastening extruded profiles
