Façade shingle

A sophisticated installation technique and the broad range of colours ensure attractive and harmonious façade surfaces.

+7
read more

Small-format façade shingles are the popular classics of façade design. Thanks to their flexibility, small, narrow spaces can be realised in the same way as larger façades — and always with top technical quality, of course. Owing to their concealed fasteners, the PREFA small-format façade shingles also create an attractive appearance that meets even the highest expectations.

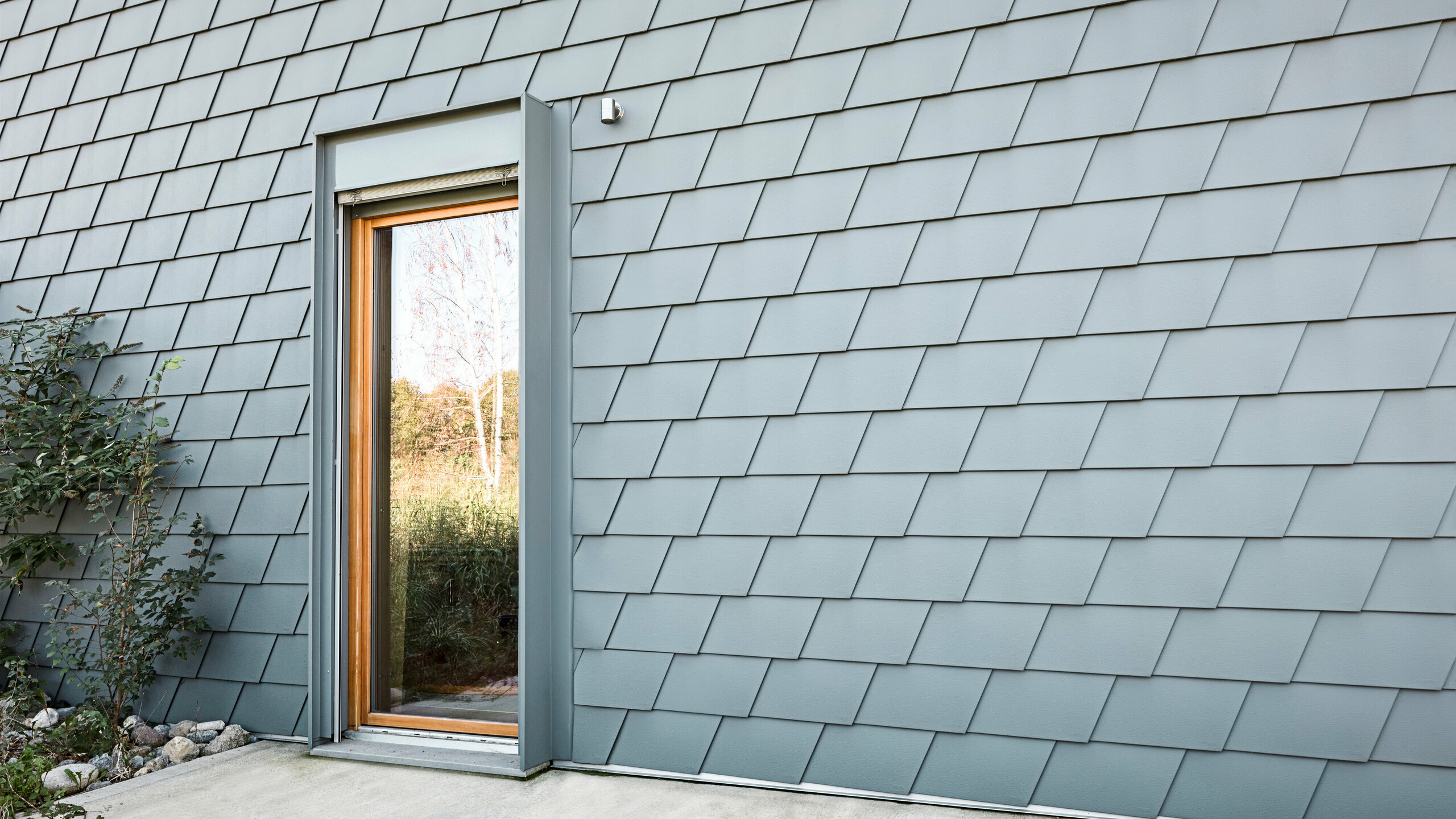

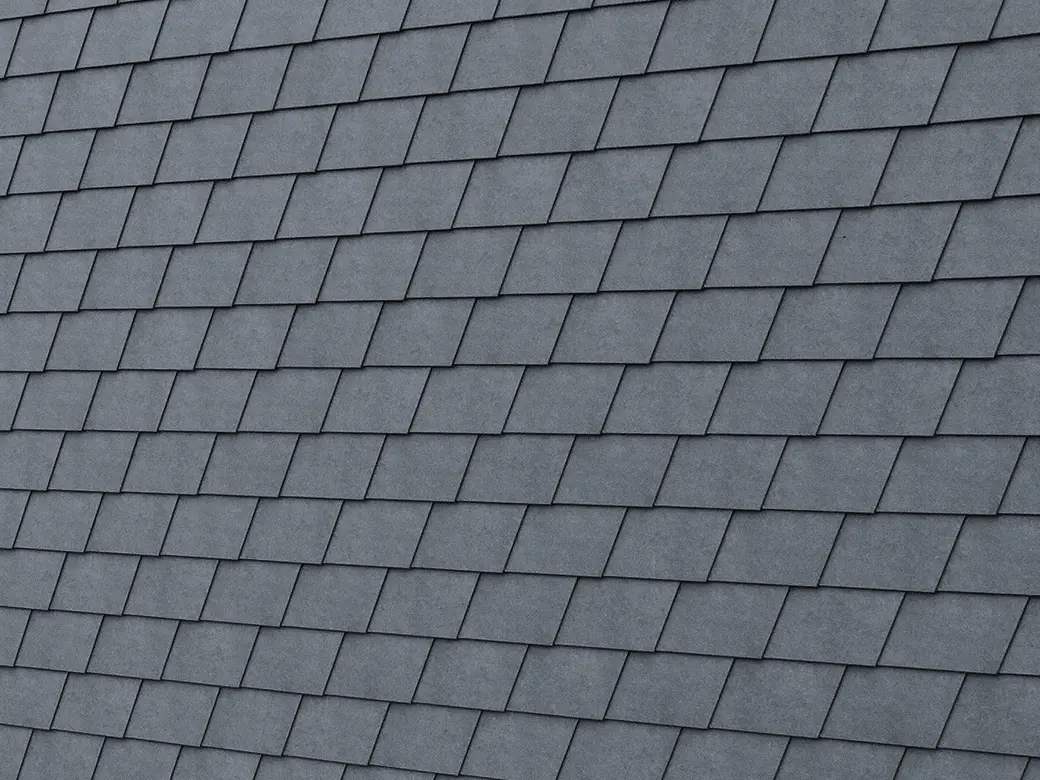

PREFA Wandschindel in P.10 Steingrau Detailaufnahme

Colour overview (11)

The product is available in the following colours:

Colour

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

43 Steingrau

P.10 stone grey

7031

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

Façade shingle — Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

420×240 mm (cover), i.e. 10 pc./m²

Weight

approx. 2.5 kg/m²

Supporting substrate*

on fully boarded substrate (at least 24 mm)

* Observe country-specific standards and specialist guidelines.

Standard fastening

indirect fastening, 1 PREFA patent clip and ring nail per façade shingle (i.e. 10 PREFA patent clips and ring nails per m²)

Façade shingle — Planning and installation

More product information is available for downloading here.

Accessories

Patent clip for façade shingles and XL façade shingles

-

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

Fastener (metal screw)

for Sidings on an aluminium supporting substrate

Befestigungsmittel (Stahlschraube)

Spezialschraube für Stahl-Unterkonstruktionen, mit gehärteter Bohrspitze (rote Spitze nur zur Veranschaulichung)
