Ripple profile

Robust and attractive: The PREFA ripple profile is the ideal product for realising architectural dreams that are designed to last for generations.

read more

Modern façade design needs room for creative and innovative ideas. The PREFA ripple profile gives you complete flexibility for implementing your ideas. The range of accessories with starter, closing and corner profiles ensures easy, trouble-free installation.

Advantages of the ripple profile

Quick and easy to install

No visible fasteners

Available in powder-coated or plain aluminium

Horizontal, vertical and diagonal installation

Quick and easy to install

No visible fasteners

Available in powder-coated or plain aluminium

Horizontal, vertical and diagonal installation

Ripple profile — Technical information

General information:

made of extruded aluminium alloy
design protection no.  31230
for high-quality façade claddings

Visible width:

140 mm

Corrugation height:

10 mm

Distance between corrugations:

47 mm

Piece lengths:

up to max. 6,200 mm

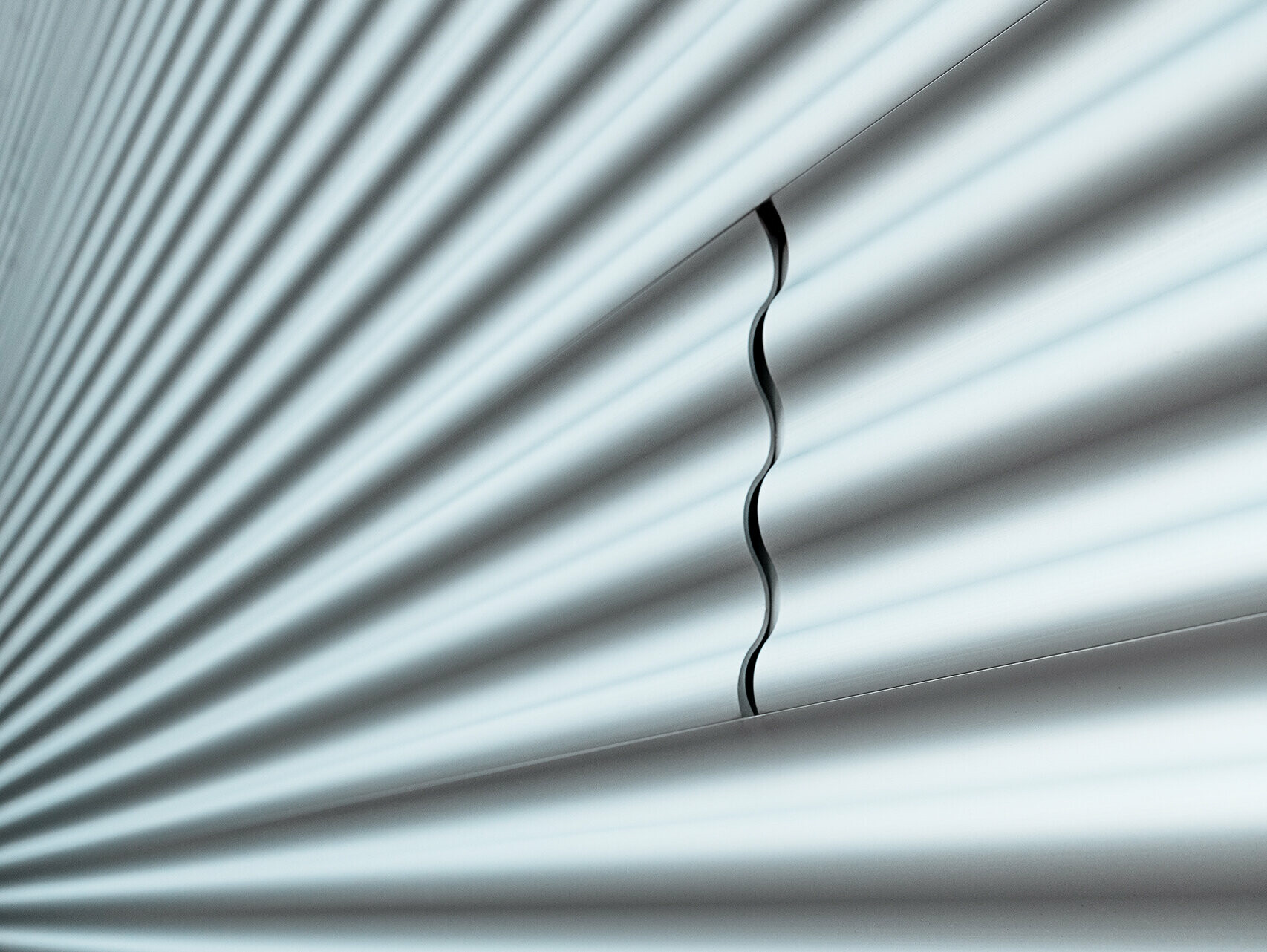

Side joints:

with 5–10 mm gap, depending on profile length

Implementation:

all laying directions allowed

– concealed fastening

– curves with a radius of min. 800 mm possible

Surface:

Plain aluminium – also available upon request: powder-coated in every RAL colour up to a length of max. 6,200 mm

Weight per m²:

6.62 kg

Ripple profile — Planning and installation

More product information is available for downloading here.

Note: Download DWG and DXF format files by right-clicking and selecting “Save link as”.

Accessories

Sliding clip for ripple profile and serrated profile

-

Starter profile for ripple profile

3.000 mm

External corner for ripple profile

3.000 mm

Closing profile for ripple profile

3.000 mm
