Serrated profile

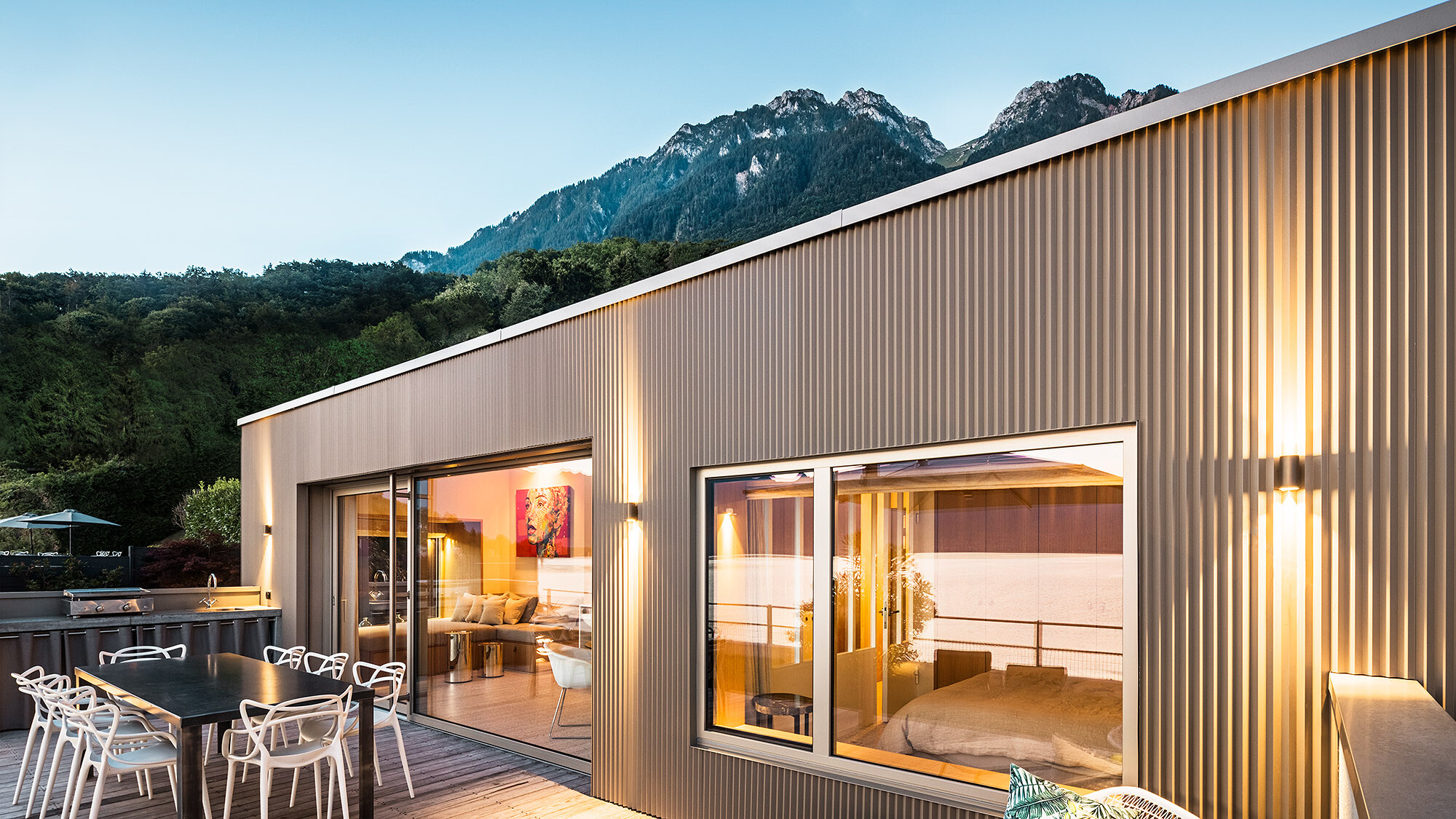

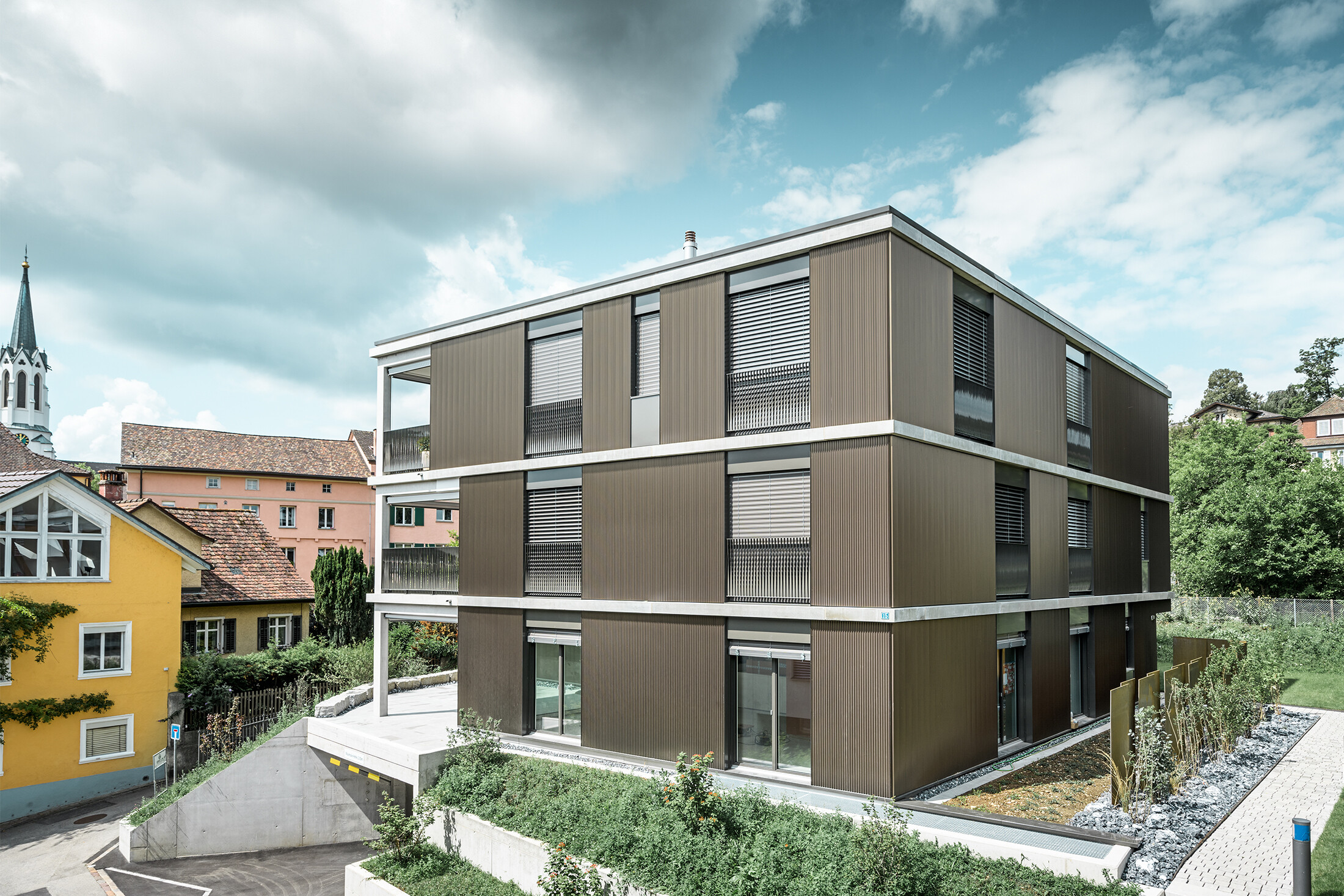

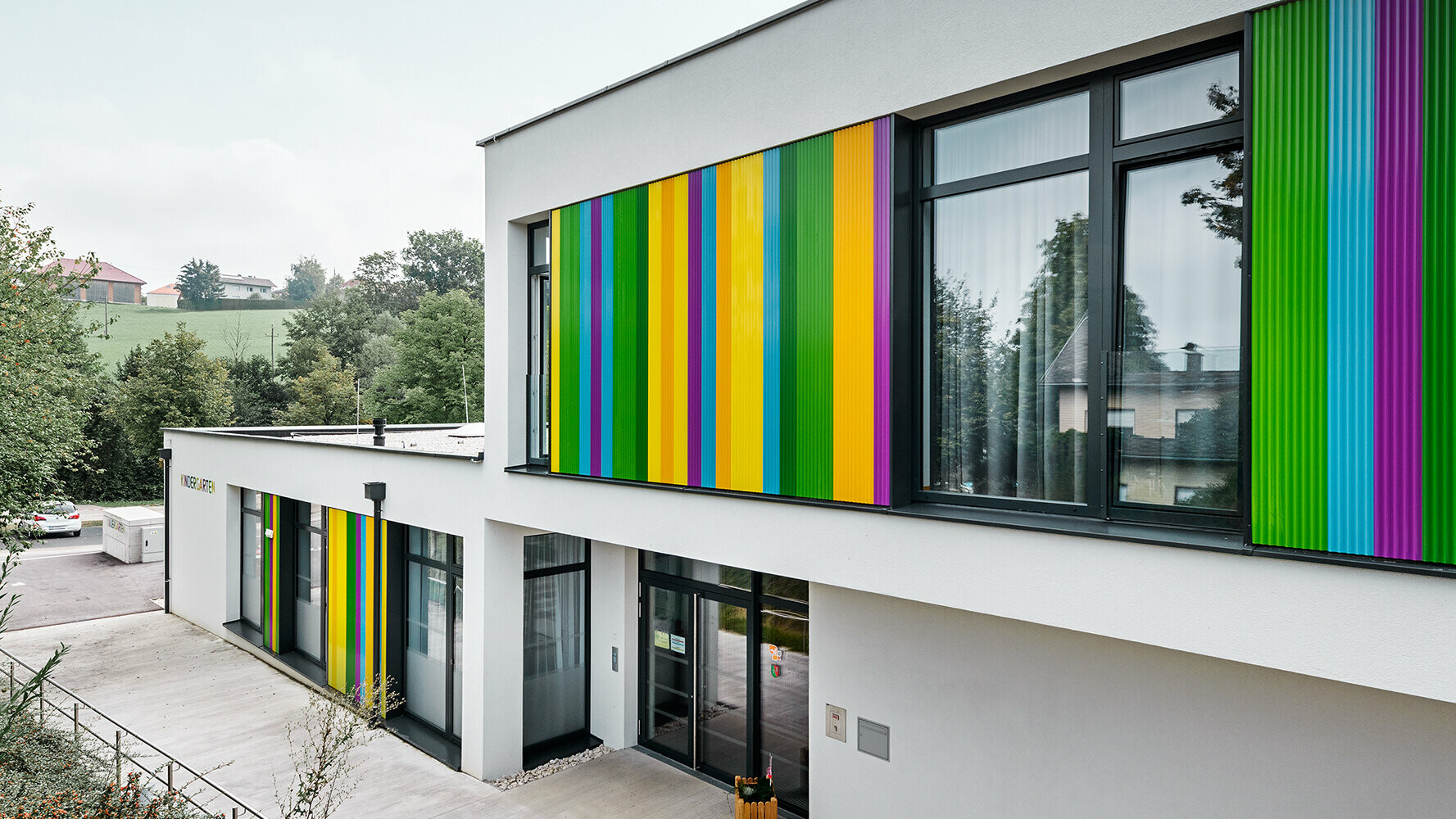

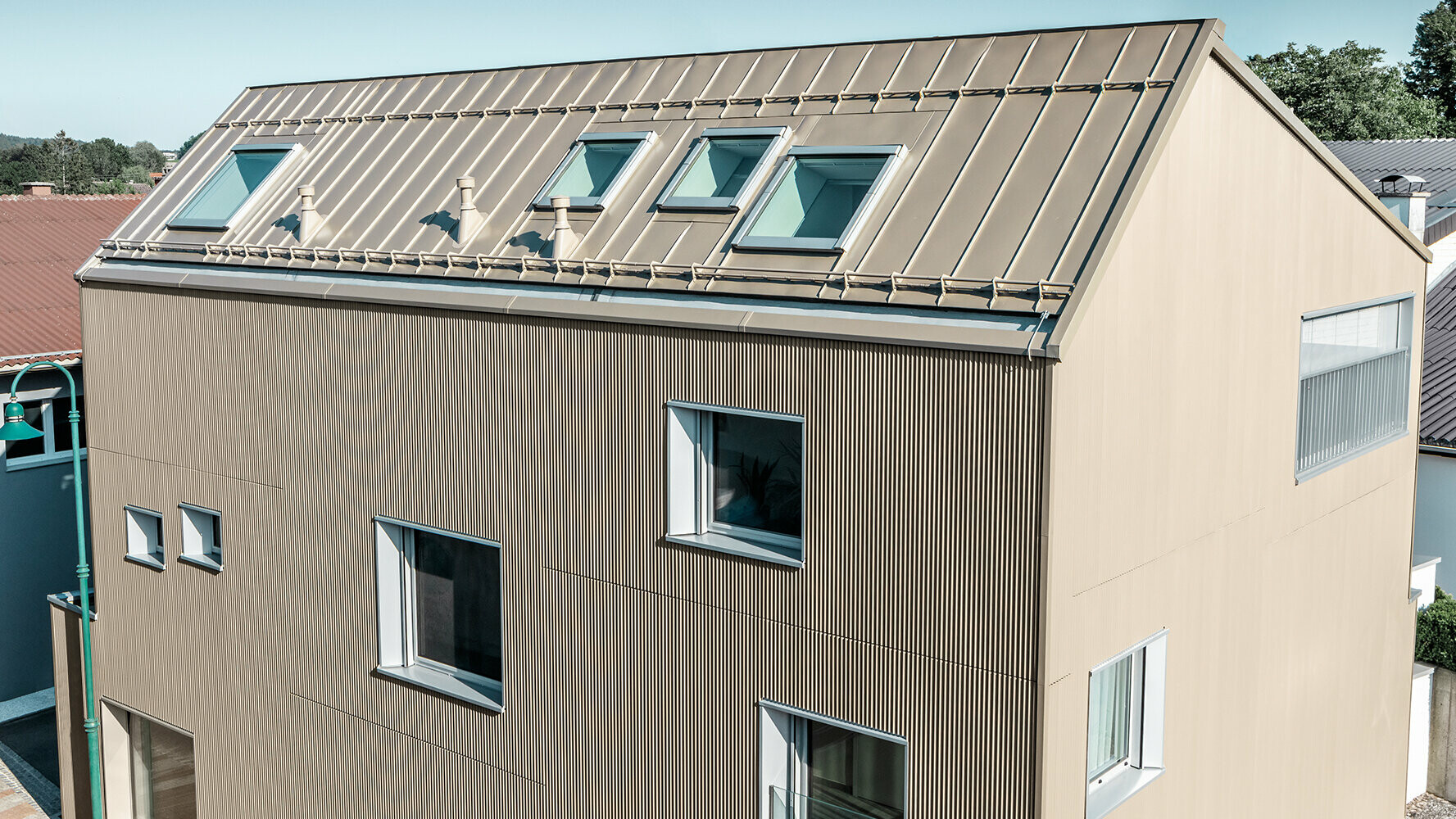

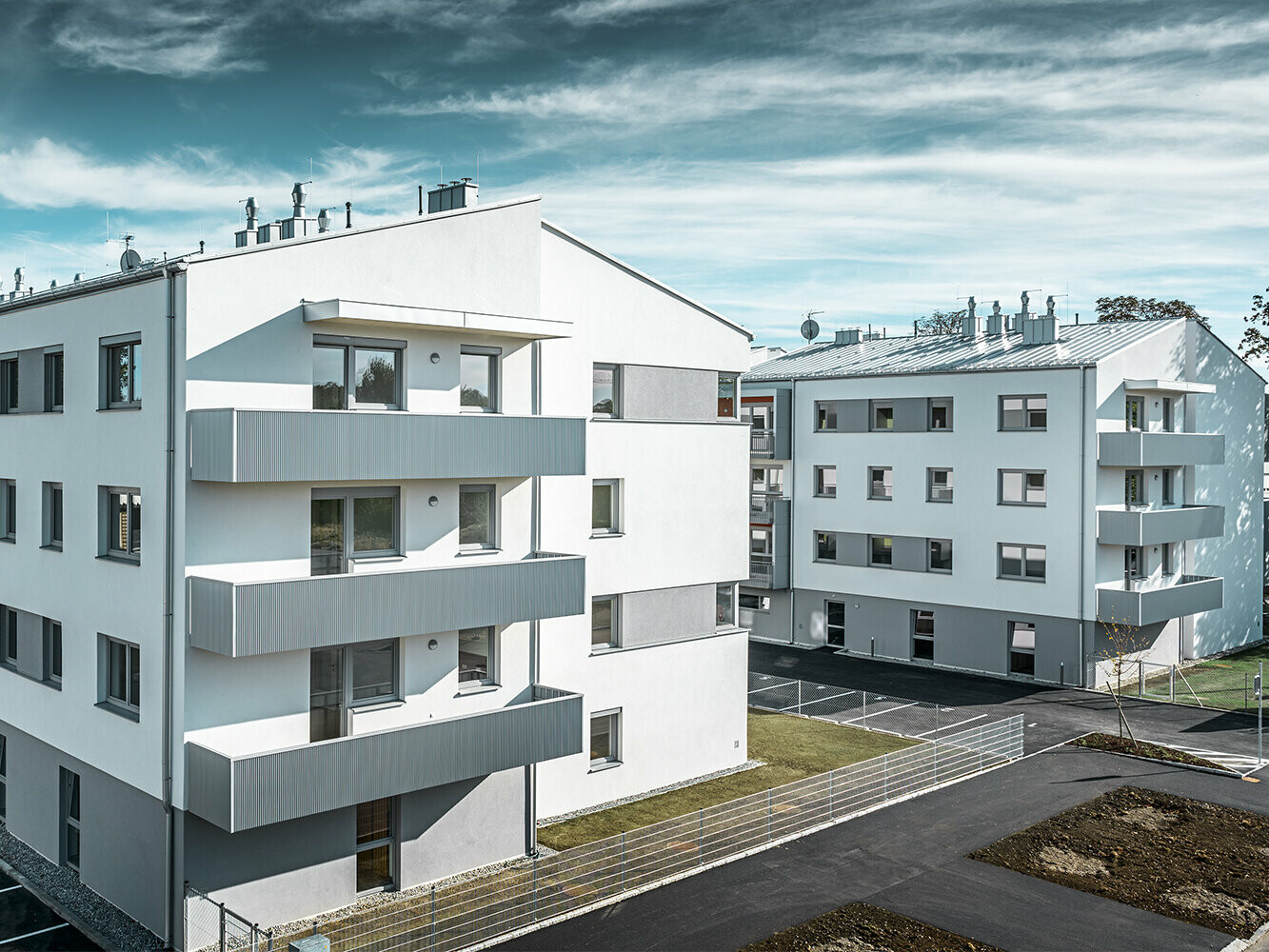

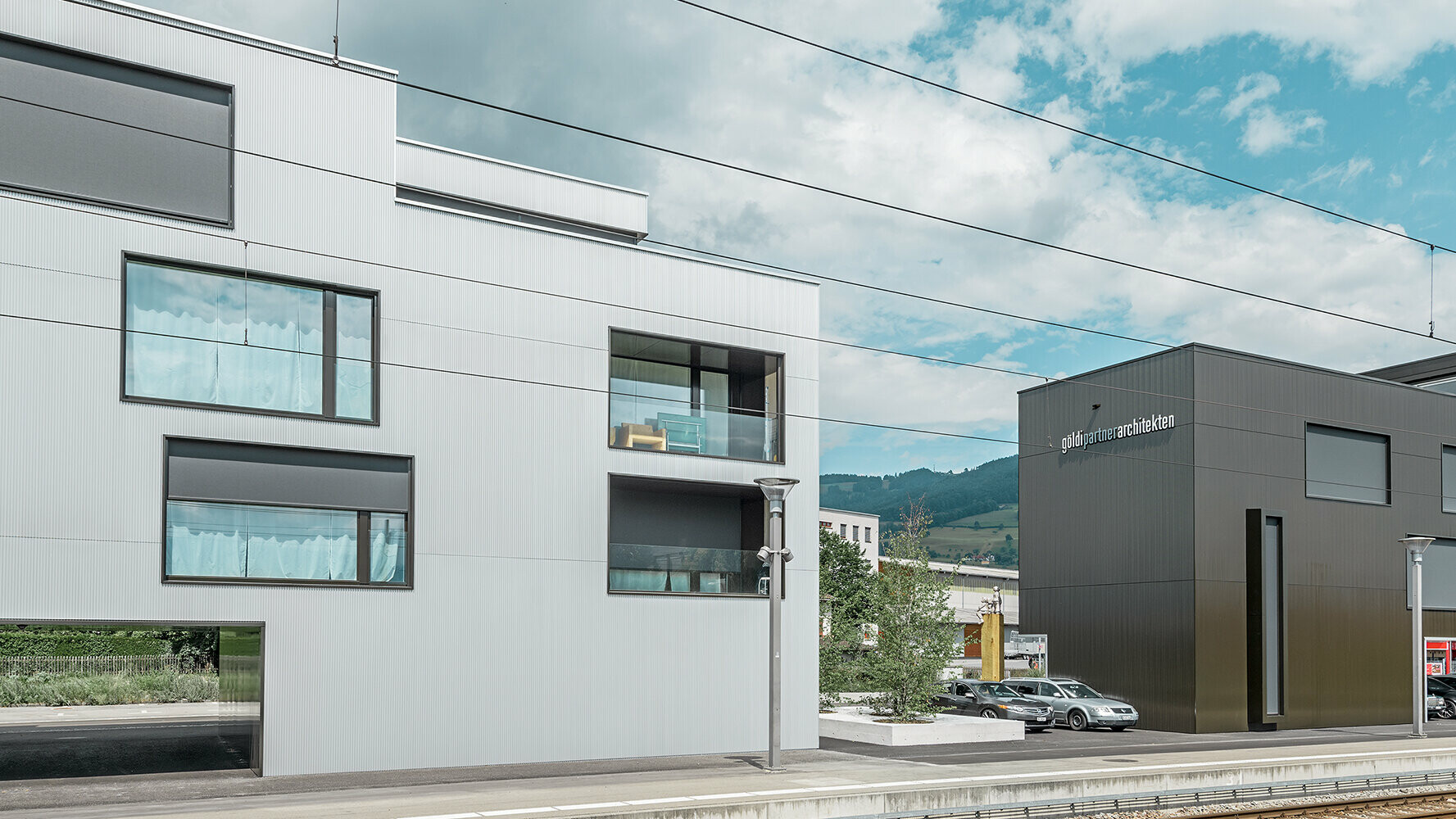

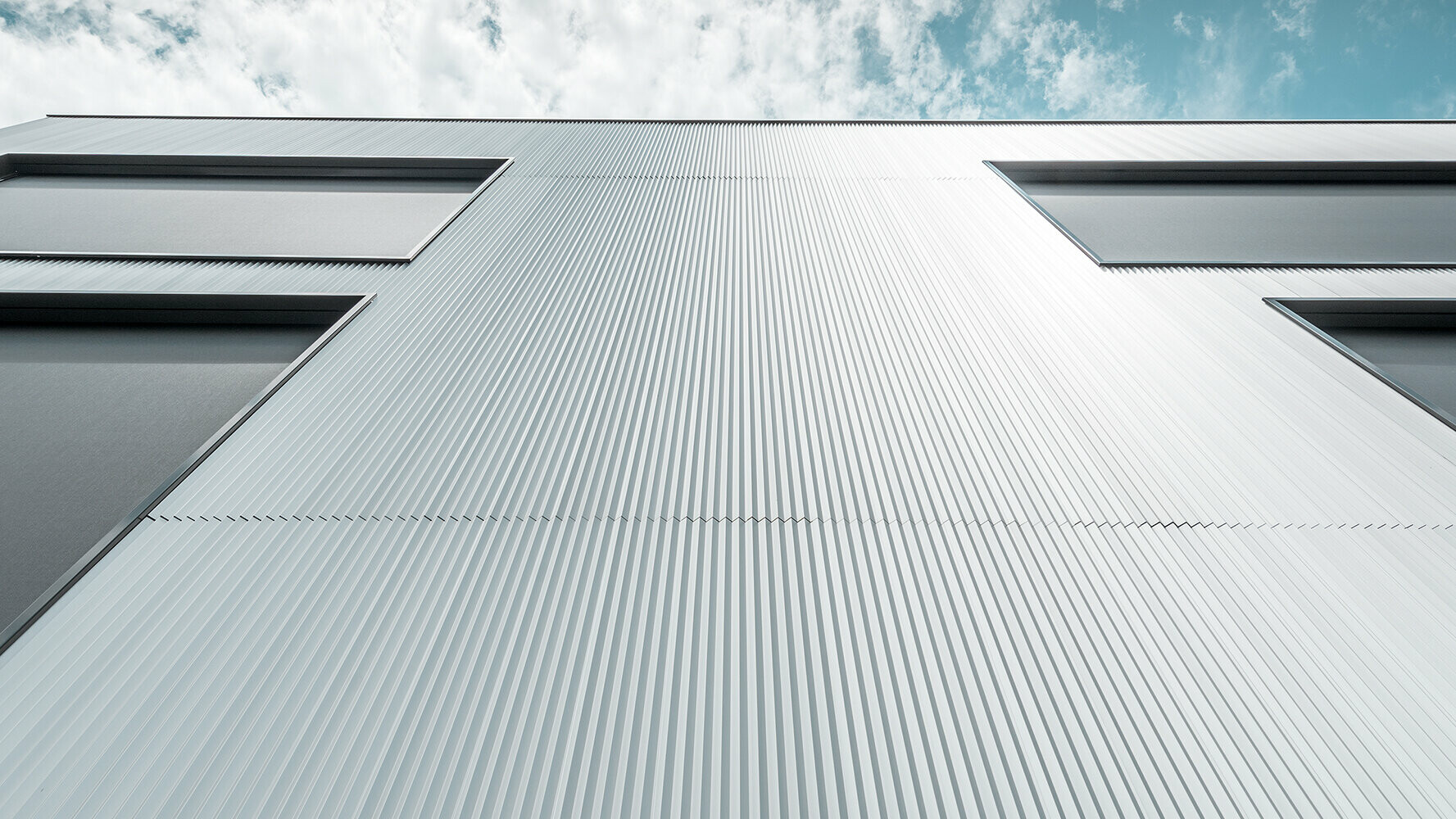

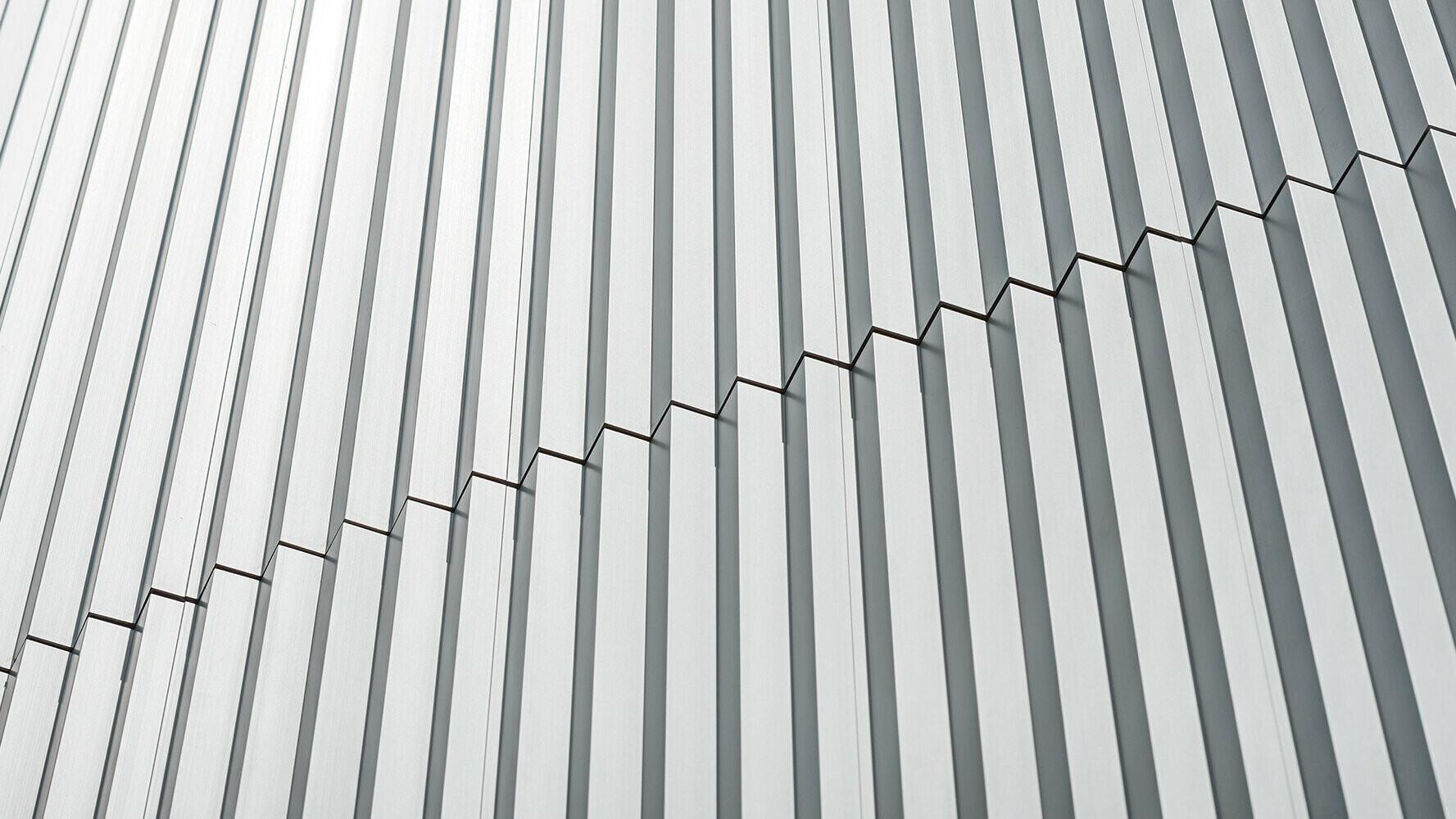

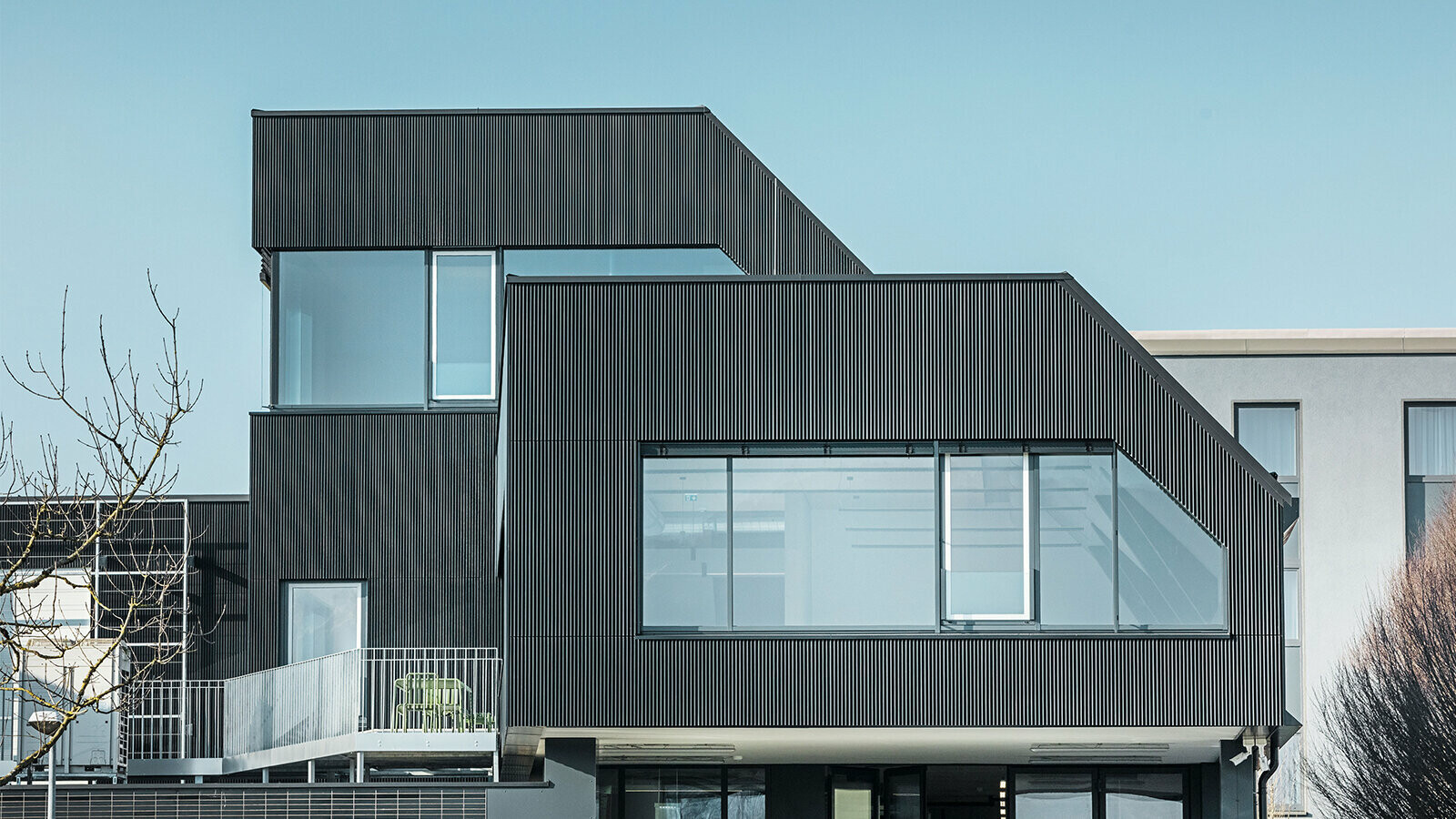

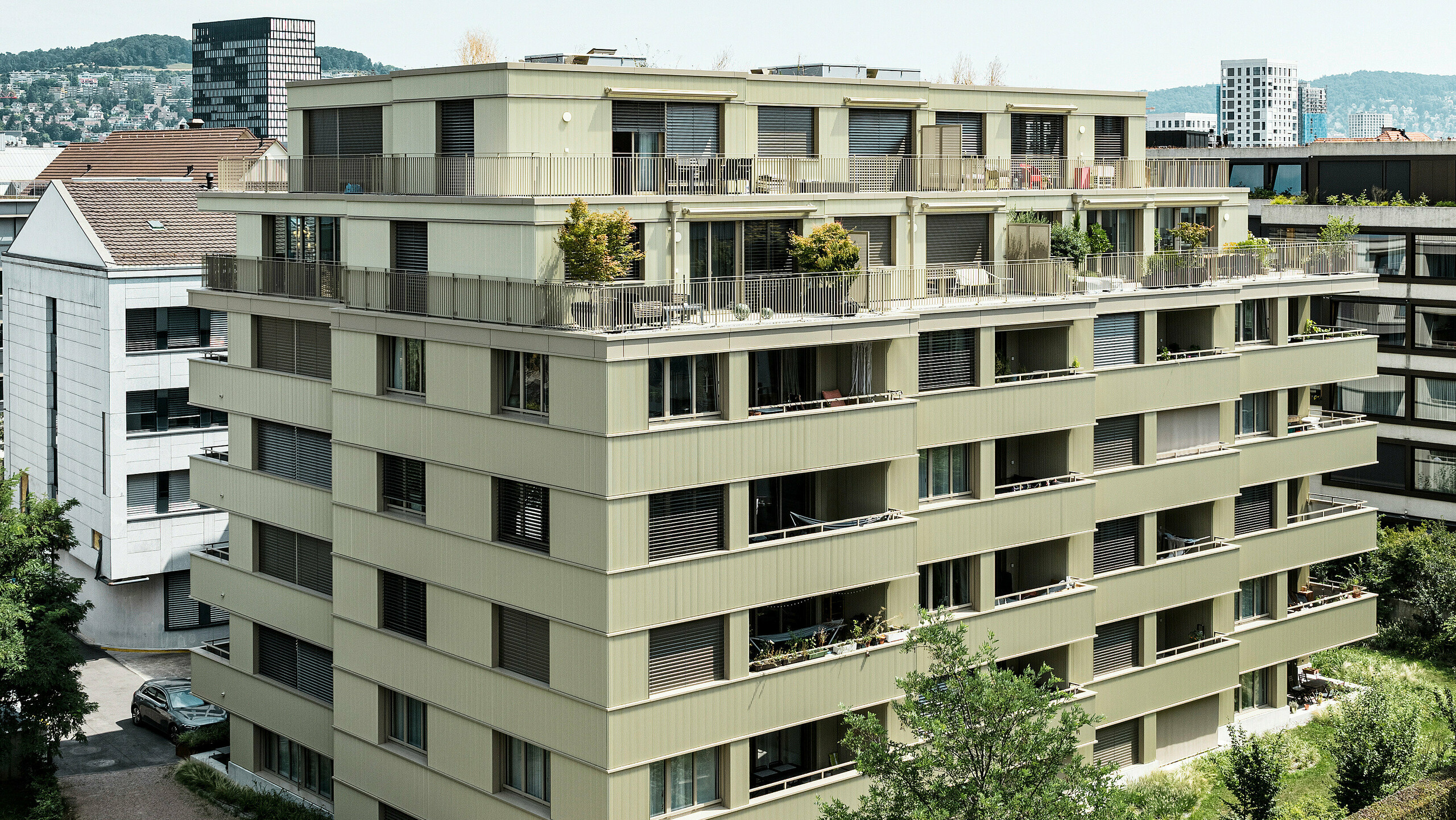

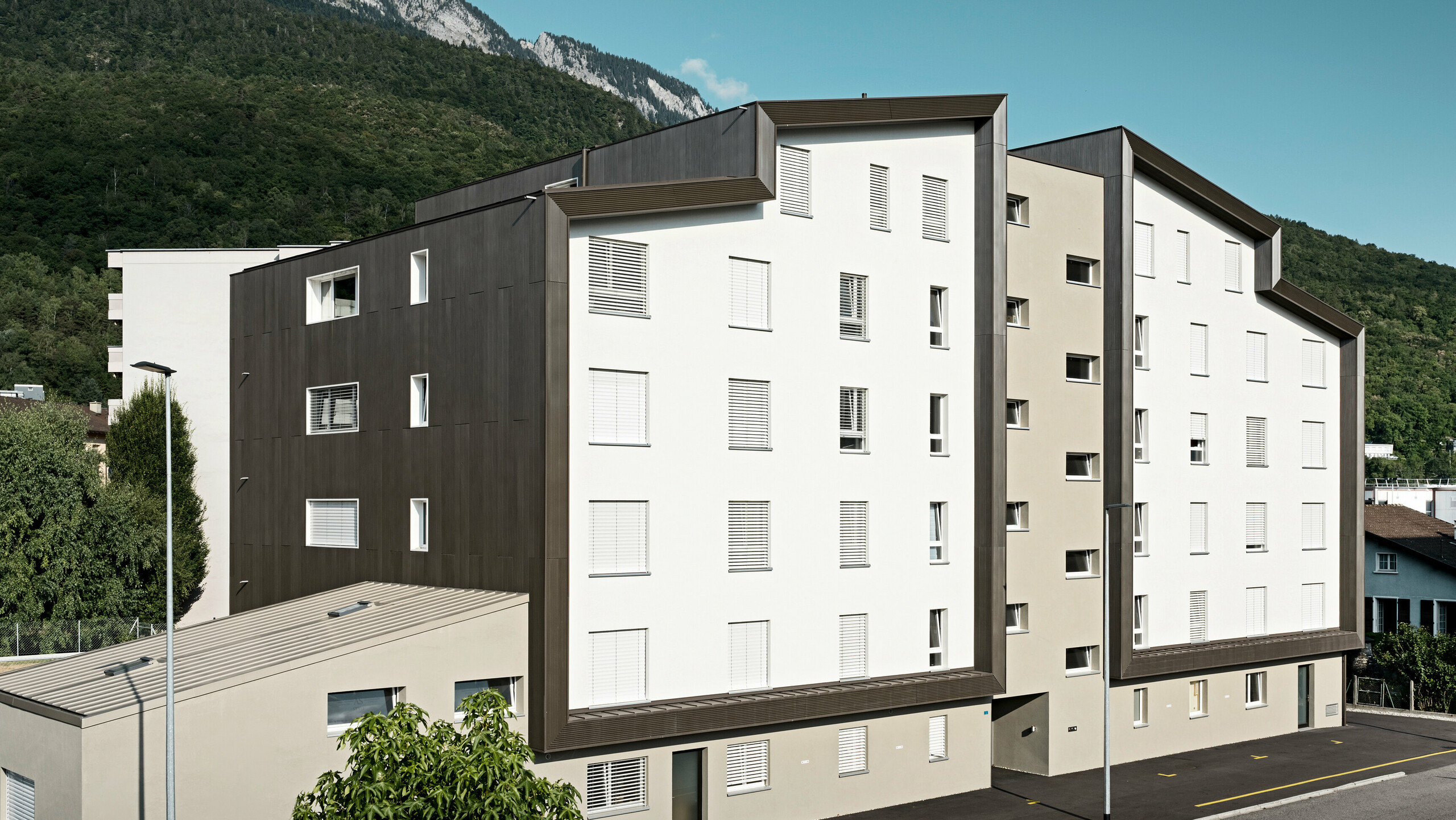

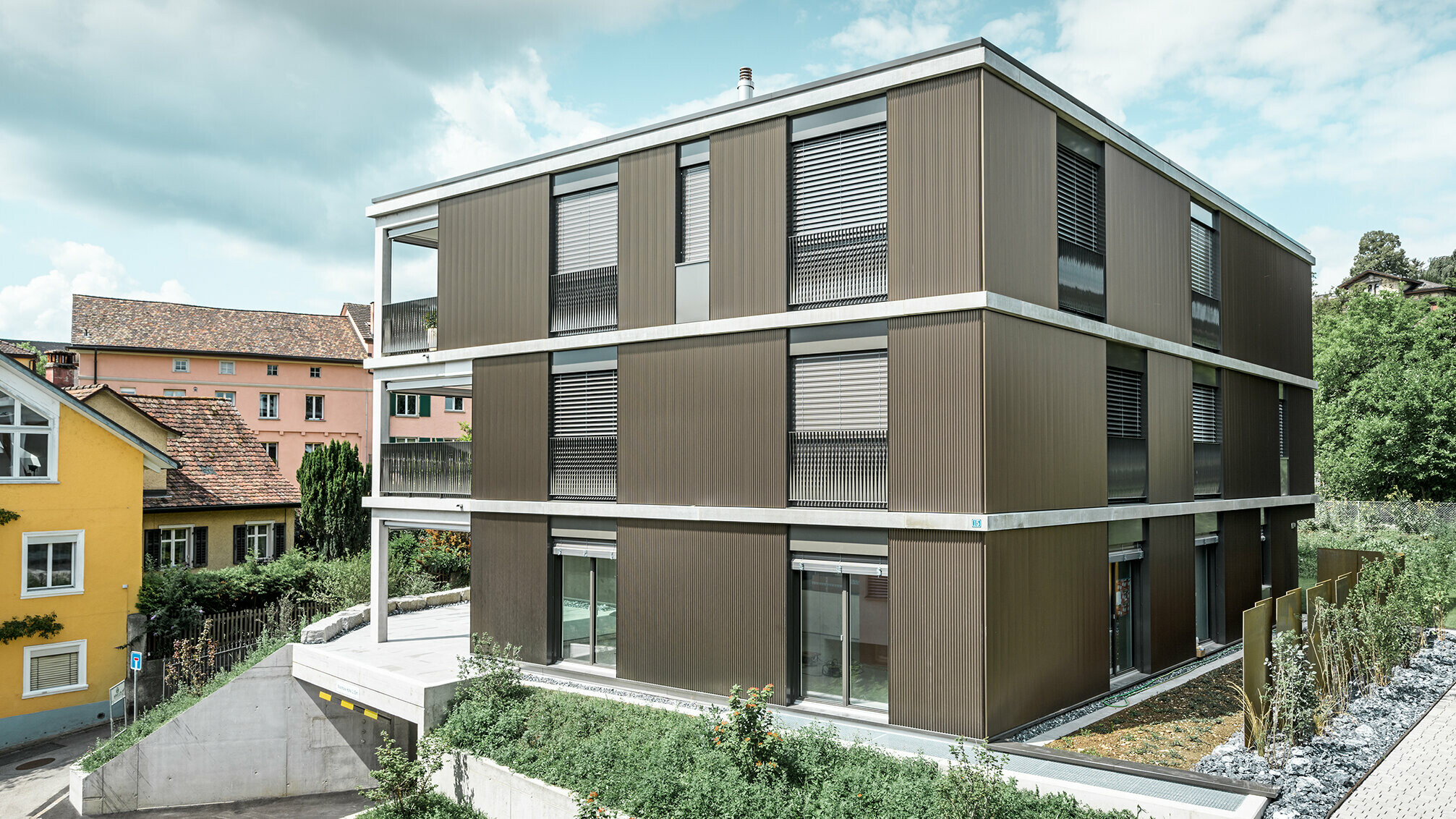

Skilful interplay of light and shade: The PREFA serrated profile turns buildings into magical projection surfaces.

read more

Currently in vogue: the PREFA serrated profile is a modern façade profile made of extruded aluminium — the ideal combination of technology and architectural design. Thanks to the special aluminium alloy, even sensitive building areas can be given a long-lasting and sturdy cover.

Advantages of the serrated profile

Quick and easy to install

No visible fasteners

Available in powder-coated or plain aluminium

Horizontal, vertical and diagonal installation

Quick and easy to install

No visible fasteners

Available in powder-coated or plain aluminium

Horizontal, vertical and diagonal installation

Serrated profile — Technical information

General information:

made of extruded aluminium alloy
design protection no. 31230
for high-quality façade claddings

Visible width:

200 mm

Height of serration:

22 mm

Distance between serrations:

40 mm

Material thickness:

2.00 mm

Piece lengths:

up to max. 6,200 mm

Side joints:

with 5–10 mm gap, depending on profile length

Accessories:

starter profile

Surface:

Plain aluminium – also available upon request: powder-coated in every RAL colour up to a length of max. 6,200 mm

Implementation:

all laying directions allowed

concealed fastening

Weight per m²:

7.5 kg

Serrated profile — Planning and installation

More product information is available for download here.

Note: Download DWG and DXF format files by right-clicking and selecting “Save link as”.

Accessories

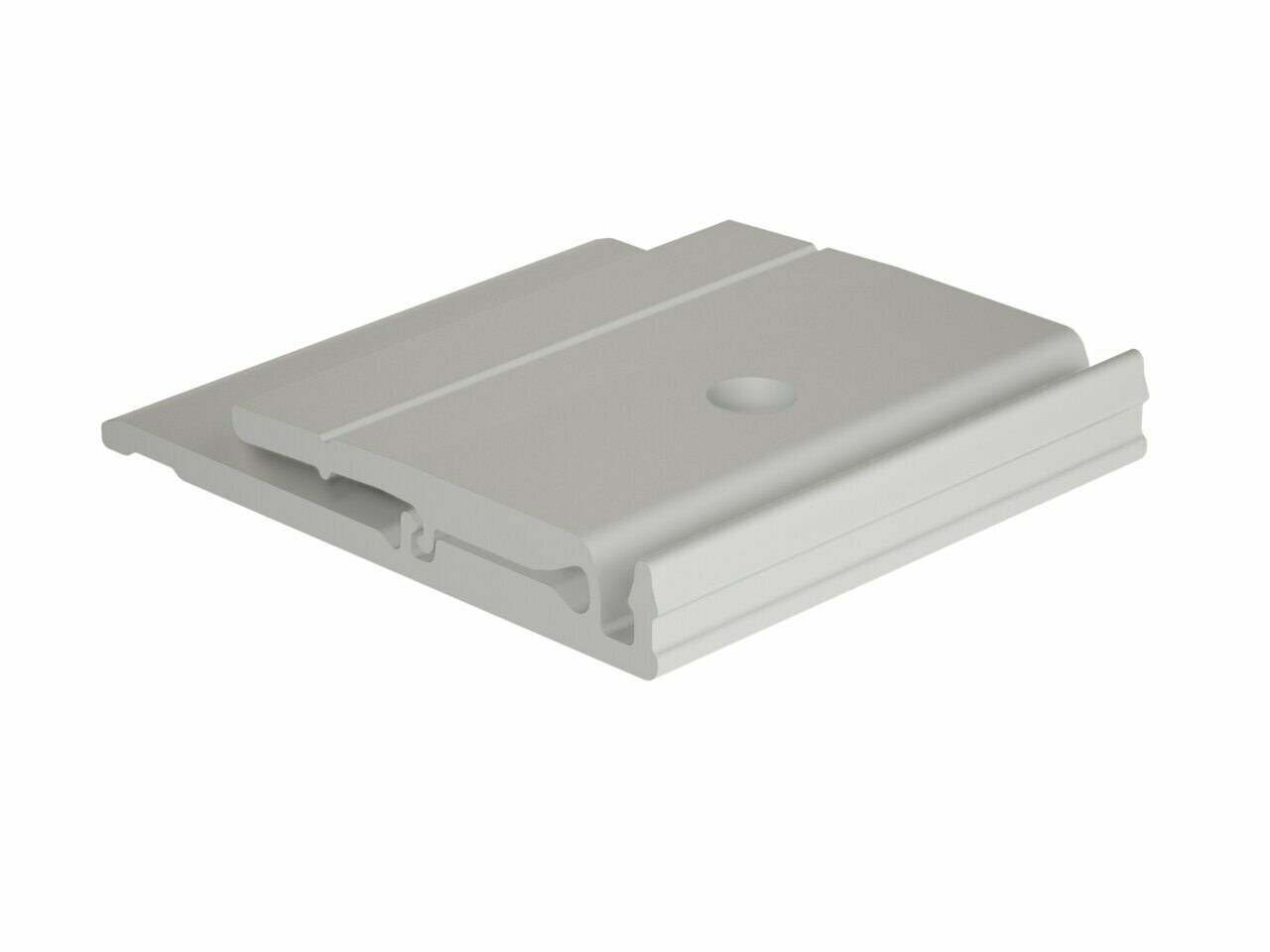

Sliding clip for ripple profile and serrated profile

-

Starter profile for serrated profile

3.000 mm

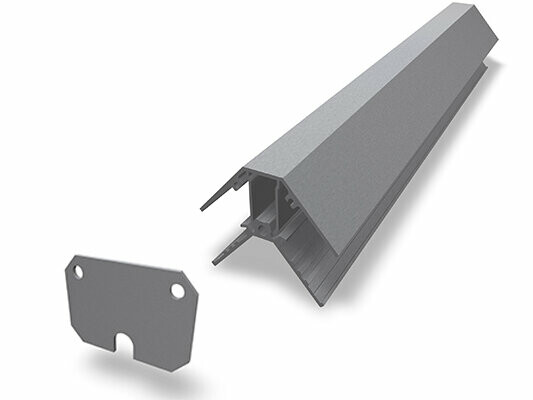

Corner profile for serrated profile

3.000 mm

Closing profile for serrated profile

3.000 mm
