FAÇADE SYSTEMS SIDING

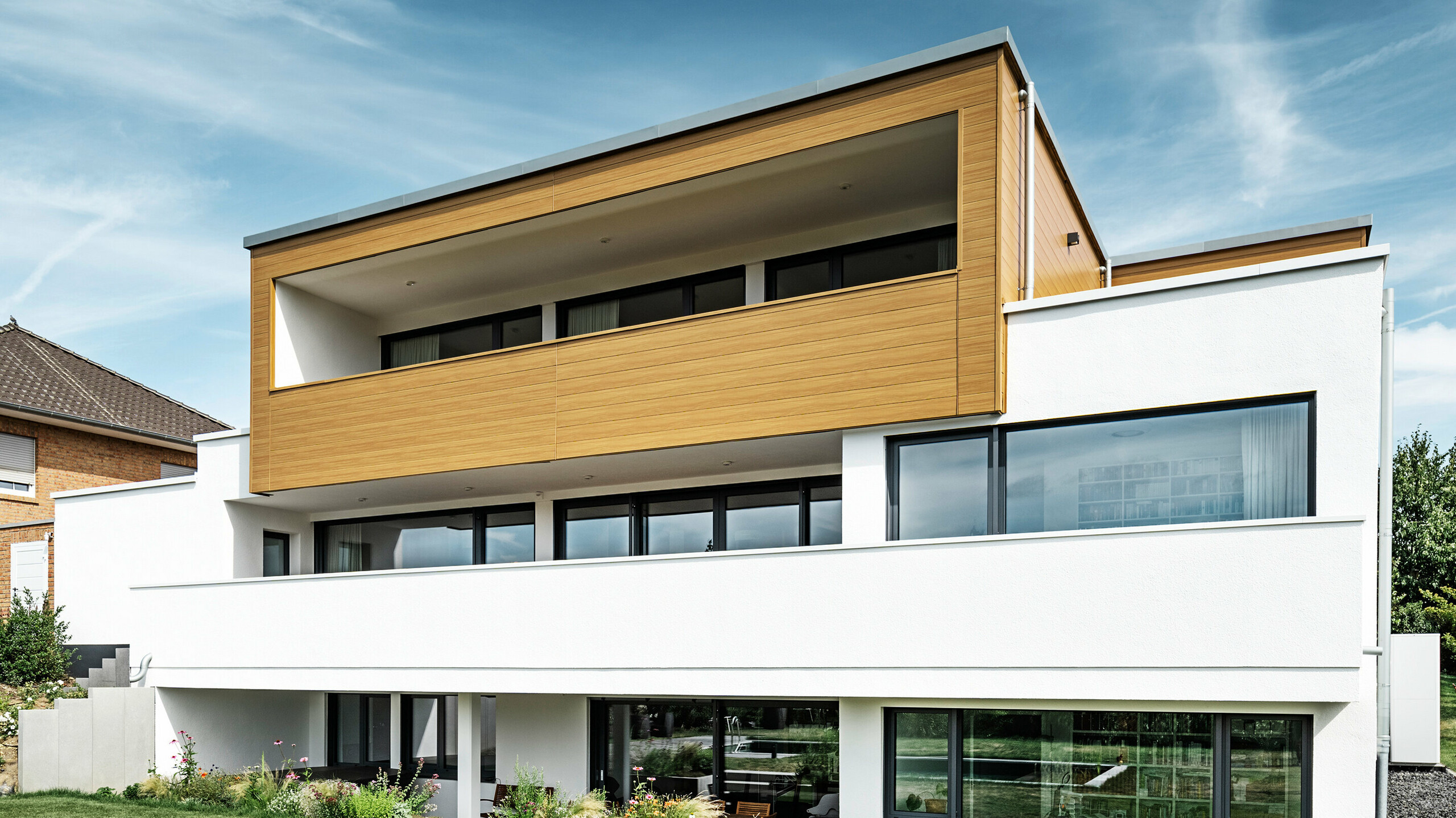

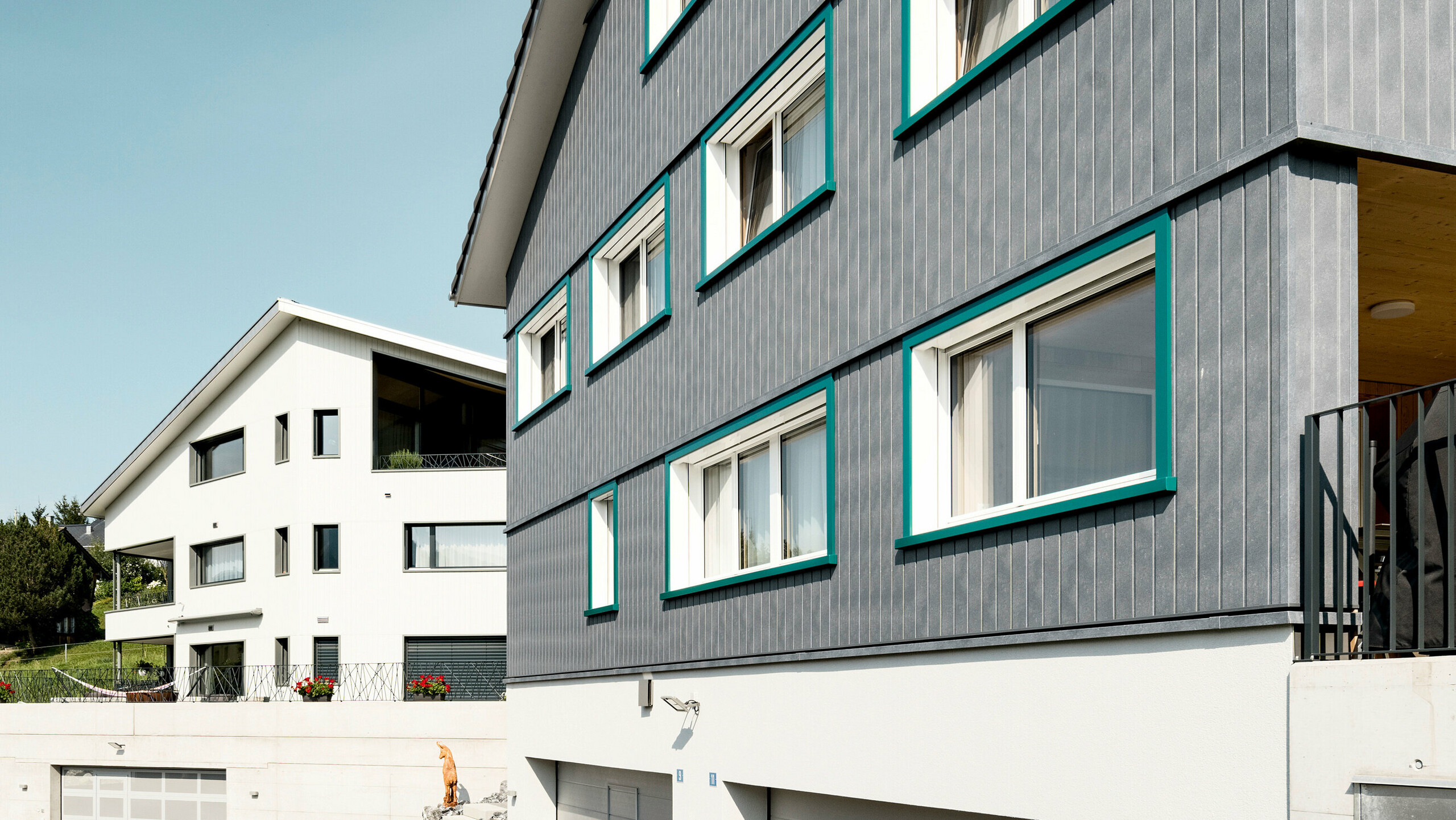

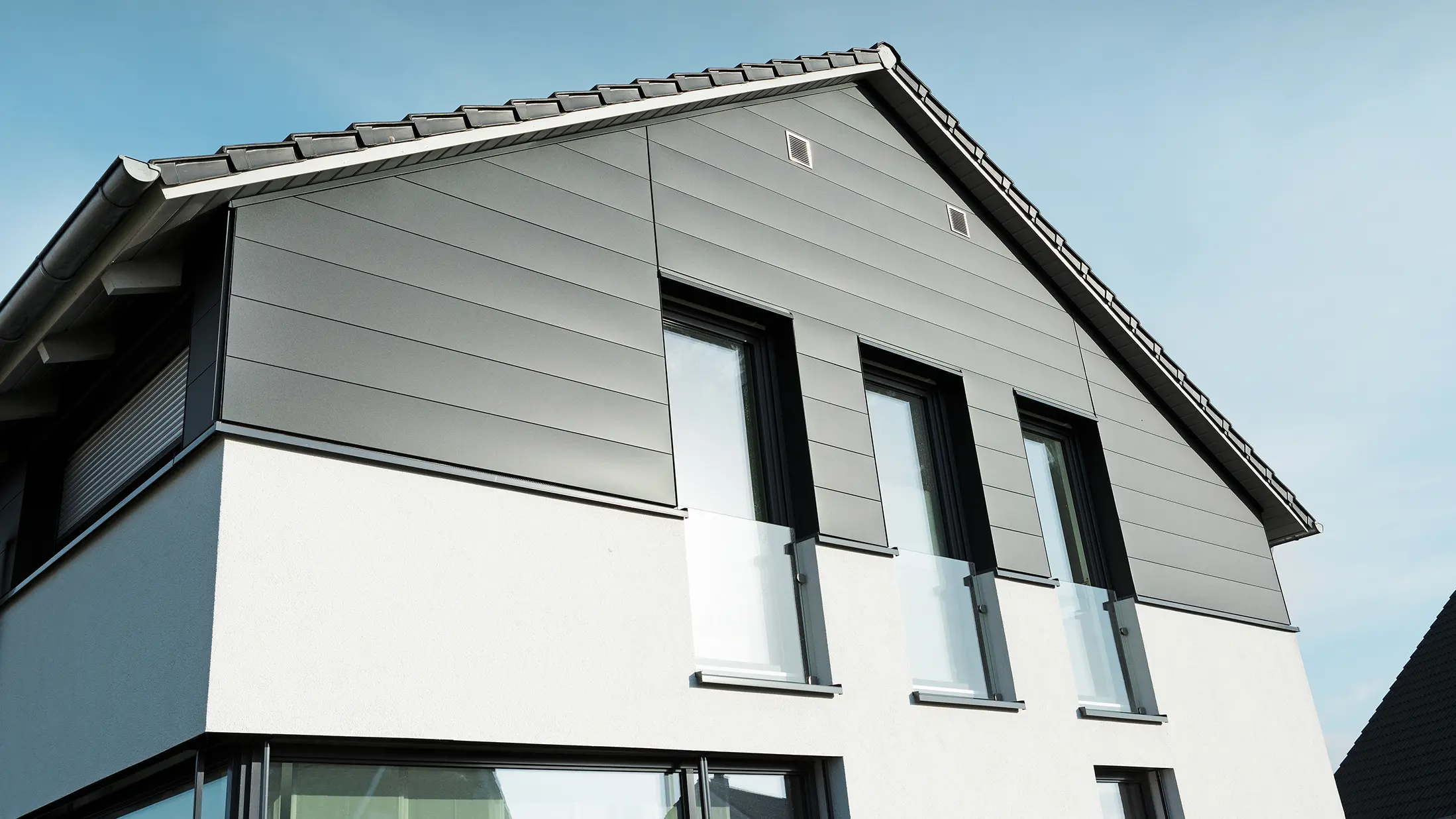

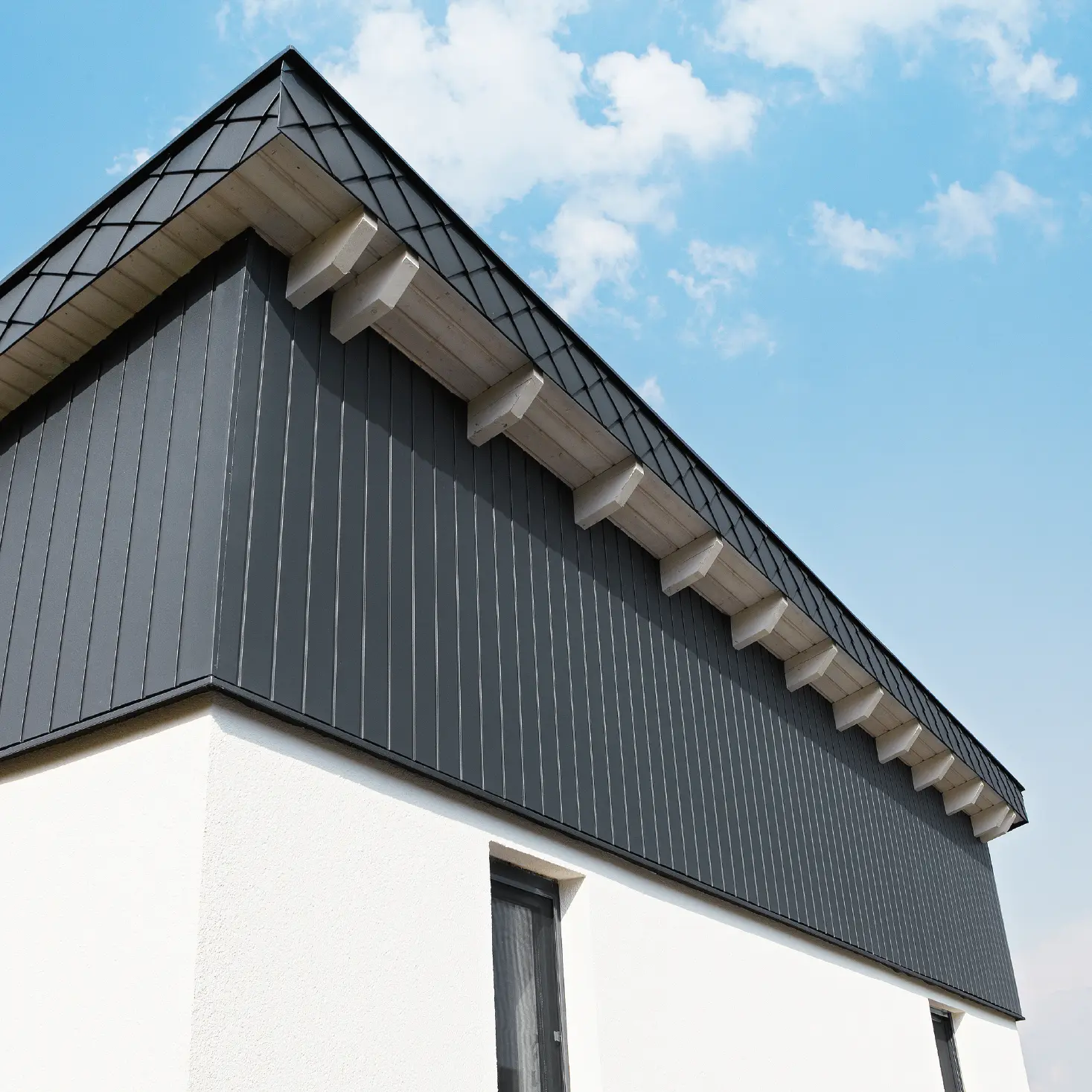

Referenzobjekte PREFA Façade systems Siding 01 P.10 brown Referenzobjekte PREFA Façade systems Siding 02 P.10 anthracite Referenzobjekte PREFA Façade systems Siding 03 P.10 black Referenzobjekte PREFA Façade systems Siding 04 P.10 brick red Referenzobjekte PREFA Façade systems Siding 05 P.10 oxide red Referenzobjekte PREFA Façade systems Siding 06 P.10 moss green Referenzobjekte PREFA Façade systems Siding 07 P.10 light grey Referenzobjekte PREFA Façade systems Siding 10 P.10 prefa white Referenzobjekte PREFA Façade systems Siding 11 P.10 nut brown Referenzobjekte PREFA Façade systems Siding 17 P.10 pure white Moderner Zubau – die Fassade wurde mit den PREFA Sidings in Dunkelgrau verkleidet. Referenzobjekte PREFA Façade systems Siding 41 P.10 rust brown Referenzobjekte PREFA Façade systems Siding 42 P.10 sand brown Façade design with aluminium panels, sidings in stone grey, from PREFA. Referenzobjekte PREFA Façade systems Siding 12 metallic silver Flat-roof extension with a curved window façade, the façade is clad with horizontal aluminium panels, the PREFA sidings in smoke silver. Referenzobjekte PREFA Façade systems Siding 21 ruby red Car dealer with an aluminium façade with PREFA sidings in black grey. Referenzobjekte PREFA Façade systems Siding 25 ivory Referenzobjekte PREFA Façade systems Siding 38 walnut Referenzobjekte PREFA Façade systems Siding 39 grey oak Conservatory extension with façade cladding in PREFA aluminium sidings in a natural oak look. EMA commercial building, the façade is clad with PREFA aluminium bonded tiles in bronze and anthracite. Einfamilienhaus mit PREFA Siding in patina grau und Dachplatte in hellgrau
Product catalogue PREFA Façade systems Siding 01 P.10 brown P.10 Product catalogue PREFA Façade systems Siding 02 P.10 anthracite P.10 Product catalogue PREFA Façade systems Siding 03 P.10 black P.10 Product catalogue PREFA Façade systems Siding 04 P.10 brick red P.10 Product catalogue PREFA Façade systems Siding 05 P.10 oxide red P.10 Product catalogue PREFA Façade systems Siding 06 P.10 moss green P.10 Product catalogue PREFA Façade systems Siding 07 P.10 light grey P.10 Product catalogue PREFA Façade systems Siding 10 P.10 prefa white P.10 Product catalogue PREFA Façade systems Siding 11 P.10 nut brown P.10 Product catalogue PREFA Façade systems Siding 17 P.10 pure white P.10 Fassadengestaltung mit den PREFA Fassadenpaneelen Sidings in P.10 Dunkelgrau - ähnlich DB 703 oder RAL 7043 Product catalogue PREFA Façade systems Siding 41 P.10 rust brown P.10 Product catalogue PREFA Façade systems Siding 42 P.10 sand brown P.10 Product catalogue PREFA Façade systems Siding 43 P.10 stone grey P.10 Product catalogue PREFA Façade systems Siding 12 metallic silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 20 smoke silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 21 ruby red DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 23 black grey DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 25 ivory PP99 Product catalogue PREFA Façade systems Siding 38 walnut DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 39 grey oak DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 40 natural oak DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 45 bronze DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 47 patina grey DURAGLOSS 5000
AVAILABLE COLOURS

PREFA SIDING

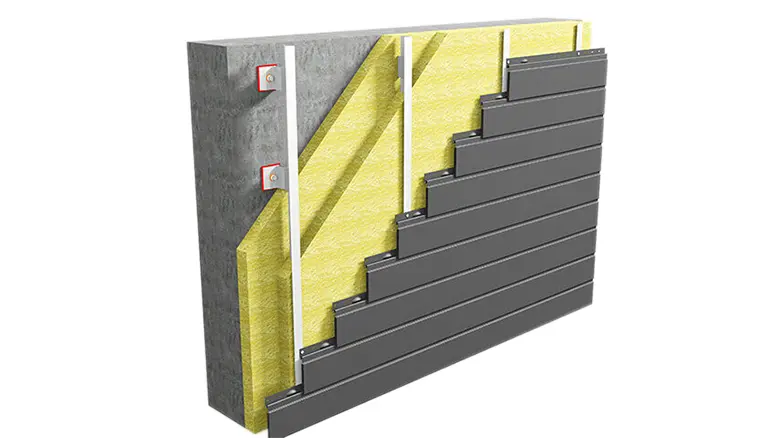

PREFA aluminium façade sidings are façade elements from the ventilated façade range. PREFA sidings are used in a variety of ways, both indoors and out, as wall and ceiling coverings. Their concealed fastening (via a tongue and groove system) guarantees an attractive appearance. PREFA sidings enable building façades to be ingeniously enhanced, maintained and modernised for decades to come.

ADVANTAGES OF PREFA SIDINGS:

  • Can be safely installed: diagonally, vertically or horizontally
  • Available in 23 standard colours from 500 to 6,200 mm in length
  • many design possibilities thanks to the combination of different visible widths

SIDING FAÇADE — TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT AND TECHNICAL DRAWINGS

COATING:

Coil coating

STANDARD MATERIAL:

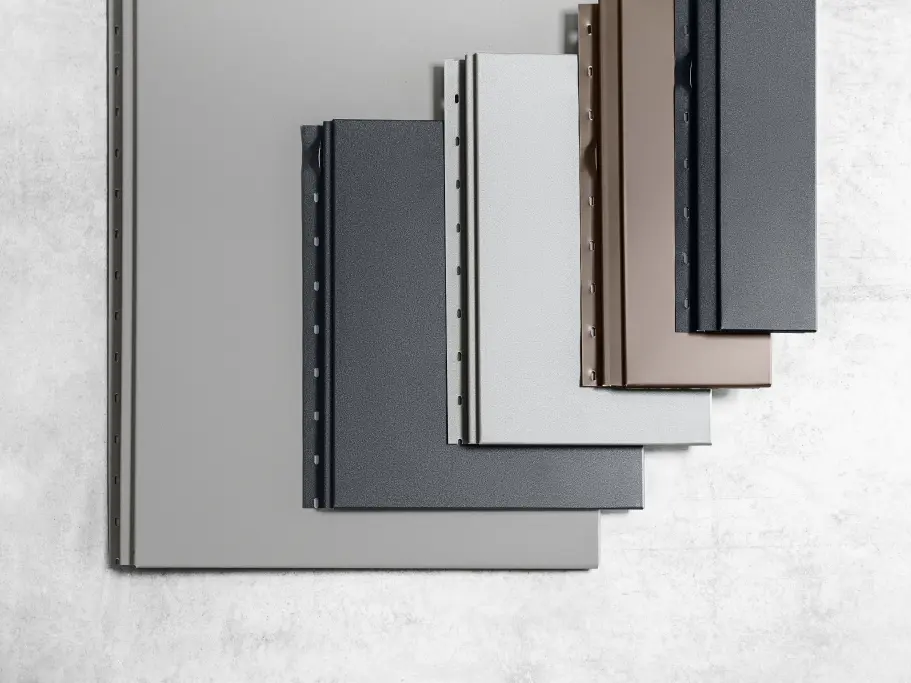

0.7 × 138 mm (thickness/visible side), stucco, lined with shadow gap option (also smooth for P.10)
1.0 × 200 mm (thickness/visible side), smooth, lined or stucco, with shadow gap option
1.2 × 300 mm (thickness/visible side), smooth, with shadow gap option

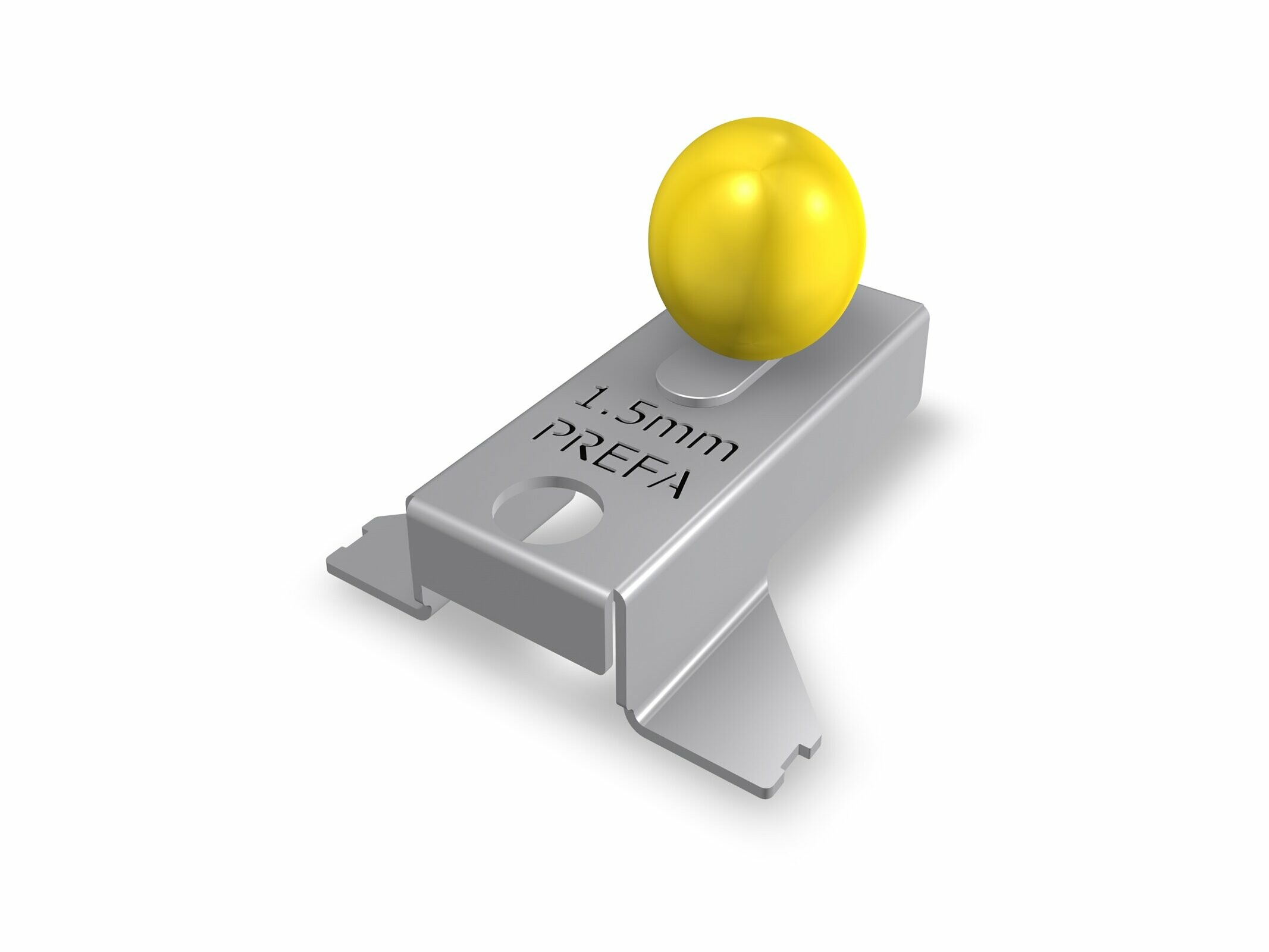

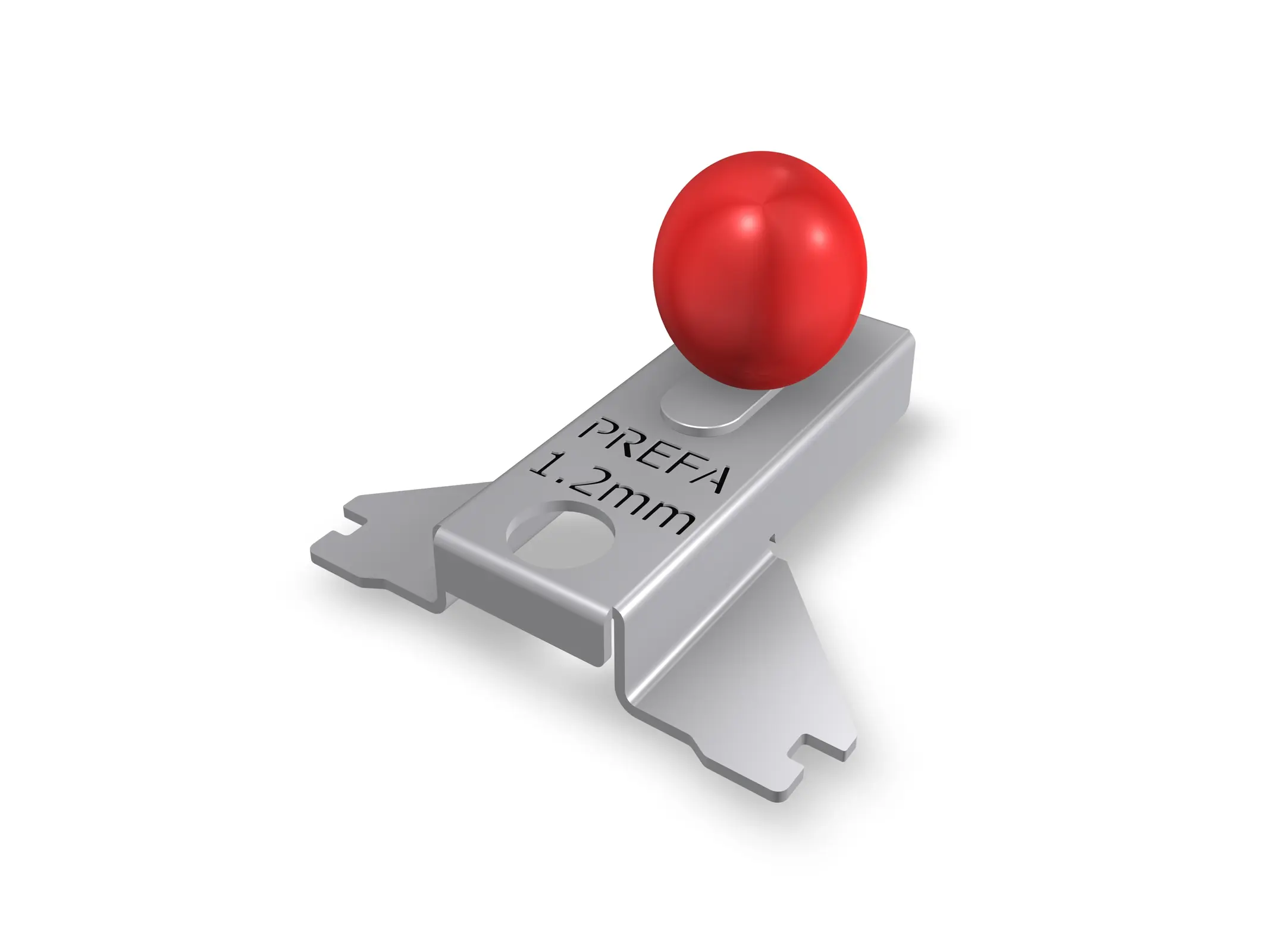

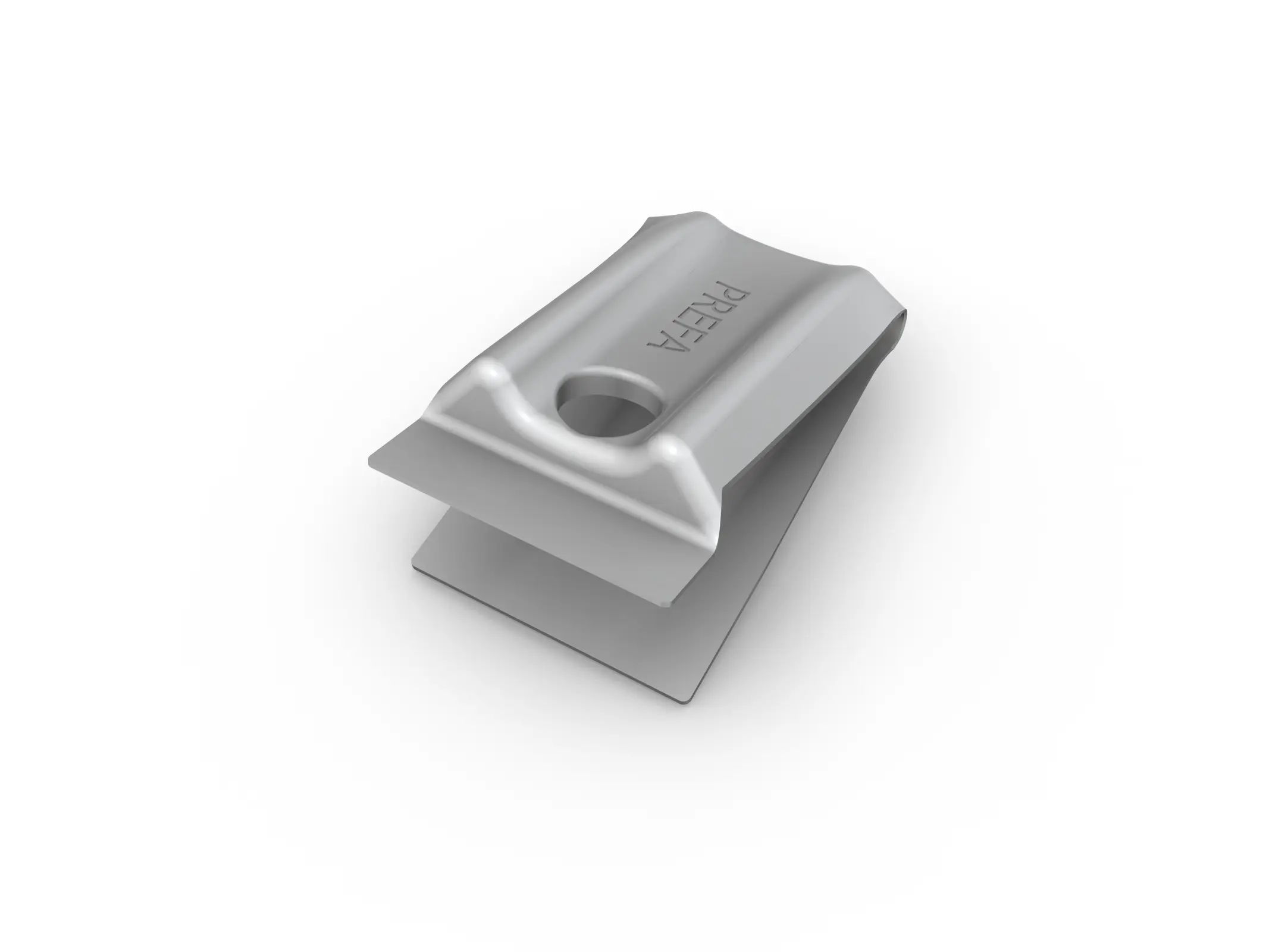

1.2 × 400 mm (thickness/visible side), smooth, with shadow gap option (installation with storm-proof clip)

special visible widths (120 to 400 mm) upon request

ENDS:

with or without edge downstand (11 mm)

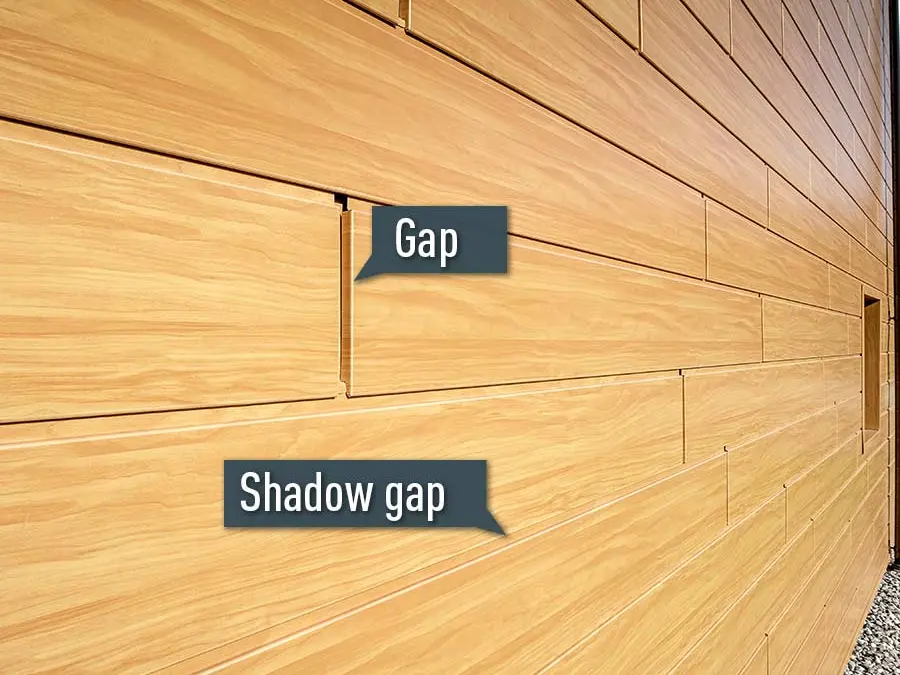

SHADOW GAP:

with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep

WEIGHT:

approx. 3.30–4.30 kg/m² depending on the visible width

LENGTH:

500–2,500 mm for all visible widths (with PREFA joint)

500–6,200 mm for all visible widths (without PREFA joint)

SIDING — TECHNICAL DRAWING

PREFA SIDING — COLOUR RANGE (SPECIAL COLOURS AVAILABLE ON REQUEST)

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL DETAILS
01 P.10 brown 7013 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
02 P.10 anthrcite 7016 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
03 P.10 black 9005 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
04 P.10 brick red 8004 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
05 P.10 oxide red 3009 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
06 P.10 moss green 6005 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
07 P.10 light grey 7005 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
10 P.10 prefa white 9002 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
11 P.10 nut brown 8019 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
12 mitallic silver³ 9006 138 × 0,70 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
17 P.10 pure white 9010 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
19 P.10 dark grey 7043 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
20 smoke silver³ 9007 200 × 1,00 mm smooth, stucco, lined
21 ruby red 3003 200 × 1,00 mm smooth, stucco, lined
23 black grey 7022 200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,2 mm smooth
25 ivory 1015 138 × 0,7 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
26 dark wood¹ 8015 138 × 0,70 mm smooth
200 × 1,00 mm smooth
40 licht wood¹ 1011 200 × 1,00 mm smooth
41 P.10 rust brown¹ 8015 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
42 P.10 sand brown¹ 1019 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
43 P.10 stone grey¹ 7031 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
45 bronze³ 7048 200 × 1,00 mm smooth, stucco, lined
47 patina grey¹ 7042 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
01 P.10 brown
~ RAL
7013
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
02 P.10 anthrcite
~ RAL
7016
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
03 P.10 black
~ RAL
9005
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
04 P.10 brick red
~ RAL
8004
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
05 P.10 oxide red
~ RAL
3009
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
06 P.10 moss green
~ RAL
6005
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
07 P.10 light grey
~ RAL
7005
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
10 P.10 prefa white
~ RAL
9002
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
11 P.10 nut brown
~ RAL
8019
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
12 mitallic silver³
~ RAL
9006
DETAILS
138 × 0,70 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
17 P.10 pure white
~ RAL
9010
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
19 P.10 dark grey
~ RAL
7043
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
20 smoke silver³
~ RAL
9007
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
21 ruby red
~ RAL
3003
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
23 black grey
~ RAL
7022
DETAILS
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,2 mm smooth
COLOUR
25 ivory
~ RAL
1015
DETAILS
138 × 0,7 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
26 dark wood¹
~ RAL
8015
DETAILS
138 × 0,70 mm smooth
200 × 1,00 mm smooth
COLOUR
40 licht wood¹
~ RAL
1011
DETAILS
200 × 1,00 mm smooth
COLOUR
41 P.10 rust brown¹
~ RAL
8015
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
42 P.10 sand brown¹
~ RAL
1019
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
43 P.10 stone grey¹
~ RAL
7031
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
45 bronze³
~ RAL
7048
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
47 patina grey¹
~ RAL
7042
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and plain aluminium are based on natural colours and therefore vary slightly in shade, giving the product its distinctive character.

² The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.

³ The metallic colours may exhibit colour variations.

Note

  • The RAL numbers indicated are approximations only [~] and may, in some cases, differ greatly from the PREFA original colour. They may not be a true reflection of the subjective perception of colour.
  • Particularly in the case of the P.10 paint quality, it is difficult to precisely define the number due to the nature of the surface structure. In addition, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood and patina grey are based on natural colours made up of several different shades.
  • We recommend obtaining original samples so that you can gain an idea of the exact colours of complementary components.

SIDING — ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE.

joint.138/200/300/400

JOINT.138/200/300/400

for use with sidings with shadow gap; joint width: 15 mm for sidings; visible widths: 138 mm, 200 mm, 300 mm and 400 mm; maximum siding length: 2,500 mm

corner sidings

CORNER SIDINGS

500 mm side length on both sides (inside dimensions); 521 mm side length on both sides (external dimensions); 1,042 mm in the cross-section

drip

DRIP

joint connector

JOINT CONNECTOR

made of embossed aluminium, PREFA design wave (transverse; 5 mm); for PREFA drip

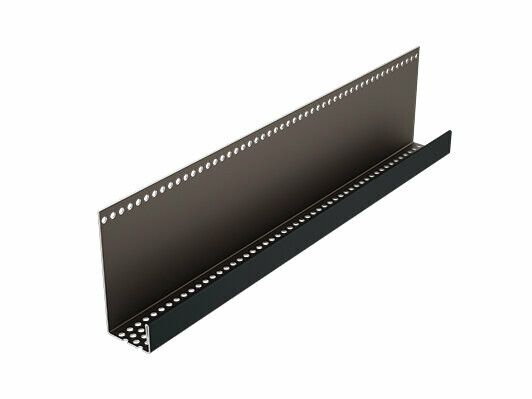

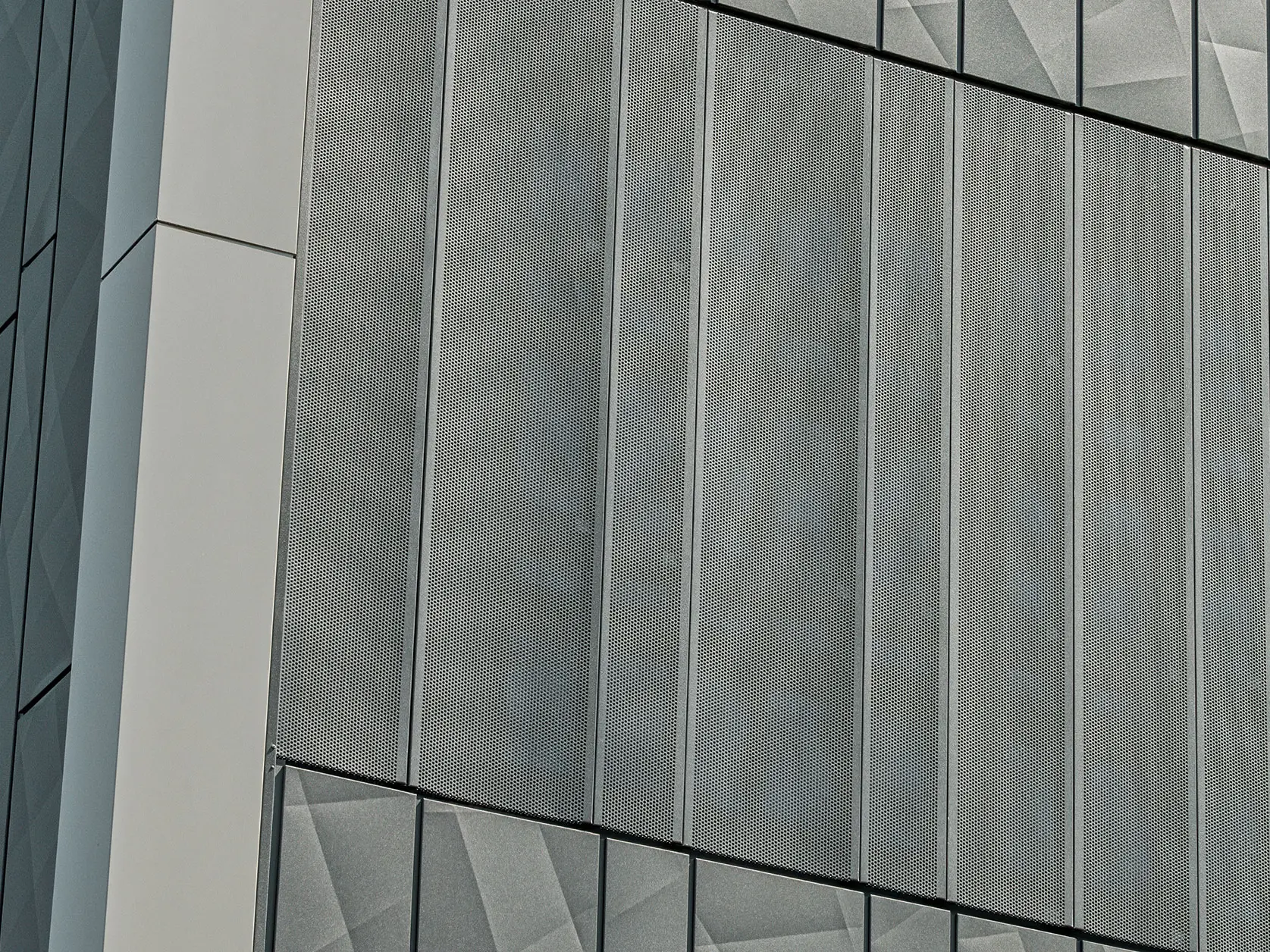

perforated plate

PERFORATED PLATE

canted channel profile

CANTED CHANNEL PROFILE

insertion profile

INSERTION PROFILE

starter profile

STARTER PROFILE

external corner flashing

EXTERNAL CORNER FLASHING

jamb flashing

JAMB FLASHING

closing profile

CLOSING PROFILE

for reinforcing the ends, e.g. diagonal cuts

external corner flashing (two parts)

EXTERNAL CORNER FLASHING (TWO PARTS)

joint connection

JOINT CONNECTION

internal corner

INTERNAL CORNER

base profile

BASE PROFILE

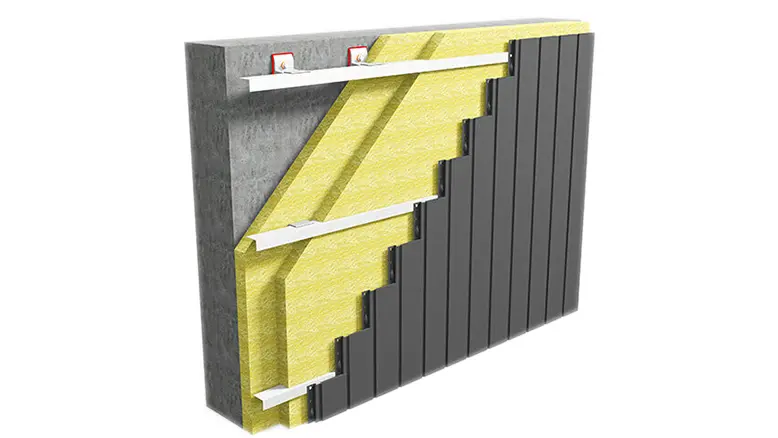

fastener (for sidings on a wood substructure)

FASTENER (FOR SIDINGS ON A WOOD SUBSTRUCTURE)

fastener (for sidings on an aluminium substructure)

FASTENER (FOR SIDINGS ON AN ALUMINIUM SUBSTRUCTURE)

mounting hole cover

MOUNTING HOLE COVER

for covering bore holes and small repairs

patent rivets for siding flashing strip

PATENT RIVETS FOR SIDING FLASHING STRIP

with stainless steel pin; splash-proof
