Information

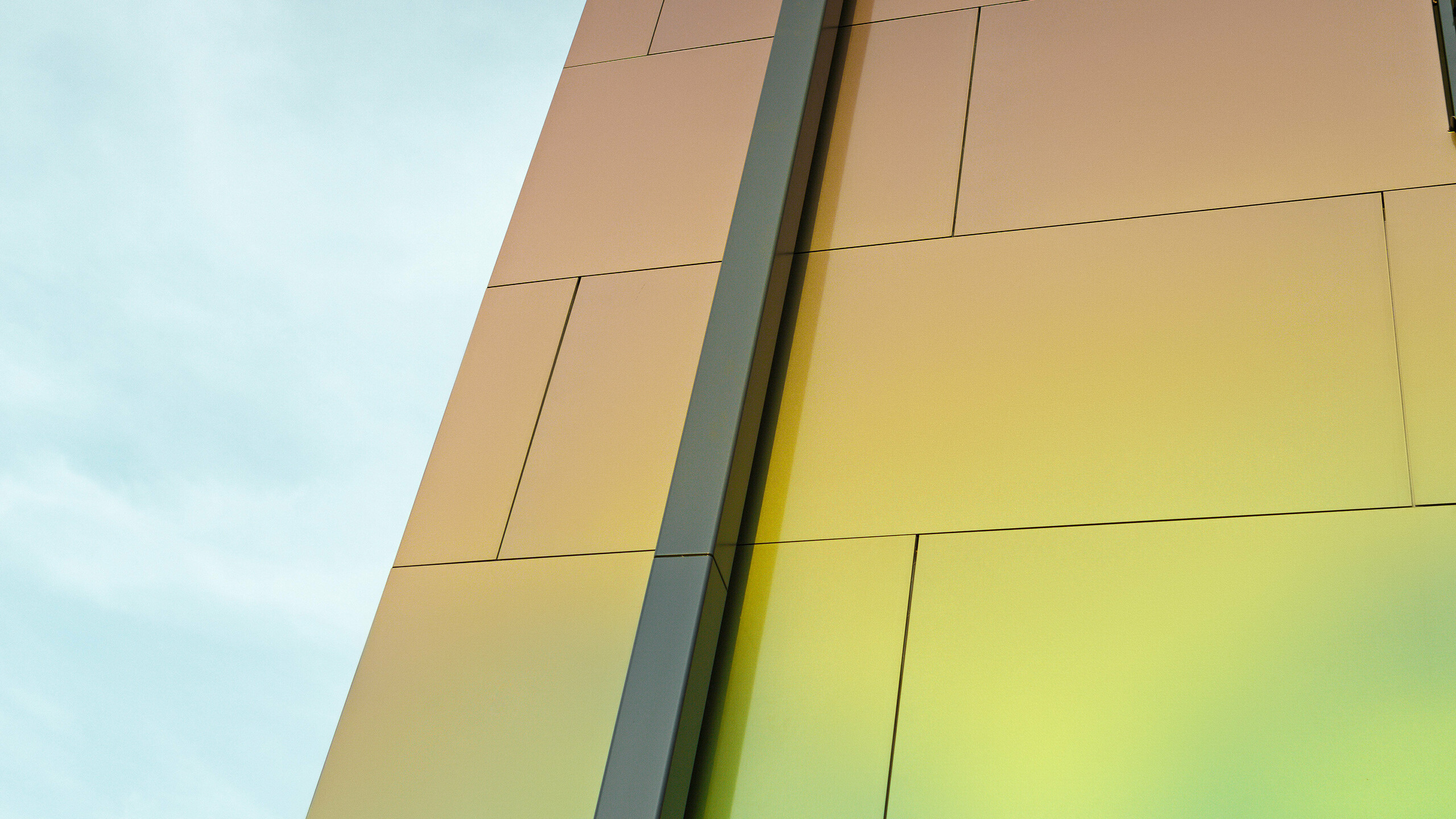

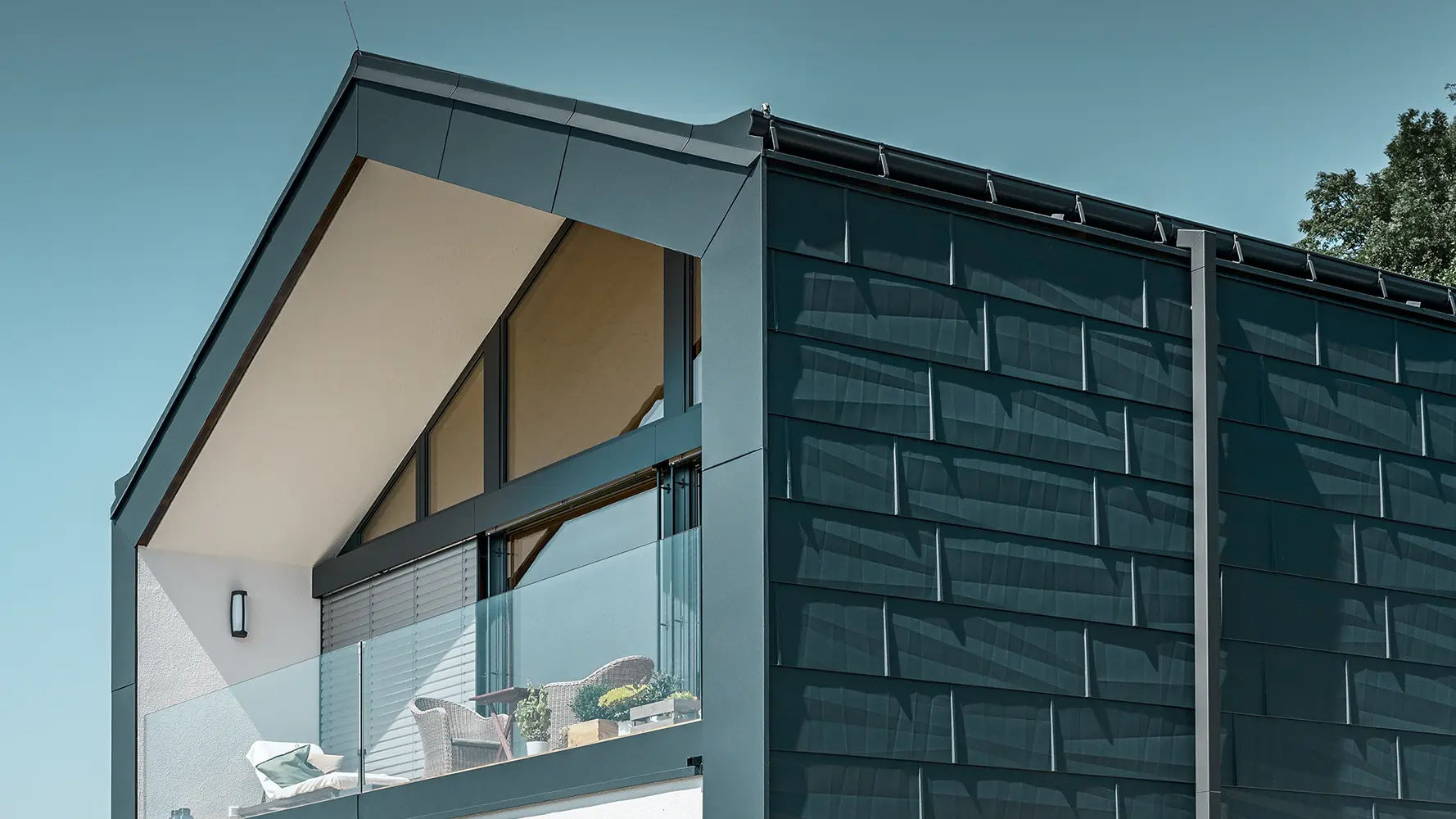

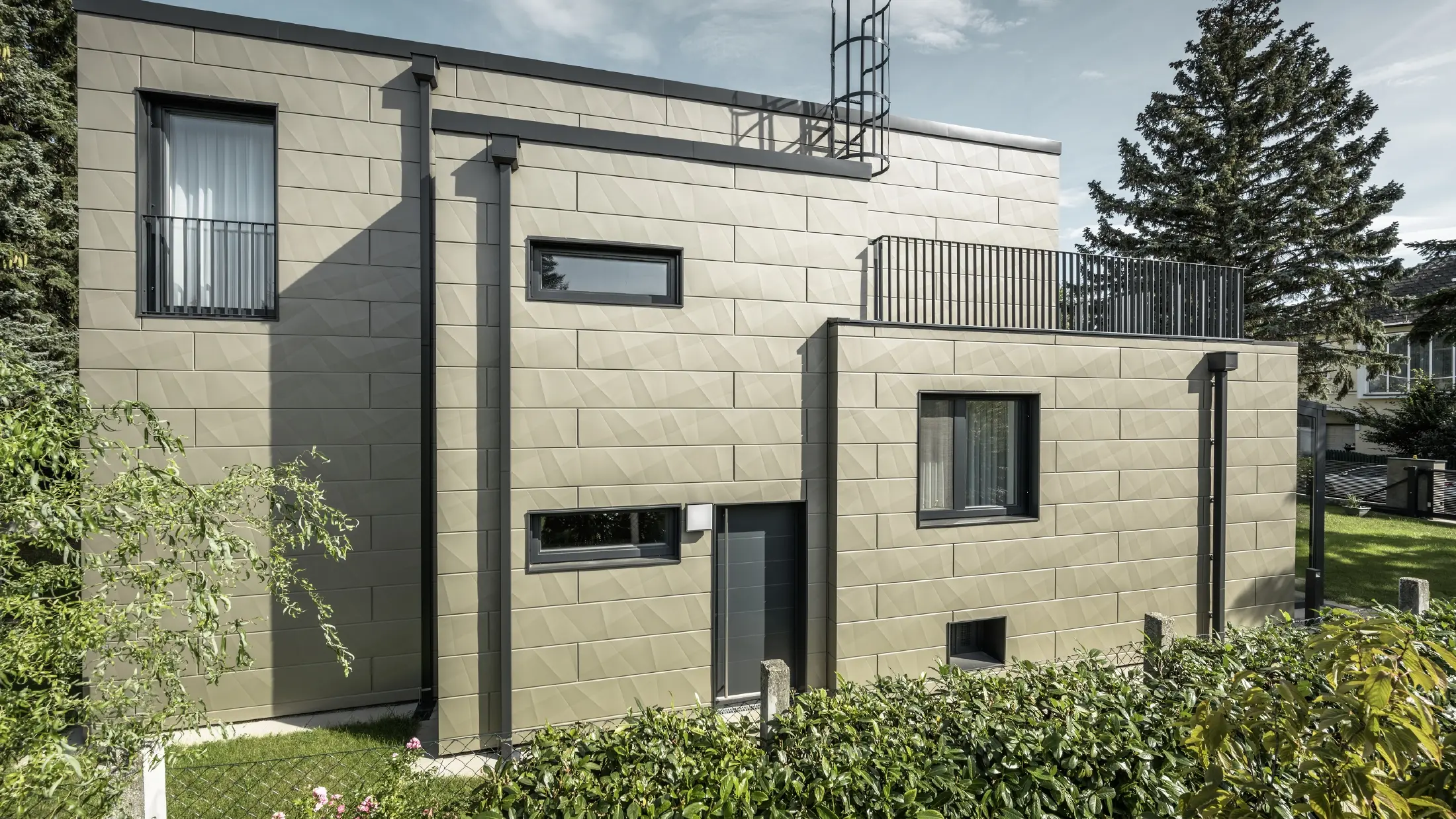

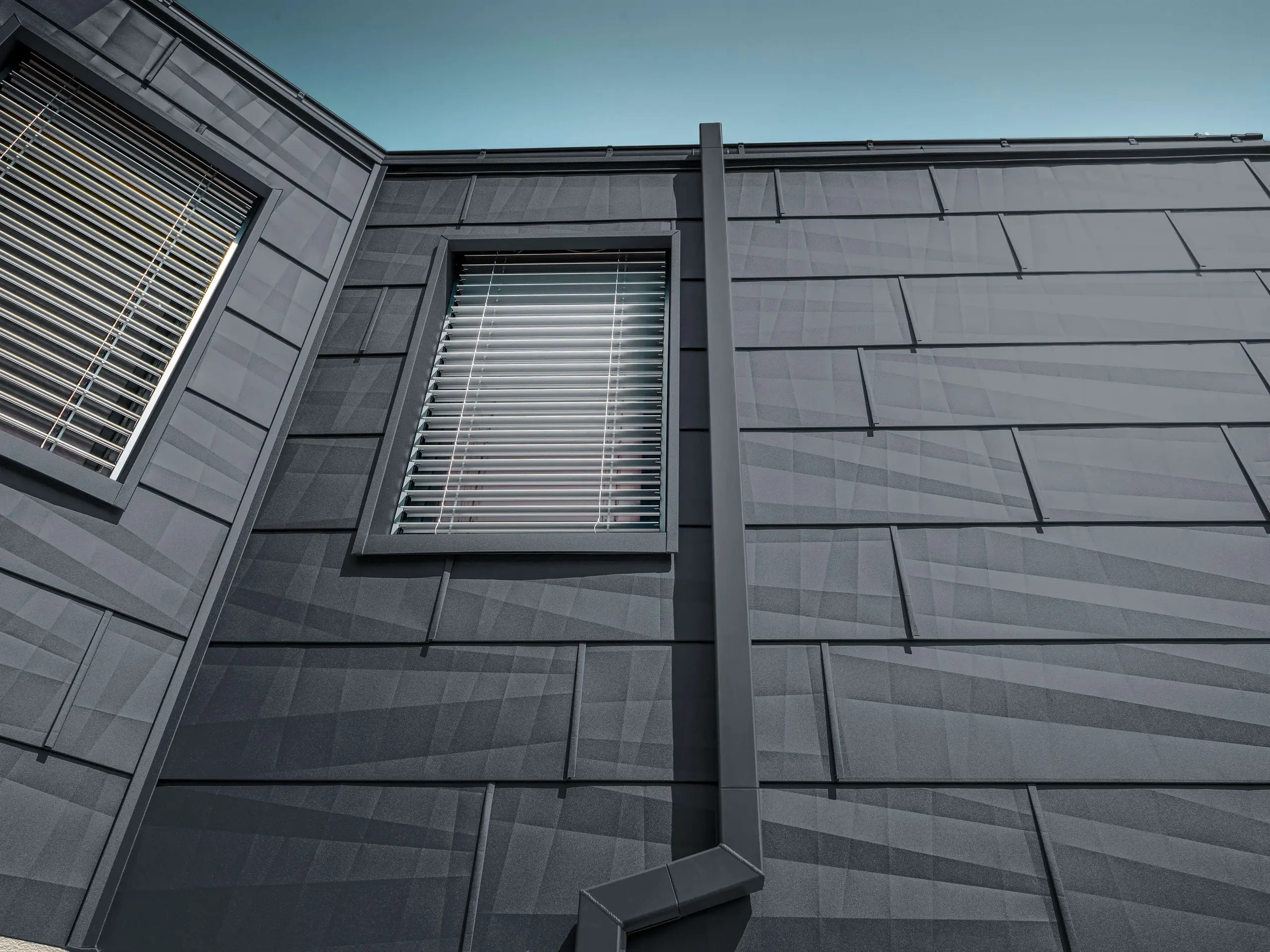

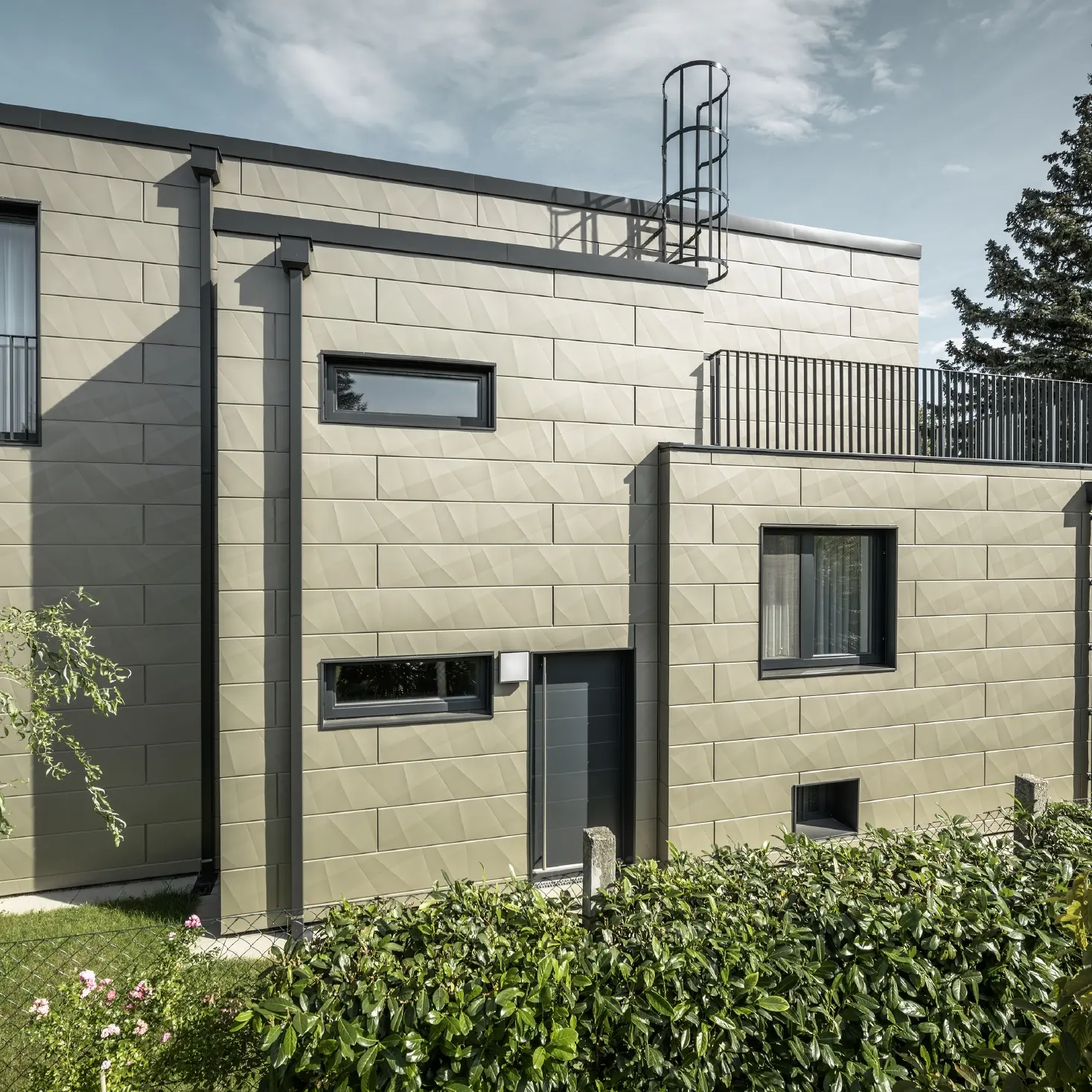

The square, aluminium complete system sets new standards for drainage. Thanks to its minimalist and elegant design, it is ideal for use on modern structures. The innovative aluminium products are not only particularly robust, but also visually very eye-catching. Through brackets on the rear side, the square down pipe skilfully blends into the façade without any visible fasteners.
The PREFA drainage system is made of up twelve different components such as square downpipes with radii corresponding to the box gutters, various downpipe elbows with a 72° bend, outlet connectors and a leader head with a square outlet.
Colour overview (9)
The product is available in the following colours
Colour |
Code |
~ RAL |
![]() |
P.10 brown |
7013 |
![]() |
P.10 anthracite |
7016 |
![]() |
P.10 black |
9005 |
![]() |
P.10 light grey |
7005 |
![]() |
P.10 prefa white |
9002 |
![]() |
P.10 nut brown |
8019 |
![]() |
P.10 dark grey |
7043 |
![]() |
metallic silver |
9006 |
![]() |
plain aluminium |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
- Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
- Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colours may vary in shade.
- To identify exact colours for complementary components please consult original samples.
Technical information
Square downpipe dimensions (piece lengths: 3 m and 1.5 m) |
100 × 100 mm (square) radii corresponding to PREFA box gutters |
---|---|
Square downpipe thickness |
1,6 mm
|
Planning and installation
More product information is available for downloading here
Accessories

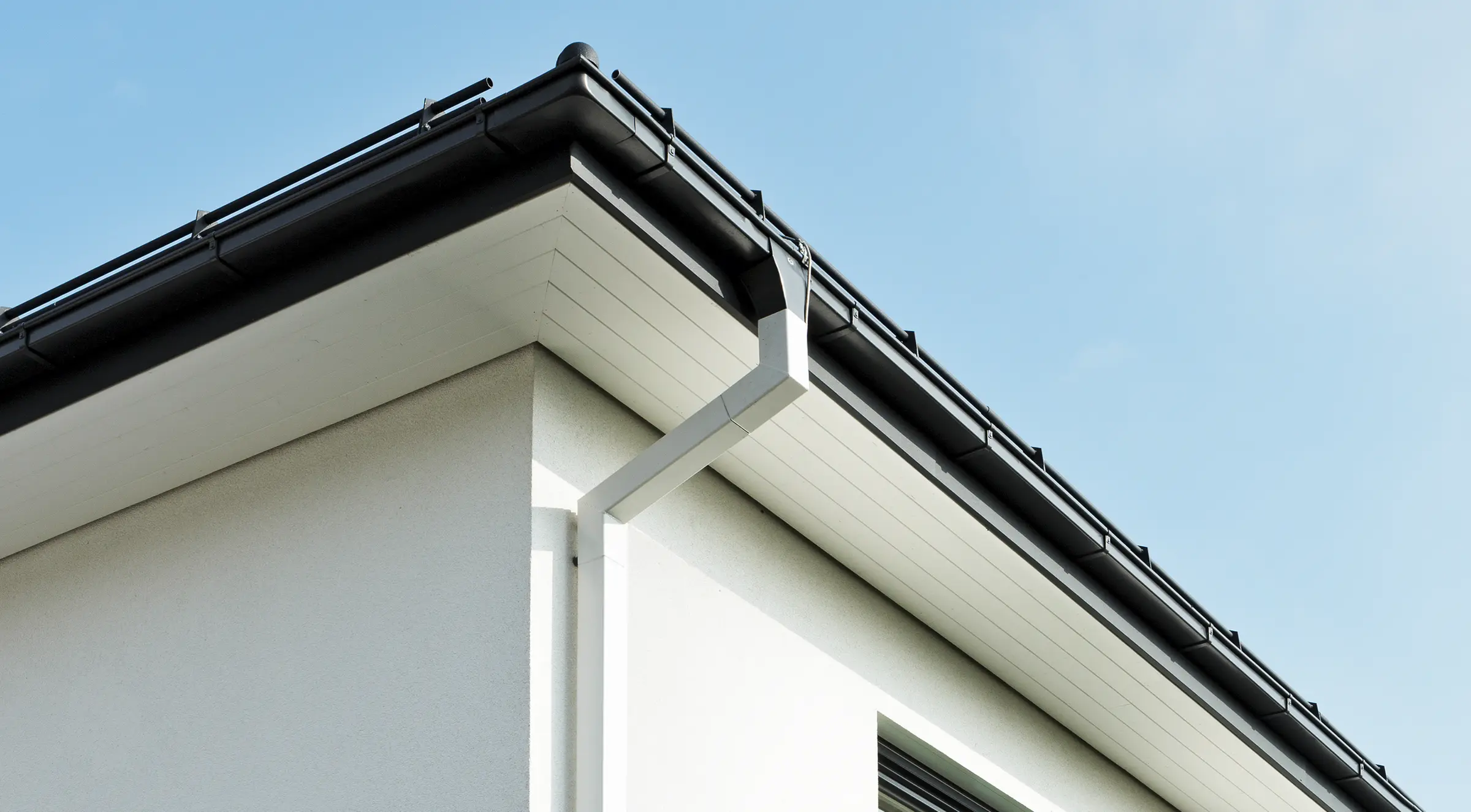

Square downpipe elbow 72° (long)
□ 80, 100; dimensions 1.000 × 196 mm (visible)

Square downpipe elbow 72° (short)
□ 80, 100; dimensions 196 × 196 mm (visible)

Square downpipe fastener
fastener for square downpipe with M10 thread without pin

Square downpipe lightning protection clamp
With integrated stainless steel clip (cable clip) including fastening clamp; cable clip ⌀ 8–12 mm

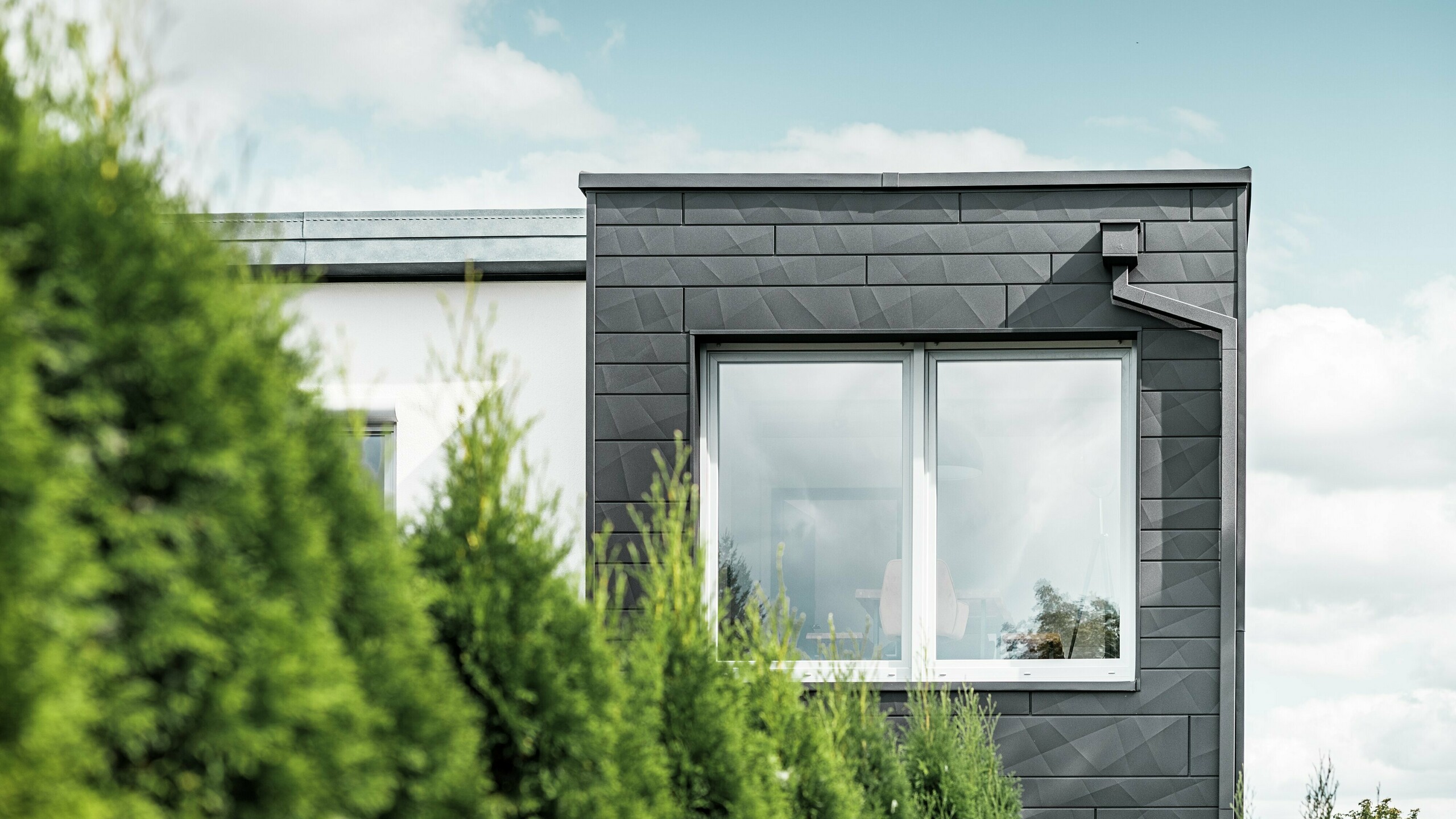

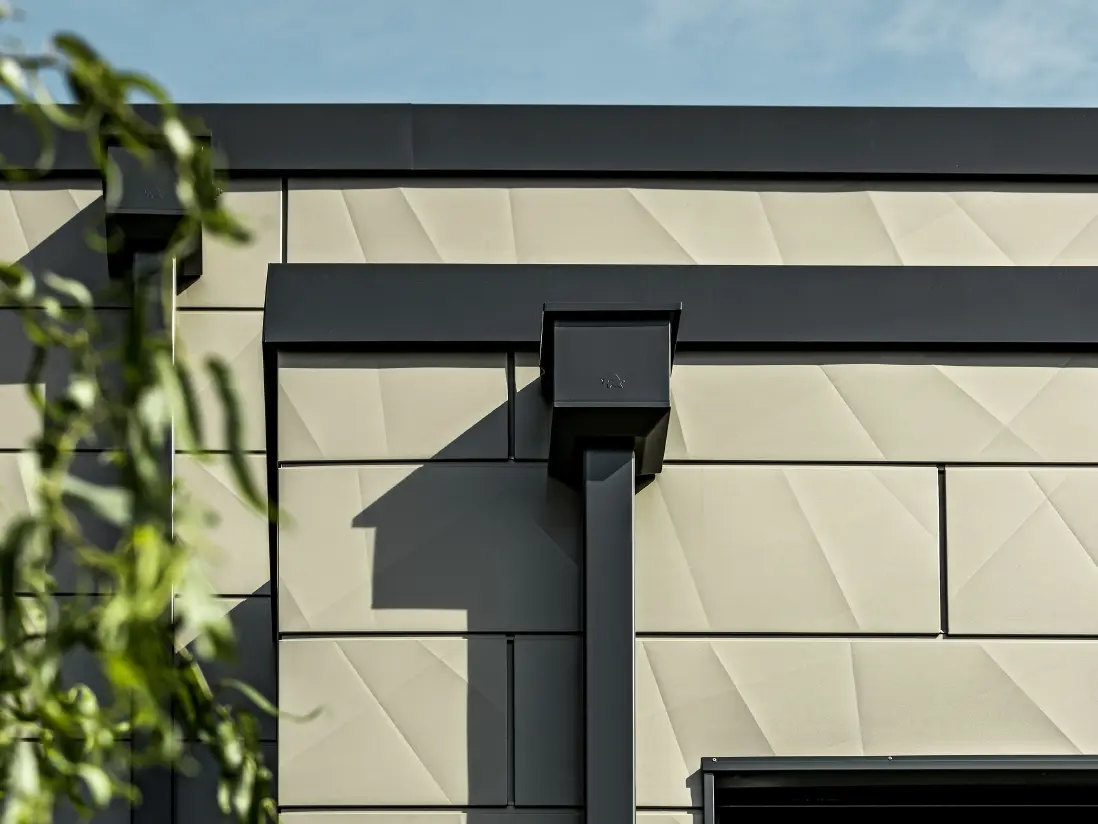

Square downpipe leader head
□ 80, 100

Square downpipe outlet
□ 80/250, □ 80/333, □ 100/333, □ 100/400

Parapet outlet square downpipe connector
□ 80, 100; suitable for high-temperature pipe NW 75 or 110

Square-to-round adapter 80
□ 80 ⌀ 98 mm, □ 80 ⌀ 115 mm

Square-to-round adapter 100
□ 100 ⌀ 98 mm, □ 100 ⌀ 115 mm

Square downpipe with access pipe
□ 80, 100

Square downpipe water collector
□ 100
