FALZONAL®

FALZONAL® enables you to explore ambitious design possibilities while remaining easy to work with.

+31

Product information
Advantages
Colours
Technical information
Planning and installation
Accessories

In terms of alloy, strength and coating, this colour aluminium strip has been specially tailored for applications using sheet metal techniques. It is perfectly suited to the widest variety of folding techniques – and can be combined with materials such as wood, glass or steel.

FALZONAL® is available in a wide range of colours and surfaces with plain or metallics, you can choose from a palette of 35 colours.

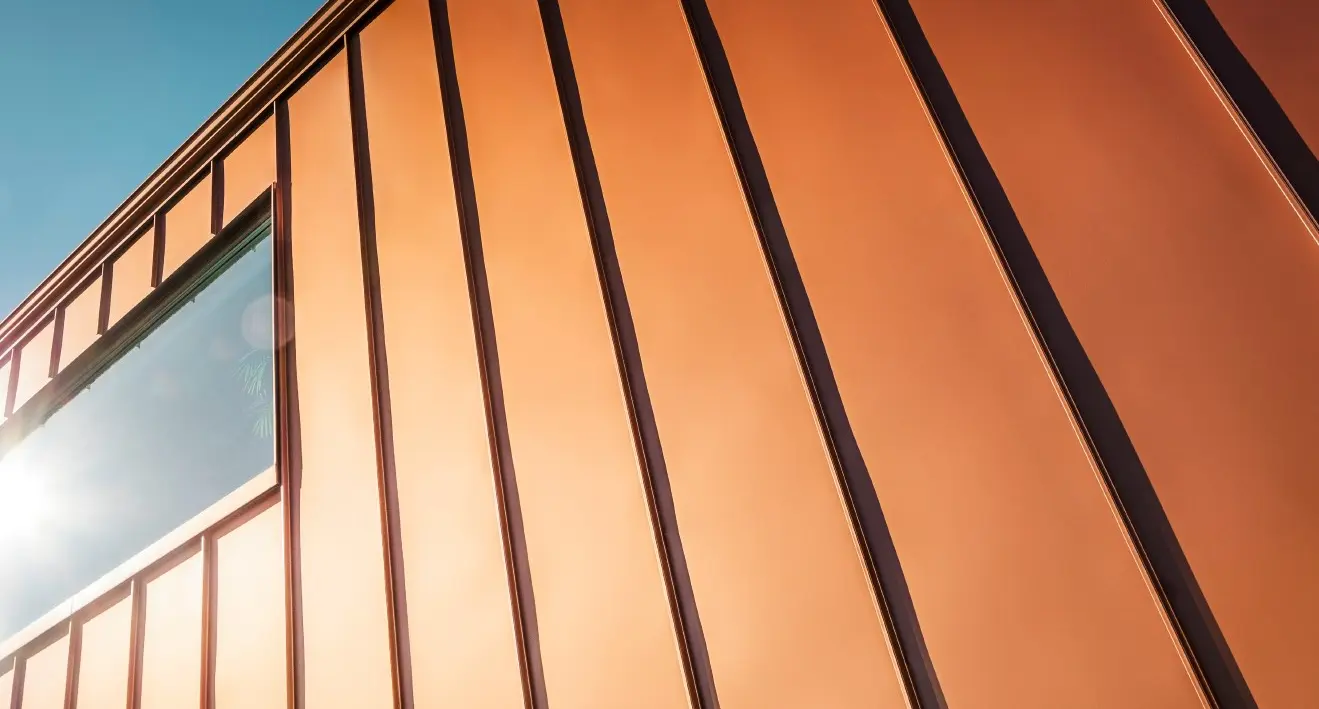

PREFA Falzonal fasada u nijansi novi bakar

Large choice of colours

with plain or metallic colours including copper brown and zinc grey

HDCC coating

(high durable coil coat)
UV-resistant and environmentally sound

Easy to work

Easy to work, strong load-bearing capacity

Fire protection

FALZONAL® is non-combustible (A1)

Large choice of colours

with plain or metallic colours including copper brown and zinc grey

HDCC coating

(high durable coil coat)
UV-resistant and environmentally sound

Easy to work

Easy to work, strong load-bearing capacity

Fire protection

FALZONAL® is non-combustible (A1)

Resists corrosion caused by condensation

Perfectly suited

Alloy, mechanical properties and coating are coordinated with the folding technology

Does not rust

Perfect for a wide range of folding techniques

specially developed for roof & façade applications using sheet metal techniques.

Resists corrosion caused by condensation

Perfectly suited

Alloy, mechanical properties and coating are coordinated with the folding technology

Does not rust

Perfect for a wide range of folding techniques

specially developed for roof & façade applications using sheet metal techniques.

FALZONAL® is available in a wide range of colours and surfaces with plain or metallic colours including copper brown or zinc grey. The visible side of FALZONAL® is coil-coated with an HDCC paint system (high durable coil coat).

The product is available in the following colours

Color	Code	similar to RAL colour
	zinc grey 1773-20

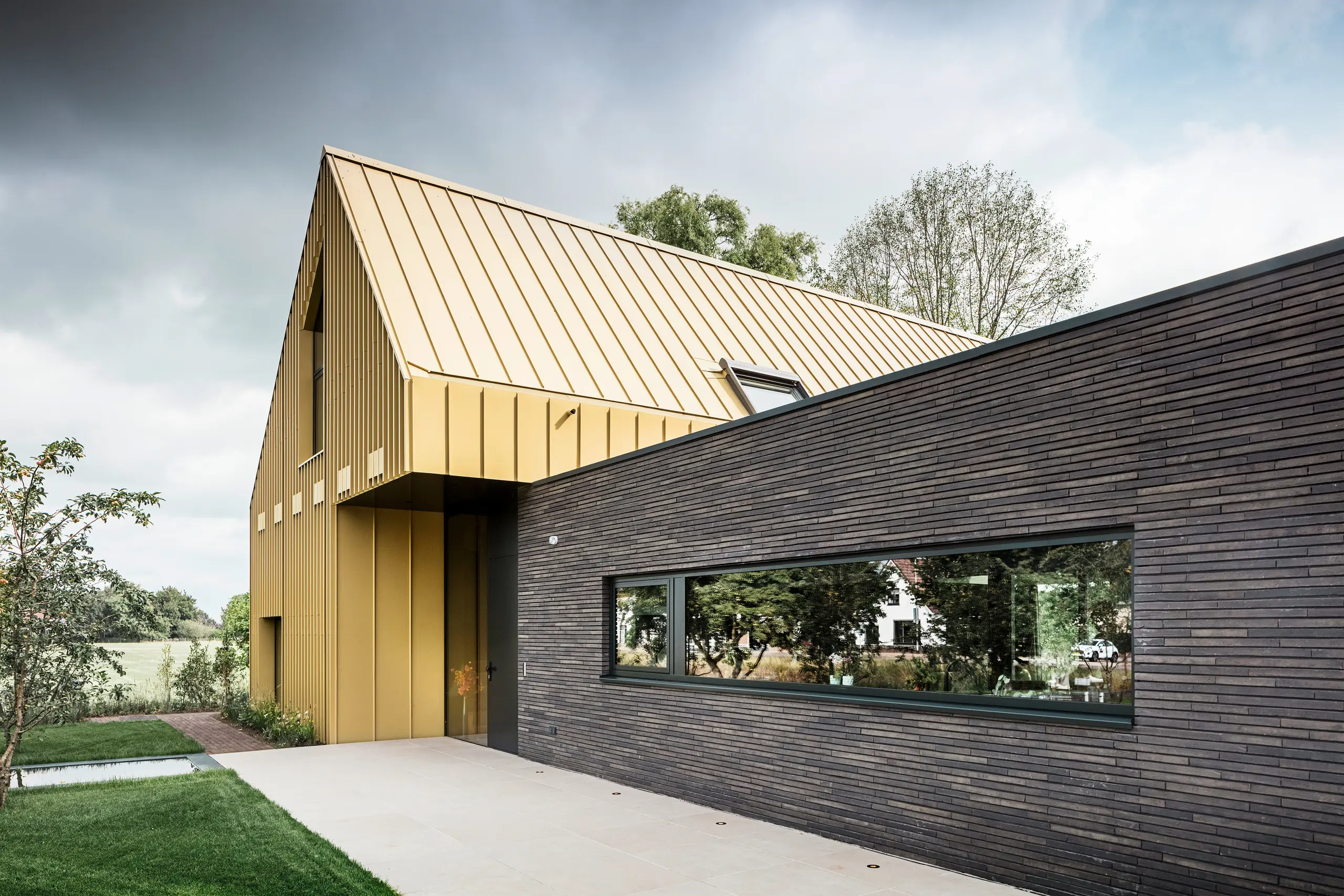

	savannah beige 1133-20
	tin grey 1792-20
	standard pure white 1997-20	9010
	matt light zinc 17K2-10
	matt light grey 17H7-10
	anthracite grey 1729-20	7016
	matt dark grey 17H8-10
	anodic brown 1809-20
	reseda green 1602-20	6011
	Victorian brick red 1324-20
	copper brown 1810-20	8004
	coffee brown 1802-20	8024
	light ivory 1122-20	1015
	dusty blue 1504-20	5014
	opal green 1647-20
	standard quartz grey 1734-20	7039
	pearl white 1934-20	1013
	grey-green 1624-20	6021
	broom yellow 1176-20	1003
	crimson 1302-20	3002
	standard mint green 1678-20	6029
	olive green 1617-20	6003
	light grey 723-20	7035
	gentian blue 1521-20
	pastel turquoise 1684-20	6034
	turquoise blue 1555-20	5018
	azure blue 1502-20	5009
	carbon black 1007-20	9004
	bright metallic 2923-40	9006
	standard grey aluminium 2947-20	9007
	light bronze 2822-20
	new copper 2877-30
	maya gold 2862-40
	weathered clear varnish 29B1-20

Paint quality	visible side: High durable Coil Coating (HDCC) Rear: protective paint
Gloss	Depending on the shade, covers approx. 10 to 20 units as per the Gardner measuring system (measuring angle 60°). Metallic colours approx. 40 units.
Protective film	The visible side of FALZONAL® is coated with a patent, asymmetric perforated, non-slip protective film. This film is UV-resistant and can remain on the trays for up to six months after all work is complete.

Paint quality

visible side: High durable Coil Coating (HDCC)

Rear: protective paint

Gloss

Depending on the shade, covers approx. 10 to 20 units as per the Gardner measuring system (measuring angle 60°). Metallic colours approx. 40 units.

Protective film

The visible side of FALZONAL® is coated with a patent, asymmetric perforated, non-slip protective film. This film is UV-resistant and can remain on the trays for up to six months after all work is complete.

In the case of standing seam coverings, pre-profiled or folded panels are folded together to create a rainproof joint. The angled standing seam is primarily used for façades, while the double standing seam is used on roof surfaces. The following two images show the cross-sections of double and angled standing seams:

Double standing seam

Angled standing seam

Material	coil-coated aluminium, 0.7 mm thick
Standard dimensions	0.7×600 mm complementary coil: 0.7×1,200 mm
Weight	approx. 1.89 kg/m² actual consumption with FALZONAL® 600: approx. 2.19 kg/m²
Minimum roof pitch*	3° (approx. 5%) * Observe country-specific standards and specialist guidelines.
Supporting substrate and separation layer*	on fully boarded substrate (at least 24 mm); separation layer as required * Observe country-specific standards and specialist guidelines.
Fastening	PREFA preformed fixed and long sliding clips (stainless steel) according to static requirements

Here, our installers and architects can download specification documents about FALZONAL®.

doc

FALZONAL krov - tekst specifikacije 52 kb

pdf

FALZONAL krov - tekst specifikacije 151 kb

Stainless steel preformed fixed clip (screwed)

Not to be used on the façade in combination with the special screws for an aluminum and steel substructure!

Stainless steel preformed sliding clip (screwed)

Panel length of up to 12 m. Not to be used on the façade in combination with the special screws for an aluminum and steel substructure!

Stainless steel preformed long sliding clip (screwed)

Panel lengths of 12 m - 15 m. Not to be used on the façade in combination with the special screws for an aluminum and steel substructure!

Magazine screwdriver for screwed clip

incl. attachment for magazine screws, for faster assembly

Niro hafter za ugaoni stojeći falc kompanije PREFA

Stainless steel preformed fixed clip (nailed)

Niro ugaoni klizni hafter kompanije PREFA

Stainless steel preformed sliding clip (nailed)

for tray lengths of up to 12 m

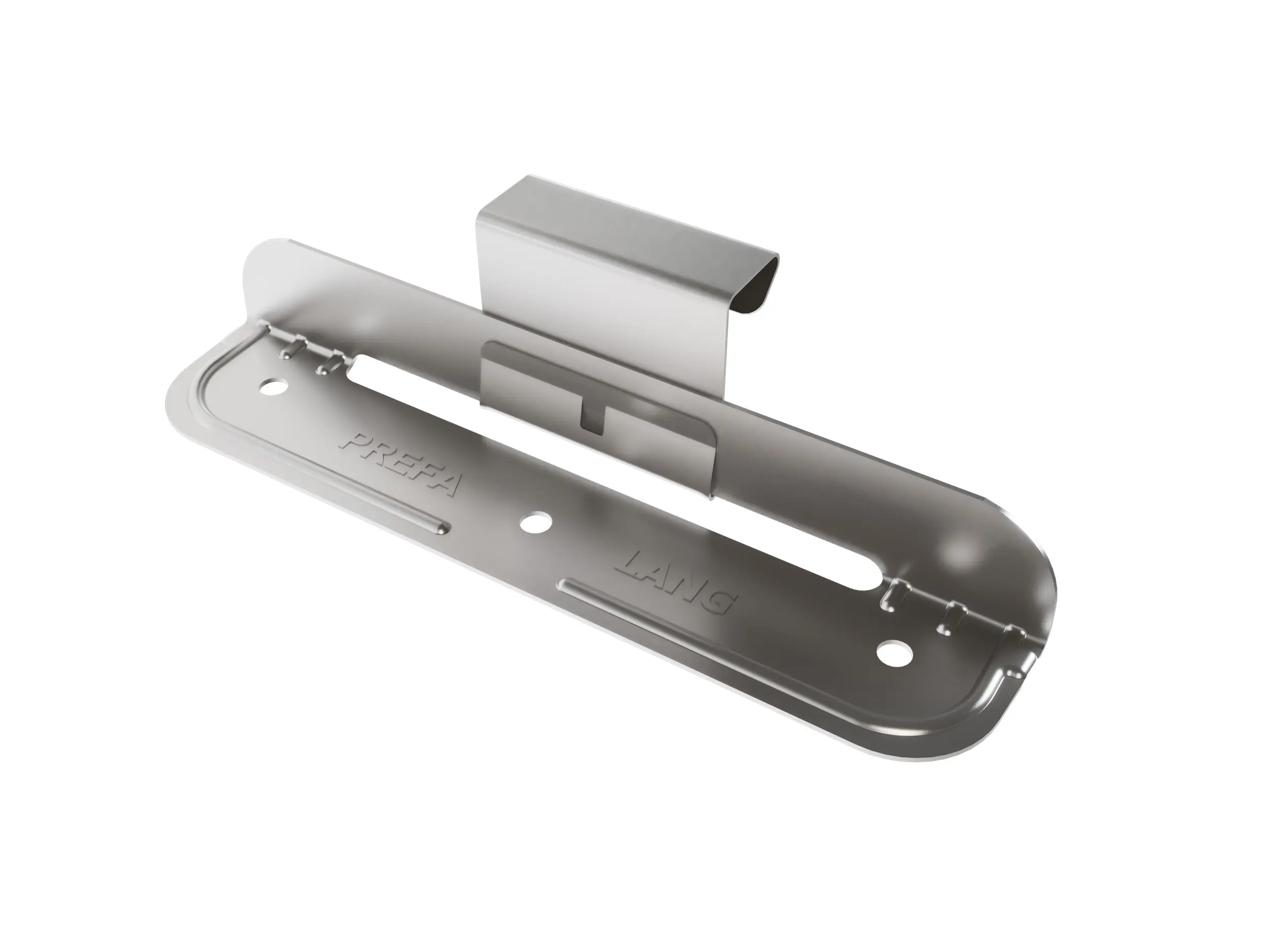

Prikaz PREFA Niro ugaonog haftera sa dugim kliznim otvorima pričvršćenog ekserima, dodatka od nerđajućeg čelika koji se koristi za pričvršćivanje PREFALZ proizvoda. Prikazuje robusnu metalnu konstrukciju sa dugim otvorima za fleksibilnu montažu i stezaljku za sigurno pričvršćivanje krovnih ili fasadnih panela.

Stainless steel preformed long sliding clip (nailed)

tray lengths 12 – 15 m

Stainless steel fish tailed fixed clip

Stainless steel fish tailed sliding clip

tray lengths up to 12 m

Single pipe seam clamp

for pipe openings with a diameter of 28 mm

Double pipe seam clamp

for pipe openings with a diameter of 28 mm

Seam clamp with oblong hole

for pipe openings with a diameter of 28 mm

Snow guard pipe

for seam clamps; 28 × 2 × 3.000 mm,

Corner connector 90°

for snow guard pipes ⌀ 28 × 2 mm

Ice stopper

for snow guard pipes 28 × 2 mm

Sunny solar bracket

suitable for all PREFA small format products and standing seam systems.

Vario Prefalz solar bracket

Suitable for PREFA double-lock standing seams with a seam height of 25 mm. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Walkway support for standing seam roofs

roof pitch: 5°-55°

Walkway support for standing seam roofs

250 × 1.200 mm, 250 × 800 mm, 250 × 600 mm, tested according to DIN EN 516-1-A

Walkway connector

Roof anchor hook according to EN 517 – B SDH Industry 31

tested for securing 2 persons

Frog-mouth vent cover

for riveting, air intake section approx. 30 cm²

Vent pipe

Ø 100 mm, Ø 120 mm including EPDM seal and cover

Bonded vent pipe cover for standing seam roofs

roof pitch: 3°-52°

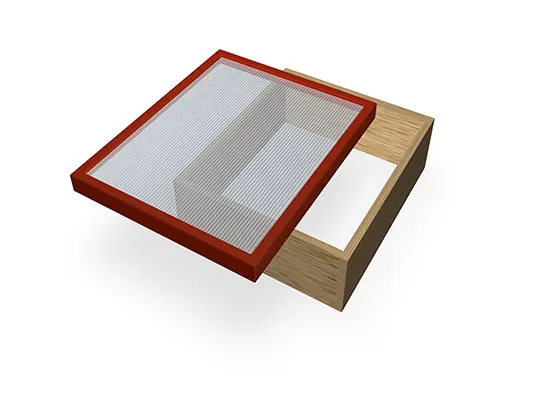

Roof hatch cover and wooden frame

roof pitch from 12°

Special adhesive kit

Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles

Sealing gel

in a cartridge or in a foil pouch

Bird screen

125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm

Ventilation screen

with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm
