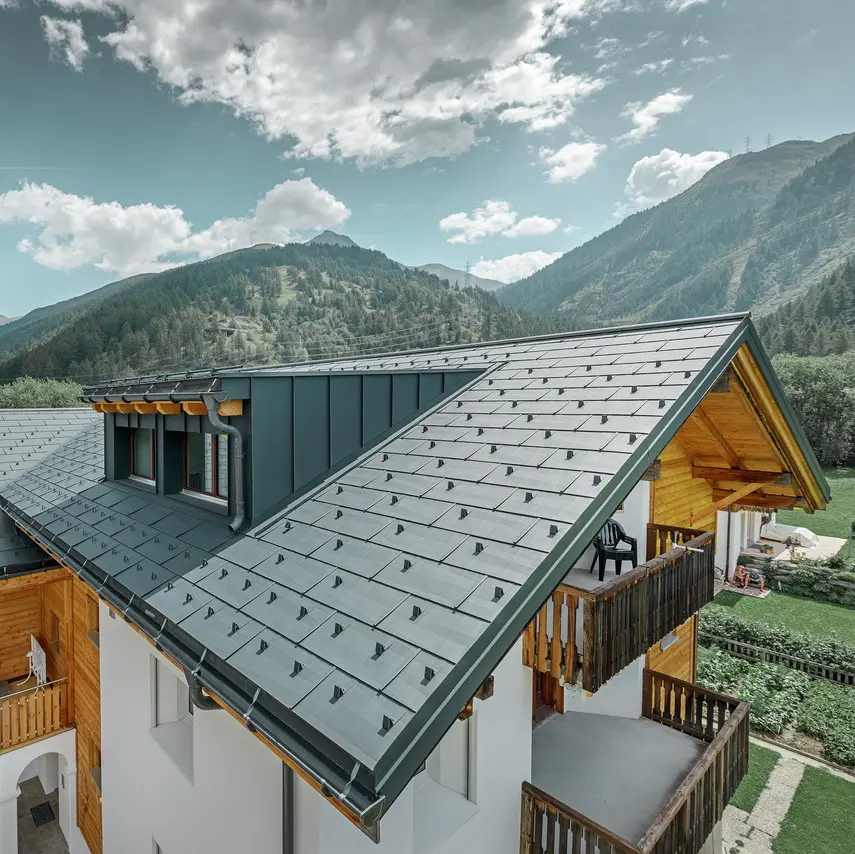

Detached home in rural surroundings with PREFA roof covering in anthracite

FX.12 roof panel

Lively and durable: depending on how the light falls, the irregular edges create unique effects.

+6
read more

Clever design meets technical ingenuity! The PREFA FX.12 roof panel is a unique roof element that creates a particularly futuristic surface design due to its geometric designs. Depending on sunlight, the irregular edges create vibrant light and shadow effects.

In addition to their appearance, the edges have an essential function: they reinforce the panels, thus ensuring even greater resistance. Another special feature is the tapered standing seam, which serves to absorb the resulting lateral expansion.

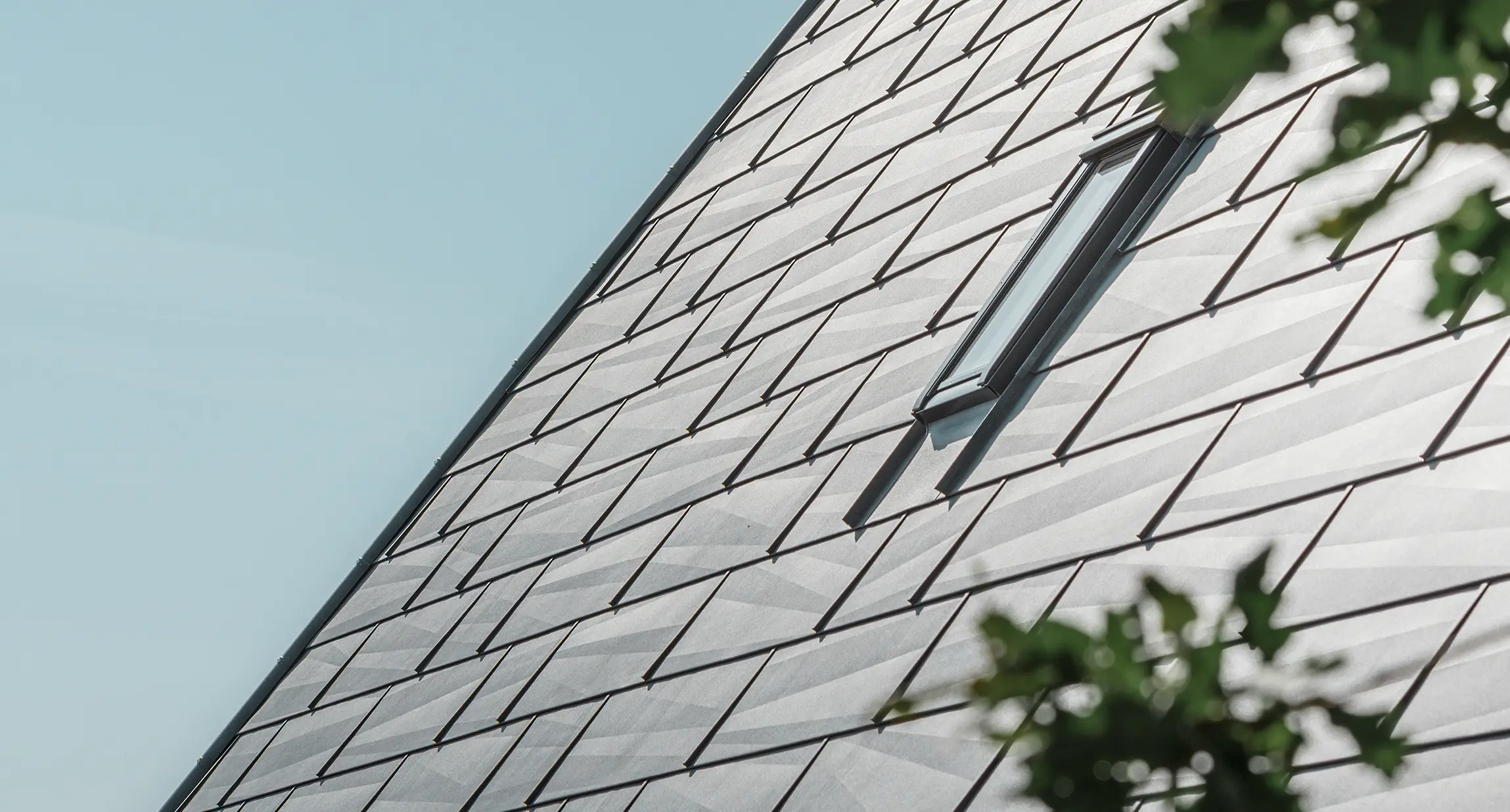

Close-up of the PREFA FX.12 roof panel in the colour P.10 stone grey.

Advantages of the PREFA FX.12 roof panel

Icon for advantages

Large choice of colours

available in many standard colours

Icon for advantages

Multiple design options

2 formats (short and long) and variable joint offset for irregular appearance

Icon for advantages

40-year guarantee

on material and colour

Icon for advantages

Large choice of colours

available in many standard colours

Icon for advantages

Multiple design options

2 formats (short and long) and variable joint offset for irregular appearance

Icon for advantages

40-year guarantee

on material and colour

Icon for advantages

Unique appearance & high resistance

The irregular edges create a lively interplay between light and shadow and further reinforce the panels.

Icon for advantages

Quick installation

Can be mounted directly on the substructure without clips.

Icon for advantages

Unique appearance & high resistance

The irregular edges create a lively interplay between light and shadow and further reinforce the panels.

Icon for advantages

Quick installation

Can be mounted directly on the substructure without clips.

Makes the installer's life easier.

In addition to its individual look, FX.12 also offers many practical advantages in processing – and thus meets all the requirements of both the modern and the traditional tinsmith craft. FX.12 is extremely quick to install due to its direct mounting on the integrated fastening strip. Furthermore, due to their large format, only a few panels are needed to cover 1 m² of roof surface.

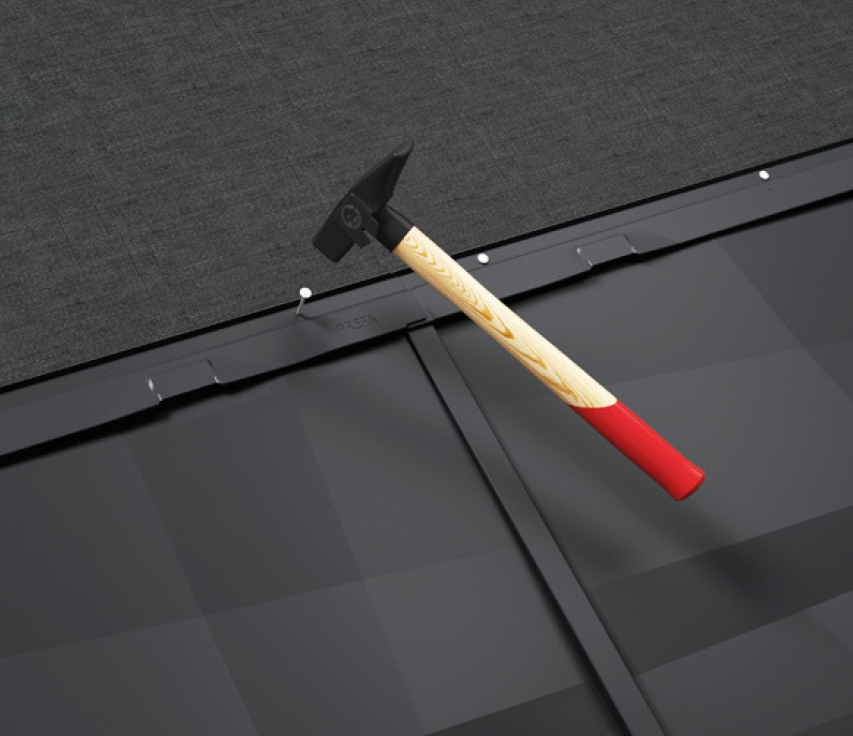

The PREFA roof panel FX.12 is fastened with nails to the substructure by means of a fastening strip on the product.

Expert tip: The noise-insulating strip makes the PREFA FX.12 roof panel quieter.

Aluminium roofs are quieter than their reputation would have you believe. Everyone perceives noise differently. The PREFA FX.12 roof panel has a noise-insulating strip (FD.TEC) to keep noise levels to a minimum.

Colour range of the PREFA FX.12 roof panel

The colour palette of the PREFA FX.12 roof panel ranges from classic brick red via modern shades of grey up to brown tones. The following PREFA roof colours are available as standard:

Color overview (10)

Color

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
  • Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
  • Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colors may vary in shade.
  • To identify exact colors for complementary components please consult original samples.

Be inspired by reference properties that have already been implemented.

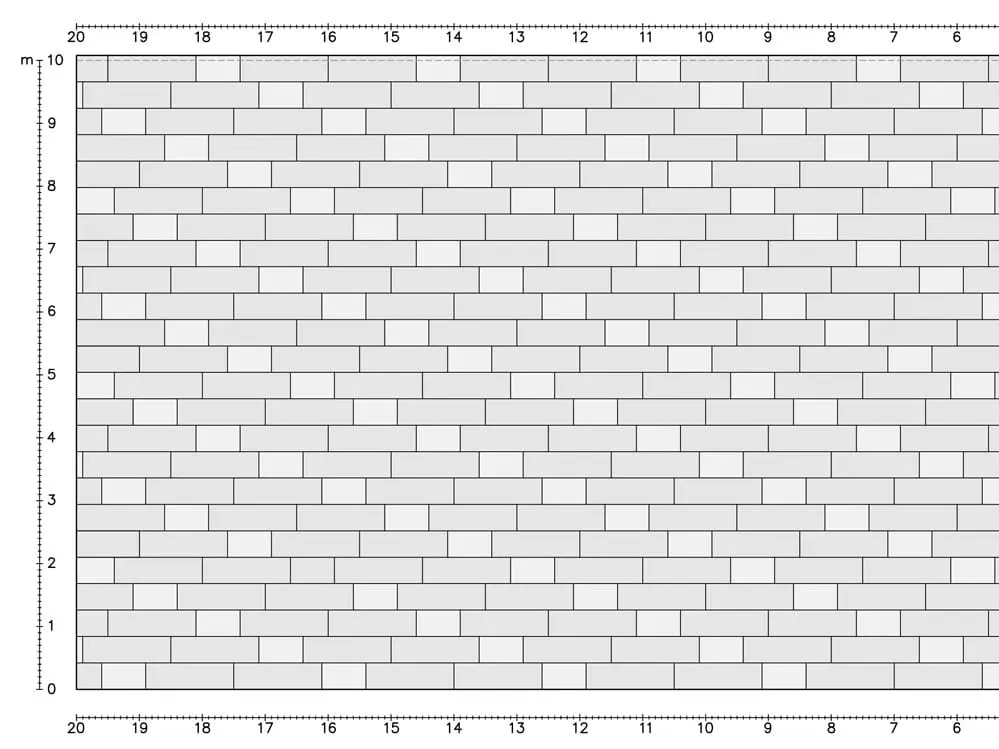

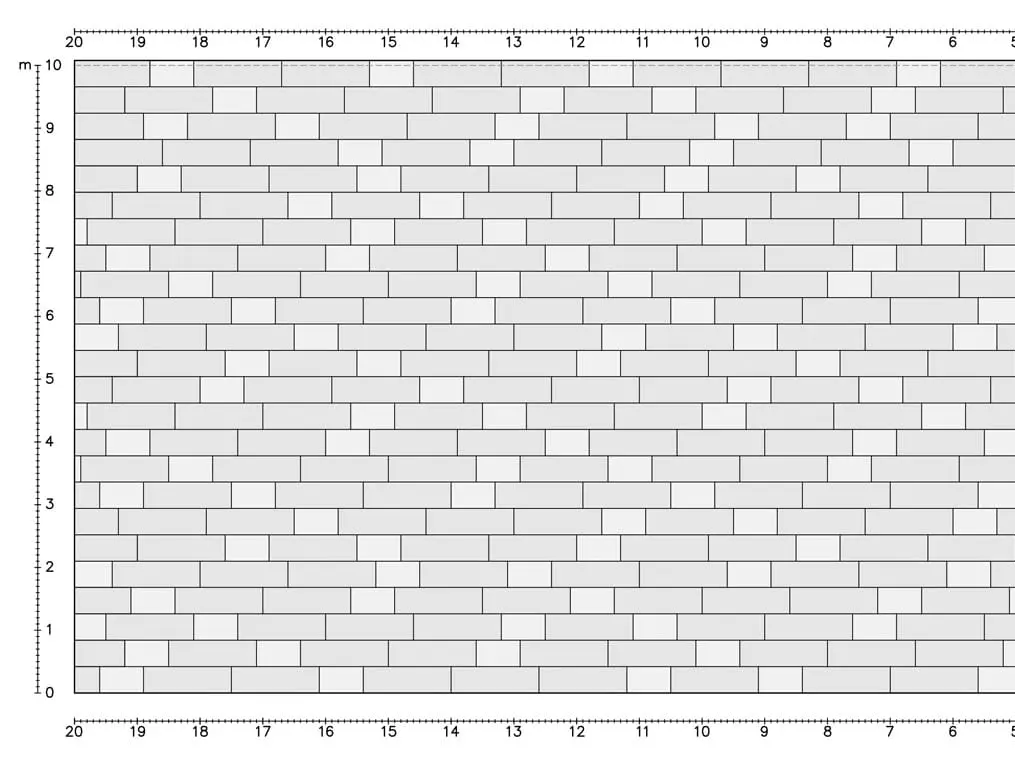

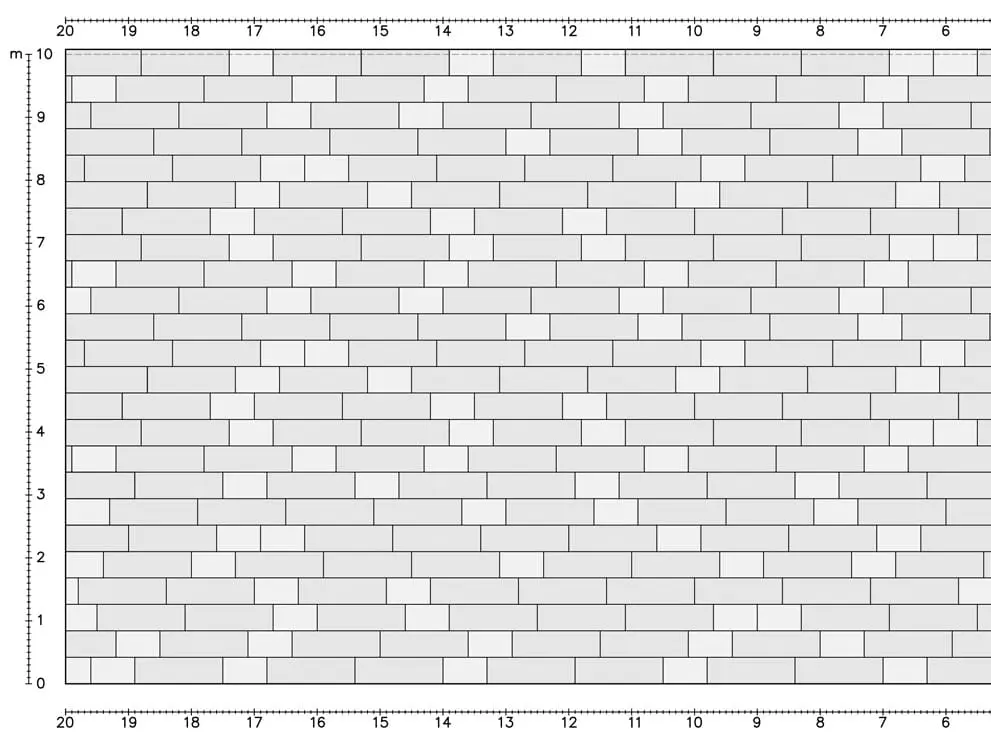

Not only the irregular edges and the resulting lighting effects ensure a visual highlight. Two different panel formats (short and long) also enable the appearance of the roof to be further shaped. We have developed three laying examples for the FX.12 roof panel for you – of course, other variants are also possible.

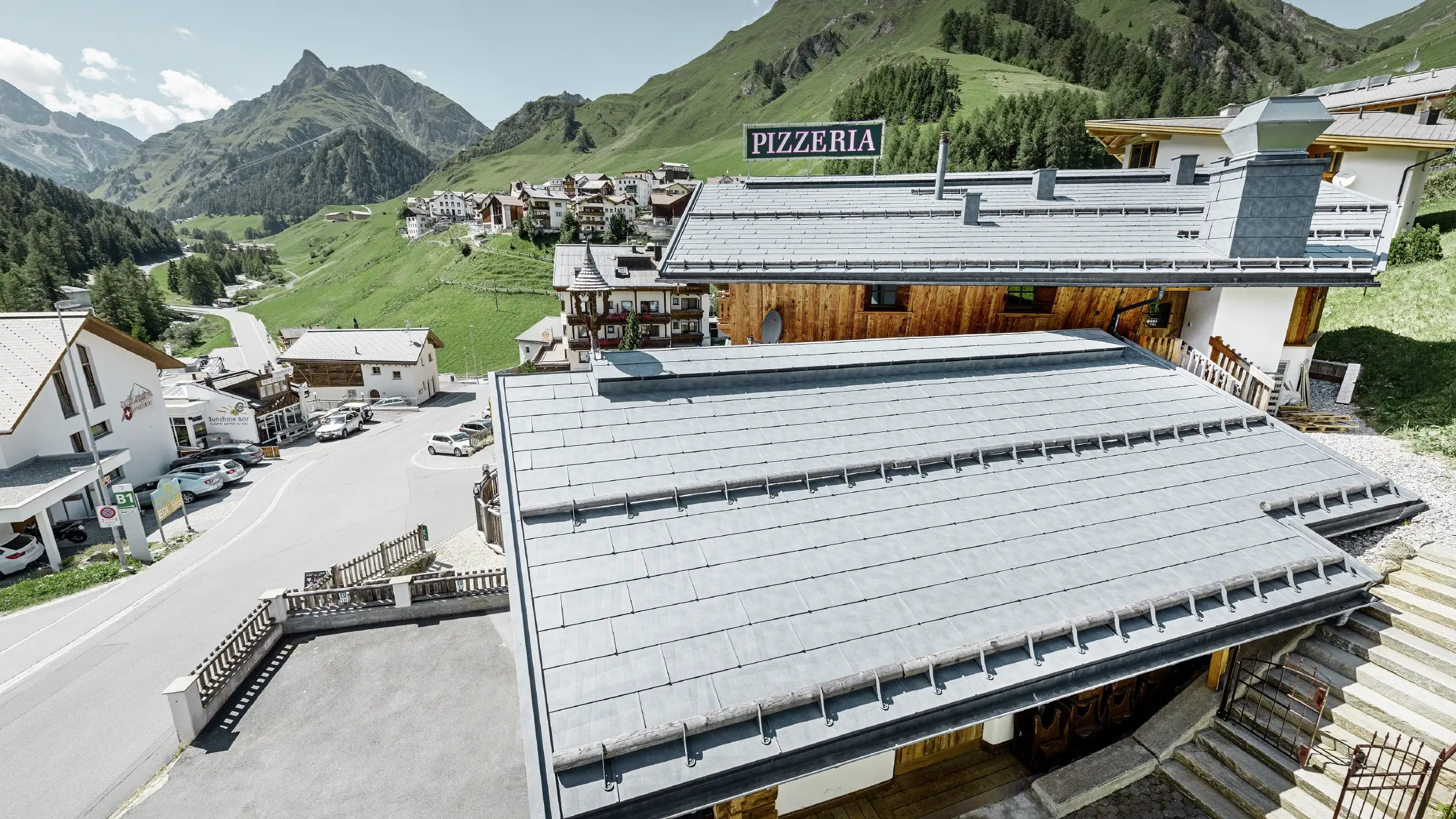

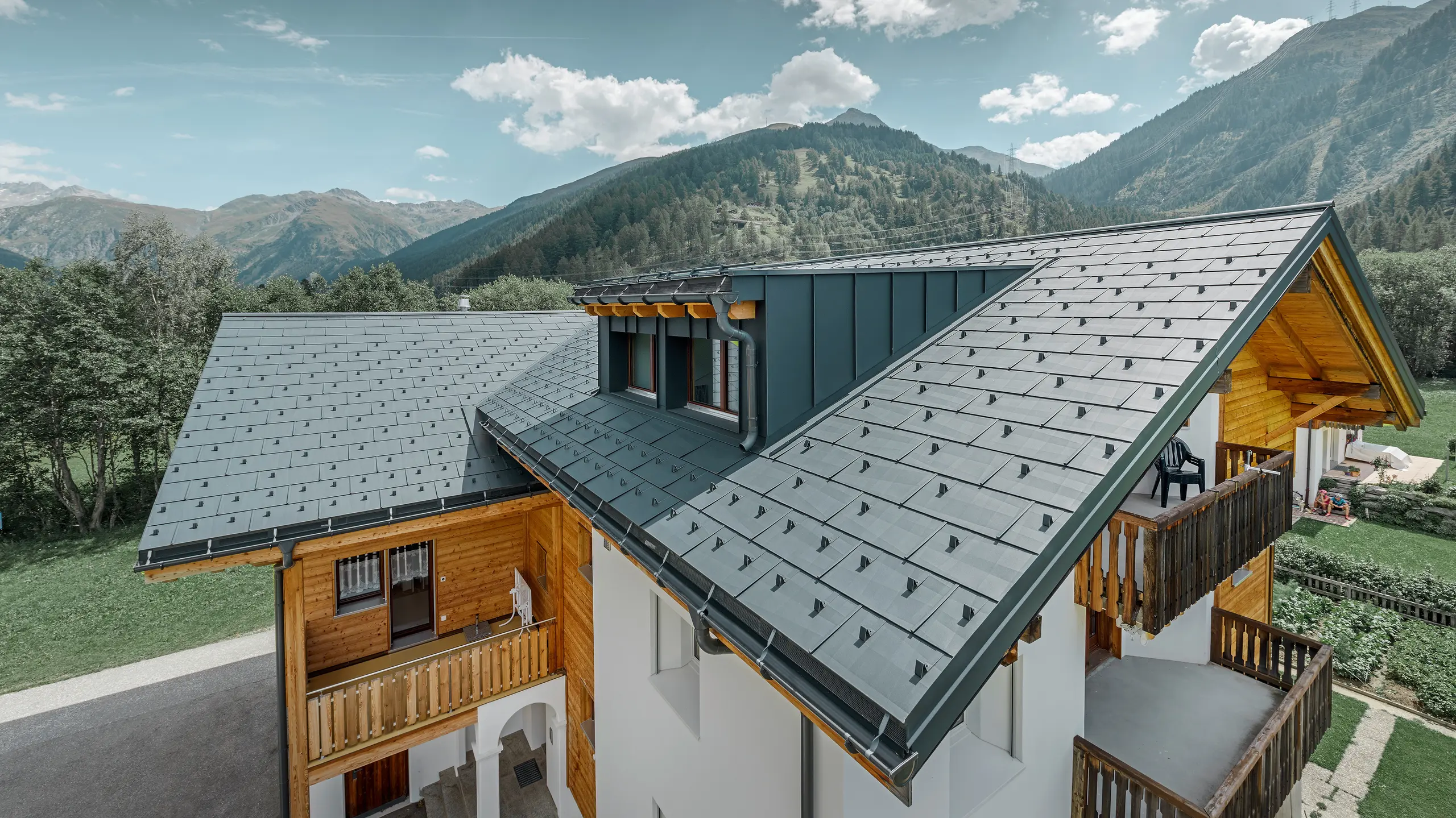

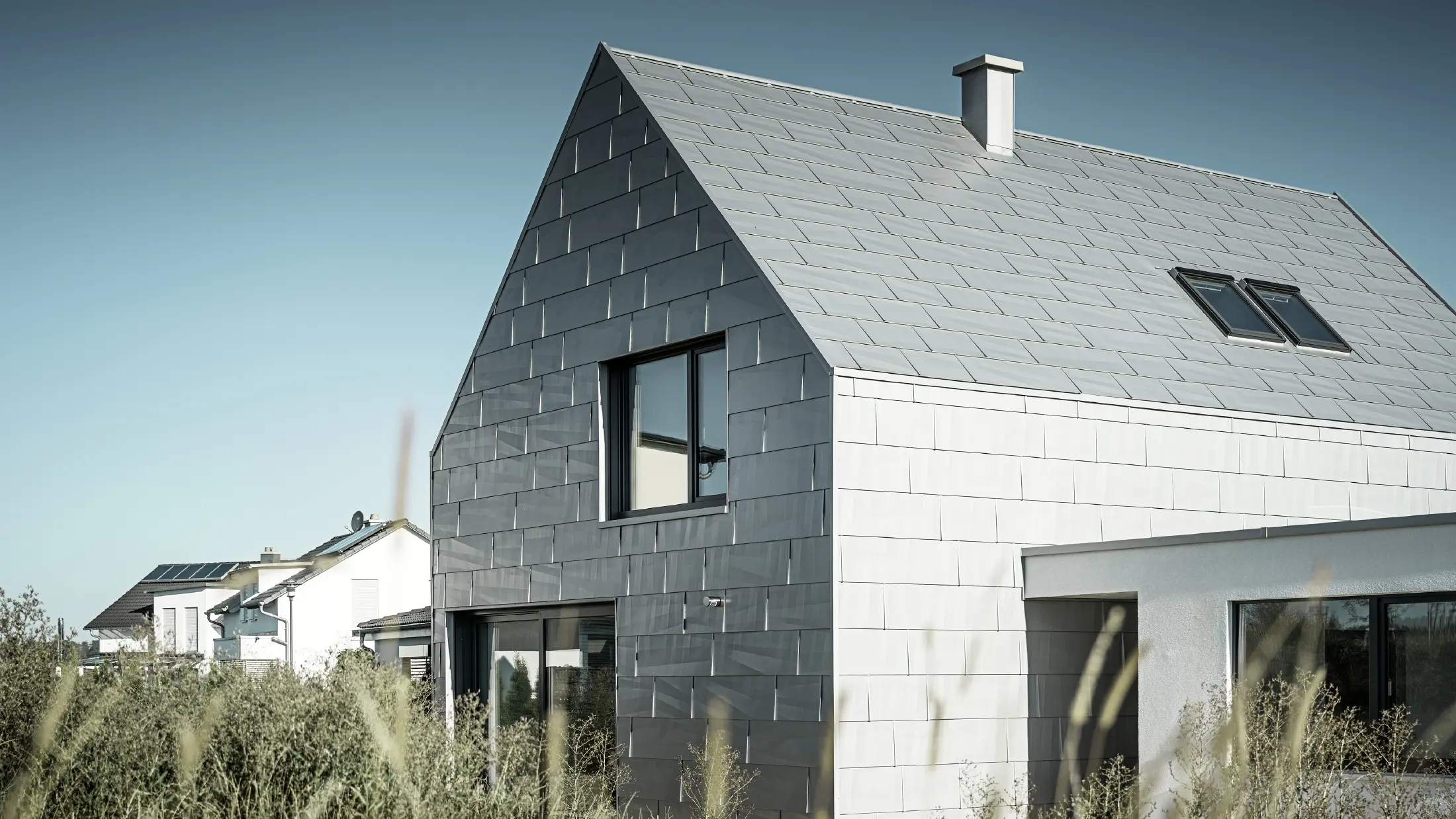

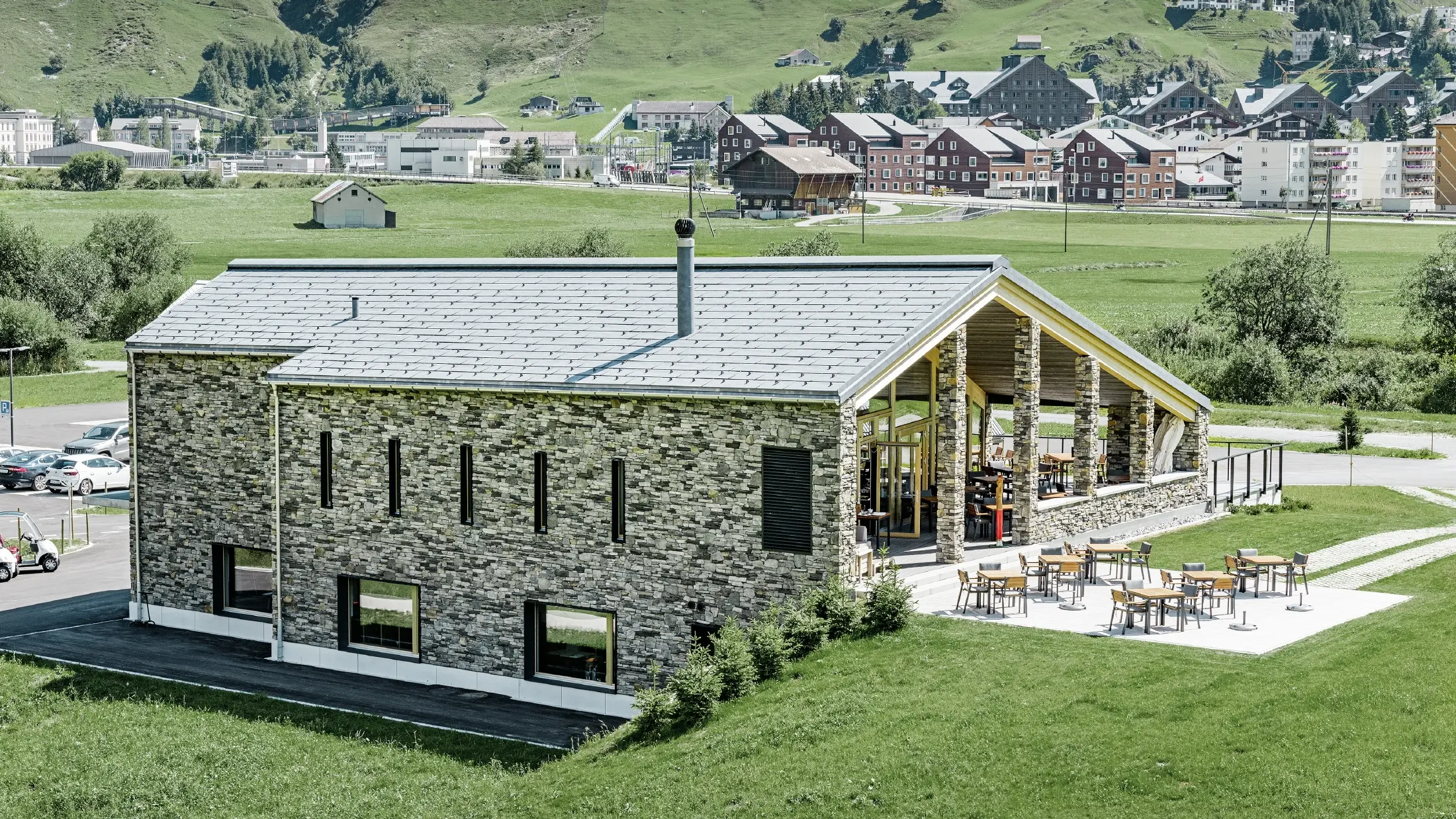

Whether you’re re-laying your roof from scratch or renovating your old roof, you’ll find some inspiring projects here:

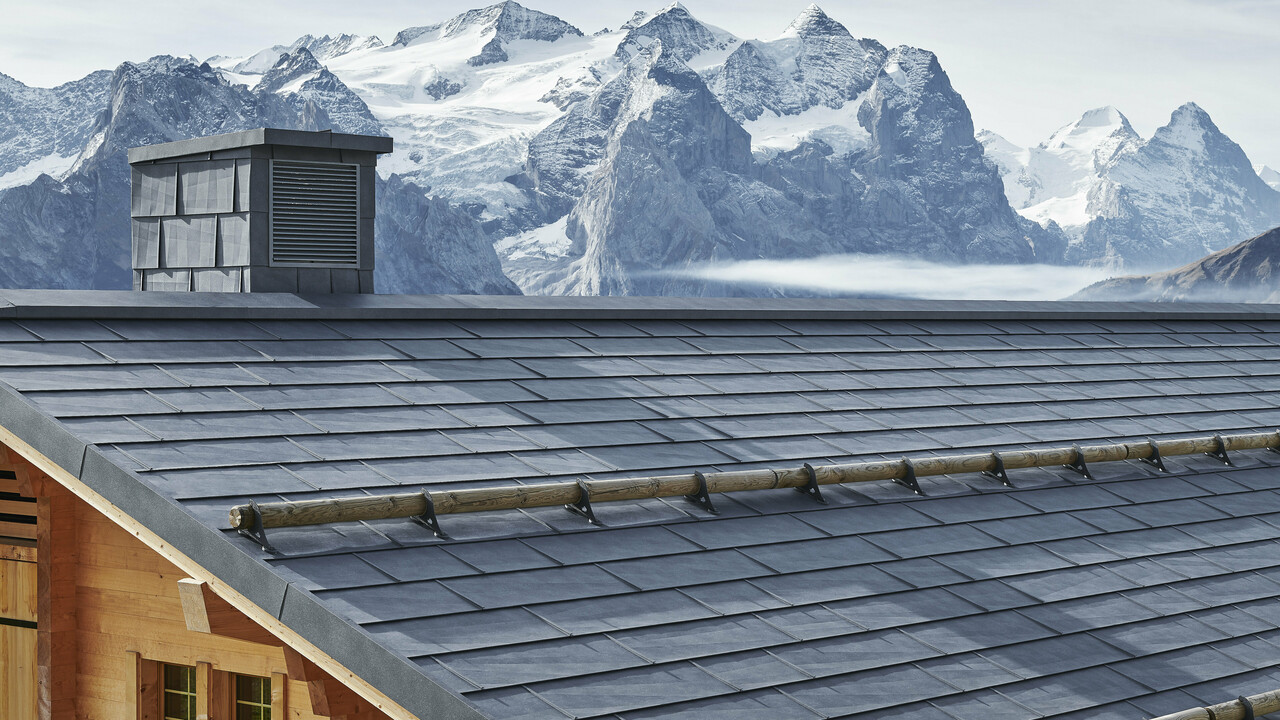

The Reuti hotel and Käserstatt mountain restaurant were constructed with lots of wood and stone. For the Managing Director of Bergbahnen Meiringen-Hasliberg, Hanspeter Wenger, these two new buildings in the region are particularly important, and he commissioned the architectural firm Amstutz Abplanalp Birri from Meiringen and the architect Jost Zumstein for this purpose. The high-quality PREFA products can withstand these conditions and protect the building from damage.

At Käserstatt, at 1850 metres above sea level, the snow is sometimes up to three metres deep and the winds can be up to 150 kilometres per hour.

Hanspeter Wenger

Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

700×420 mm (cover), i.e. 3.4 pc./m²
1,400×420 mm (cover), i.e. 1.7 pc./m²

Weight

approx. 2.4–2.5 kg/m²

Minimum roof pitch

17° (approx. 31%)

Supporting substrate and separation layer*

On fully boarded substrate (at least 24 mm), a separation layer is required for roof pitches between 17° and 25°; with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required.

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct, with 3 PREFA ring nails per small FX.12 roof panel, with 5 PREFA ring nails per large FX.12 roof panel (i.e. 8–10 PREFA ring nails per m²)

* Observe country-specific standards and specialist guidelines.

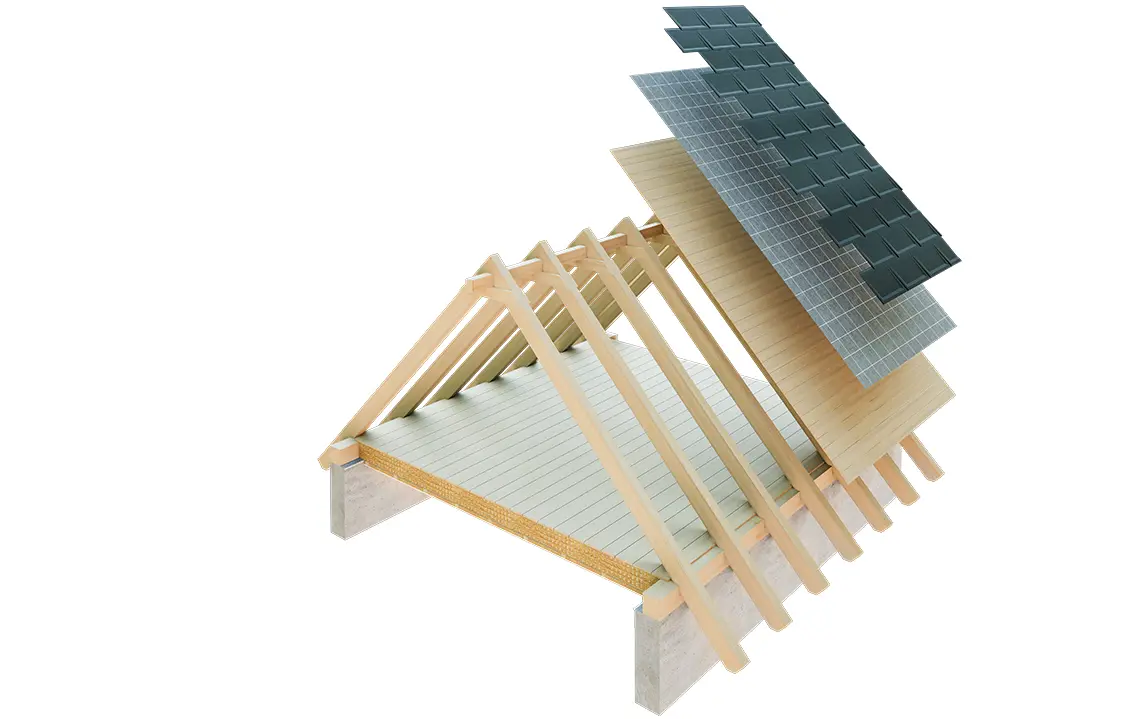

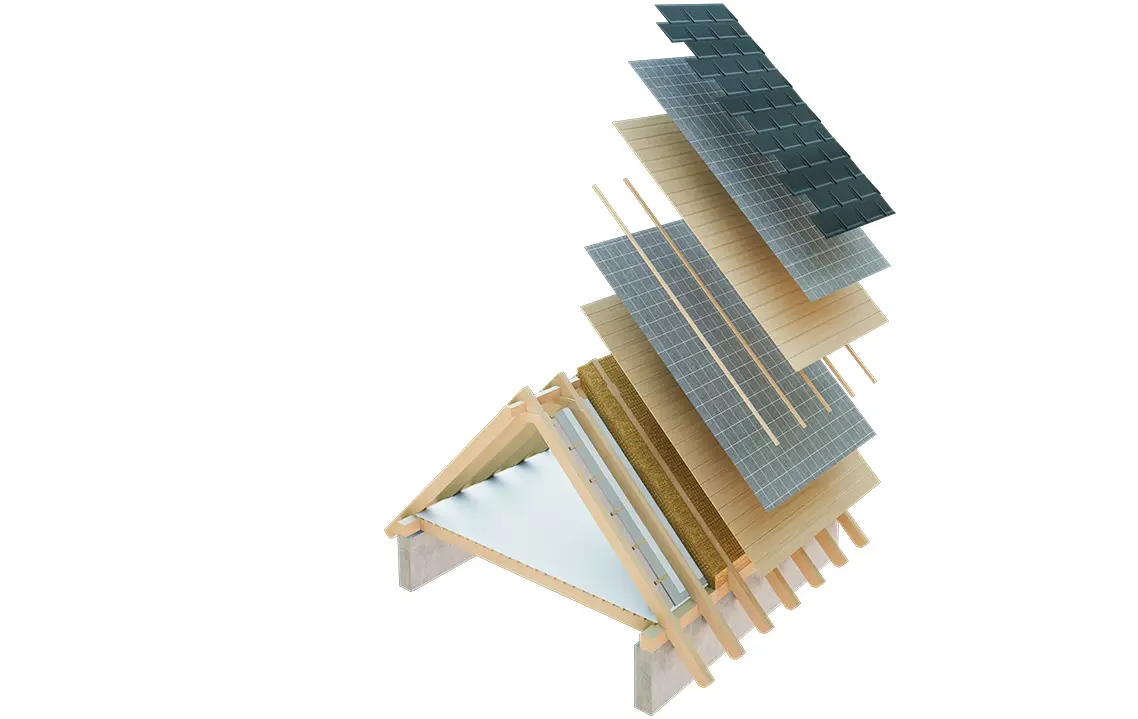

PREFA aluminium roofs are preferably executed with a vetilated build up, whre the substrate and thermal insulation layer is separated by a ventilated gap. This means any occasional condensation can be wicked away.

It is mostly the roof membrane that is ventilated, as shown in the first picture. However, the whole attic space can also be ventilated (second picture).

Planning & Application

Our installers and architects can download specification documents and information on the PREFA FX.12 roof panel here.

Accessories

Below you will find a list of suitable accessories for the PREFA FX.12 roof panel – from verge trim and ridge vents to roof safety products like snow guards and walkways. Gutters and drainpipes in matching colours can be found under “Roof drainage”. The PREFA range also includes façade systems, flood protection, and photovoltaic products.

For a complete, detailed list of accessory products, see our price list (only for processors).

Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel

1800 × 158 × 1,00 mm, pre-drilled

Ridge vent

3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs

Ridge vent end cap

-

Hip and ridge cap

500 × 1,00 mm

Hip cap end cap

-

Verge flashing

95 × 2.000 × 0,70 mm, with cleat strip

Safety valley

3.000 mm, with double lock standing seam (canted)

Bird screen

125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm

Ventilation screen

with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm

Eaves drip edge

230 × 2.000 × 0,70 mm

Snow guard for R.16, FX.12 and DS.19

-

Bracket for pipe-style snow guard system

3 pipe openings

XL bracket for pipe-style snow guard system

with 5 pull-through openings, ideal for PV on-roof systems

Snow guard pipe

3.000 mm; 25/25

Ice-retention bracket

Suitable for removable pipe

end piece for pipe-style snow guard system

for removable pipe

End piece XL for pipe-style snow guard system

for insert profile

Mountain snow guard bracket

For 140 mm log diameter

Solarhalter für Photovoltaikanlagen auf PREFA Dächern inklusive Abdeckkappe

Solar bracket with protective cap

length: 260 mm

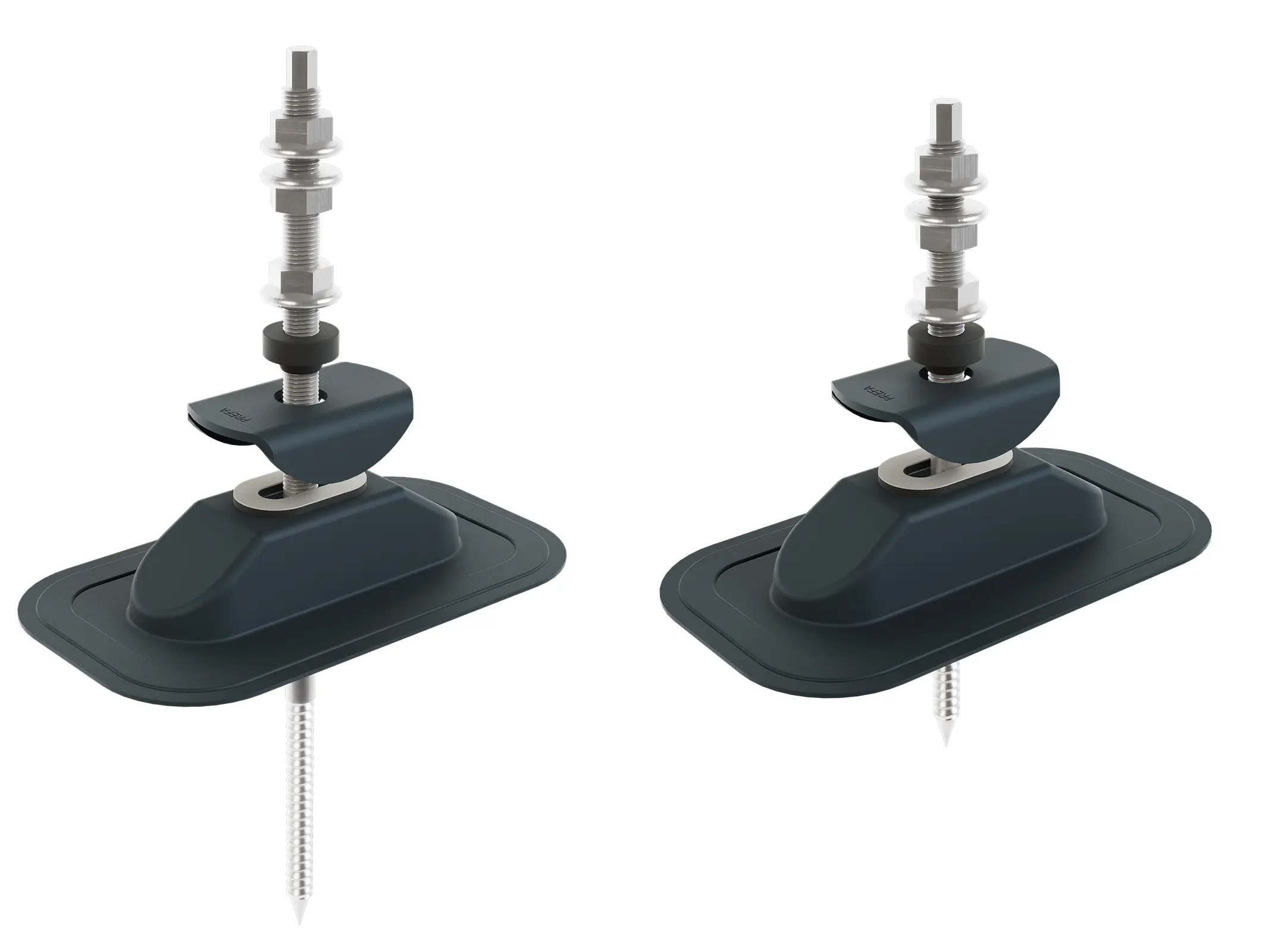

Sunny solar bracket

suitable for all PREFA small format products and standing seam systems.

Zu sehen ist der PREFA Solarhalter Fix ohne Kreuzverbinder.

Fix solar bracket

Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Zu sehen ist der PREFA Solarhalter Vario ohne Kreuzverbinder.

Vario solar bracket

Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Safety tread

Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A

Walkway support on one mount

250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A

Walkway support on two mounts

360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B

Walkway

250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B

Walkway connector

-

Roof anchor hook

tested according to EN 517 – B

Roof anchor hook with mounts

tested according to EN 517 – B

Frog-mouth vent for FX.12 roof panel (small)

700 × 420 mm, air intake section: approx. 30 cm²

Frog-mouth vent for FX.12 roof panel (large)

1,400 × 420 mm, air intake section: approx. 60 cm²

Frog-mouth vent cover

for riveting, air intake section approx. 30 cm²

Ventilation cap

Ø 100 mm, roof pitch: from 12°

Vent pipe

Ø 100 mm, Ø 120 mm including EPDM seal and cover

Flexible pipe collar 100

Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay

Vent pipe cover for R.16 and FX.12

For pipe openings of ⌀ 80–125 mm and roof pitches between 17° and 52°

Vent pipe cover for seaming

roof pitches between 12° - 52°, Ø 80 - 125 mm

Universal vent pipe cover 2 parts

roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm

Base plate

lenth: 540 mm, width: 125 mm

Vario flashing

width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°

Roof hatch

-

Window surrounds for Roto & Roto-Q-series

available in many dimensions

Velux window surroundings

available in many dimensions

Chimney cap

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

Roof conductor holder for lightning protection wire

clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :

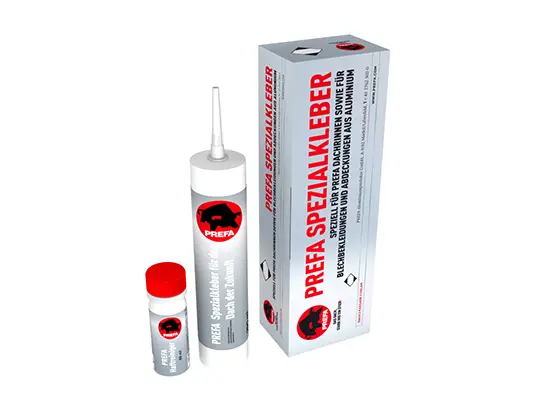

Special adhesive kit

Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
