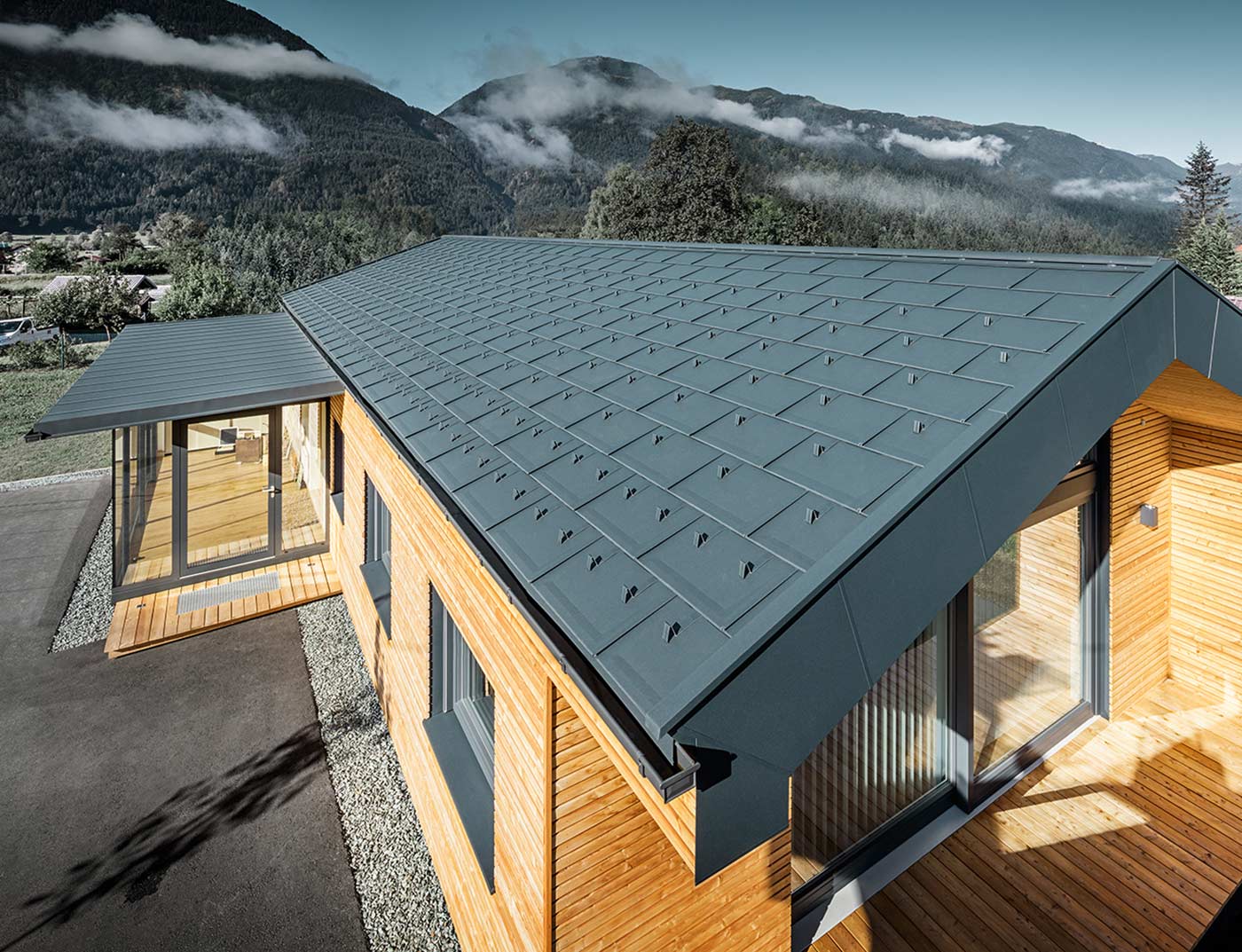

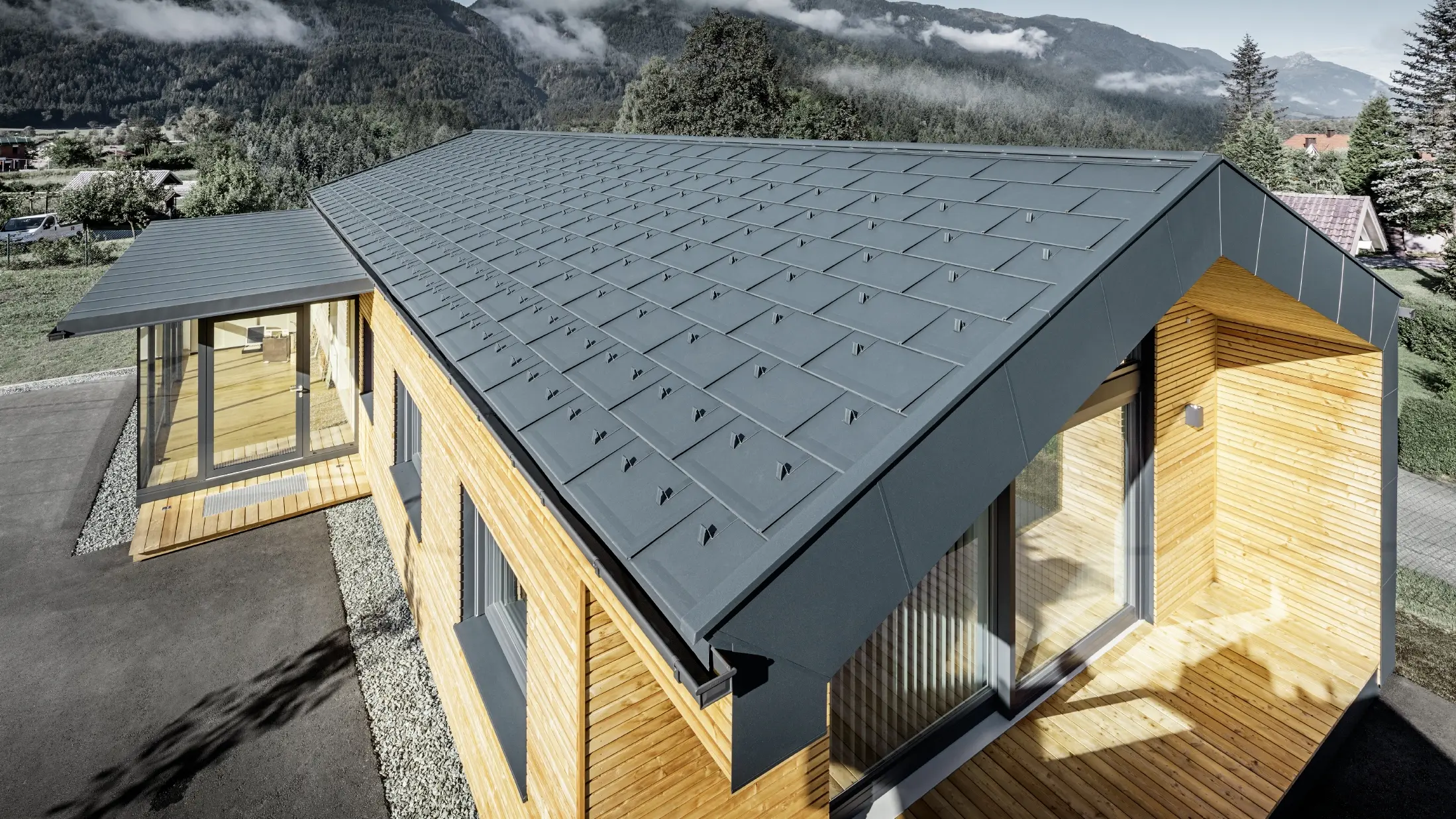

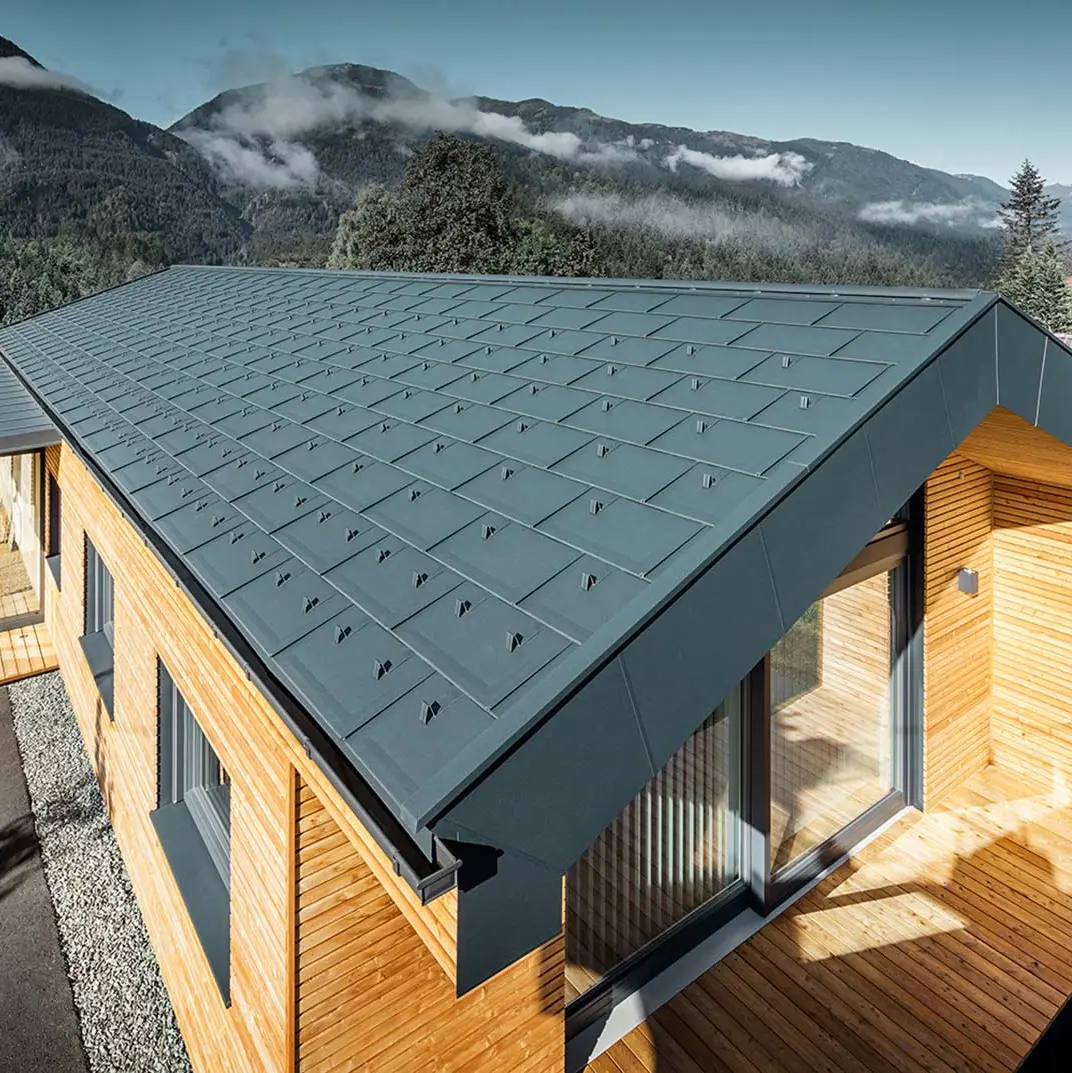

Das neue Firmengebäude der Holzbauer Faltheiner ist mit der PREFA Aludachplatte R. 16 in anthrazit eingedeckt, auch die Verblechungen wurden in Anthrazit ausgeführt. Für die Fassade wurde eine Lärchenfassade gewählt.

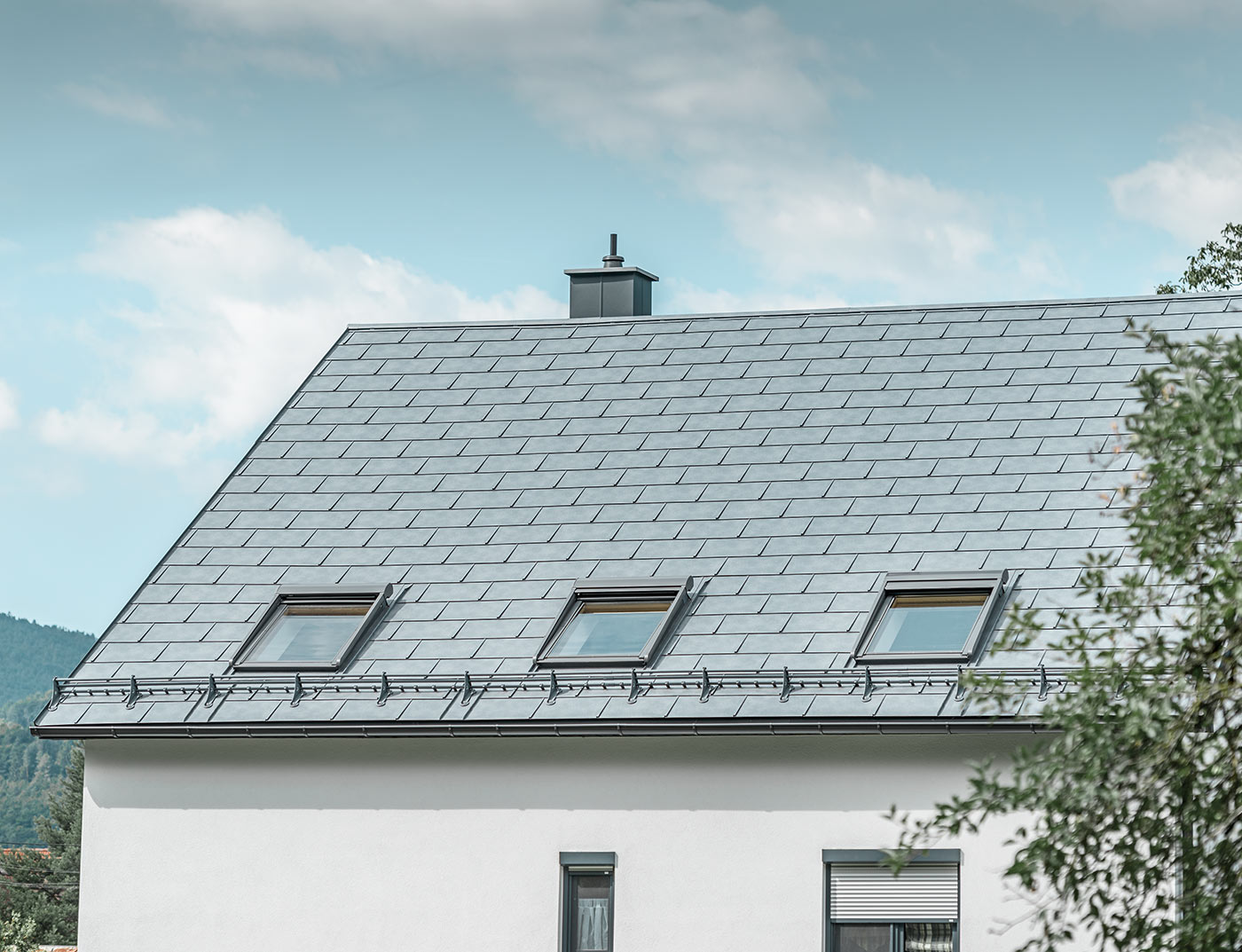

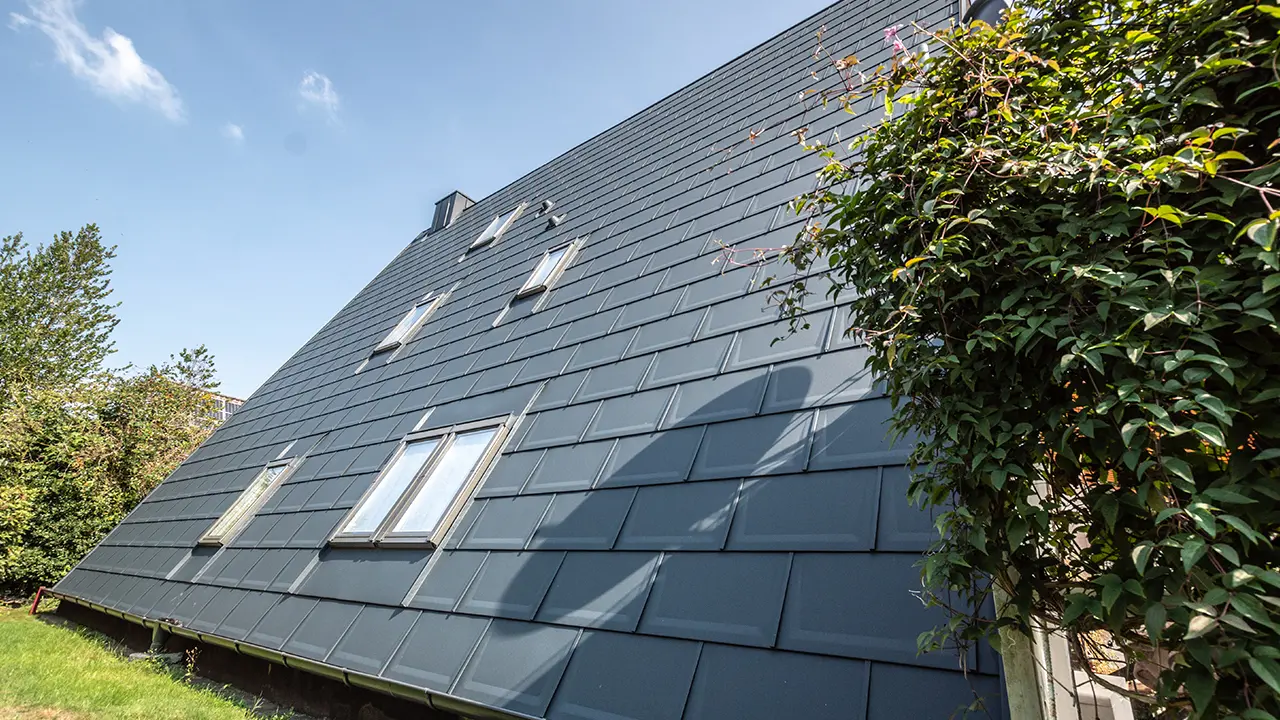

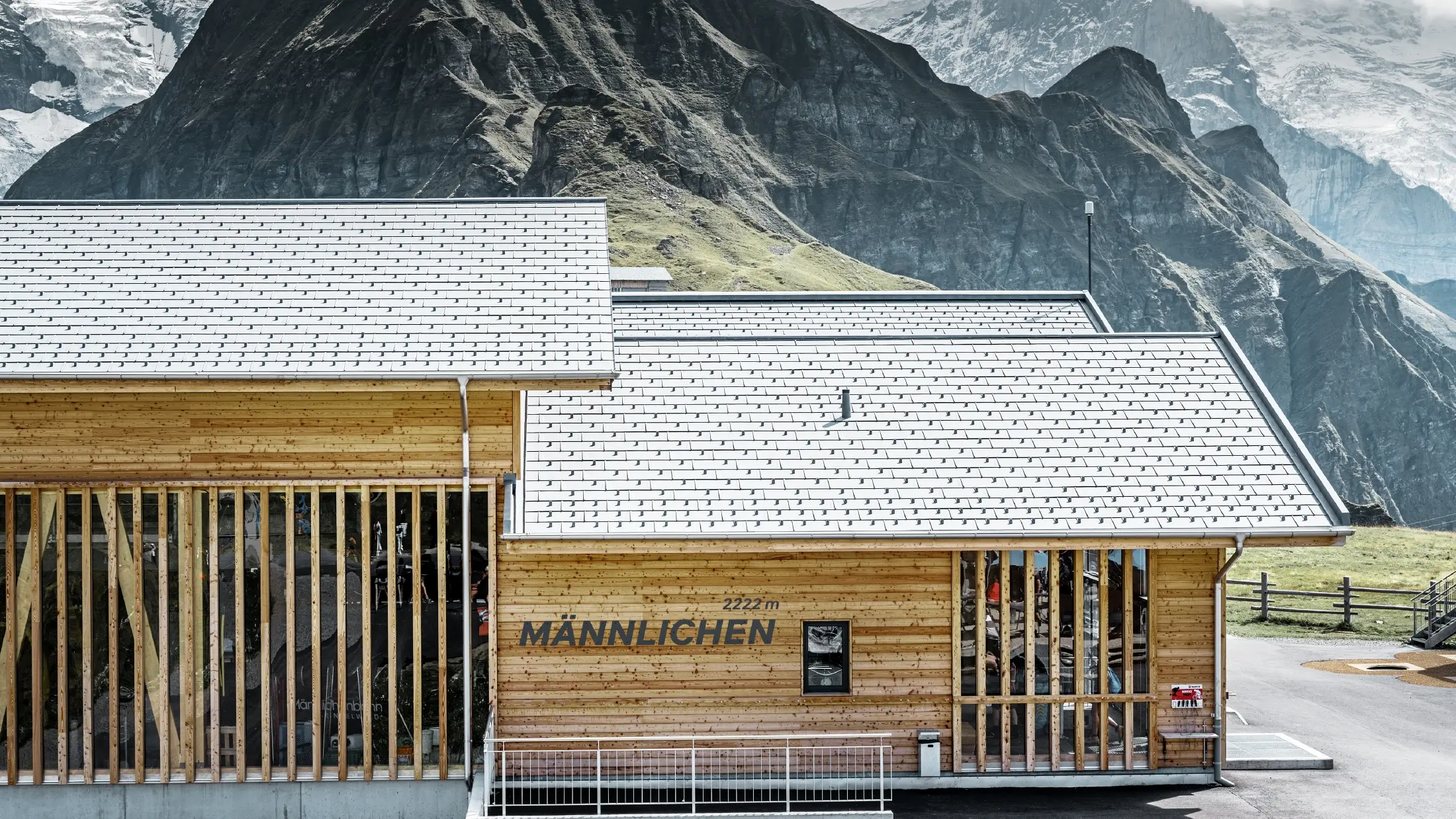

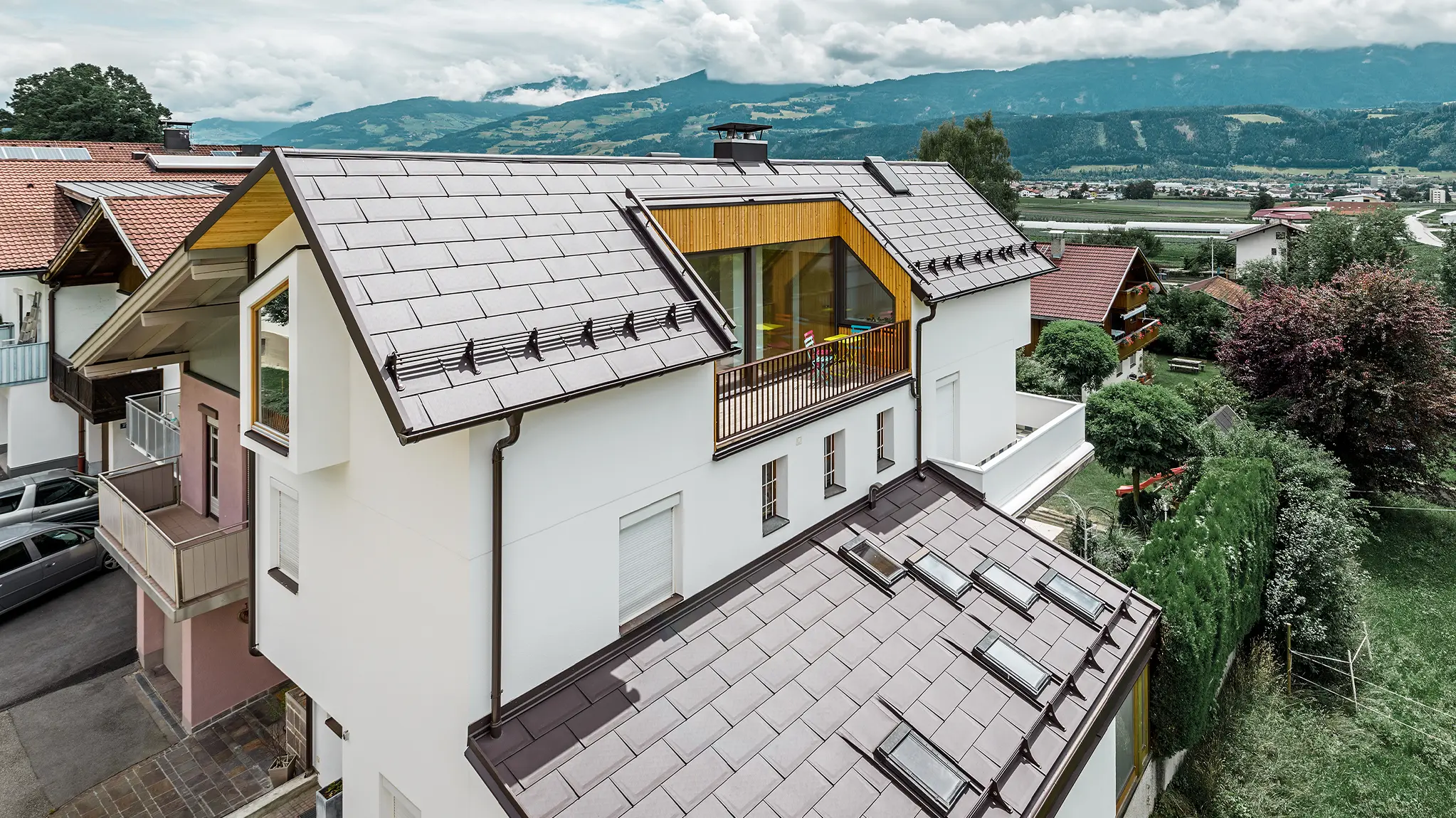

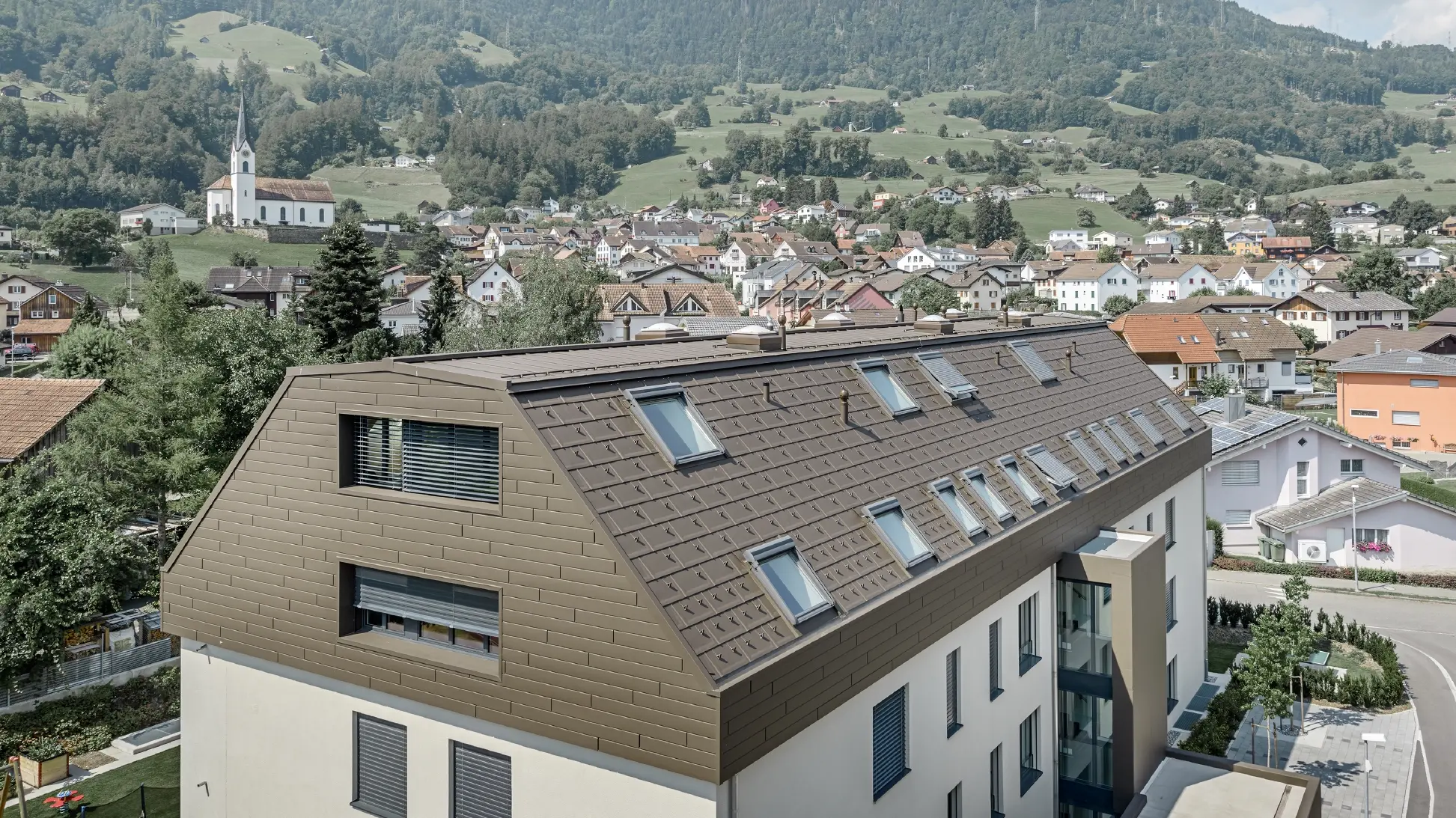

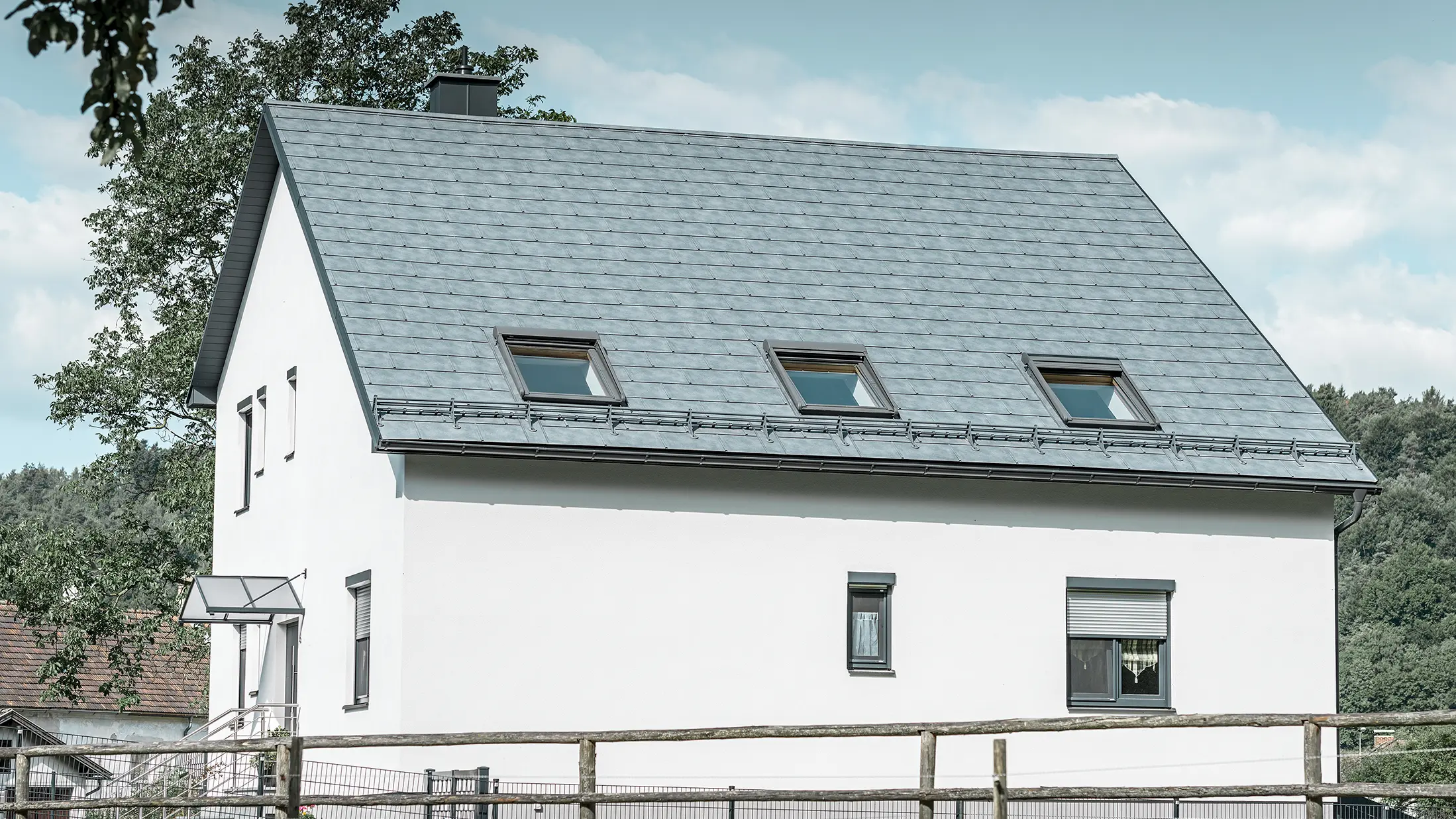

R.16 roof tile

Pure design in landscape format: the PREFA R.16 roof tile is sleek, straight and comes in a large format. It doesn’t just look pretty, it’s also quick to install.

+6
read more

PREFA aluminium roof tiles stand for the highest standard of quality, ensuring durability and stability. With the R.16 roof tile, PREFA has developed a stripped-down roof design that leaves plenty of room for creating unmistakeably unique architecture. Regardless of the size and shape of the roof, the PREFA R.16 roof tile gives creativity plenty of space to achieve attractive, unmistakably unique solutions.

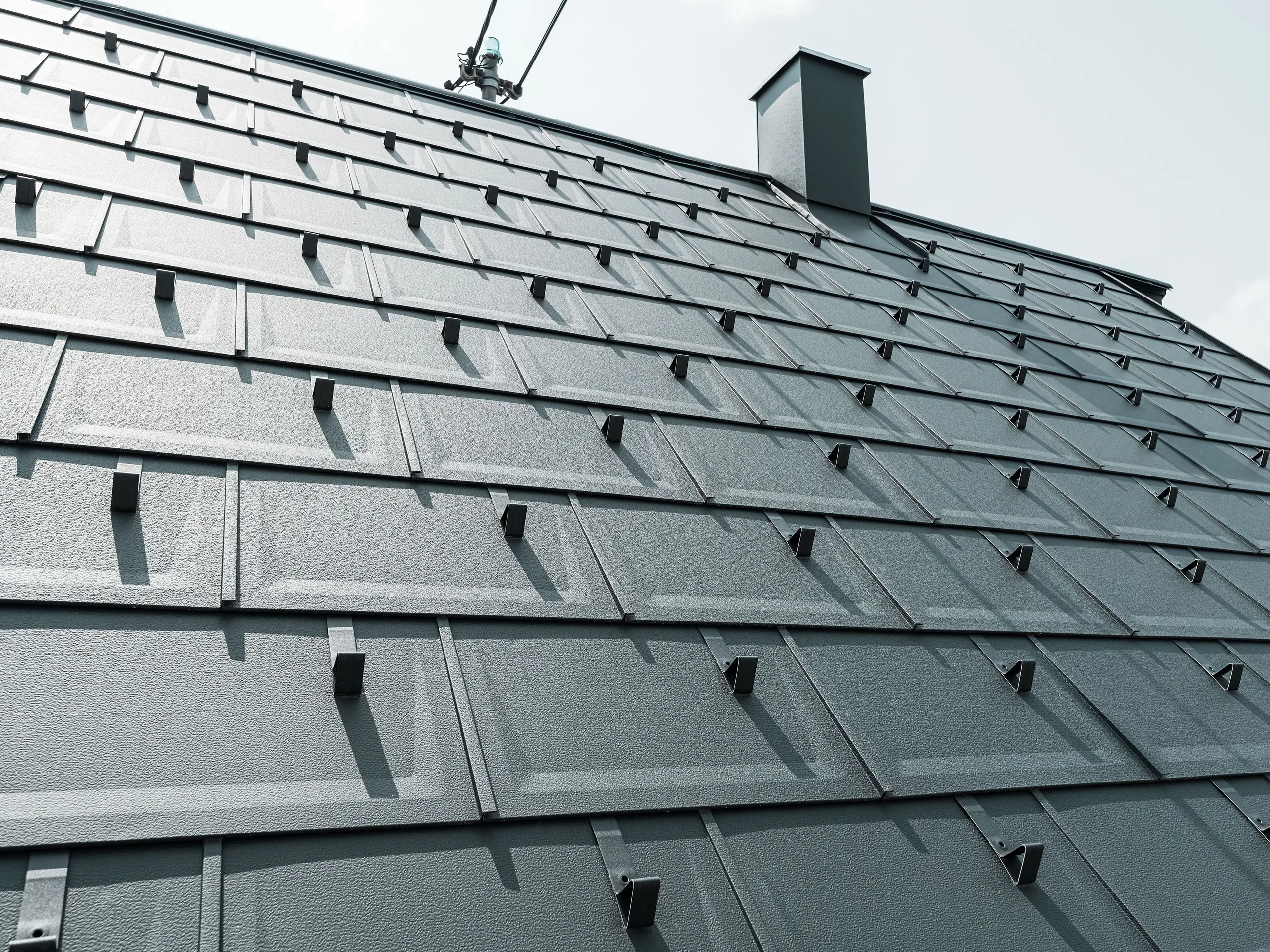

Detailaufnahme der PREFA Dachplatte R.16 in der Farbe P.10 Anthrazit. Am Dach sind PREFA Schneestopper und ein Rauchfang zu sehen.

The advantages of PREFA P.16 roof tiles

Icon for advantages

Available in several standard colours

in P.10 quality: Stucco surface, available in smooth version upon request.
From the classic tile effect, to timeless greys and natural shades of brown;

Icon for advantages

Modern look

highly attractive, modern look thanks to the sleek design

Icon for advantages

Wide range of accessories

From fasteners to snow guards or roof safety – the PREFA all-in-one system is a perfectly coordinated piece of tech.

Icon for advantages

40-year guarantee

on material and colour

Icon for advantages

Available in several standard colours

in P.10 quality: Stucco surface, available in smooth version upon request.
From the classic tile effect, to timeless greys and natural shades of brown;

Icon for advantages

Modern look

highly attractive, modern look thanks to the sleek design

Icon for advantages

Wide range of accessories

From fasteners to snow guards or roof safety – the PREFA all-in-one system is a perfectly coordinated piece of tech.

Icon for advantages

40-year guarantee

on material and colour

No adhesive, just nails

It doesn’t just look good, it’s quick to lay too: By attaching directly to the integrated click-bar, the R.16 roof plate makes the tinsmith’s life a lot easier. It also allows for completely new approaches to roof design. With its large size, boasting a component length of 70 cm and width of 42 cm, roofs can be covered using just 3.4 R.16 roof tiles per square metre, whilst at the same time giving the whole thing an elegant shine.

The R.16 roof tile can be used from a minimum pitch of 17°. With a weight of just 2.5 kg/m², this creates a truly lightweight roof that is also stormproof and even rust-proof thanks to the aluminium.

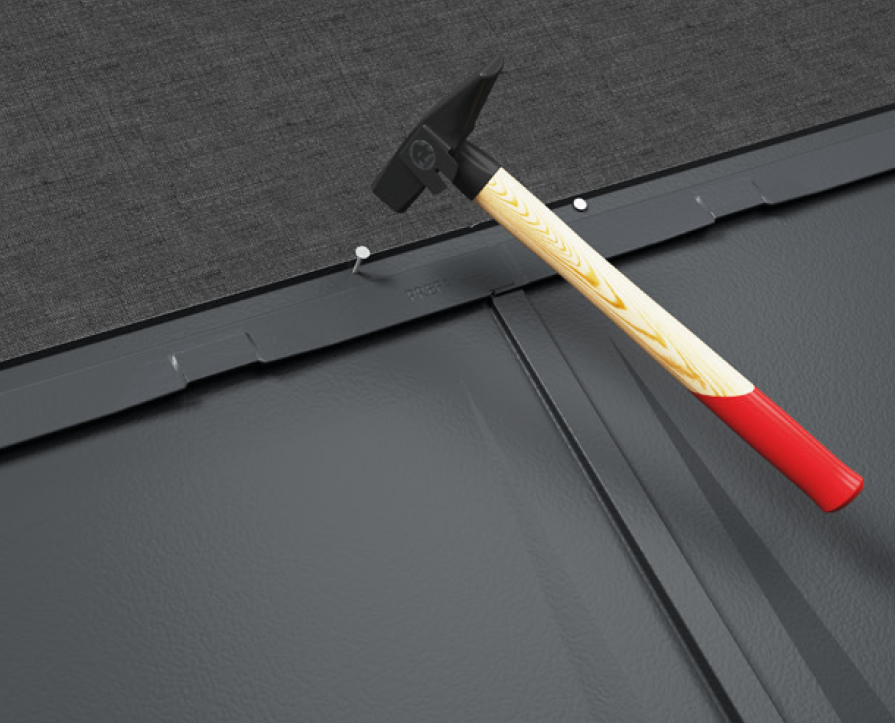

Die PREFA Dachplatte R.16 wird direkt durch die Haftleiste auf der Vollschalung montiert.

Expert tip
:
The noise-insulating strips make the PREFA R.16 roof tile quieter

Aluminium roofs are quieter than their reputation would have you believe. Everyone perceives noise differently. The PREFA R.16 roof tile has noise-insulating strips (FD.TEC) to keep noise levels to a minimum. For even more comfort in residential buildings, we recommend additionally using a thicker separation layer.

The PREFA R.16 roof tile colour pallette

The R.16 roof tile is available in loads of PREFA standard colours, all in P.10 quality.

The PREFA colour palette ranges from traditional tiled effects to modern grey tones and natural shades of brown. The following roof colours are available as standard:

Color overview (10)

Color

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
  • Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
  • Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colors may vary in shade.
  • To identify exact colors for complementary components please consult original samples.

Technical information

Material

coil-coated aluminium, 0.7 mm thick

Standard finish

stucco

Dimensions

700×420 mm (cover), i.e. 3.4 pc./m²

Weight

approx. 2.5 kg/m²

Minimum roof pitch

17° (approx. 31%)

Supporting substrate and separation layer*

On fully boarded substrate (at least 24 mm), a separation layer is required for roof pitches between 17° and 25°; with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required.

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct fastening, 3 PREFA ring nails per R.16 roof tile (i.e. 10 PREFA ring nails per m²)

Roof structure

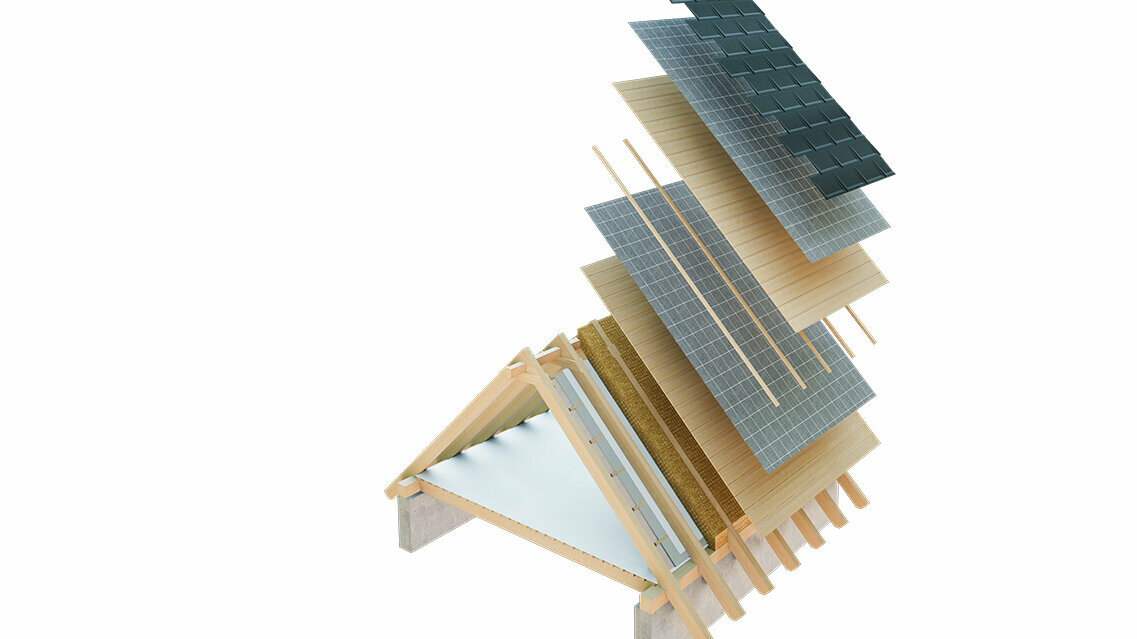

PREFA aluminium roofs are produced with a ventilated sub-structure, with the roof cover and thermal insulation layer separated by a ventilated gap. This means any occasional condensation, for example, can be wicked away.

It is mostly the roof membrane that is ventilated, as shown in the first picture. However, the entire attic can be ventilated too (image on right).

Planning & Application

You’ll find specification docs and details on the PREFA R.16 roof tile available for download here.

Accessories

You will find a list of matching accessories for PREFA R.16 roof tiles, from verge trim and ridge vents, to roof safety products like snow stoppers and walkways, here:

Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel

1800 × 158 × 1,00 mm, pre-drilled

Ridge vent

3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs

Ridge vent end cap

-

Hip and ridge cap

500 × 1,00 mm

Hip cap end cap

-

Verge flashing

95 × 2.000 × 0,70 mm, with cleat strip

Safety valley

3.000 mm, with double lock standing seam (canted)

Bird screen

125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm

Ventilation screen

with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm

Eaves drip edge

230 × 2.000 × 0,70 mm

Snow guard for R.16, FX.12 and DS.19

-

Bracket for pipe-style snow guard system

3 pipe openings

XL bracket for pipe-style snow guard system

with 5 pull-through openings, ideal for PV on-roof systems

Snow guard pipe

3.000 mm; 25/25

Ice-retention bracket

Suitable for removable pipe

end piece for pipe-style snow guard system

for removable pipe

End piece XL for pipe-style snow guard system

for insert profile

Mountain snow guard bracket

For 140 mm log diameter

Solarhalter für Photovoltaikanlagen auf PREFA Dächern inklusive Abdeckkappe

Solar bracket with protective cap

length: 260 mm

Sunny solar bracket

suitable for all PREFA small format products and standing seam systems.

Zu sehen ist der PREFA Solarhalter Vario ohne Kreuzverbinder.

Vario solar bracket

Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Zu sehen ist der PREFA Solarhalter Fix ohne Kreuzverbinder.

Fix solar bracket

Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Safety tread

Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A

Walkway support on one mount

250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A

Walkway support on two mounts

360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B

Walkway

250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B

Walkway connector

-

Roof anchor hook

tested according to EN 517 – B

Roof anchor hook with mounts

tested according to EN 517 – B

Frog-mouth vent for R.16 roof tile

700 × 420 mm, air intake section: approx. 30 cm²

Frog-mouth vent cover

for riveting, air intake section approx. 30 cm²

Ventilation cap

Ø 100 mm, roof pitch: from 12°

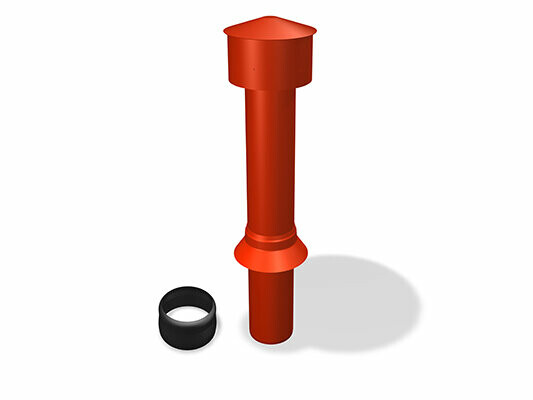

Vent pipe

Ø 100 mm, Ø 120 mm including EPDM seal and cover

Flexible pipe collar 100

Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay

Vent pipe cover for R.16 and FX.12

For pipe openings of ⌀ 80–125 mm and roof pitches between 17° and 52°

Universal vent pipe cover 2 parts

roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm

Vent pipe cover for seaming

roof pitches between 12° - 52°, Ø 80 - 125 mm

Base plate

lenth: 540 mm, width: 125 mm

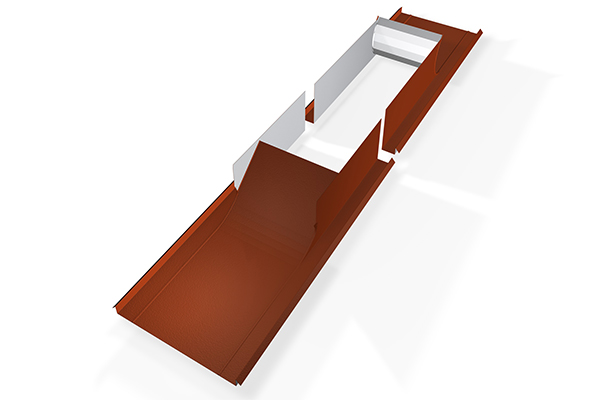

Vario flashing

width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°

Roof hatch

-

Window surrounds for Roto & Roto-Q-series

available in many dimensions

Velux window surroundings

available in many dimensions

Chimney cap

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

Roof conductor holder for lightning protection wire

clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :

Special adhesive kit

Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
