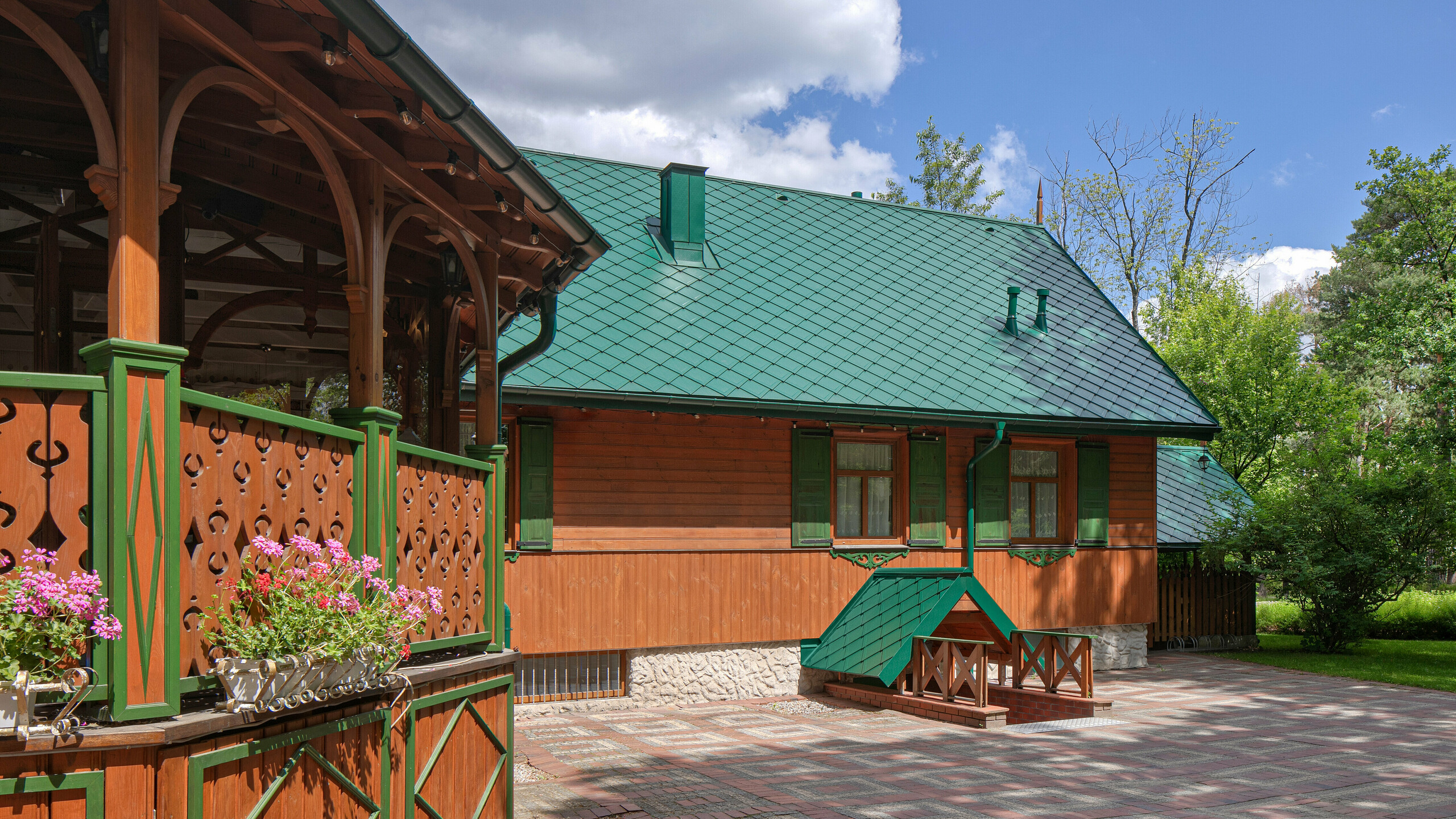

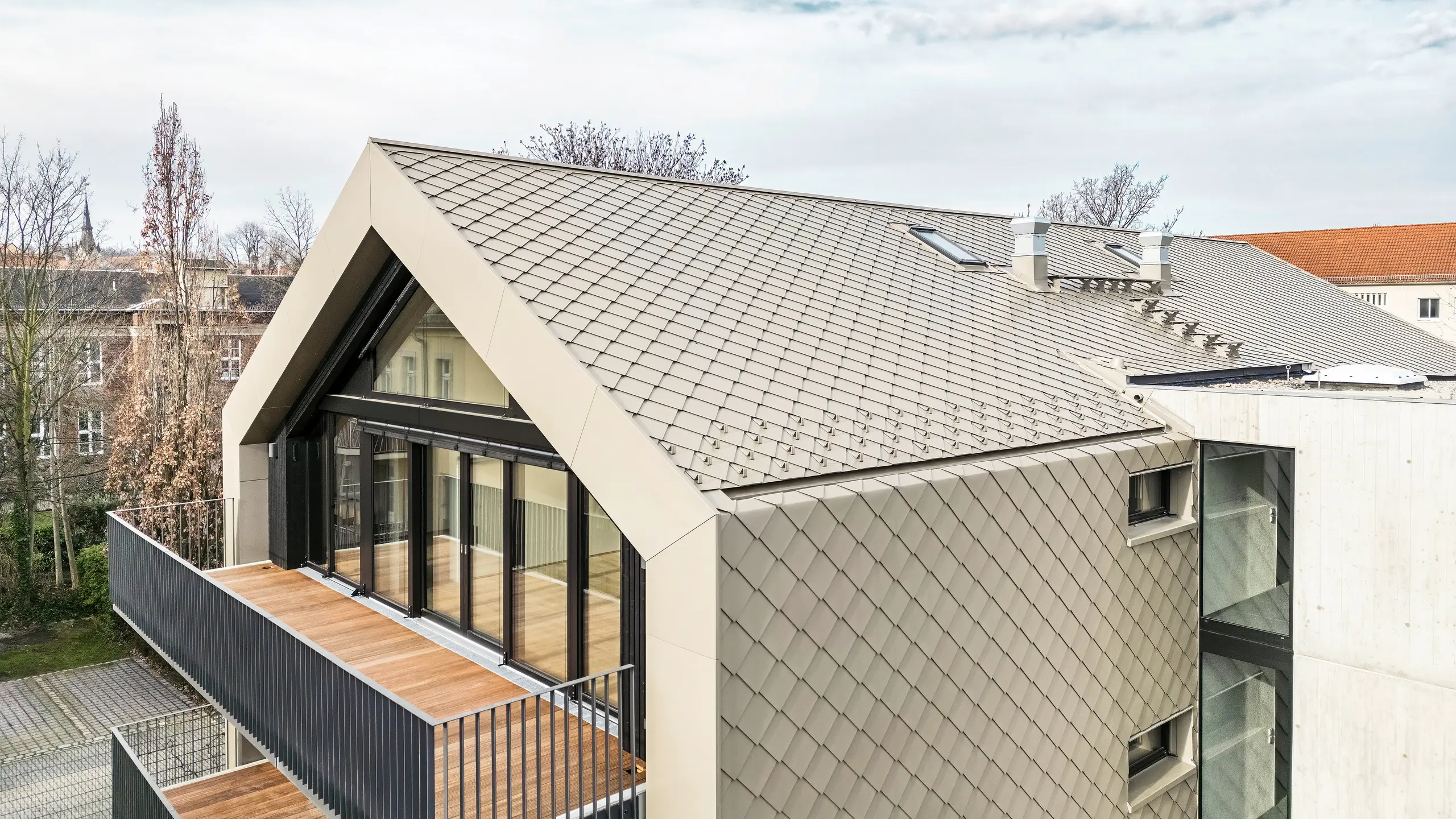

Rhomboid roof tile 29 × 29

Timelessly attractive: The rhomboid roof tile in its traditional form. For an attractive and appealing roof design.

+6
read more

The rhomboid roof tile is an innovative product from the range of PREFA roof components: Roofs with rhomboid roof tiles are extremely popular due to the ridged edge of the individual tiles which really makes them stand out. The folding technology ensures perfect integration into the entire PREFA roof system.

  • Size: 290 × 290 mm
  • Available in 10 standard colours (stucco surface)
  • Also available with a smooth finish upon request
  • Complete range of accessories
  • 40-year guarantee
  • Alloy according to EN 1396
  • Surface treatment in a coil-coating procedure

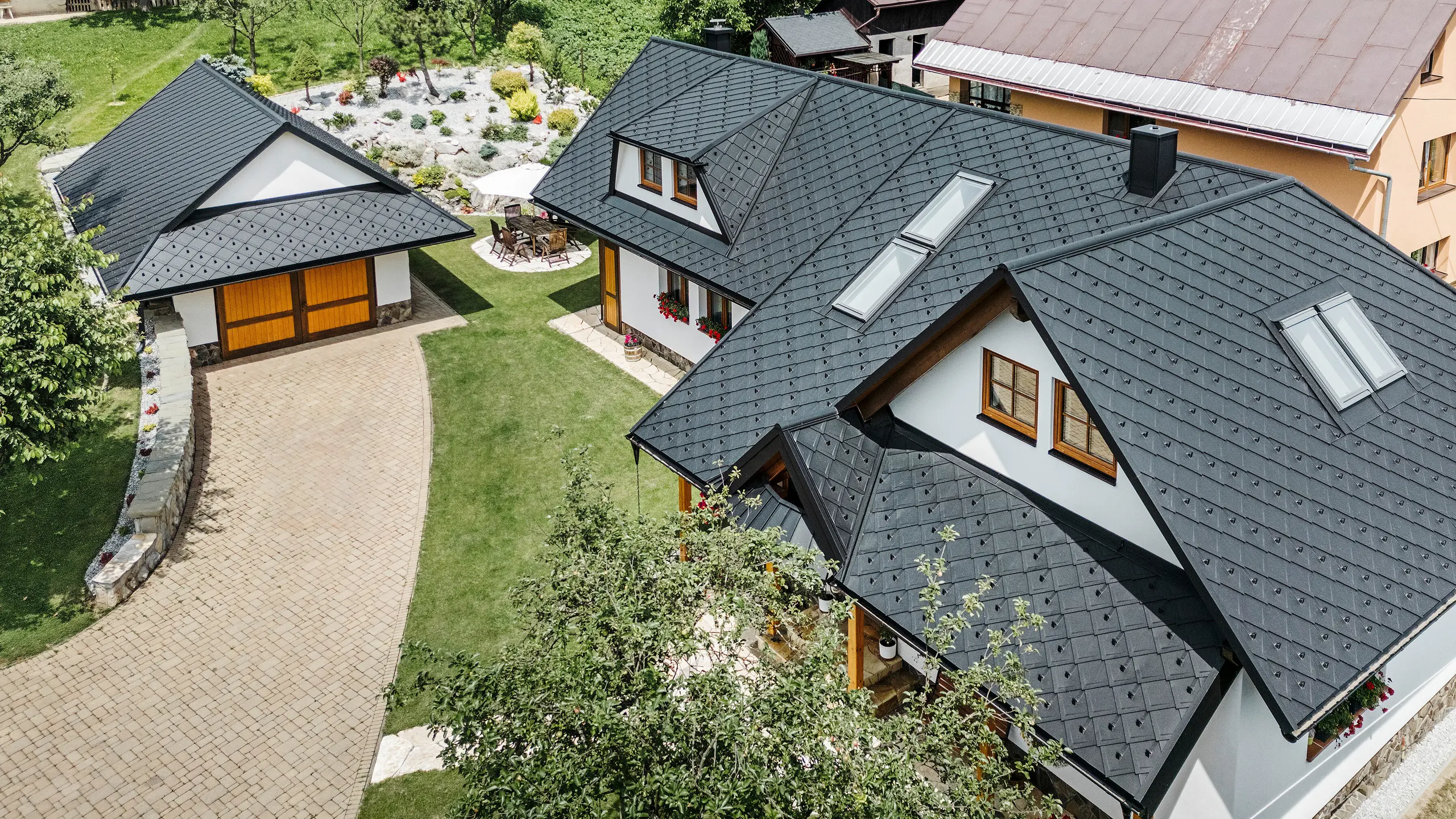

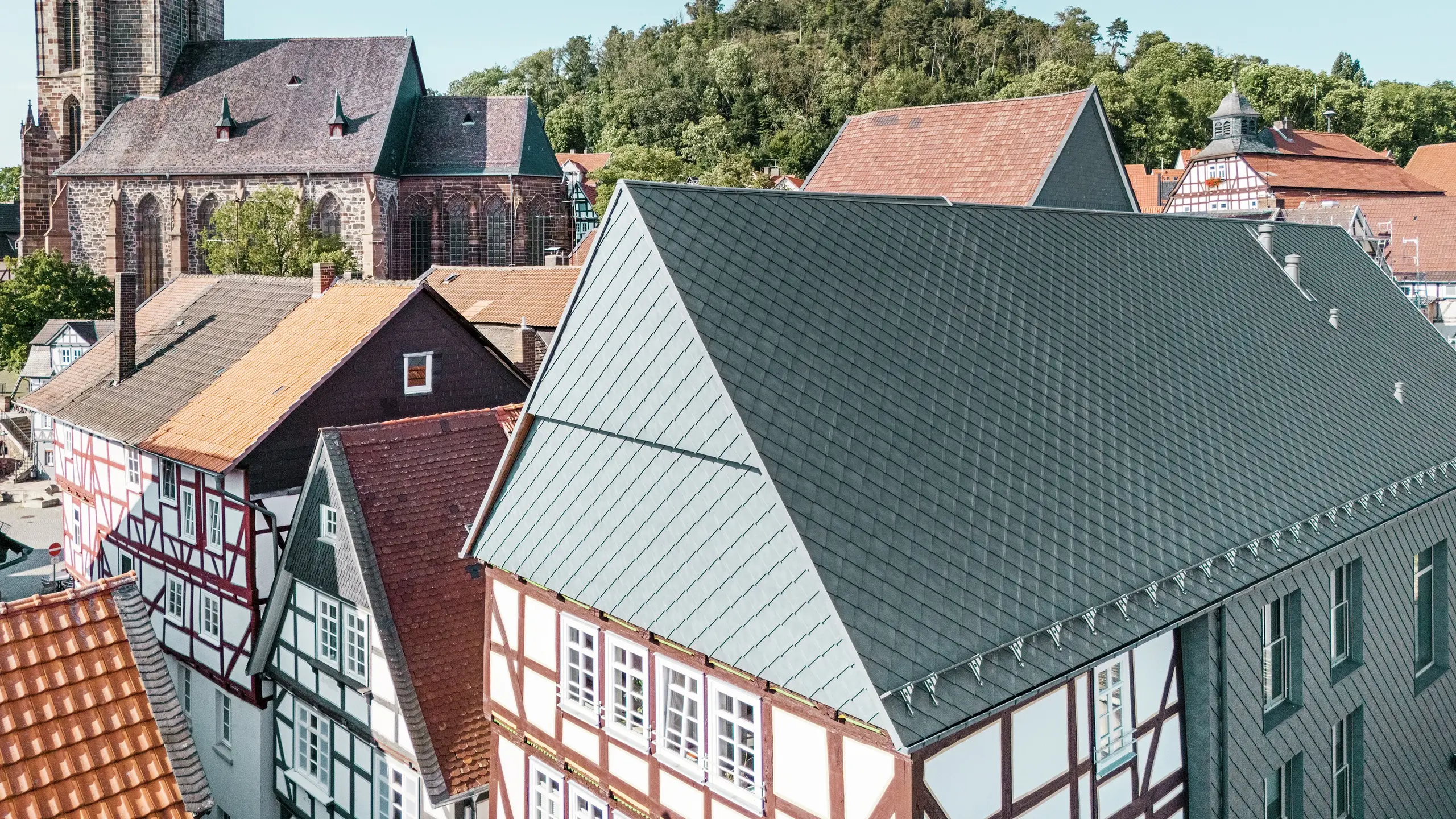

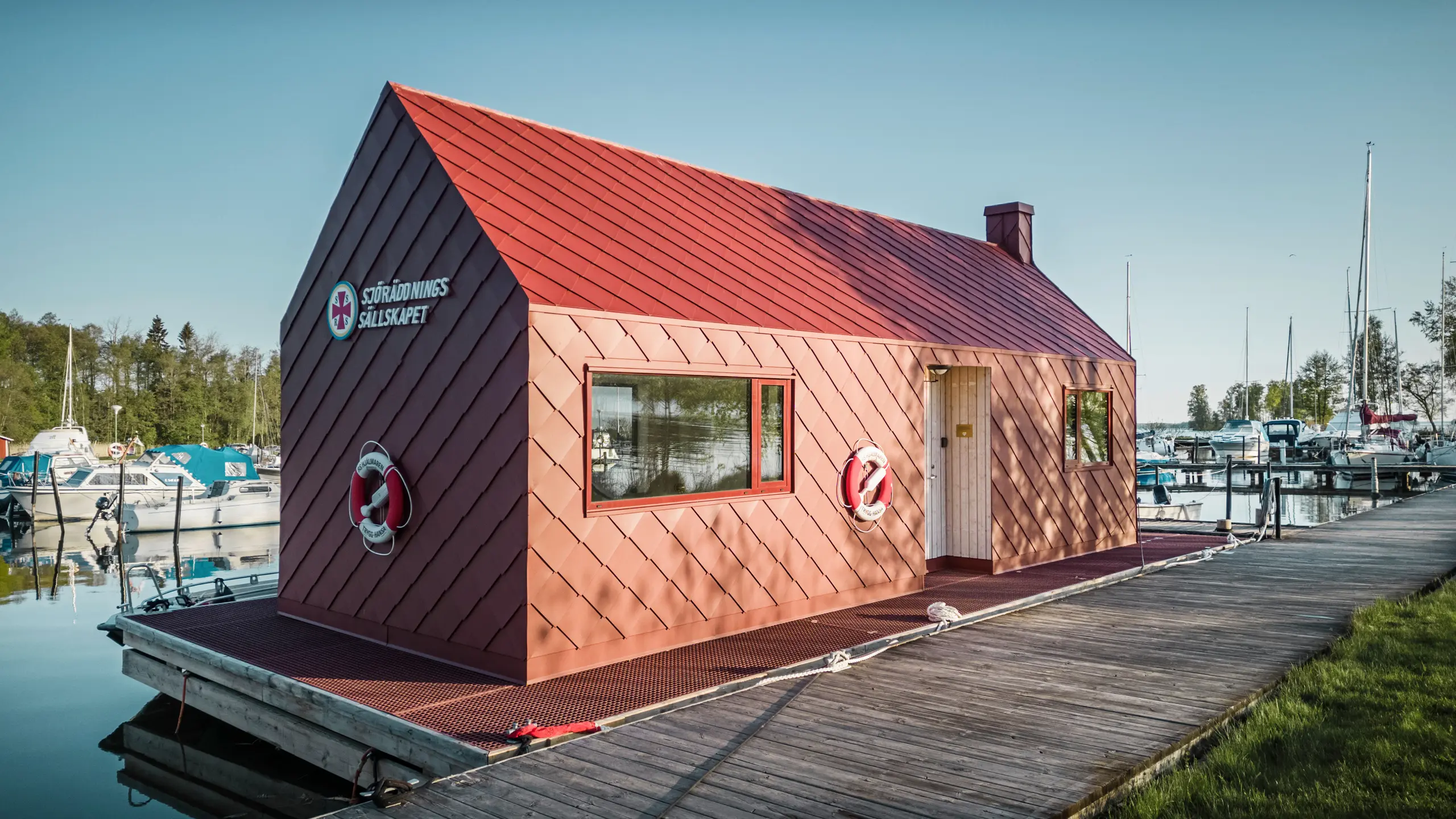

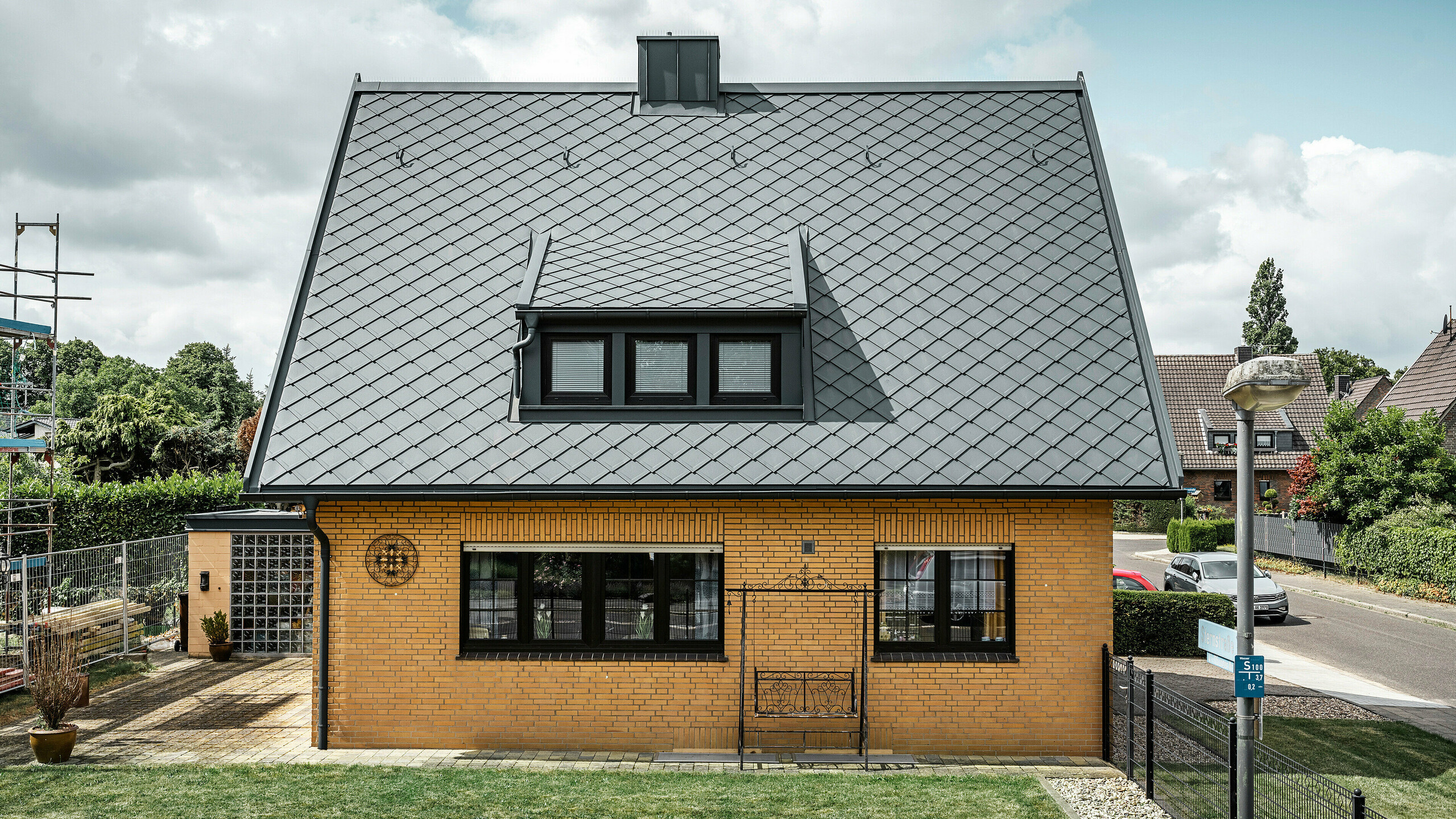

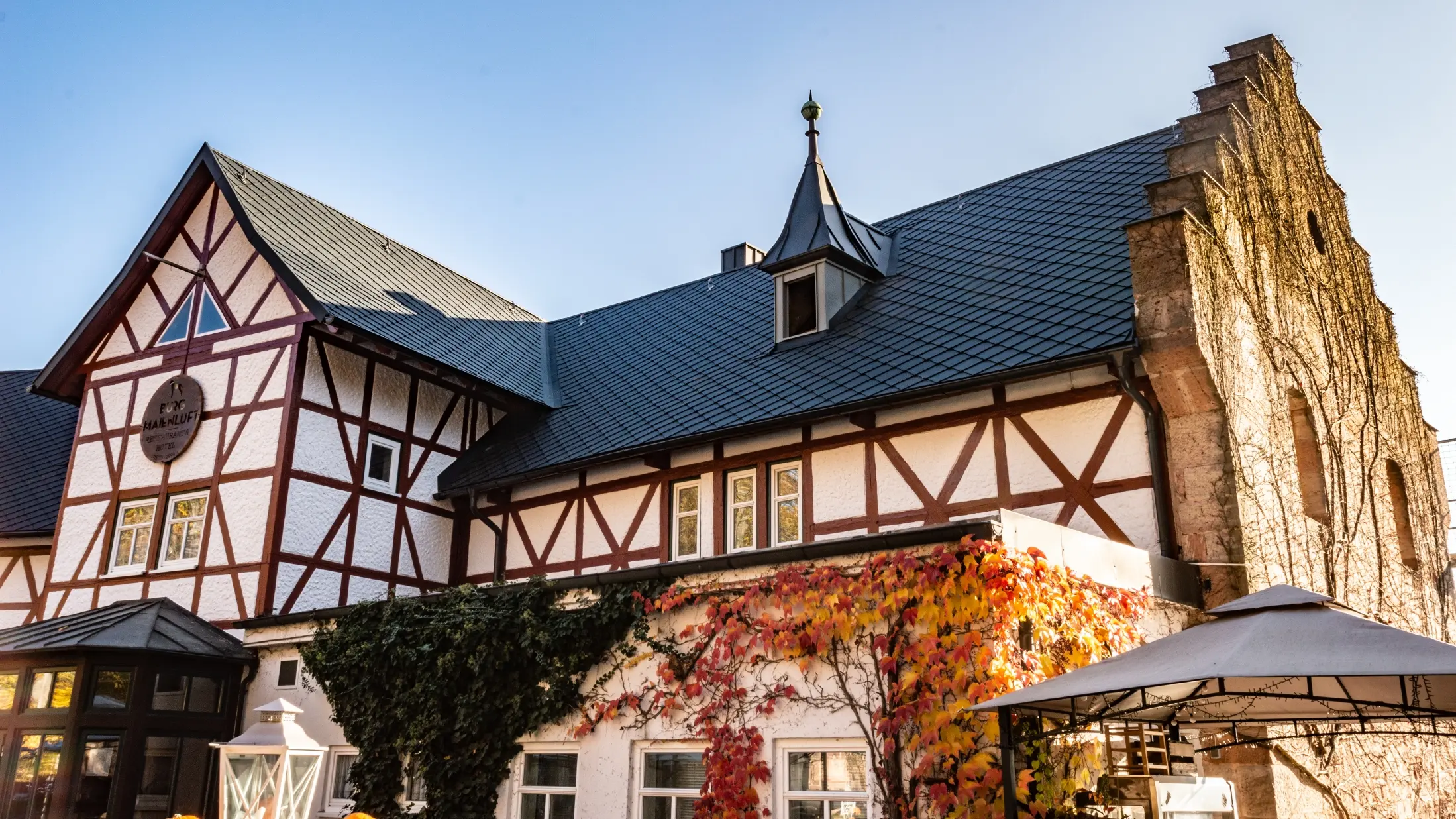

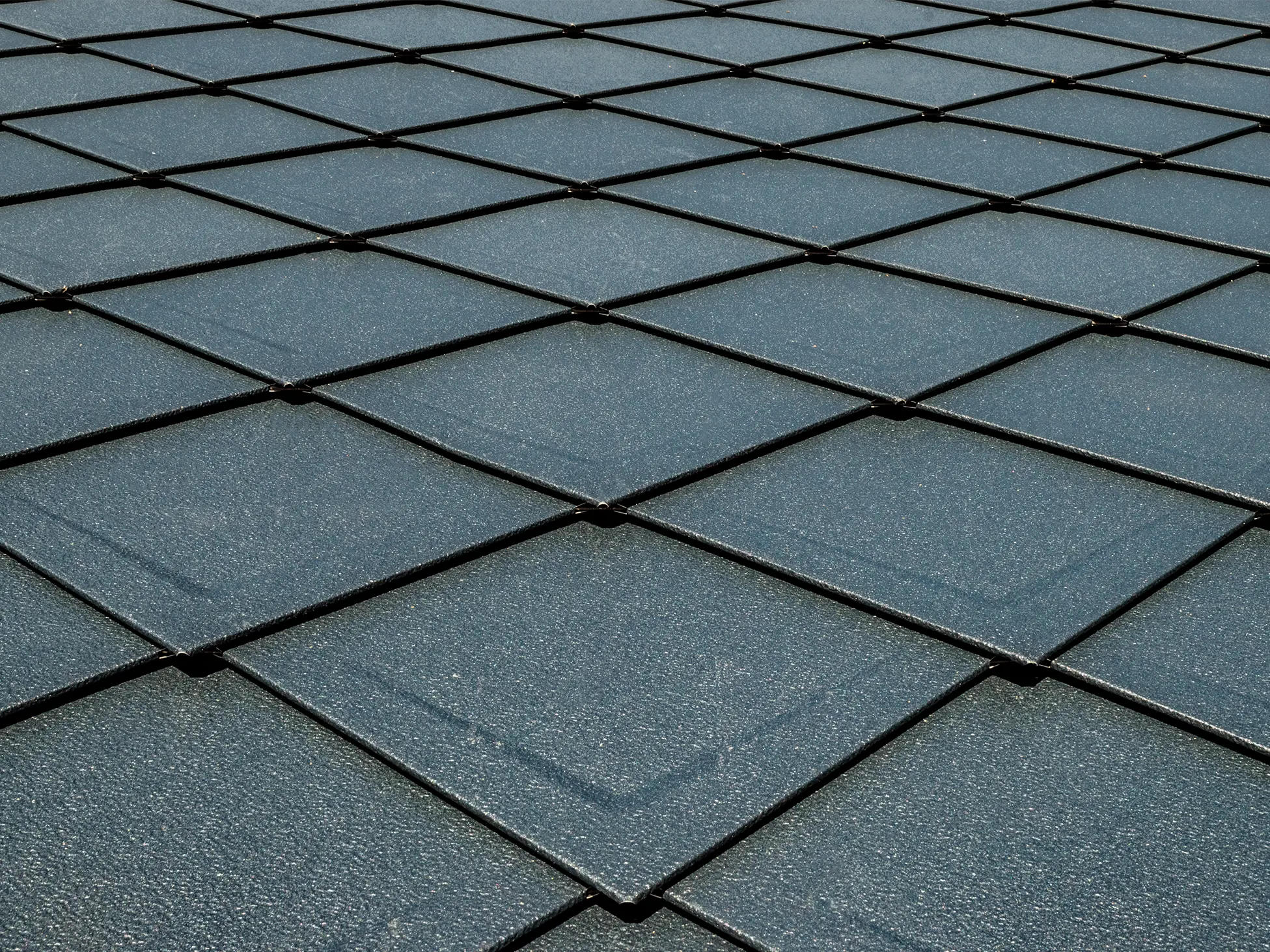

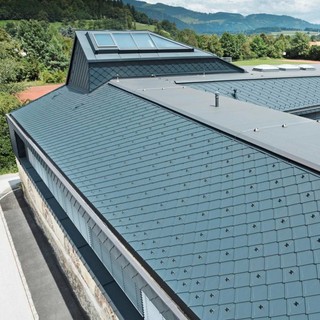

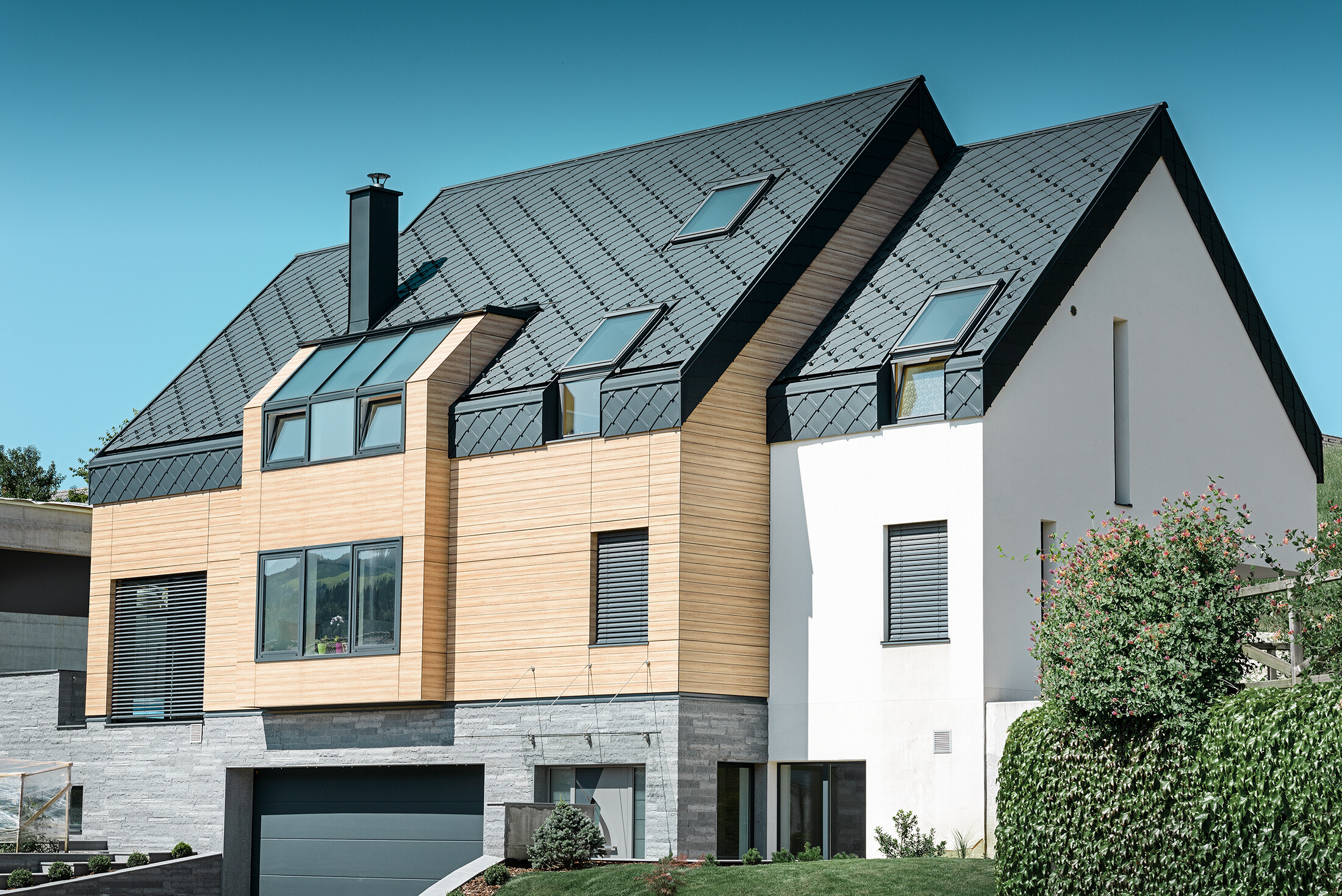

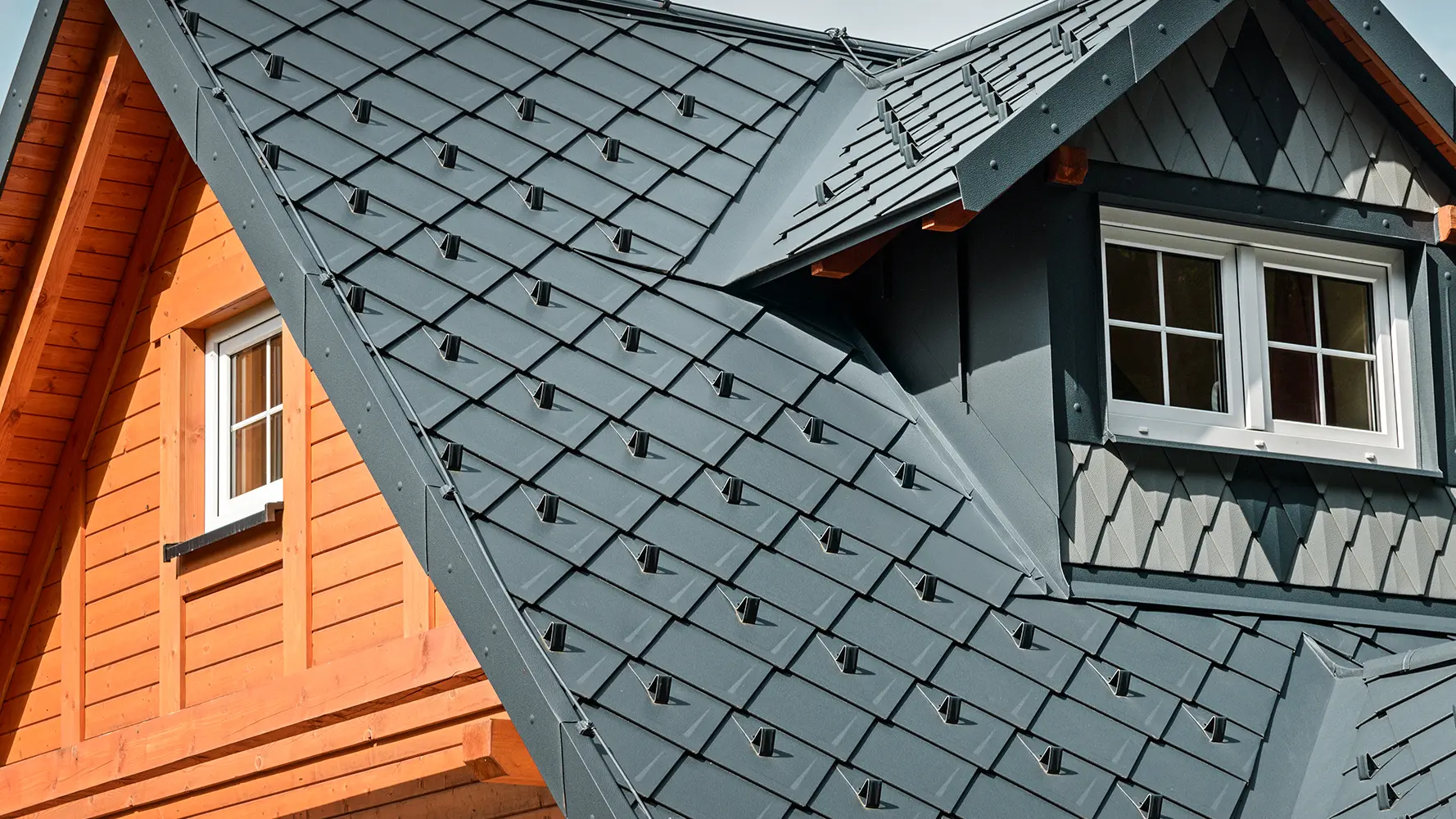

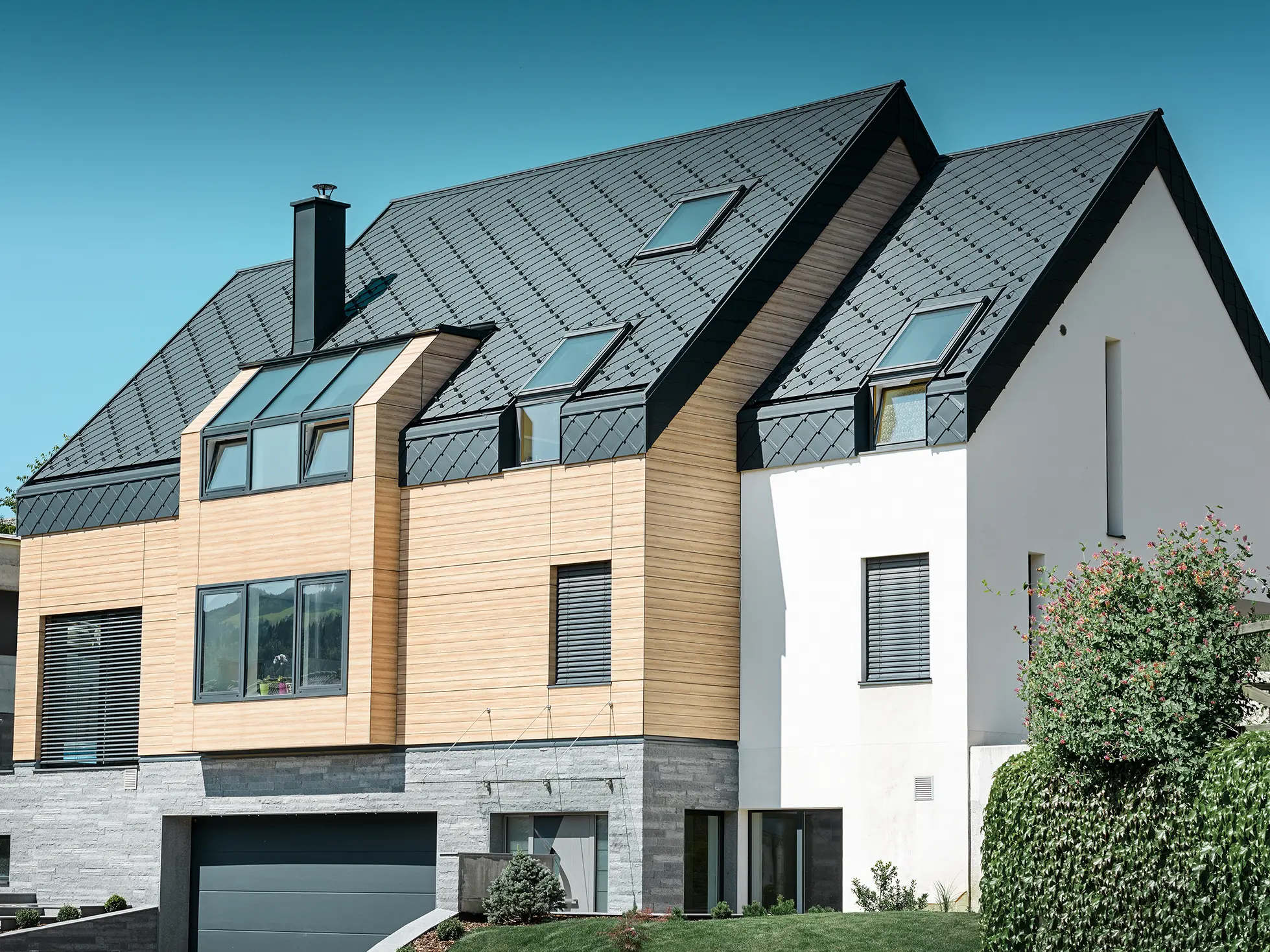

PREFA rhomboid roof tiles 29 × 29 in P.10 anthracite with beading installed as a surface, roof with scaly appearance

Color overview (10)

The product is available in the following colours

Color

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
  • Above all for color quality P.10, it is almost impossible to define values due to the surface structure.
  • Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colors may vary in shade.
  • To identify exact colors for complementary components please consult original samples.

Technical information

Material

coil-coated aluminium, 0.7 mm thick

Standard finish

stucco

Dimensions

290×290 mm (cover), i.e. 12 pc./m²

Minimum roof pitch

22° (approx. 40%)

Weight

approx. 2.6 kg/m²

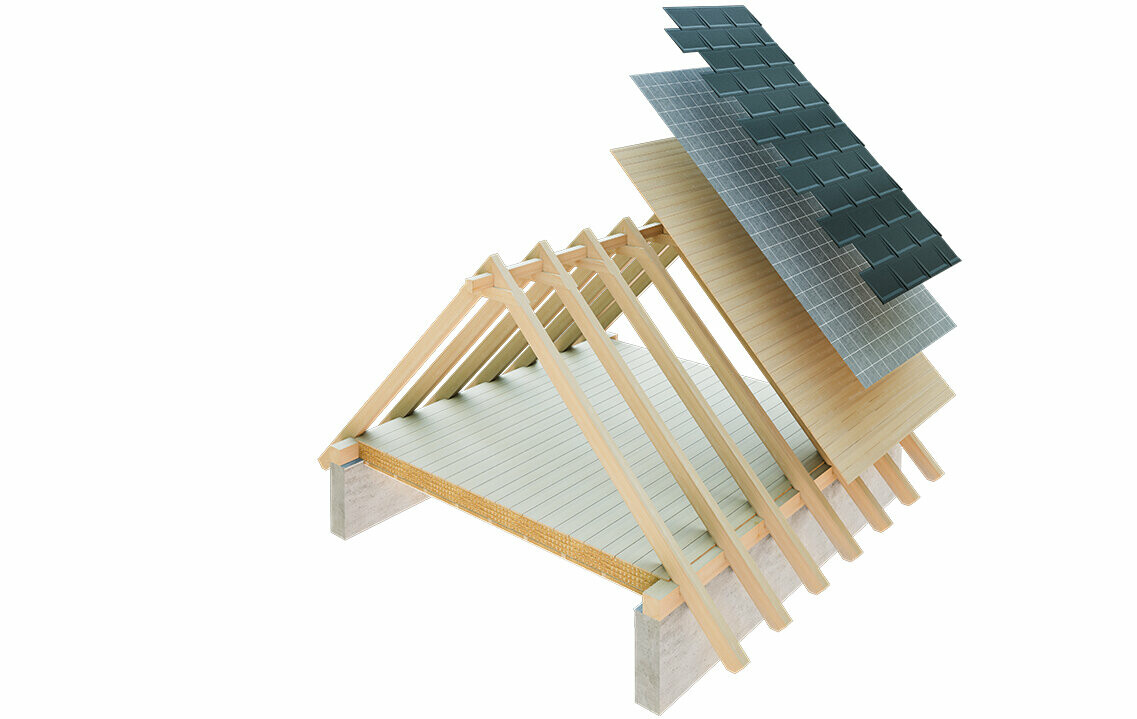

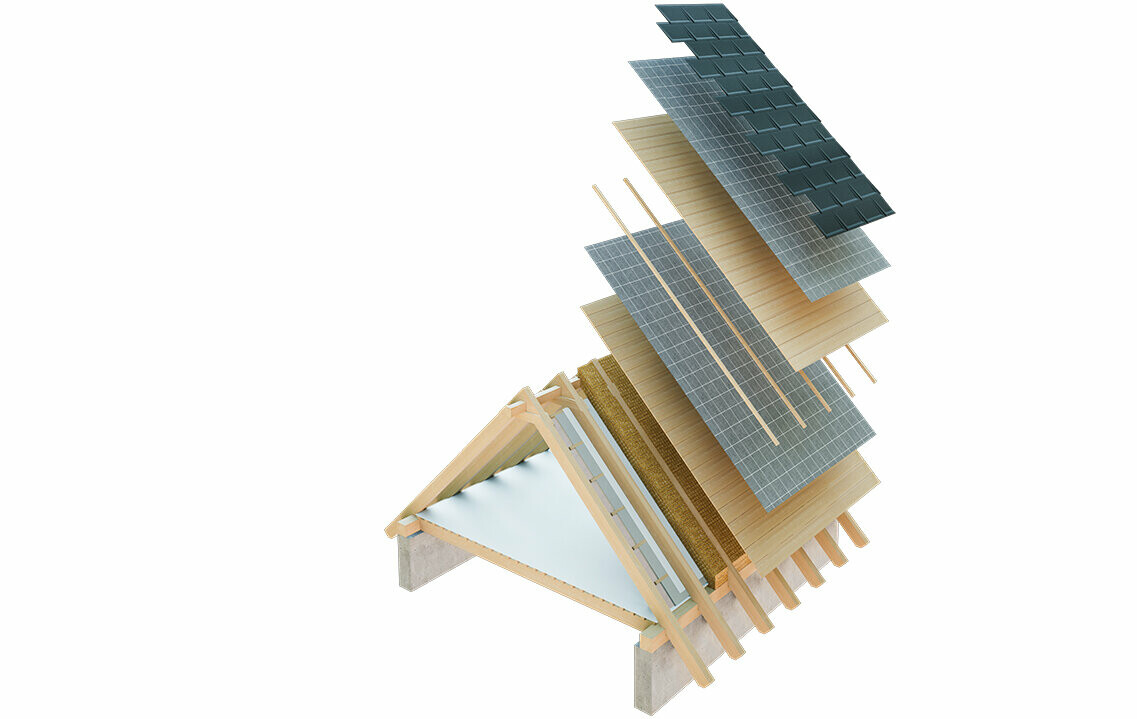

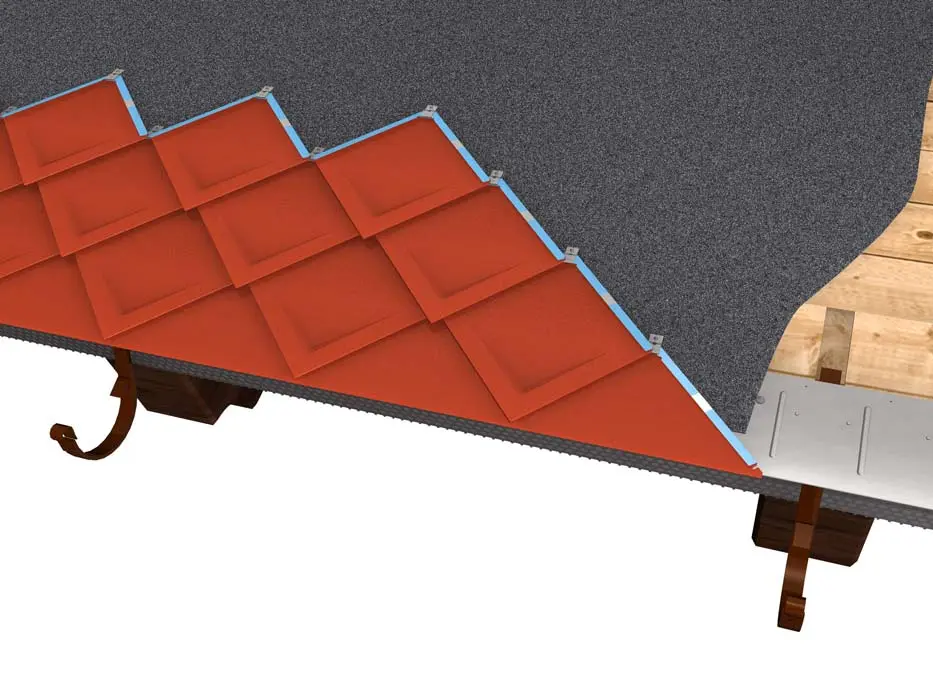

Supporting substrate and separation layer*

On fully boarded substrate (at least 24 mm); with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required.

* Observe country-specific standards and specialist guidelines.

Standard fastening

indirect, 1 PREFA rhomboid roof tile clip as well as 1 ring nail per rhomboid roof tile 29×29 (i.e. 12 PREFA rhomboid roof tile clips as well as 12 ring nails per m²)

Planning & installation

Accessories

Leading plate for rhomboid roof tile 29 × 29

-

End plate for rhomboid roof tile 29 × 29

-

Rhomboid roof tile clip 29 × 29

colour in anthracite

Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel

1800 × 158 × 1,00 mm, pre-drilled

Ridge vent

3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs

Ridge vent end cap

-

Hip and ridge cap

500 × 1,00 mm

Hip cap end cap

-

Verge flashing

95 × 2.000 × 0,70 mm, with cleat strip

Safety valley

3.000 mm, with double lock standing seam (canted)

Bird screen

125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm

Ventilation screen

with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm

Eaves drip edge

230 × 2.000 × 0,70 mm

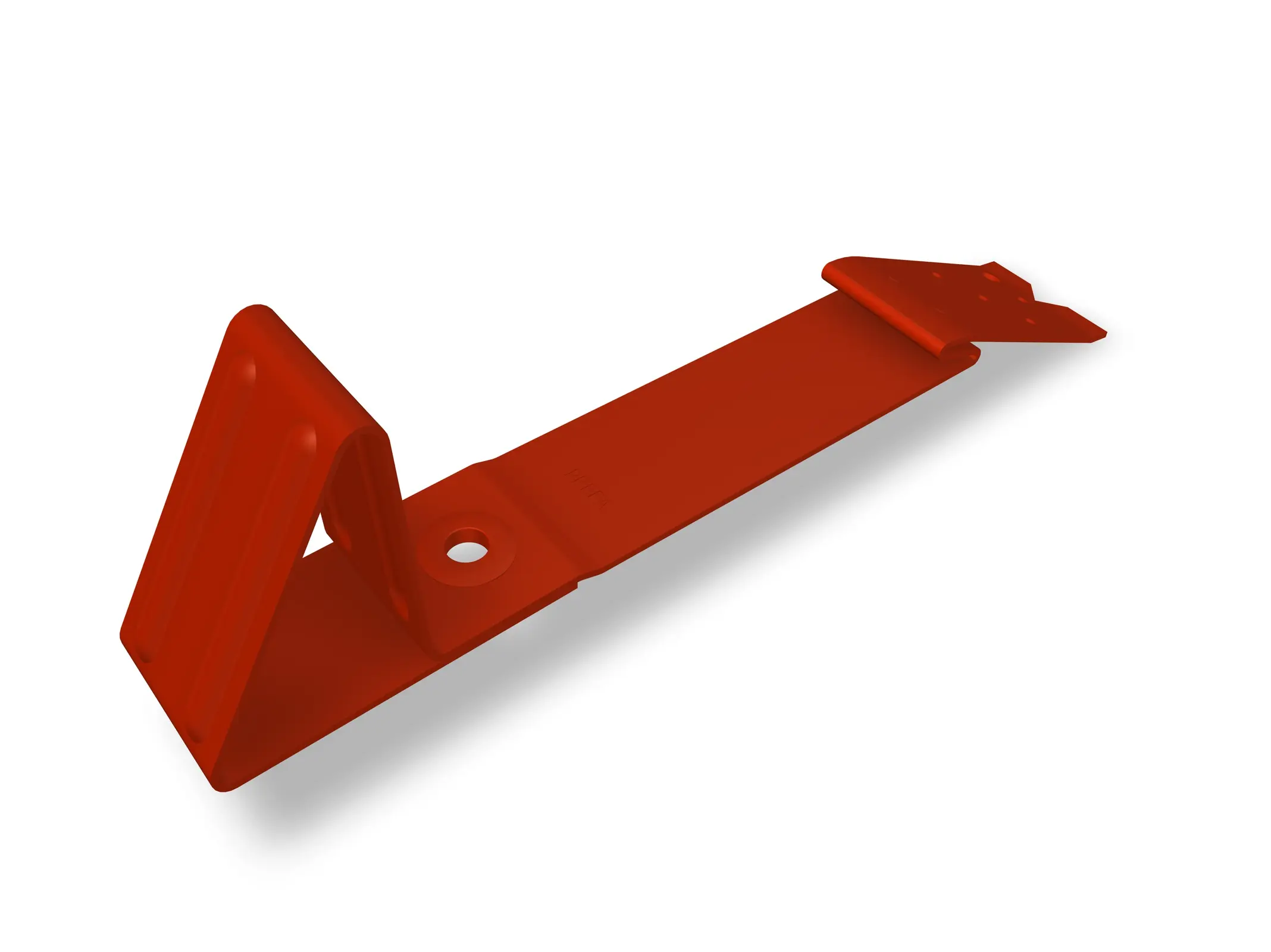

Snow guard for roof tile and rhomboid roof tile 29 × 29

-

Bracket for pipe-style snow guard system

3 pipe openings

XL bracket for pipe-style snow guard system

with 5 pull-through openings, ideal for PV on-roof systems

Snow guard pipe

3.000 mm; 25/25

Ice-retention bracket

Suitable for removable pipe

end piece for pipe-style snow guard system

for removable pipe

End piece XL for pipe-style snow guard system

for insert profile

Mountain snow guard bracket

For 140 mm log diameter

Solarhalter für Photovoltaikanlagen auf PREFA Dächern inklusive Abdeckkappe

Solar bracket with protective cap

length: 260 mm

Sunny solar bracket

suitable for all PREFA small format products and standing seam systems.

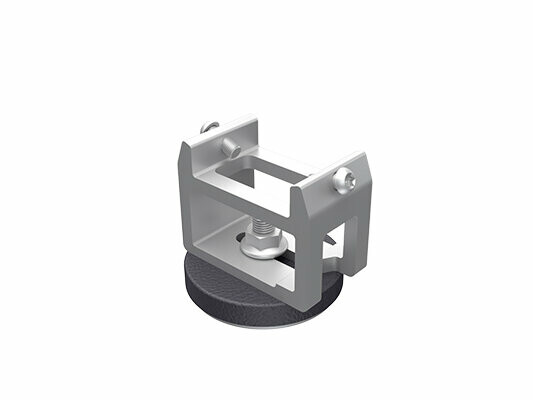

Fix solar bracket

Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

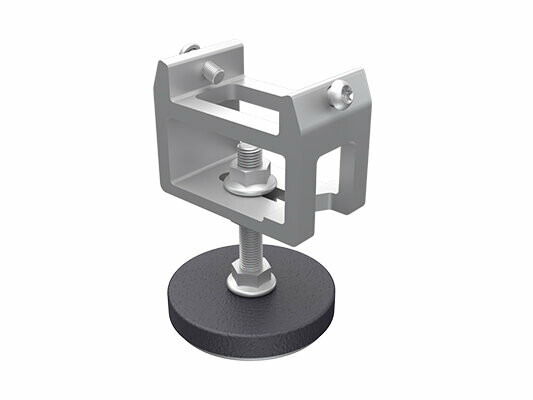

Vario solar bracket

Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.

Safety tread

Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A

Walkway support on one mount

250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A

Walkway support on two mounts

360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B

Walkway

250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B

Walkway connector

-

Roof anchor hook

tested according to EN 517 – B

Roof anchor hook with mounts

tested according to EN 517 – B

Frog-mouth vent for rhomboid roof tile 29 × 29

290 × 290 mm, Air intake section approx. 30 cm²

Frog-mouth vent cover

for riveting, air intake section approx. 30 cm²

Ventilation cap

Ø 100 mm, roof pitch: from 12°

Vent pipe

Ø 100 mm, Ø 120 mm including EPDM seal and cover

Flexible pipe collar 100

Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay

Vent pipe cover for rhomboid roof tile 29 × 29

roof pitches between 22° - 52°, Ø 80 - 125 mm

Vent pipe cover for seaming

roof pitches between 12° - 52°, Ø 80 - 125 mm

Universal vent pipe cover 2 parts

roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm

Base plate

lenth: 540 mm, width: 125 mm

Vario flashing

width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°

Roof hatch

-

Window surrounds for Roto & Roto-Q-series

available in many dimensions

Velux window surroundings

available in many dimensions

Chimney cap

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

Roof conductor holder for lightning protection wire

clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :

Special adhesive kit

Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
