Benefits of PREFA roof shingles
Flexible Installation
ideal for secure roofing of a wide variety of roof shapes and roof landscapes, as well as for older roof trusses with a "character".
Many standard colours
available in the particularly durable P.10 colour quality. Stucco surface as a standard, also available smooth on request. From the classic tile effect to timeless grey and brown hues – the much-loved PREFA roof shingles offer a reliable and durable solution for your new roof.
Wide range of accessories
From fasteners to snow guards to roof safety – original PREFA accessories are perfectly coordinated.
40-year guarantee
Flexible Installation
ideal for secure roofing of a wide variety of roof shapes and roof landscapes, as well as for older roof trusses with a "character".
Many standard colours
available in the particularly durable P.10 colour quality. Stucco surface as a standard, also available smooth on request. From the classic tile effect to timeless grey and brown hues – the much-loved PREFA roof shingles offer a reliable and durable solution for your new roof.
Wide range of accessories
From fasteners to snow guards to roof safety – original PREFA accessories are perfectly coordinated.
40-year guarantee
As though tailor-made for each project
PREFA roof shingles are easy to work with. Many curved shapes, such as curved dormers (bat dormers, ox-eye dormers, pike dormers, etc.), can also be covered with the adaptable shingle. It also adapts to unevenness in the existing substructure to a certain extent, as is the case, for example, with the 400-year-old Wiesenhaus and its old roof truss:
Expert tip: The noise-insulating strip makes the PREFA roof shingle quieter
Aluminium roofs are quieter than their reputation would have you believe. Everyone perceives noise differently. The PREFA roof shingle has noise-insulating strips (FD.TEC) to keep noise levels to a minimum. For even more comfort in residential buildings, we recommend additionally using a thicker separation layer.
Colour range of the PREFA roof shingle : Elegant, matt design available in many colours
The shingle with a stucco finish is available in many standard colours. The broad choice of colours ensures attractive and harmonious roof surfaces for new buildings and renovations. The PREFA colour range extends from traditional tiled effects to modern grey tones and natural shades of brown. The following roof colours are available as standard:
Color overview (10)
Color |
Code |
~ RAL |
|
P.10 brown |
7013 |
|
P.10 anthracite |
7016 |
|
P.10 black |
9005 |
|
P.10 brick red |
8004 |
|
P.10 oxide red |
3009 |
|
P.10 moss green |
6005 |
|
P.10 light grey |
7005 |
|
P.10 nut brown |
8019 |
|
P.10 dark grey |
7043 |
|
P.10 stone grey |
7031 |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
- Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
- Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colors may vary in shade.
- To identify exact colors for complementary components please consult original samples.
References with PREFA roof shingles
PREFA roof shingles make a good impression on both modern and classic buildings. So, whether you want to re-roof or renovate your old roof, check out our reference gallery or renovation gallery for inspiration from the variety of shingle roofs available.
Rural house with PREFA roof shingles in P.10 stone grey with dormers and terrace

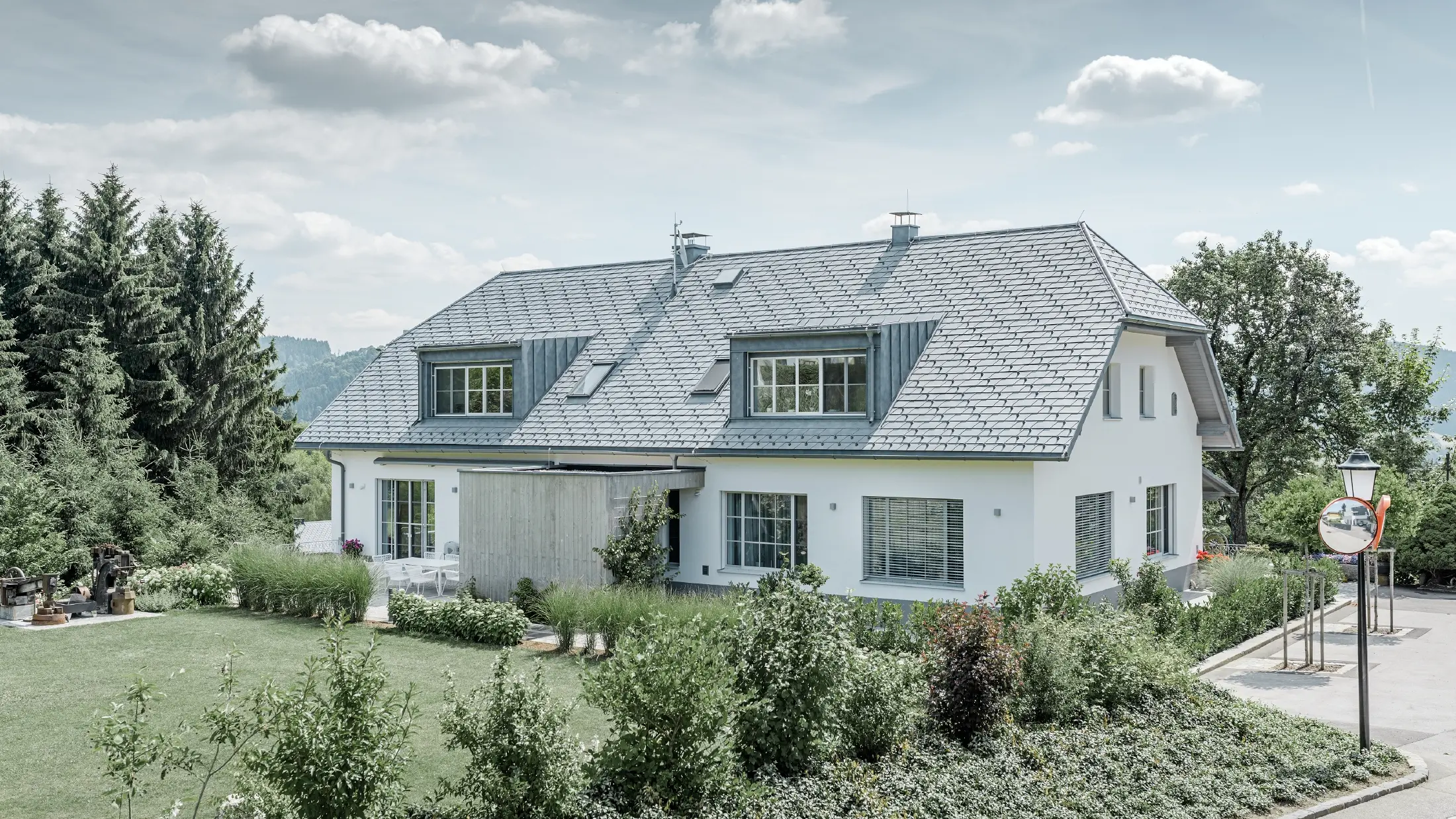

Roof renovation of a half-hipped roof with PREFA shingles in P.10 anthracite
Rustic hunting lodge with PREFA roof shingles in P.10 anthracite
"Blue House" in Stuttgart, covered with PREFA roof shingles in P.10 anthracite
Swiss villa "Tavannes" with many details, PREFA roof shingle in P.10 anthracite
Albertinum in Munich, with PREFA roof shingles in P.10 light grey
Hotel Vivamayr in Altaussee with PREFA roof shingles in P.10 stone grey

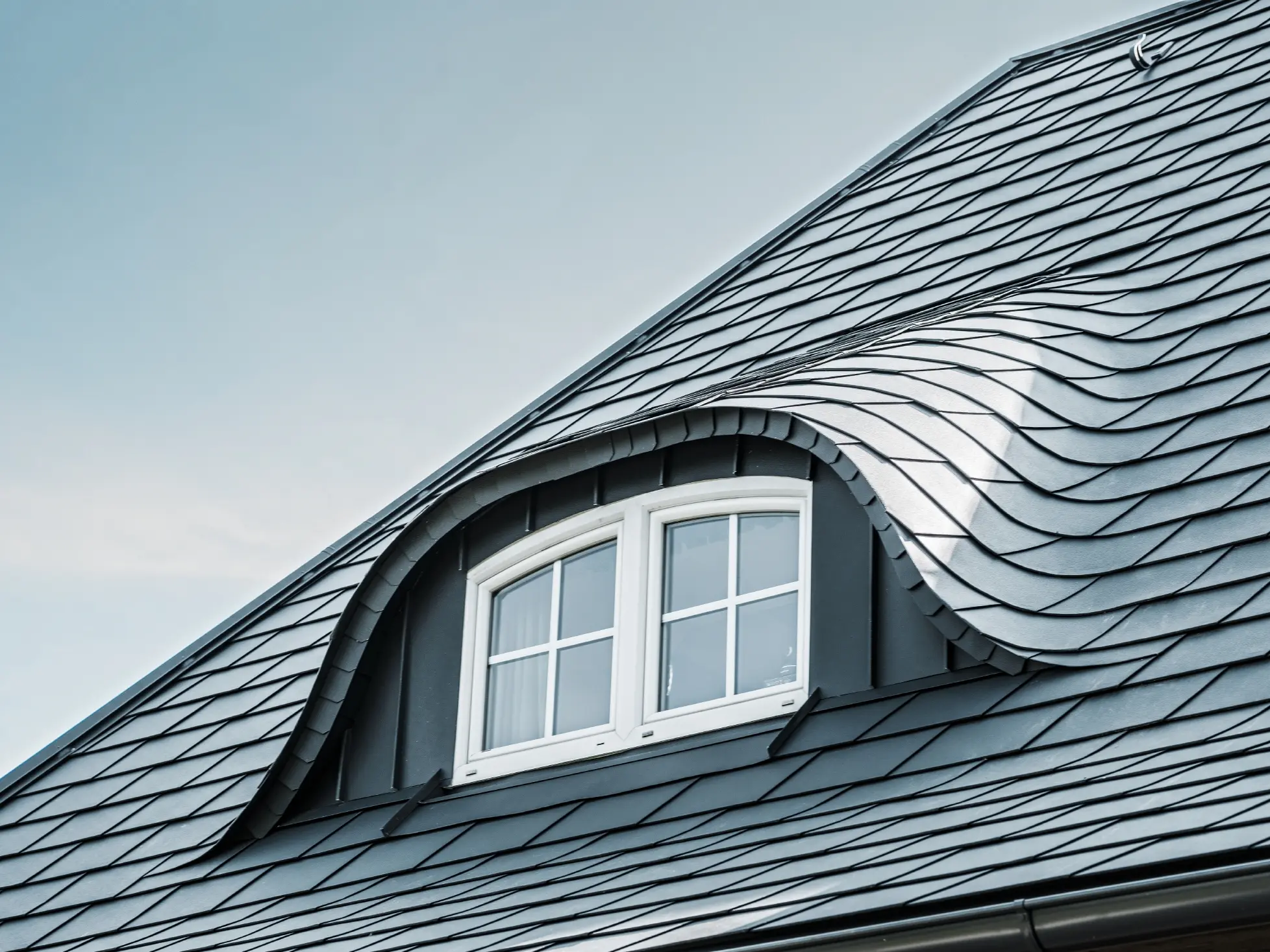

Curved dormer with PREFA roof shingles in P.10 stone grey
Detached house in Zabnica with PREFA roof and facade shingles in P.10 anthracite
Roof renovation of the "Marstall" with PREFA roof shingles in P.10 anthracite

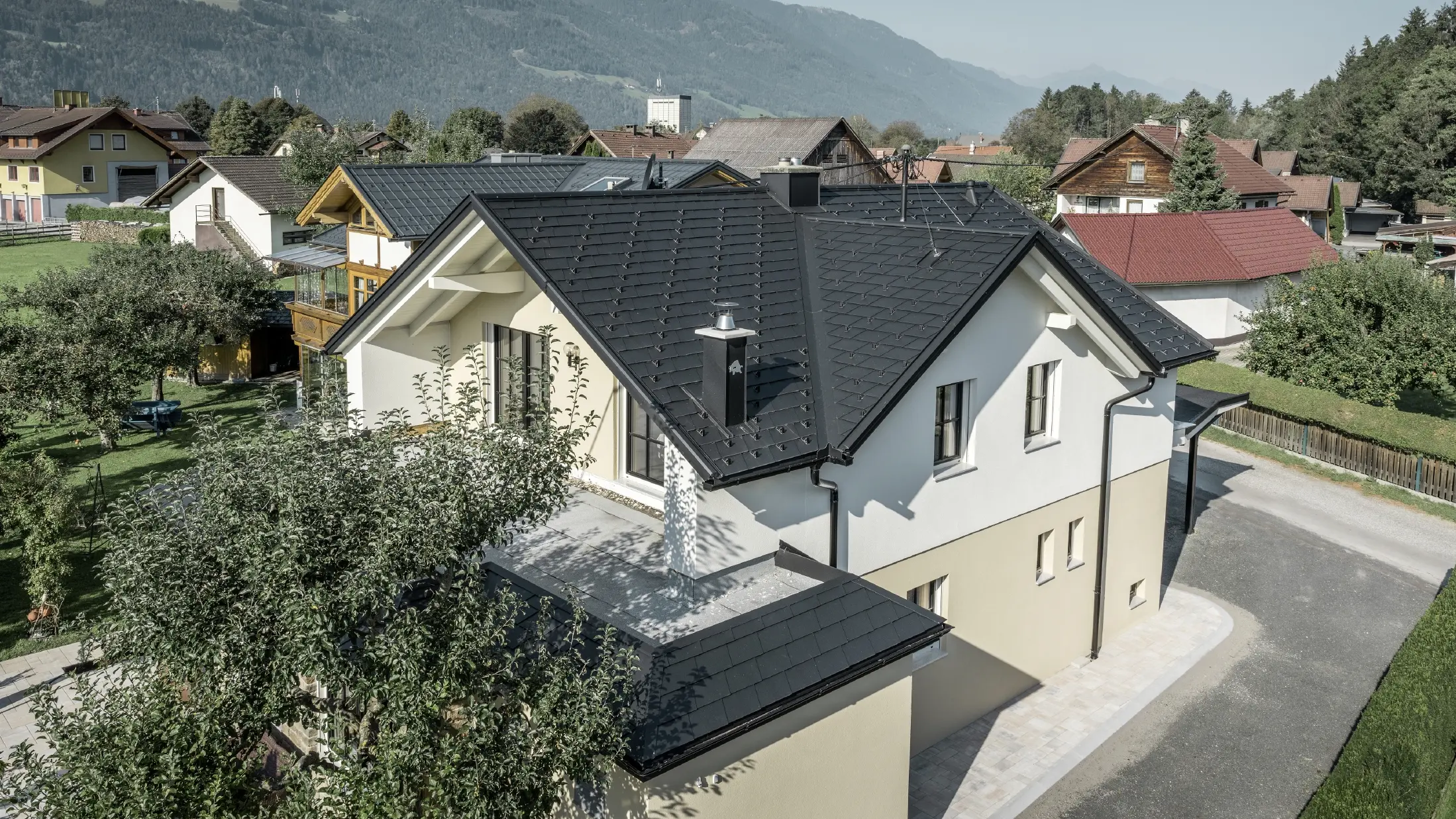

Detached house with PREFA roof shingles in P.10 black
Detached house with PREFA roof shingles in anthracite

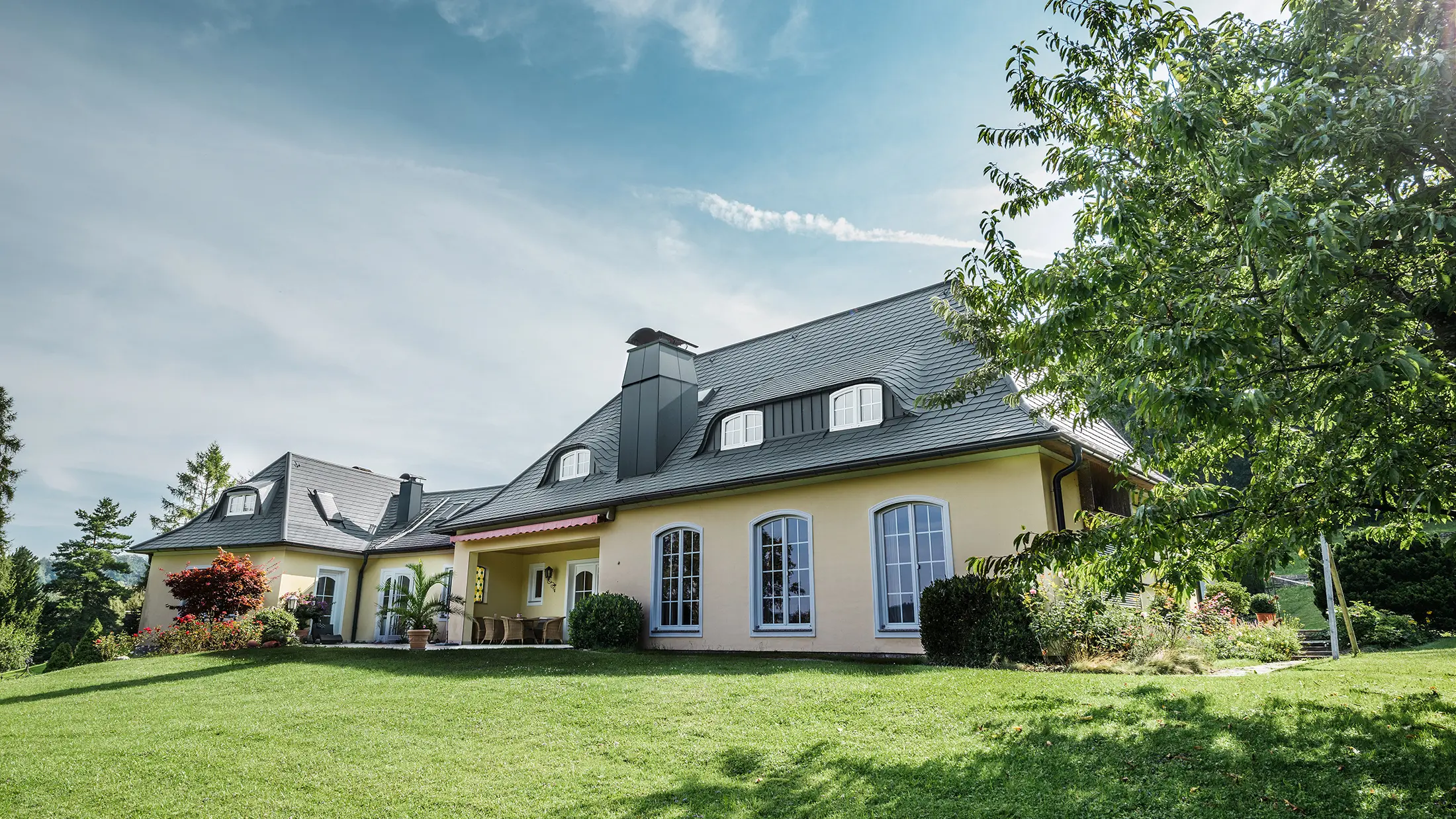

Classic detached house with curved dormers, covered with storm-proof PREFA shingle, with a 40 year material guarantee.
Rural house with PREFA roof shingles in P.10 stone grey with dormers and terrace
Roof renovation of a half-hipped roof with PREFA shingles in P.10 anthracite
Rustic hunting lodge with PREFA roof shingles in P.10 anthracite
"Blue House" in Stuttgart, covered with PREFA roof shingles in P.10 anthracite
Swiss villa "Tavannes" with many details, PREFA roof shingle in P.10 anthracite
Albertinum in Munich, with PREFA roof shingles in P.10 light grey
Hotel Vivamayr in Altaussee with PREFA roof shingles in P.10 stone grey
Curved dormer with PREFA roof shingles in P.10 stone grey
Detached house in Zabnica with PREFA roof and facade shingles in P.10 anthracite
Roof renovation of the "Marstall" with PREFA roof shingles in P.10 anthracite
Detached house with PREFA roof shingles in P.10 black
Detached house with PREFA roof shingles in anthracite
Classic detached house with curved dormers, covered with storm-proof PREFA shingle, with a 40 year material guarantee.

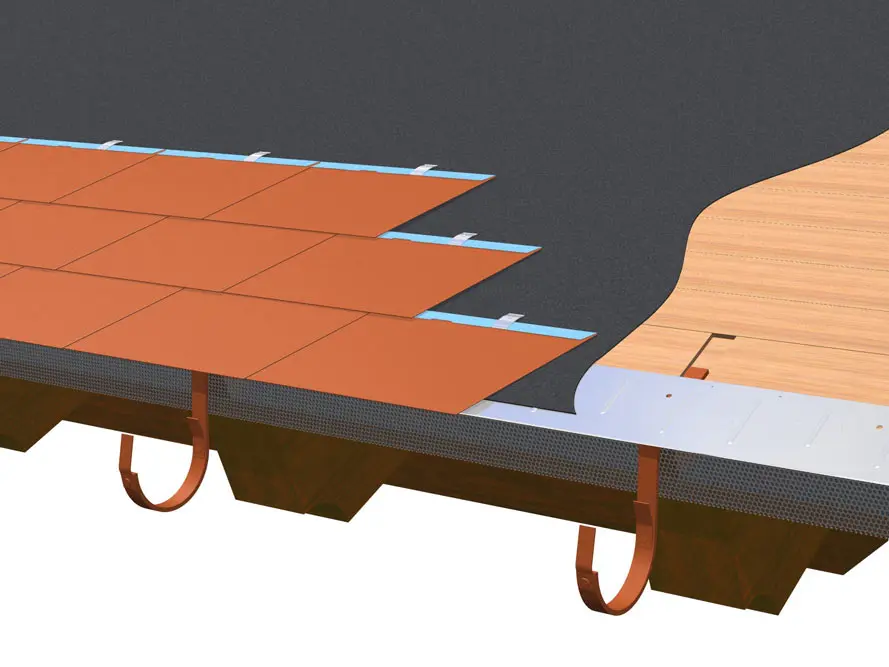

Roof structure with PREFA roof shingles
PREFA aluminium roofs are produced with a ventilated sub-structure, with the roof cover and thermal insulation layer separated by a ventilated gap. This means any occasional condensation can be wicked away.
It is mostly the roof build up that is ventilated, as shown in the first picture. However, the whole attic space can also be ventilated (second picture).
Planning & Application
Here you can download specification documents and details on the PREFA roof shingle. Installation manuals and tips for installing roofs, as well as planning guidelines, the roof data entry form, and roof shingle installation videos can be found in our Service Area. (For tinsmith and roofing partner companies only: Please have your log-in details ready. Not received your log-in details yet? Please contact your PREFA Regional Sales Manager).
Information for architectural practices 3D and BIM data, as well as textures for our products can also be found here: digital planning
Technical information
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Standard finish |
stucco |
Dimensions |
420×240 mm (cover), i.e. 10 pc./m² |
Weight |
approx. 2.5 kg/m² |
Minimum roof pitch |
25° (approx. 47%) |
Supporting substrate and separation layer* |
On fully boarded substrate (at least 24 mm); with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required. * Observe country-specific standards and specialist guidelines. |
Standard fastening |
indirect fastening, 1 PREFA patent clip and ring nail per roof and façade shingle (i.e. 10 PREFA patent clips and ring nails per m²) |
Accessories
Below you will find a list of PREFA roof shingle accessories, from verge trim and ridge vents, to roof safety products like snow stoppers and walkways. Aluminium gutters and drainpipes in matching colours can be found under Roof drainage. The proven PREFA range also includes high-quality façade systems, flood protection and photovoltaic products.
Fitting shingle
840 × 240 mm, caution: not suitable for entire roof coverings but only as an enhancement for lateral connections on shingles
Patent clip
for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel
Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel
1800 × 158 × 1,00 mm, pre-drilled
Ridge vent
3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs
Ridge vent end cap
-
Hip and ridge cap
500 × 1,00 mm
Hip cap end cap
-
Verge flashing
95 × 2.000 × 0,70 mm, with cleat strip
Safety valley
3.000 mm, with double lock standing seam (canted)
Bird screen
125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm
Ventilation screen
with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm
Eaves drip edge
230 × 2.000 × 0,70 mm
Snow guard for shingles
-
Bracket for pipe-style snow guard system
3 pipe openings
XL bracket for pipe-style snow guard system
with 5 pull-through openings, ideal for PV on-roof systems
Snow guard pipe
3.000 mm; 25/25
Ice-retention bracket
Suitable for removable pipe
end piece for pipe-style snow guard system
for removable pipe
End piece XL for pipe-style snow guard system
for insert profile
Mountain snow guard bracket
For 140 mm log diameter
Solar bracket with protective cap
length: 260 mm
Sunny solar bracket
suitable for all PREFA small format products and standing seam systems.
Fix solar bracket
Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Vario solar bracket
Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Safety tread
Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A
Walkway support on one mount
250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A
Walkway support on two mounts
360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B
Walkway
250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B
Walkway connector
-
Roof anchor hook
tested according to EN 517 – B
Roof anchor hook with mounts
tested according to EN 517 – B
Frog-mouth vent for shingles
420 × 240 mm, air intake section approx. 30 cm²
Frog-mouth vent cover
for riveting, air intake section approx. 30 cm²
Ventilation cap
Ø 100 mm, roof pitch: from 12°
Vent pipe
Ø 100 mm, Ø 120 mm including EPDM seal and cover
Flexible pipe collar 100
Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay
Vent pipe cover for seaming
roof pitches between 12° - 52°, Ø 80 - 125 mm
Universal vent pipe cover 2 parts
roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm
Base plate
lenth: 540 mm, width: 125 mm
Vario flashing
width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°
Roof hatch
-
Window surrounds for Roto & Roto-Q-series
available in many dimensions
Velux window surroundings
available in many dimensions
Chimney cap
700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm
Roof conductor holder for lightning protection wire
clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :
Special adhesive kit
Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
