Roofs full of character with a familiar pattern are achieved with the PREFA rhomboid roof tile. It breathes new life into a traditional and well-established roof appearance, giving it a completely new modern definition. The material is modern too: the 0.7 mm-thick coil-coated aluminium ensures maximum durability and extreme weather resistance. The perfectly coordinated all-in-one system, the low weight and the proven flat lock installation technology ensure problem-free use on new roofs and renovations.
Advantages of PREFA rhomboid roof tiles 44 x 44
Large choice of colours
available in many standard colours
40-year guarantee
on material and colour
New mounting system
Quick installation is possible thanks to the integrated fastening strip (without clips) and it can be used from a roof pitch of 12 degrees
Proven look
Traditional shape with modern accents
Large choice of colours
available in many standard colours
40-year guarantee
on material and colour
New mounting system
Quick installation is possible thanks to the integrated fastening strip (without clips) and it can be used from a roof pitch of 12 degrees
Proven look
Traditional shape with modern accents
Colour range of the rhomboid roof tile 44 x 44
The colour range of the rhomboid roof tiles extends from classic red via modern grey and dark tones such as anthracite, discreetly reminiscent of slate tiles, through to natural brown tones. The following PREFA roof colours are available as standard:
Color overview (10)
Color |
Code |
~ RAL |
|
P.10 brown |
7013 |
|
P.10 anthracite |
7016 |
|
P.10 black |
9005 |
|
P.10 brick red |
8004 |
|
P.10 oxide red |
3009 |
|
P.10 moss green |
6005 |
|
P.10 light grey |
7005 |
|
P.10 nut brown |
8019 |
|
P.10 dark grey |
7043 |
|
P.10 stone grey |
7031 |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
- Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
- Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colors may vary in shade.
- To identify exact colors for complementary components please consult original samples.
Be inspired by the projects alreadycompleted with PREFA rhomboid roof tiles 44 x 44.
Due to the enlarged surface structure, it is possible to combine traditional shapes with modern accents – without sacrificing maximum durability and extreme weather resistance. Regardless of whether you want to re-roof or renovate your old roof, you can't go wrong with the rhomboid roof tile 44 x 44. You will find even more inspiration for aluminium rhomboid tiles in our Reference Gallery or Renovation Gallery. The rhomboid roof tile 44 × 44 is also available as a rhomboid façade tile – you can thus clad your roof and façade as if from a single mould.*
* This may be a special building-based solution.

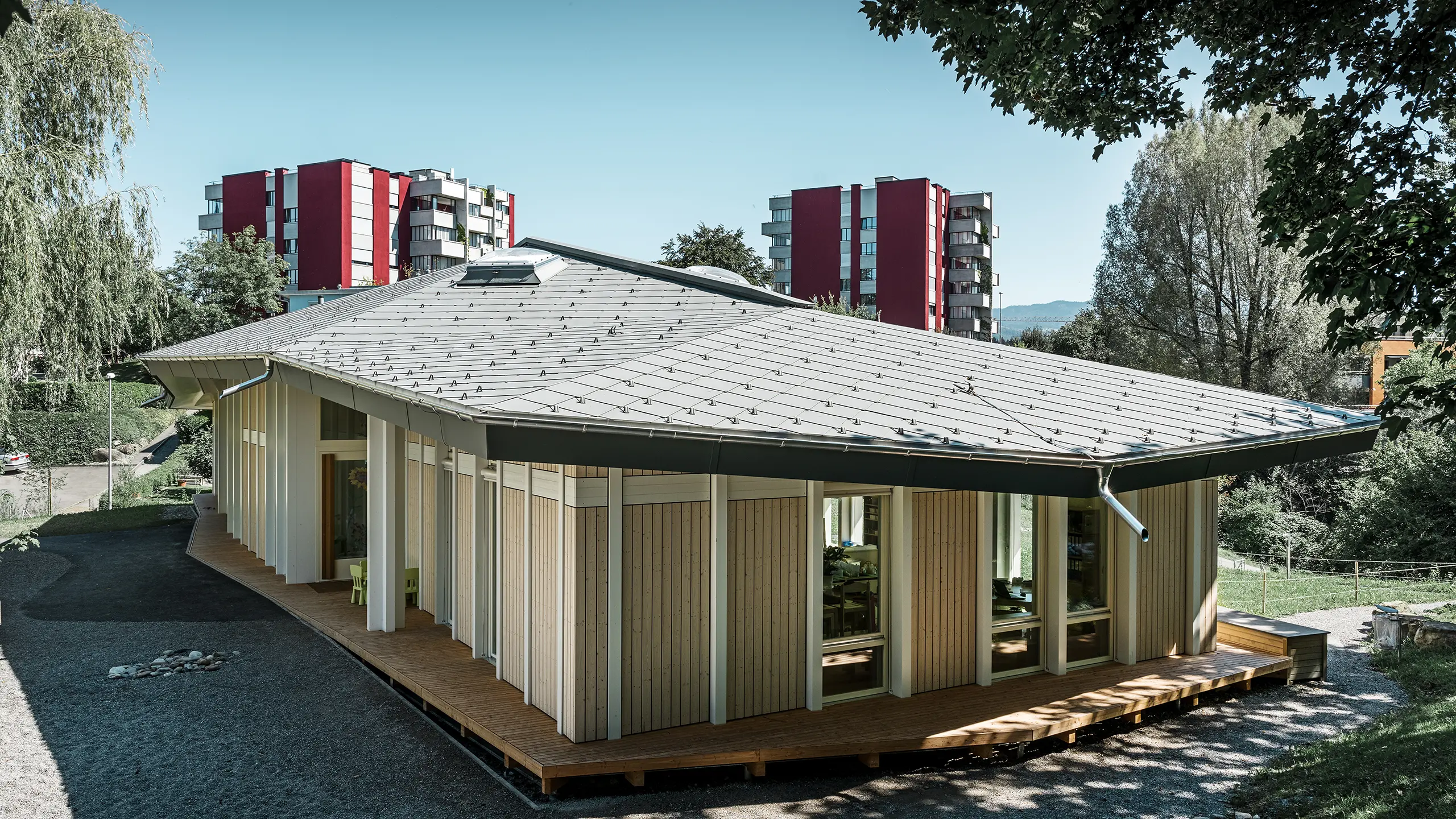

Kindergarten in Switzerland with rhomboid roof tile 44 x 44 in light grey

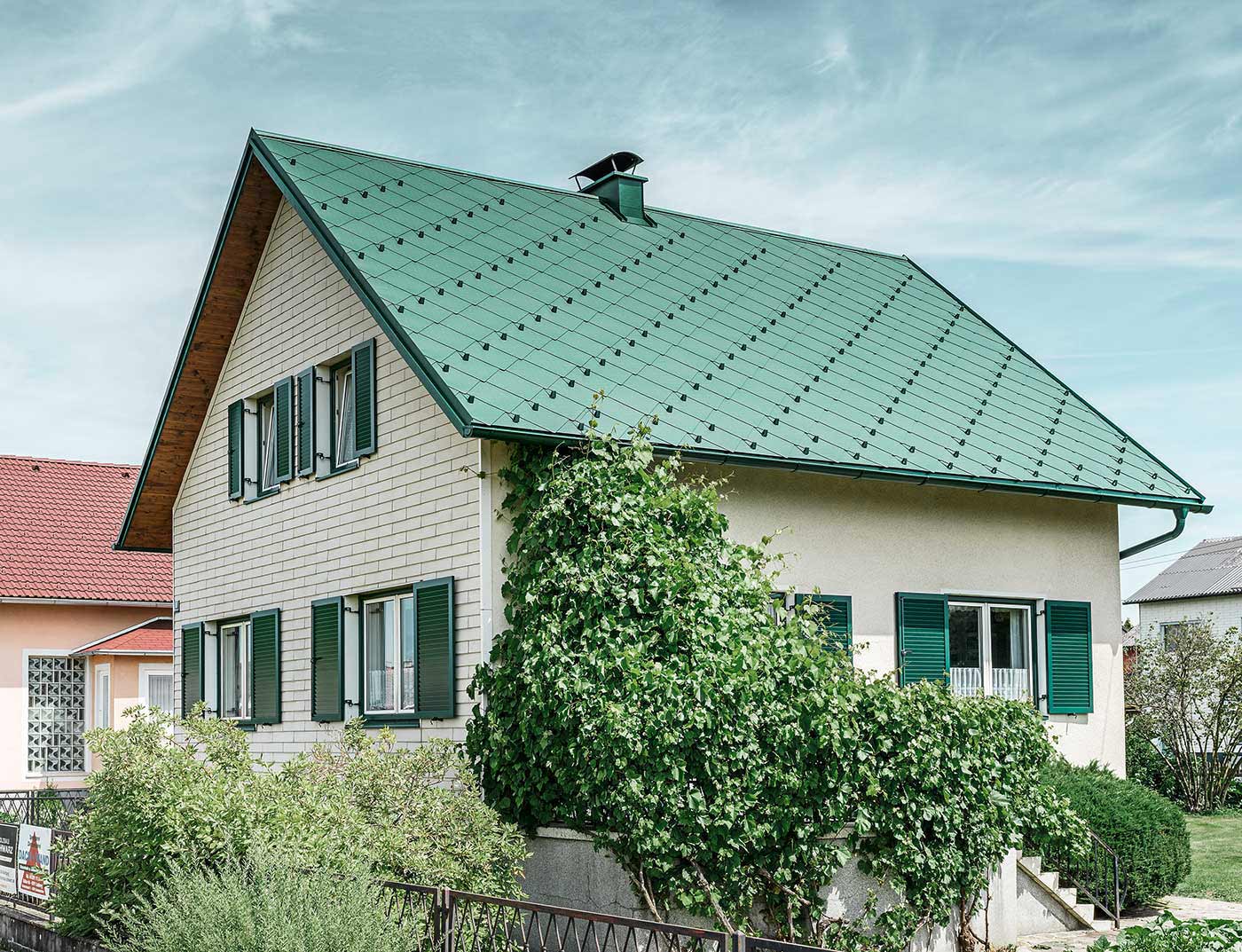

Roof renovation with PREFA rhomboid roof tiles 44 × 44 in moss green

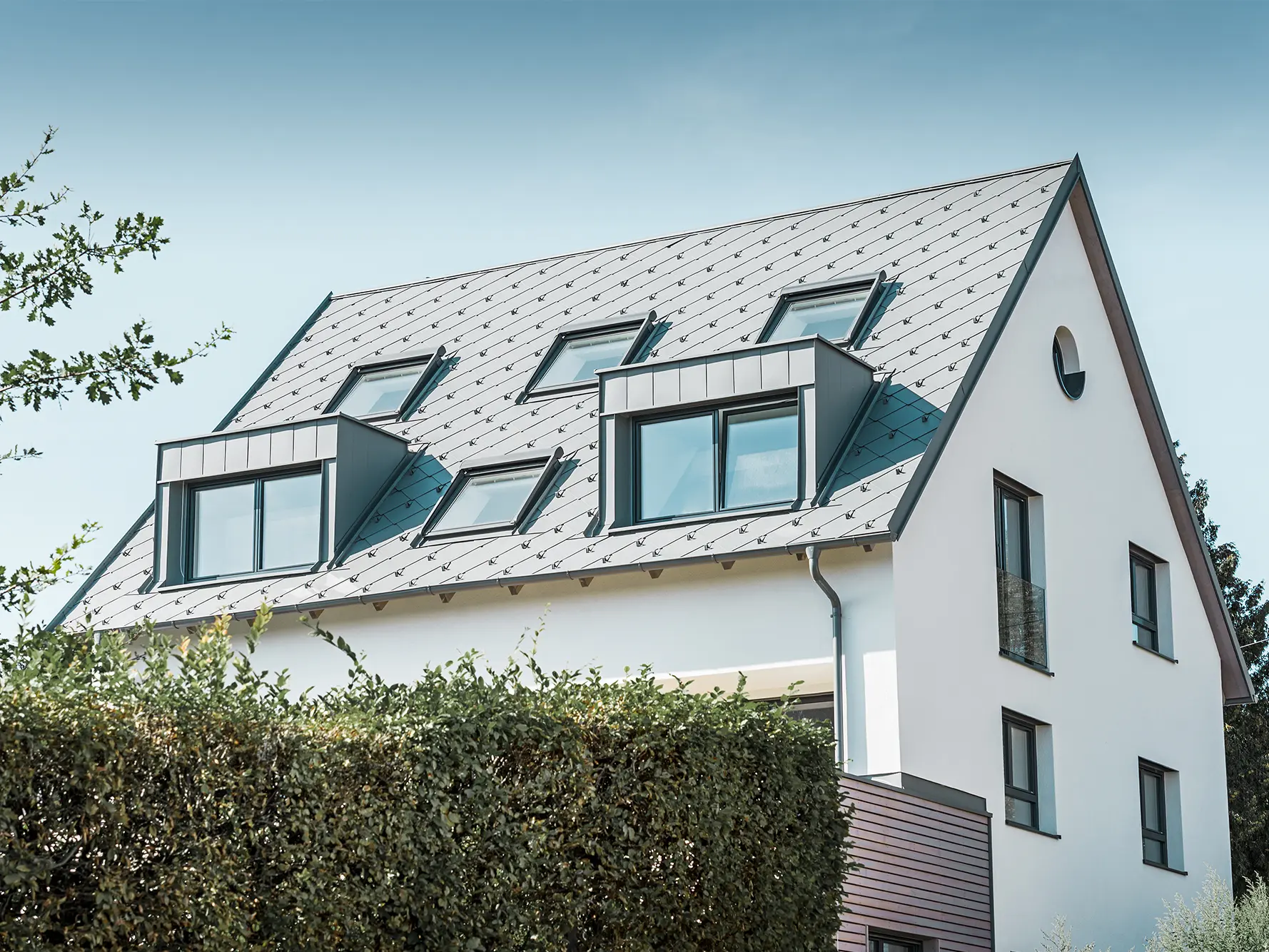

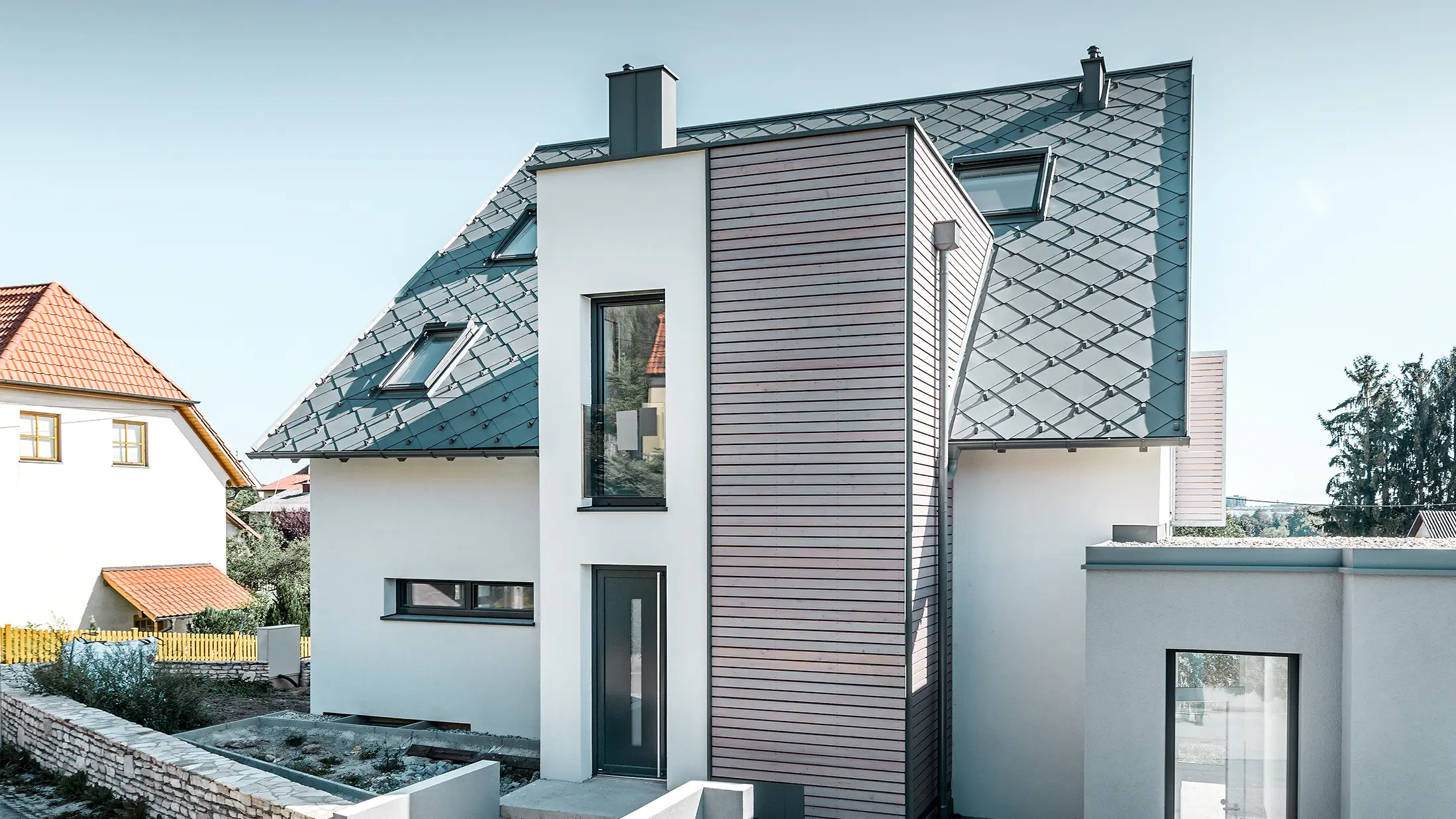

PREFA gabled roof Leonding rhomboid tile 44 light grey roof and wall

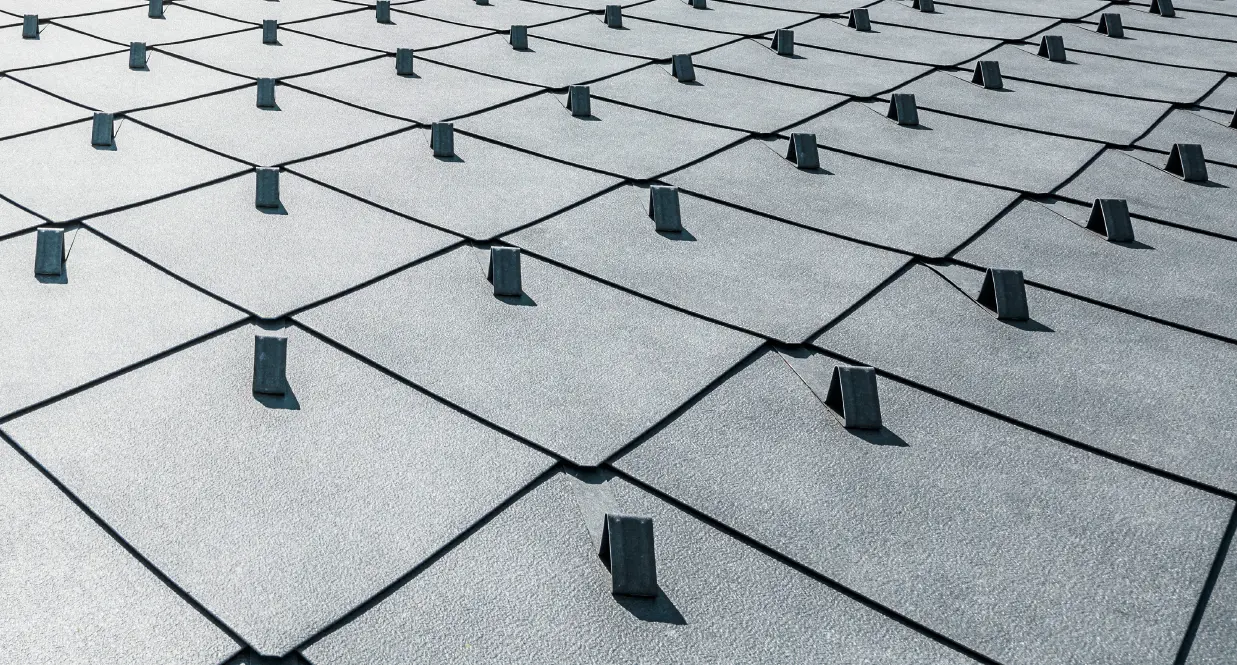

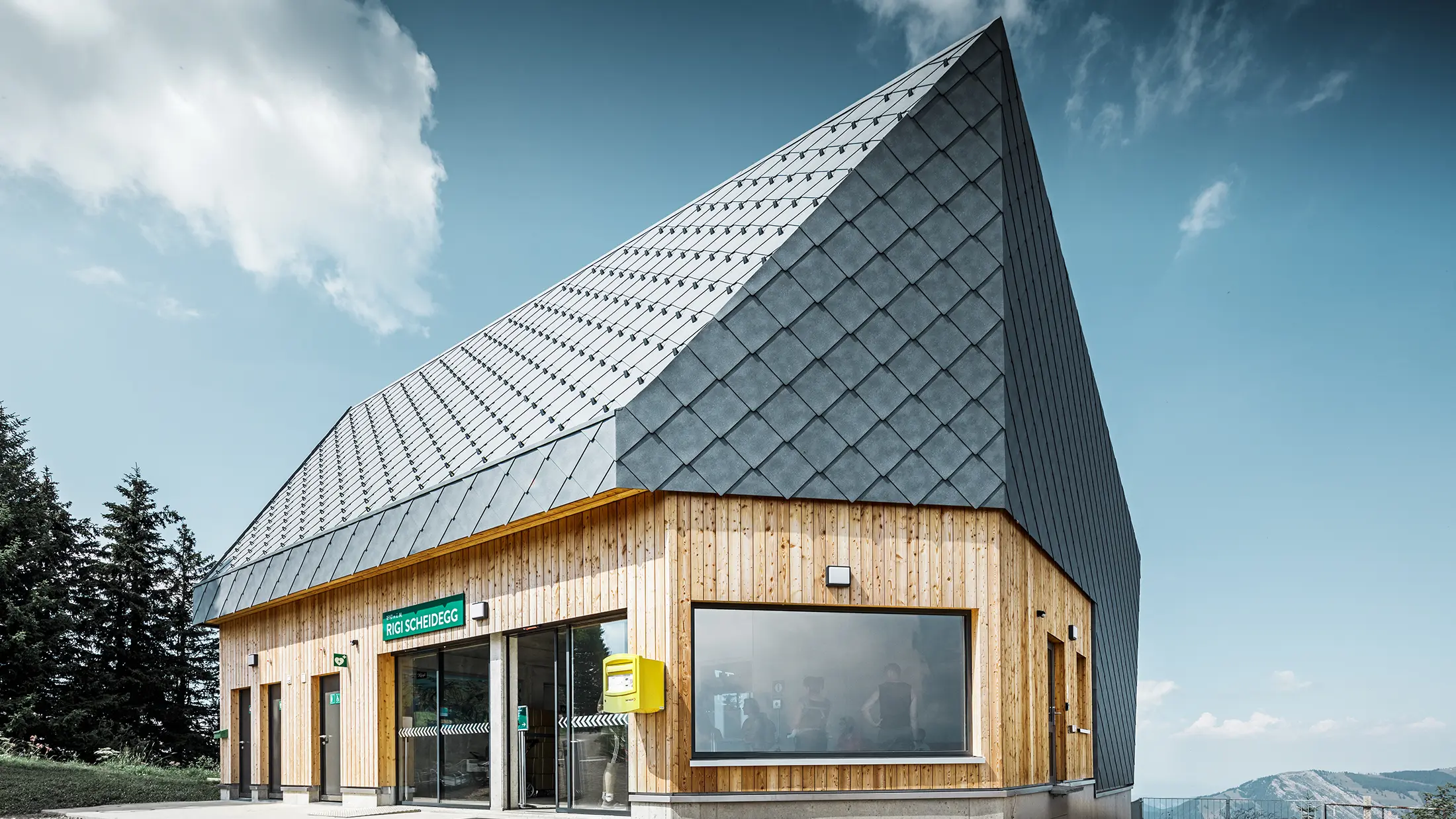

Rigi Railway Scheidegg mountain station in the stone grey 44 x 44 rhomboid tile

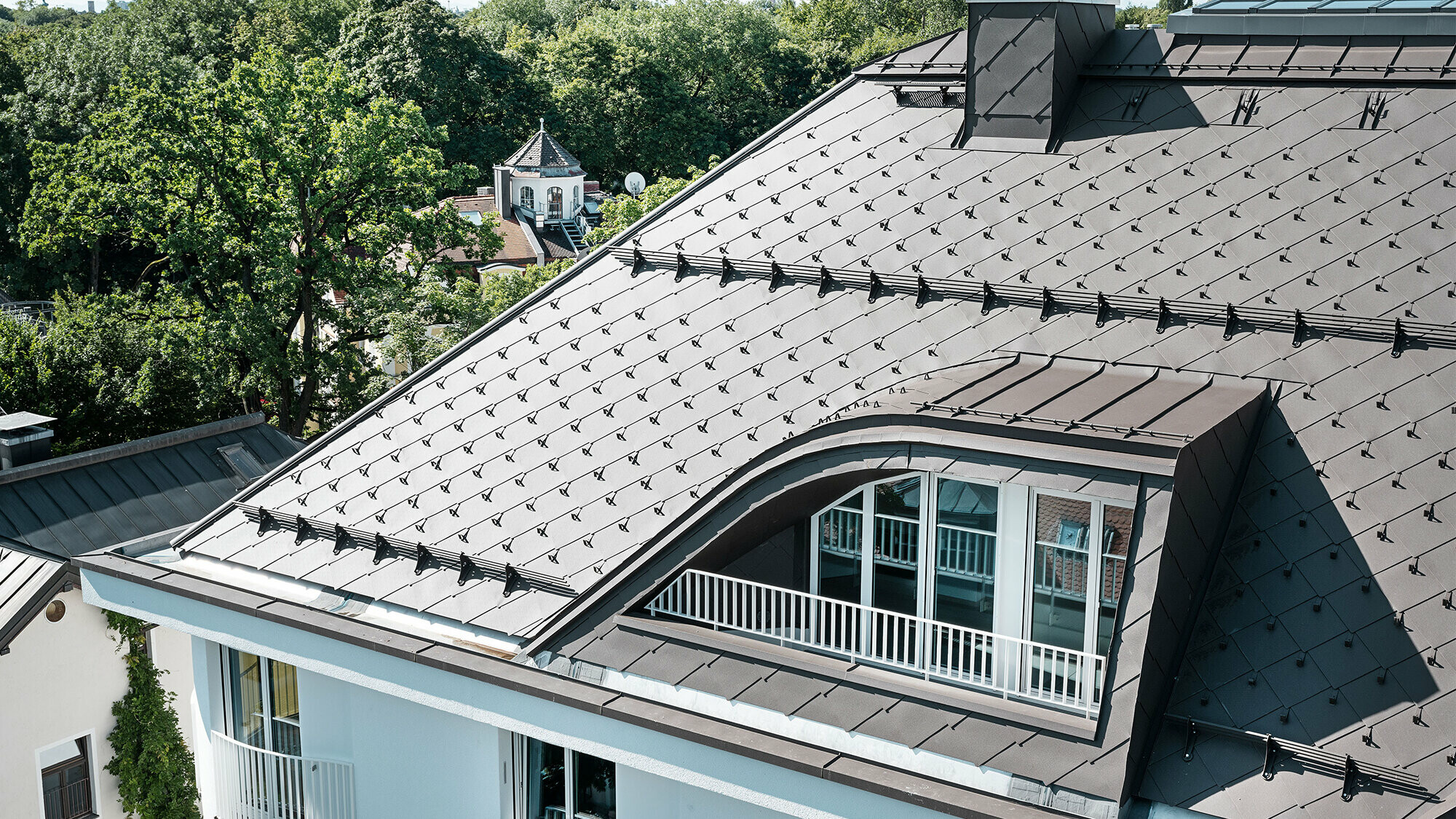

Apartment building in Munich with PREFA rhomboid roof tiles 44 × 44 in brown
Nursery with roof and façade tiles in Prefa white
Special building-based solution
Kindergarten in Switzerland with rhomboid roof tile 44 x 44 in light grey
Roof renovation with PREFA rhomboid roof tiles 44 × 44 in moss green
PREFA gabled roof Leonding rhomboid tile 44 light grey roof and wall
Rigi Railway Scheidegg mountain station in the stone grey 44 x 44 rhomboid tile
Apartment building in Munich with PREFA rhomboid roof tiles 44 × 44 in brown
Nursery with roof and façade tiles in Prefa white
Special building-based solution
Technical information on the rhomboid roof tile 44 × 44
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Standard finish |
stucco |
Dimensions |
437×437 mm (cover), i.e. approx. 5 pc./m² |
Weight |
approx. 2.6 kg/m² |
Minimum roof pitch |
12° (approx. 21% ) — rafter length: up to 7 m |
Supporting substrate and separation layer* |
On fully boarded substrate (at least 24 mm); with snow loads greater than 3.25 kN/m² or in terrain categories 0, I or II, fully boarded substrate with a separation layer is required. * Observe country-specific standards and specialist guidelines. |
Standard fastening |
direct fastening, 4 PREFA ring nails per rhomboid roof and façade tile 44×44 (i.e. 20 PREFA ring nails per m²) |
Roofbuild up when using roof rhomboid tiles 44 × 44
PREFA aluminium roofs are preferably executed with a vetilated build up, whre the substrate and thermal insulation layer is separated by a ventilated gap. This means any occasional condensation can be wicked away again.
For the most part, the roof is ventilated, as can be seen in the first picture. However, the whole attic space can also be ventilated (second picture).
Planning & Application
Our installers and architects can download specification documents as well as information on the rhomboid roof tiles 44 x 44 here.
Accessories
The integrated fastening strips enable fast, direct and cost-effective installation on the roof or façade. The product is rounded off by matching accessories such as start and end plates, edging plates as well as snow guards, solar brackets and much more.
For a complete, detailed list of accessory products, see our price list (only for processors).
Leading plate for rhomboid roof tile 44 × 44
-
End plate for rhomboid roof tile 44 × 44
-
Strater strip for shingles, DS.19 shingle, rhomboid roof tiles, R.16 roof tile and FX.12 roof panel
1800 × 158 × 1,00 mm, pre-drilled
Ridge vent
3.000 × 1,00 mm, 1.200 × 1,00 mm, self-supporting ridge vent for ventilated roofs
Ridge vent end cap
-
Hip and ridge cap
500 × 1,00 mm
Hip cap end cap
-
Verge flashing
95 × 2.000 × 0,70 mm, with cleat strip
Safety valley
3.000 mm, with double lock standing seam (canted)
Bird screen
125 × 2.000 × 0,7 mm, with round perforations Ø 5/7 mm
Ventilation screen
with square perforations 6 mm, in the colours brown/anthracite and light grey/light grey, dimensions: 1,00 × 250 mm and 1,00 × 333 mm
Eaves drip edge
230 × 2.000 × 0,70 mm
Snow guard for rhomboid roof tile 44 × 44
-
Bracket for pipe-style snow guard system
3 pipe openings
XL bracket for pipe-style snow guard system
with 5 pull-through openings, ideal for PV on-roof systems
Snow guard pipe
3.000 mm; 25/25
Ice-retention bracket
Suitable for removable pipe
end piece for pipe-style snow guard system
for removable pipe
End piece XL for pipe-style snow guard system
for insert profile
Solar bracket with protective cap
length: 260 mm
Sunny solar bracket
suitable for all PREFA small format products and standing seam systems.
Fix solar bracket
Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Vario solar bracket
Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Mountain snow guard bracket
For 140 mm log diameter
Safety tread
Adjustable for roof pitches between 12° and 60°; tested according to EN 516-1-A
Walkway support on one mount
250 mm; r roof pitches between 12° and 55°; tested according to DIN EN 516-1-A
Walkway support on two mounts
360 mm; roof pitches between 12° and 55°; tested according to DIN EN 516-1-B
Walkway
250 × 420 mm, 250 × 600 mm, 250 × 800 mm, 250 × 1.200 mm, 360 × 800 mm, 360 × 1.200 mm; tested according to EN 516-1-A or rather EN 516-1-B
Walkway connector
-
Roof anchor hook
tested according to EN 517 – B
Roof anchor hook with mounts
tested according to EN 517 – B

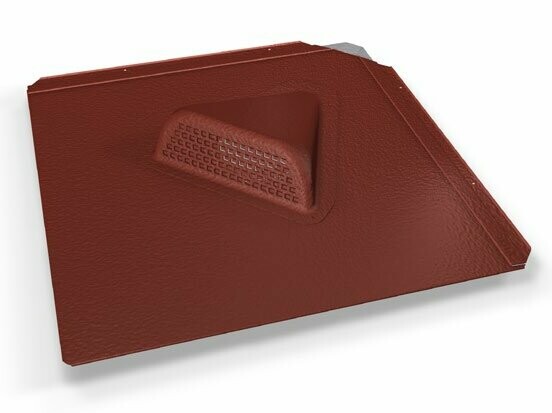

Frog-mouth vent for rhomboid roof tile 44 x 44
437 × 437 mm, air intake section: approx. 30 cm²
Frog-mouth vent cover
for riveting, air intake section approx. 30 cm²
Ventilation cap
Ø 100 mm, roof pitch: from 12°
Vent pipe
Ø 100 mm, Ø 120 mm including EPDM seal and cover
Flexible pipe collar 100
Ø 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings made in the roof underlay
Vent pipe cover for rhomboid roof tile 44 × 44
for pipe openings of ⌀ 80–125 mm and roof pitches between 12° and 52°
Vent pipe cover for seaming
roof pitches between 12° - 52°, Ø 80 - 125 mm
Universal vent pipe cover 2 parts
roof pitches between 12° - 52°; for pipe openings Ø 40 - 120 mm
Base plate for rhomboid roof tile 44 × 44 and DS.19 shingle
length: 680 mm, width: 125 mm
Vario flashing
width: 120 – 600 mm, 600 – 1.020 mm, variable length 150 – 980 mm, roof pitches bewteen 12° – 55°
Roof hatch
-
Window surrounds for Roto & Roto-Q-series
available in many dimensions
Velux window surroundings
available in many dimensions
Chimney cap
700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm
Roof conductor holder for lightning protection wire
clamping range: 2 – 8 mm; round wire mount: Ø 8 mm :
Special adhesive kit
Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
