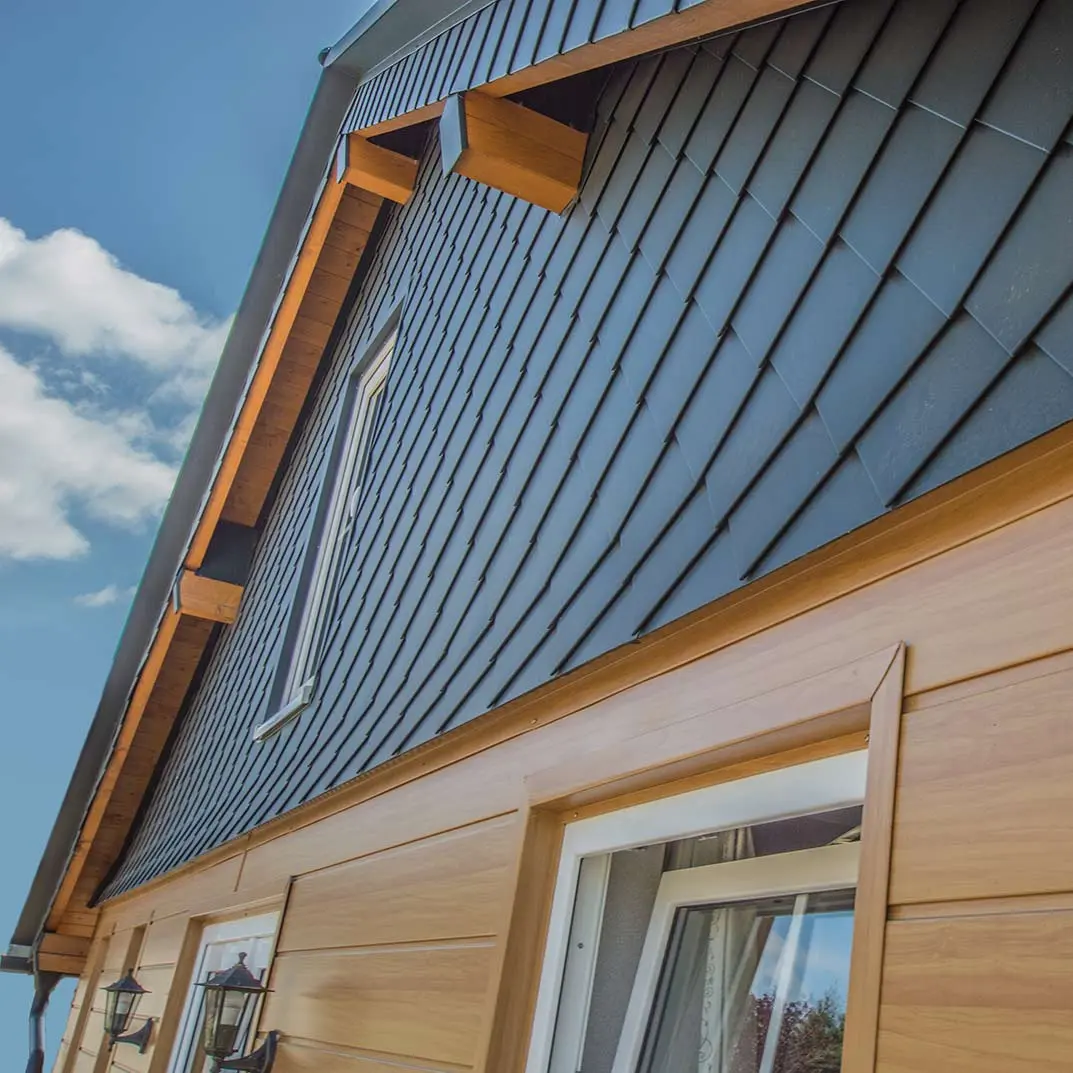

PREFA wall design with sidings in light wood, and a gable cladding in anthracite with PREFA 20 × 20 rhomboid wall tiles.

Rhomboid façade tile 20 × 20

Ideal for renovating gables, dormers, chimneys and great for scale-like façade cladding

+9
read more

With the small-format rhomboid façade tile 20×20, architectural features can be effectively highlighted. Smaller façade surfaces, gables, chimneys or bay windows can be covered elegantly and with attention to detail, as can the entire façade surface.

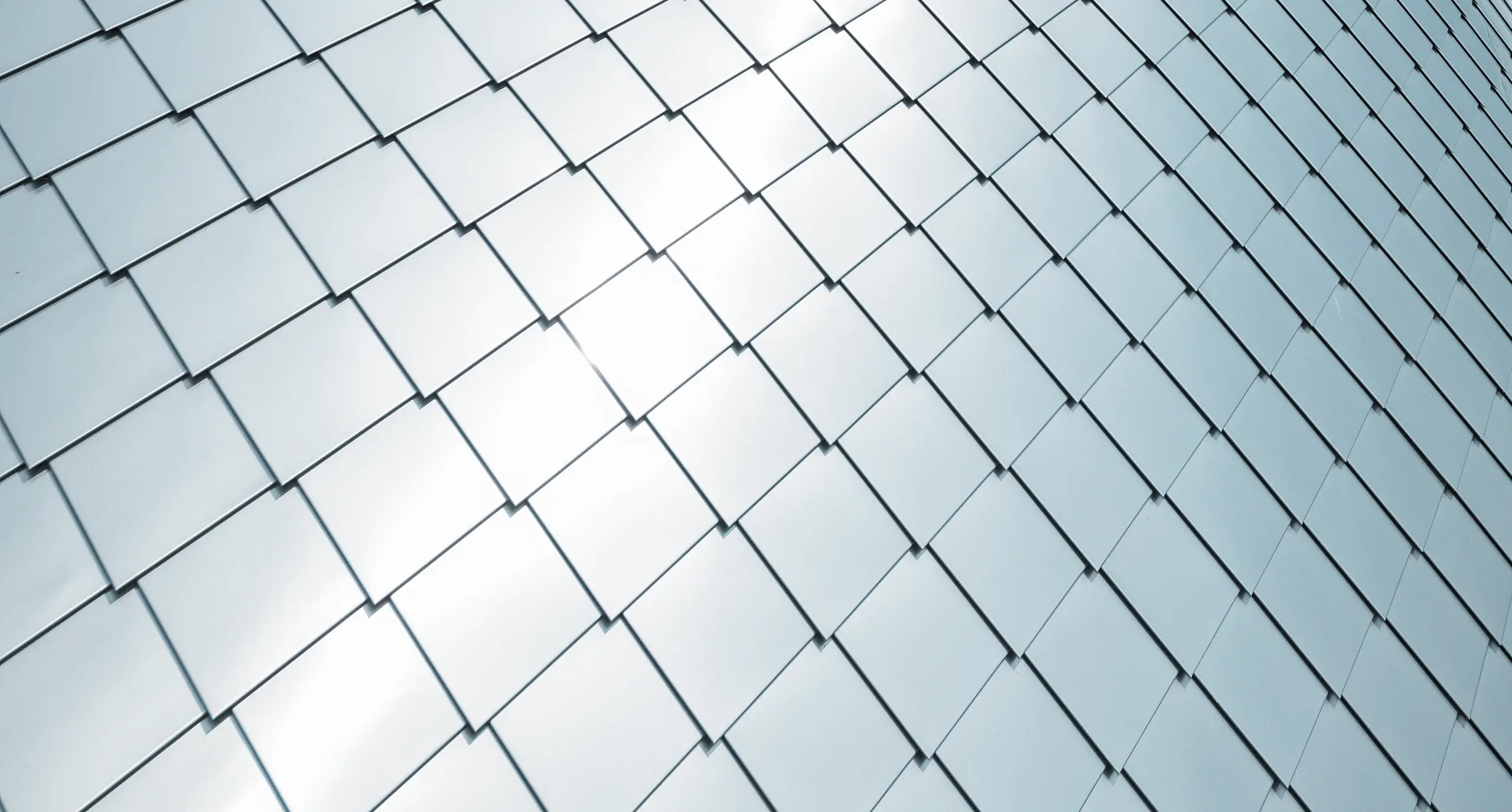

PREFA rhomboid façade tile 20 × 20installed, detailed view in plain aluminium

Advantages of the PREFA rhomboid façade tile 20 × 20

Icon for advantages

Aluminium construction material

Weather-resistant and non-corrosive façade system with a 40-year material guarantee

Icon for advantages

Rear-Ventilated Rainscreen Facade (RVRF)

No condensation, no heat build-up

Icon for advantages

Fire protection

Reaction to fire class “A1” – non-combustible

Icon for advantages

Numerous standard colours

P.10 colours with 40-year colour guarantee

Icon for advantages

Aluminium construction material

Weather-resistant and non-corrosive façade system with a 40-year material guarantee

Icon for advantages

Rear-Ventilated Rainscreen Facade (RVRF)

No condensation, no heat build-up

Icon for advantages

Fire protection

Reaction to fire class “A1” – non-combustible

Icon for advantages

Numerous standard colours

P.10 colours with 40-year colour guarantee

Colour range of the PREFA rhomboid façade tile 20 × 20

The PREFA rhomboid façade tile 20 × 20 can be ordered with a stucco finish (structural embossing) or smooth finish.

Color overview (13)

Color

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

08 Zinkgrau

P.10 zinc grey

7030

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

12 Silbermetallic

metallic silver

9006

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA color and, under certain circumstances, may not reflect the subjective perception of the color.
  • Above all for color quality P.10, it is almost impossible to define values due to the surface structure. In addition, the PREFA Siding colours P.10 stone grey, P.10 sand brown, P.10 patina green, natural oak, patina grey, walnut and grey oak are based on natural colours made up of several different shades.
  • Coils and metal sheets plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colors may vary in shade.
  • To identify exact colors for complementary components please consult original samples.

You may also like the following option. : PREFA rhomboid façade tile 44 × 44 or PREFA rhomboid façade tile 29 × 29

In addition to the rhomboid façade tile 20 × 20, we also have two larger aluminium rhomboid façade tiles in our product range: The PREFA rhomboid façade tile 44 × 44 is also directly fastenened and, in contrast, the medium-sized PREFA rhomboid façade tile 29 × 29 is fixed with clips.

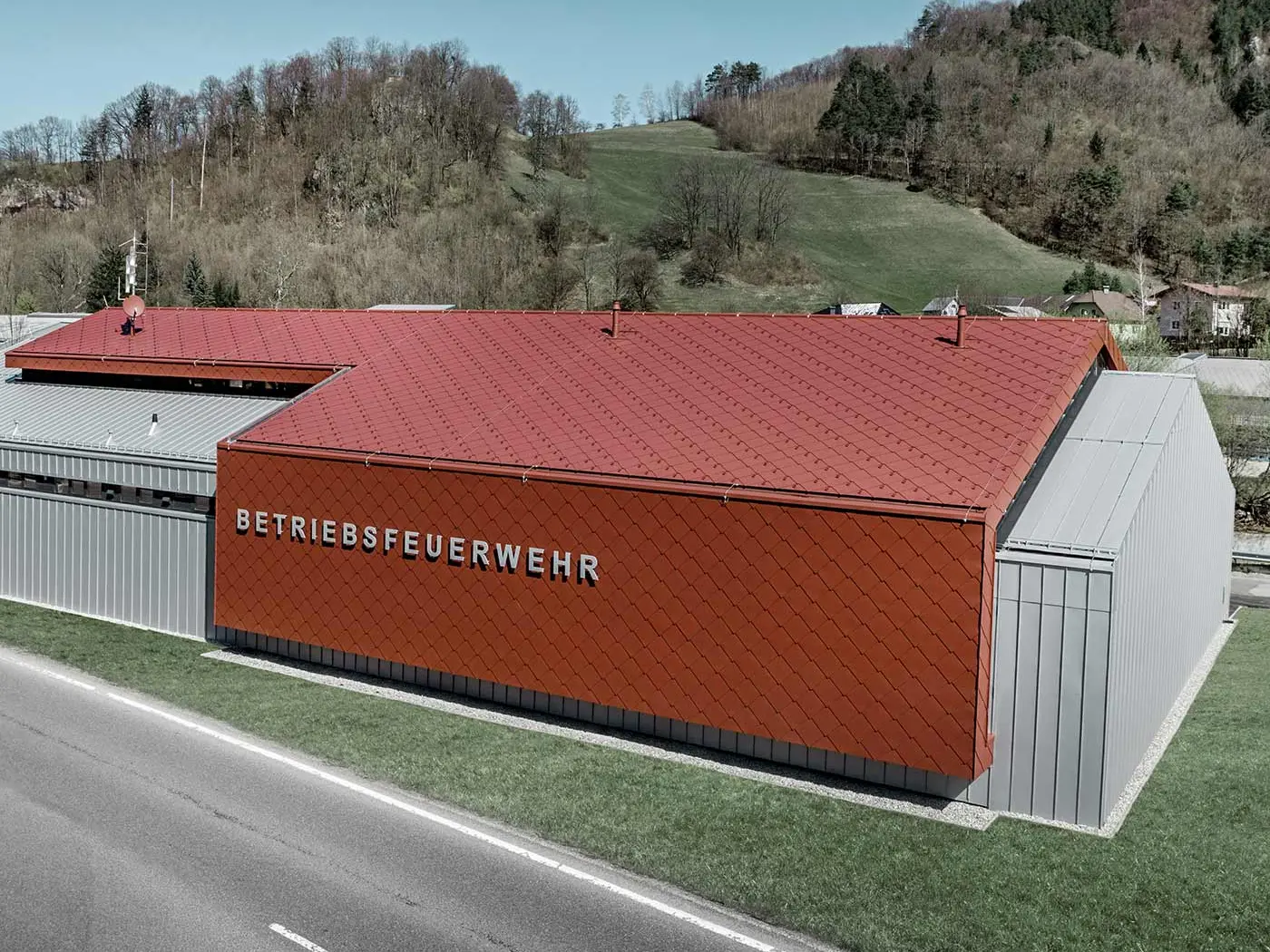

The new fire station for PREFA and Neuman Aluminium’s own fire brigade was clad with the new 44 × 44 rhomboid roof and wall tiles in P.10 oxide red and Prefalz in metallic silver.

Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

200×200 mm (cover), i.e. 25 pc./m²

Weight

approx. 2.8 kg/m²

Supporting substrate*

on fully boarded substrate (at least 24 mm)

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct fastening, 1 PREFA ring nail per rhomboid façade tile 20×20 (i.e. 25 PREFA ring nails per m²)

Planning & Use

Metalworkers and architects can download Tender specifications and Details of PREFA rhomboid façade tiles here.

Accessories

The product is rounded off by matching PREFA accessories such as start and end panels as well as the starter strip for the façade. Usually all flashings and trimmings are made from available complementary coil material in matching colours, by the installer himself.

For a complete, detailed list of PREFA accessory products, see our price list (for installers only).

Leading plate for rhomboid façade tile 20 × 20

-

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

Fastener (aluminium screw)

Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)

Fastener (steel screw)

Special screw for steel substructures, with hardened drill point (red tip for illustration only)
