Rhomboid façade tile 29 × 29

Give traditional façade design a new lease of life: Classic PREFA rhomboid façade tile 29 × 29 with a matt, elegant structure.

+7
read more

The perfect combination of style and function: façades covered with rhomboid façade tiles are characterised by harmonious light and shade effects — and are extremely robust. Alloys according to EN 1396 make up the basic material of PREFA aluminium products. The rhomboid façade tile 29 × 29 is coated in a coil-coating procedure and is subject to the strict requirements of the European Coil Coating Association in Brussels.

PREFA guarantees the aluminium basic material for 40 years against breakage, rust and frost damage in natural environmental conditions and following installation by a professional.

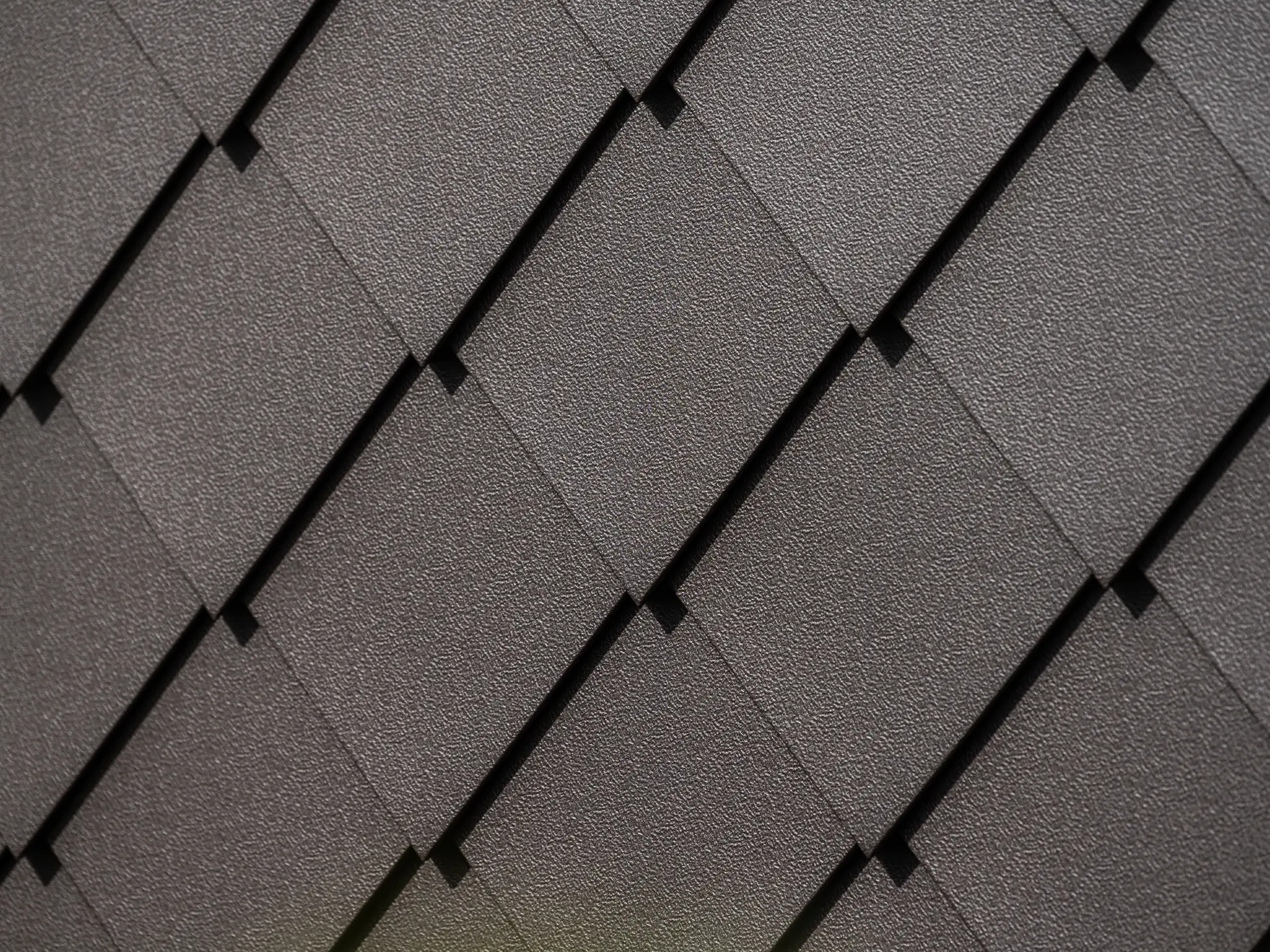

PREFA Wandraute 29 × 29 in Nussbraun Nahaufnahme mit Stucco-Oberfläche

Colour overview (11)

The product is available in the following colours

Colour

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Note

  • The RAL numbers indicated are approximations only [~] and may, in some cases, differ greatly from the PREFA original colour. They may not be a true reflection of the subjective perception of colour.
  • Particularly in the case of the P.10 paint quality, it is difficult to precisely define the number due to the nature of the surface structure. In addition, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, grey oak, natural oak and patina grey are based on natural colours made up of several different shades.
  • We recommend obtaining original samples so that you can gain an idea of the exact colours of complementary components.

Rhomboid façade tile 29 × 29 — Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

437×437 mm (cover), i.e. approx. 5 pc./m²
290×290 mm (cover), i.e. 12 pc./m²

Weight

approx. 2.6 kg/m²

Supporting substrate*

on fully boarded substrate (at least 24 mm)*

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct fastening, 4 PREFA ring nails per rhomboid façade tile 44×44 (i.e. 20 PREFA ring nails per m²)
indirect, 1 PREFA rhomboid façade tile clip as well as 1 ring nail per rhomboid façade tile 29×29 (i.e. 12 PREFA rhomboid façade tile clips as well as 12 ring nails per m²)

rhomboid façade tile 29 × 29 – for wall mounting

rhomboid façade tile 29 × 29 – for wall mounting

Rhomboid façade tile 29 × 29 – Planning and installation

Accessories

Leading plate for rhomboid façade tile 29 × 29

-

End plate for rhomboid façade tile 29 × 29

-

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

Rhomboid façade tile clip 29 × 29

-

Fastener (aluminium screw)

Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)

Fastener (steel screw)

Special screw for steel substructures, with hardened drill point (red tip for illustration only)
