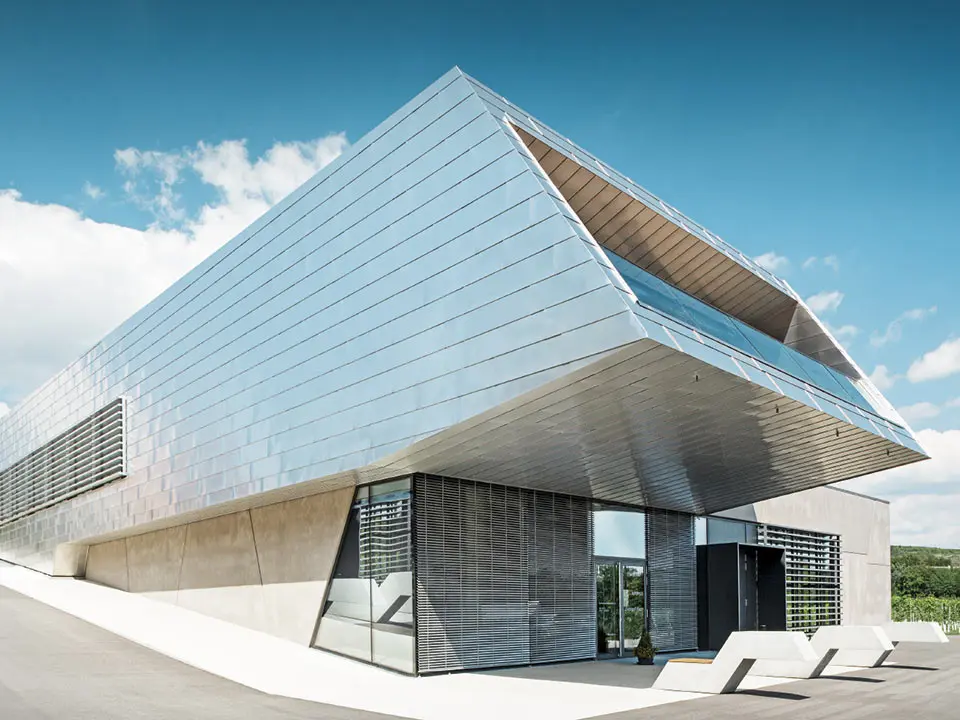

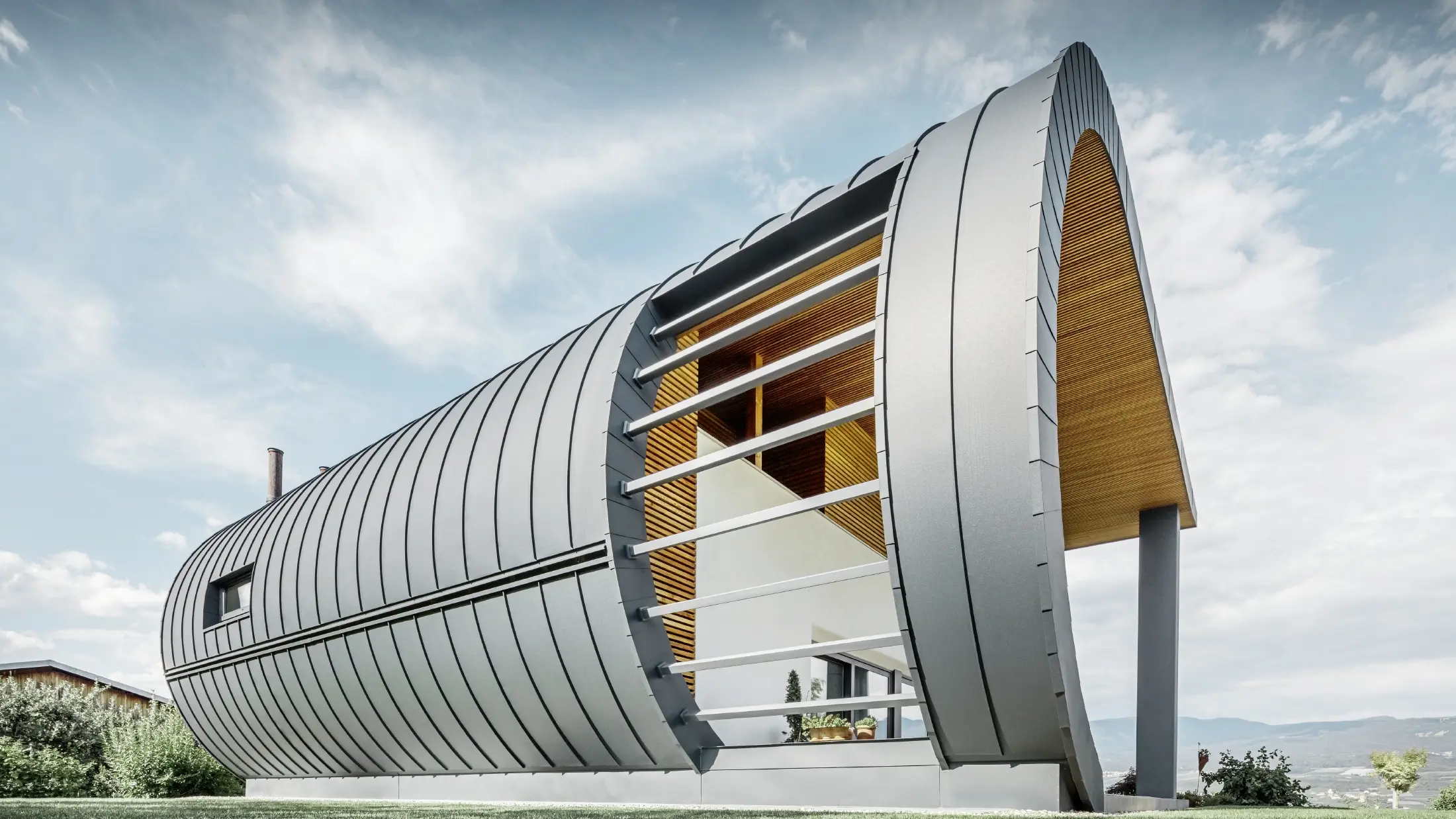

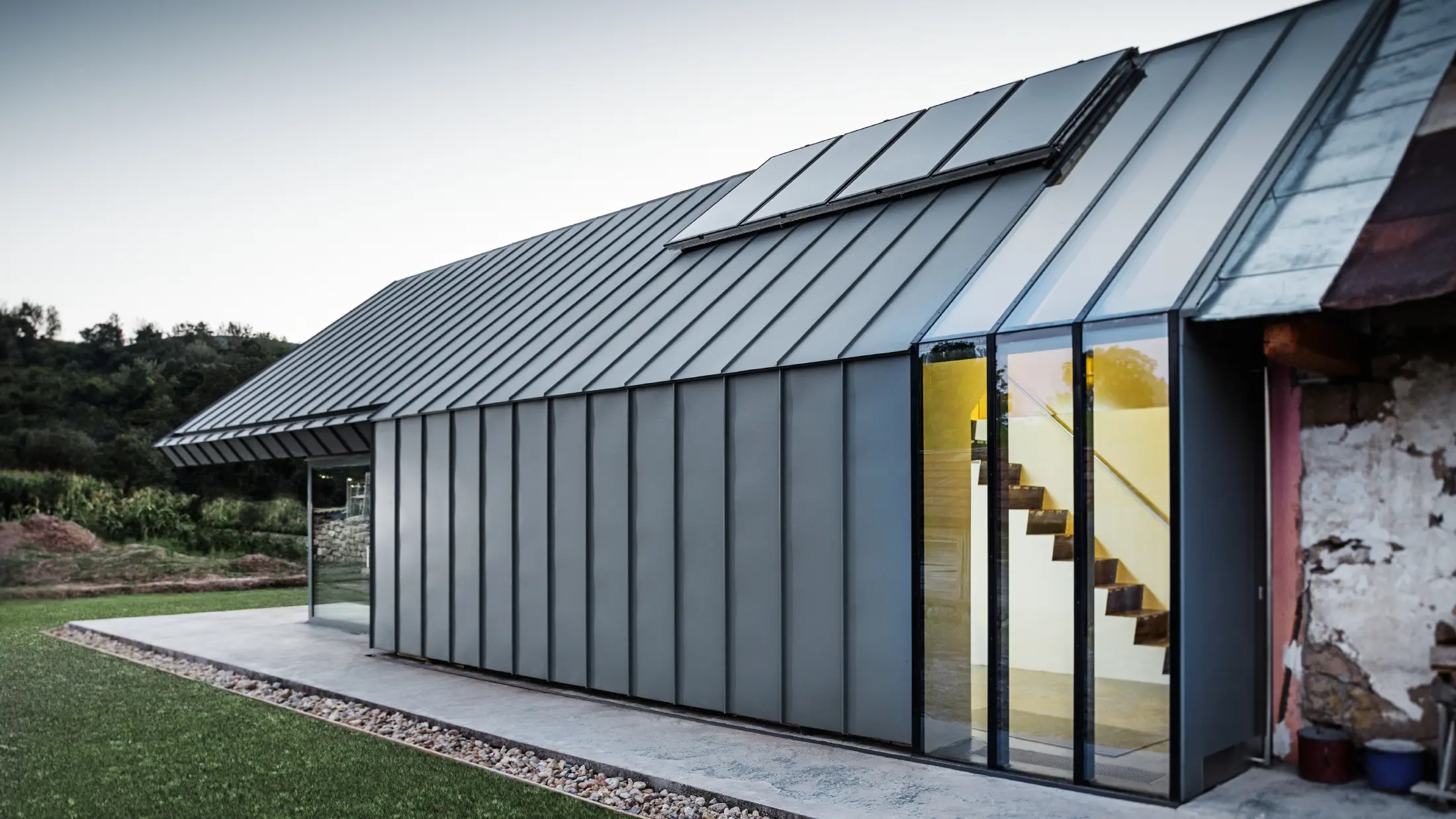

Thanks to its malleability, Prefalz® is more pliable than most comparable folding materials. Planners can use it in many creative ways on roof and façade areas.

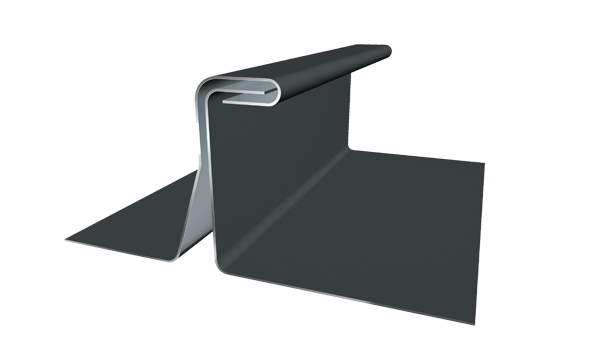

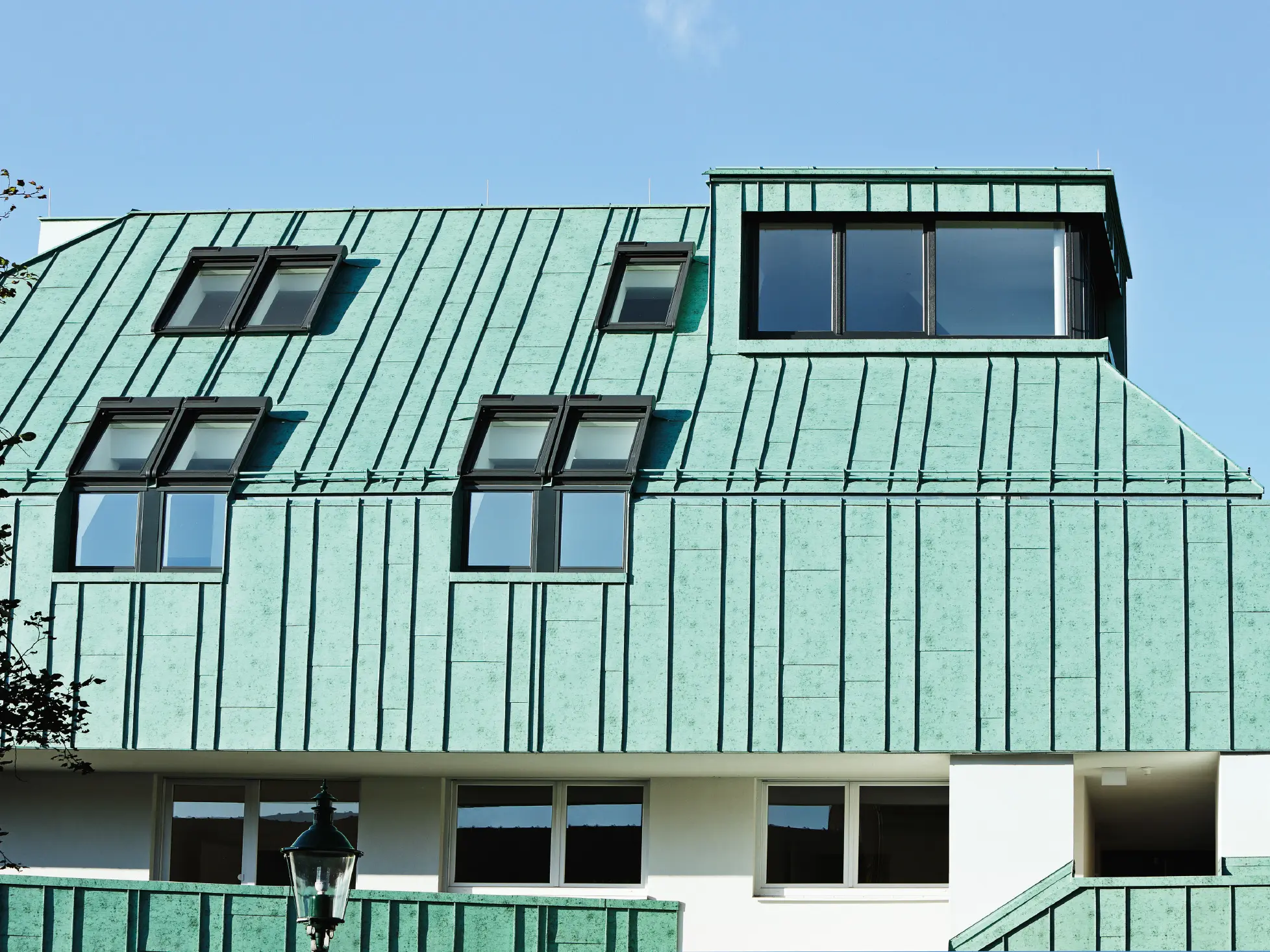

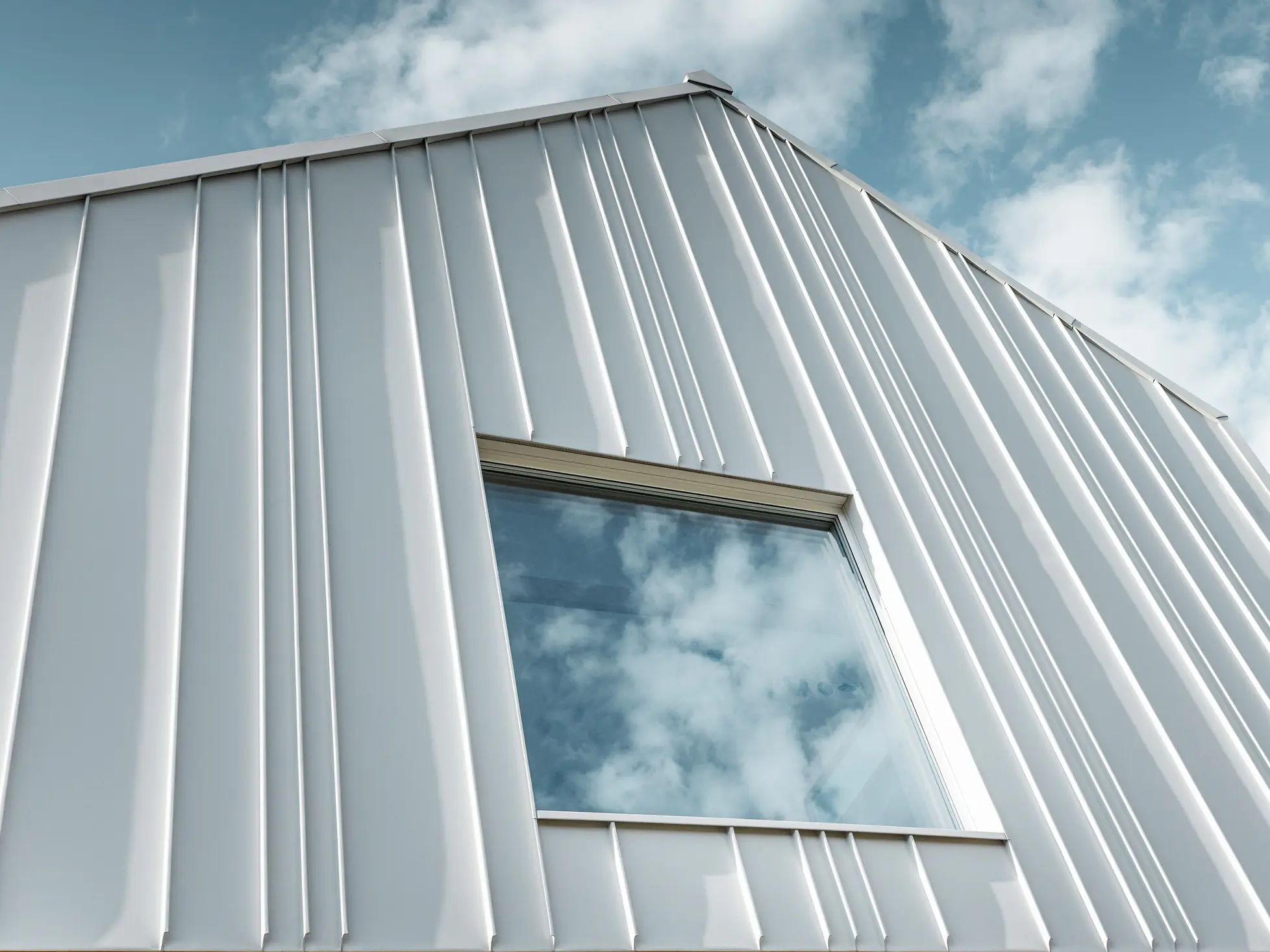

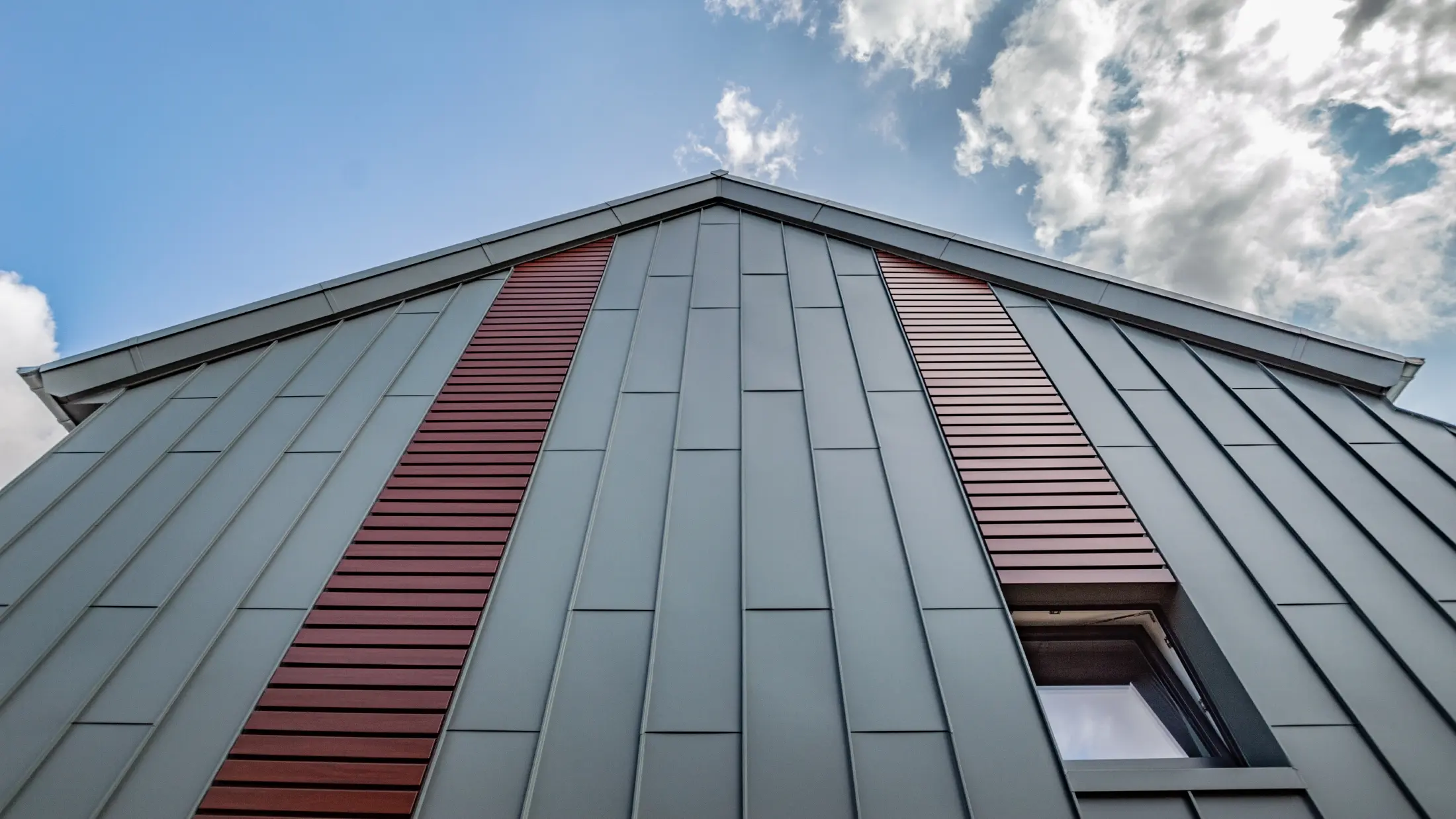

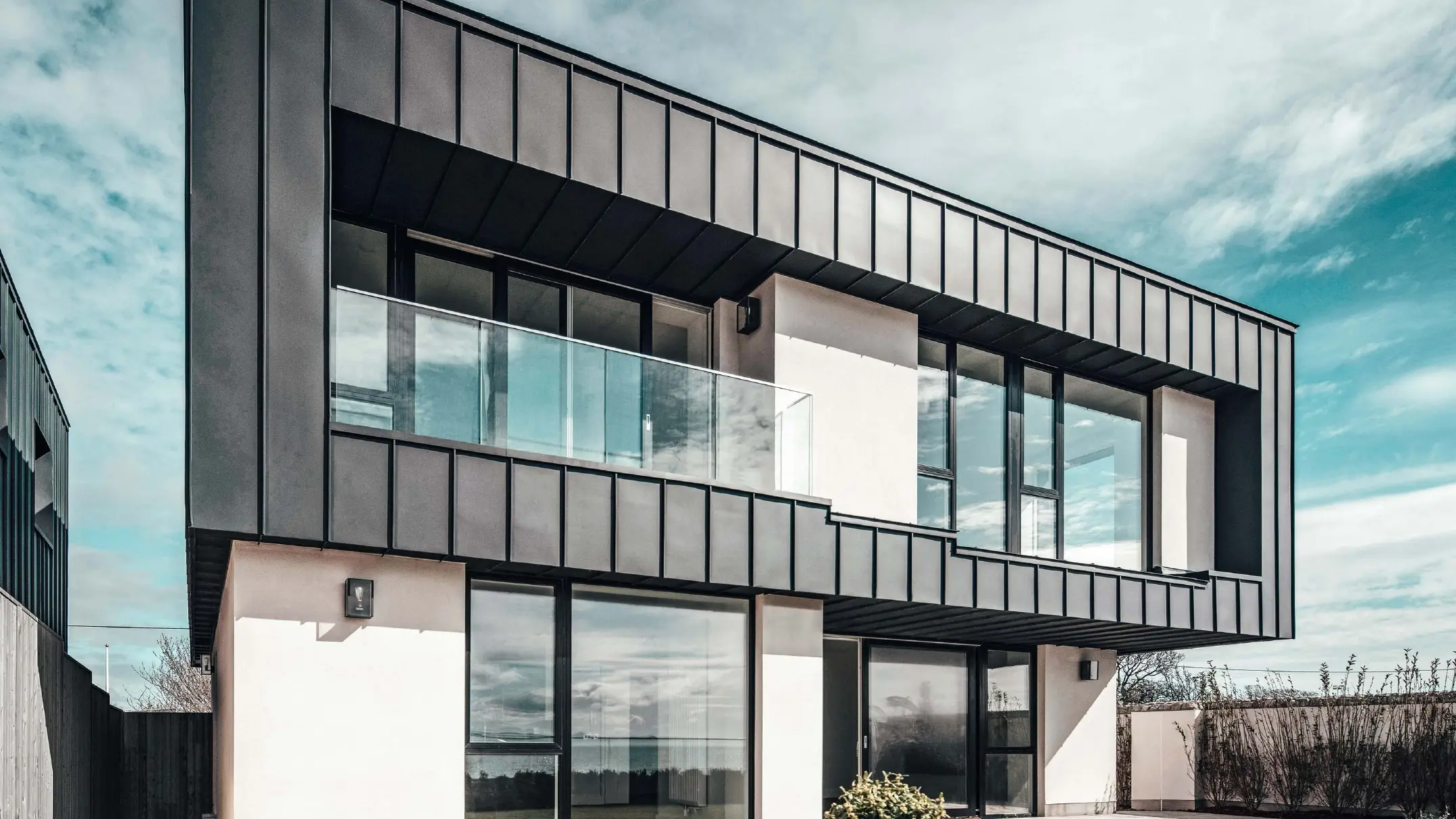

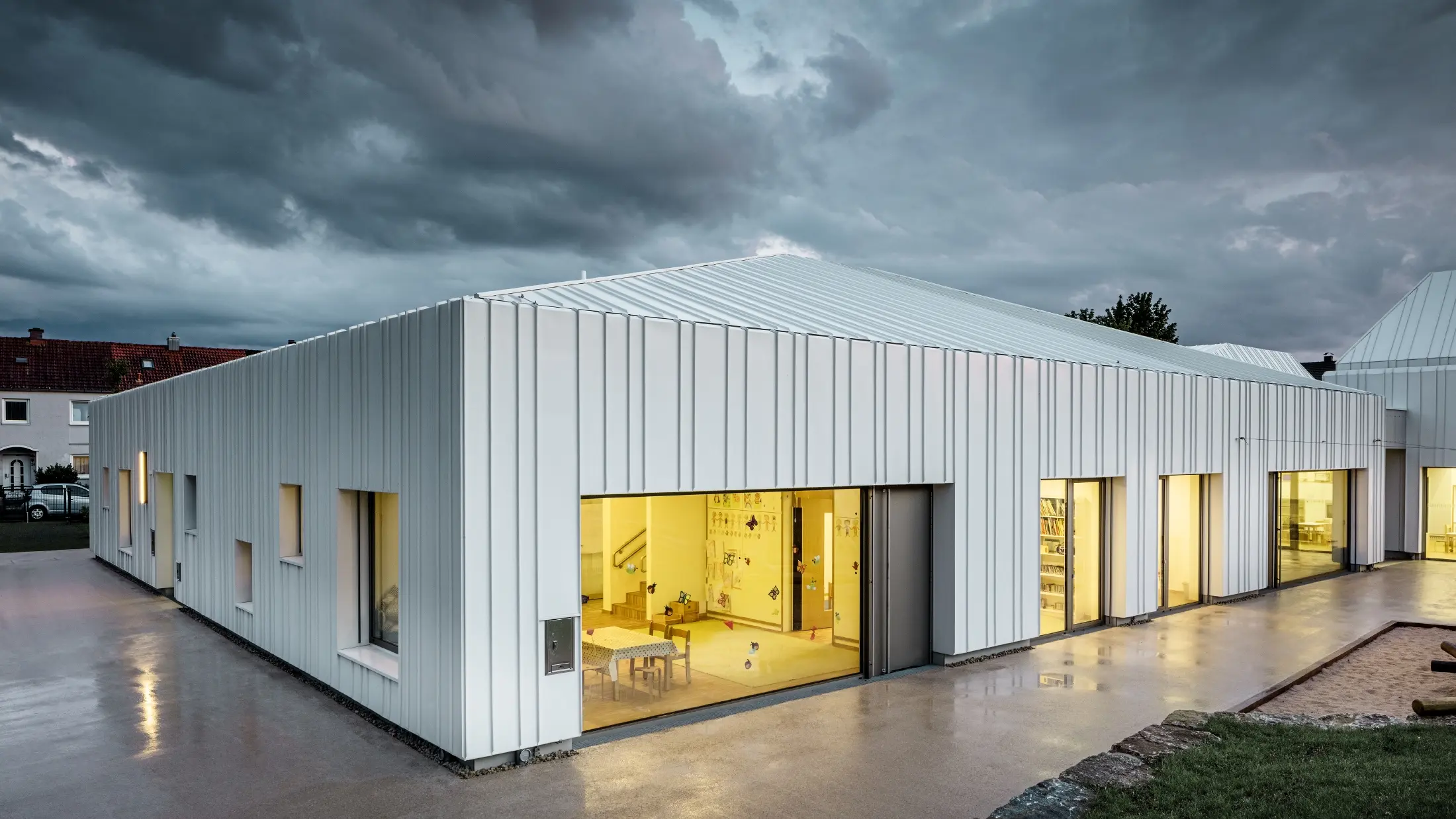

PREFALZ als Winkelstehfalz mit unterschiedlichen Scharenbreiten
Advantages of Prefalz®:
Colour chart with 19 standard colours
Available in smooth or stucco finish
Lightweight
Long service life — non-corrosive!
Colour chart with 19 standard colours
Available in smooth or stucco finish
Lightweight
Long service life — non-corrosive!
Fully recyclable
Also available with protective film on request
(smooth surface and PP 99 only)
Easy to work with even in sub-zero temperatures
Allow for expansion!
Fully recyclable
Also available with protective film on request
(smooth surface and PP 99 only)
Easy to work with even in sub-zero temperatures
Allow for expansion!
Colour overview (19)
The product is available in the following colours
Colour |
Code |
~ RAL |
|
P.10 brown |
7013 |
|
P.10 anthracite |
7016 |
|
P.10 black |
9005 |
|
P.10 brick red |
8004 |
|
P.10 oxide red |
3009 |
|
P.10 moss green |
6005 |
|
P.10 light grey |
7005 |
|
P.10 zinc grey |
7030 |
|
P.10 prefa white |
9002 |
|
P.10 nut brown |
8019 |
|
P.10 pure white |
9010 |
|
P.10 dark grey |
7043 |
|
P.10 stone grey |
7031 |
|
metallic silver |
9006 |
|
plain aluminium |
|
|
black grey |
7022 |
|
bronze |
7048 |
|
P.10 patina green |
6027 |
|
patina grey |
7042 |
Notes
- The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
- Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
- Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
- Metallic colours may vary in shade.
- To identify exact colours for complementary components please consult original samples.
Prefalz® — Technical information
Caution: don’t try to hide damage with a coat of paint! Combining Prefalz® strips with other colour aluminium strip should be avoided at all costs due to the different paint qualities and folding abilities.
Material |
coil-coated aluminium, 0.7 mm thick |
|---|---|
Dimensions |
PREFALZ for façades: 0.7×500 mm |
Weight |
approx. 1.89 kg/m² |
Supporting substrate and separation layer* |
on fully boarded substrate (at least 24 mm) * Observe country-specific standards and specialist guidelines. |
Fastening |
PREFA preformed fixed and long sliding clips (stainless steel) |
Tips for installation: fixed clip depending on roof pitch
Prefalz® — Planning and installation
More product information is available for downloading here.
Note: Download DWG and DXF format files by right-clicking and selecting “Save link as”.
Details
Prefalz® — Accessories

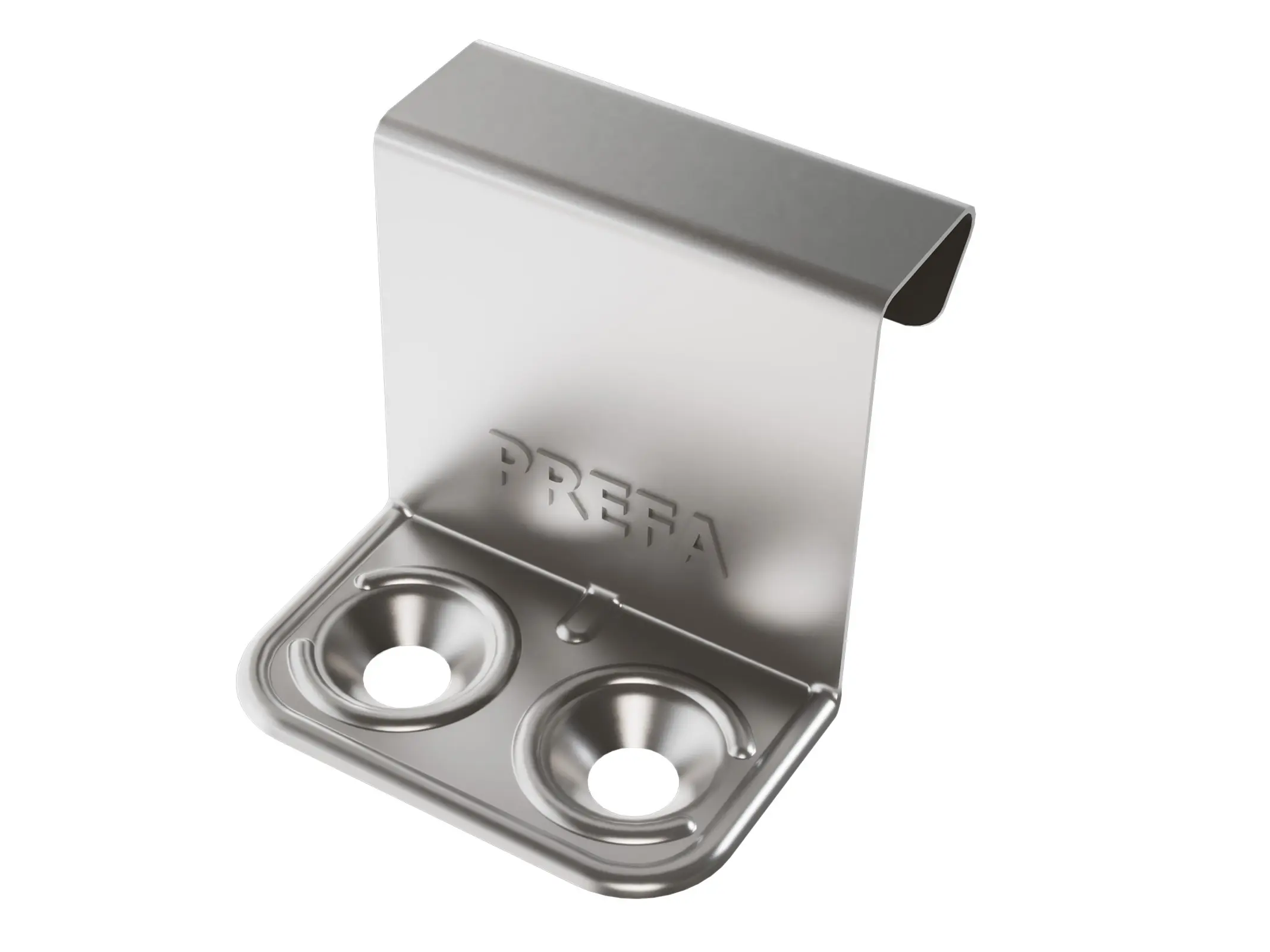

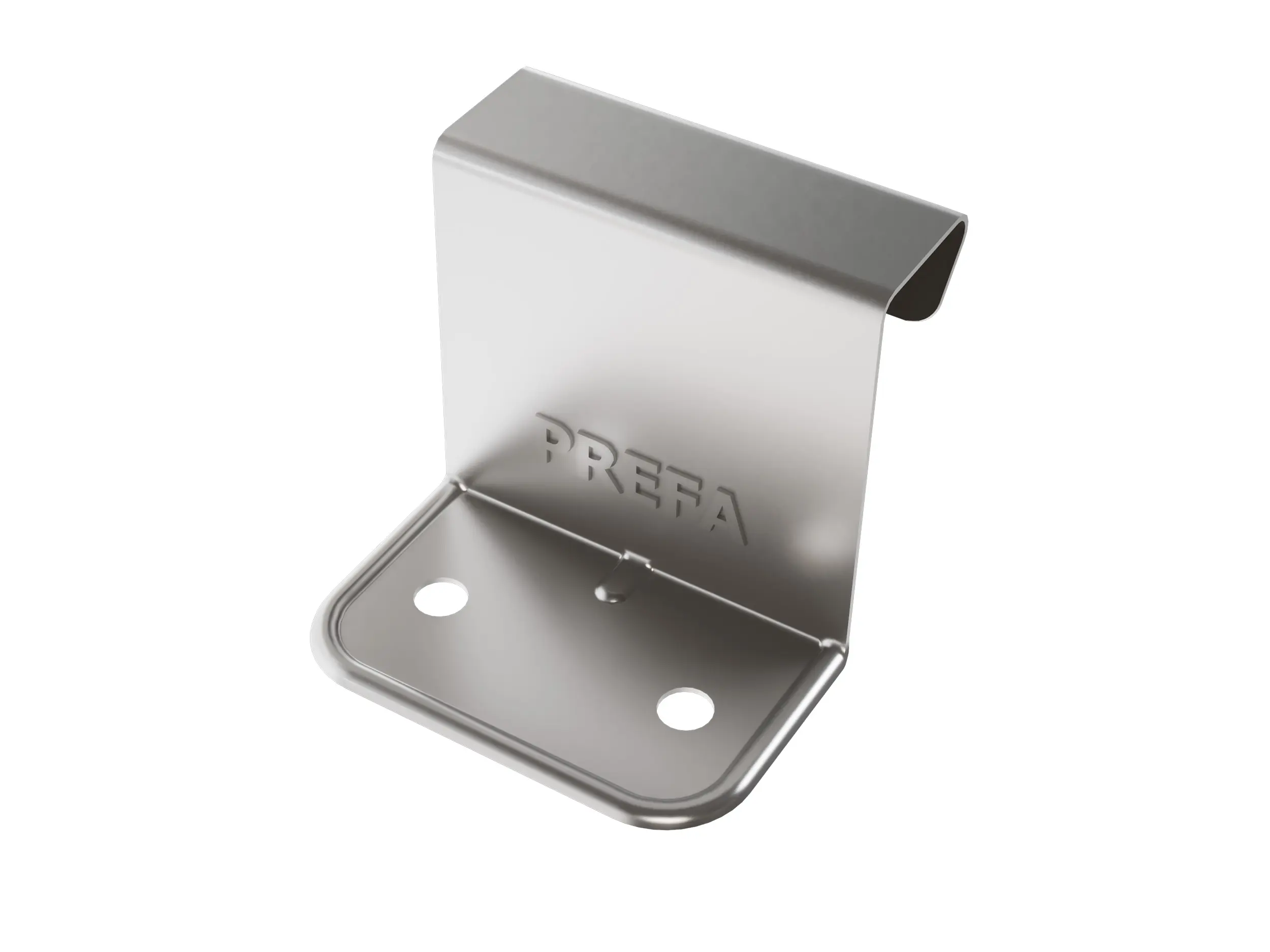

stainless steel preformed fixed clip

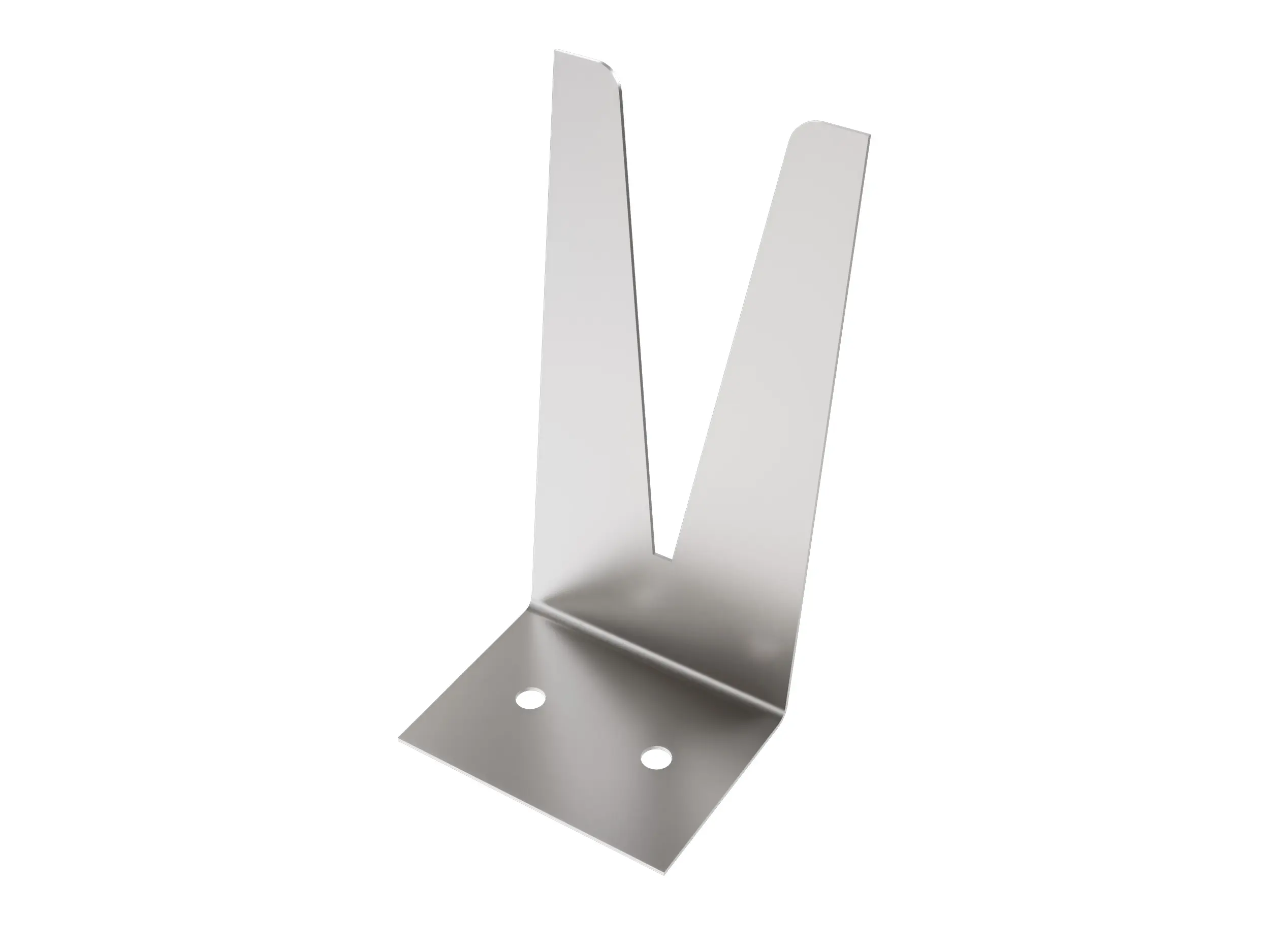

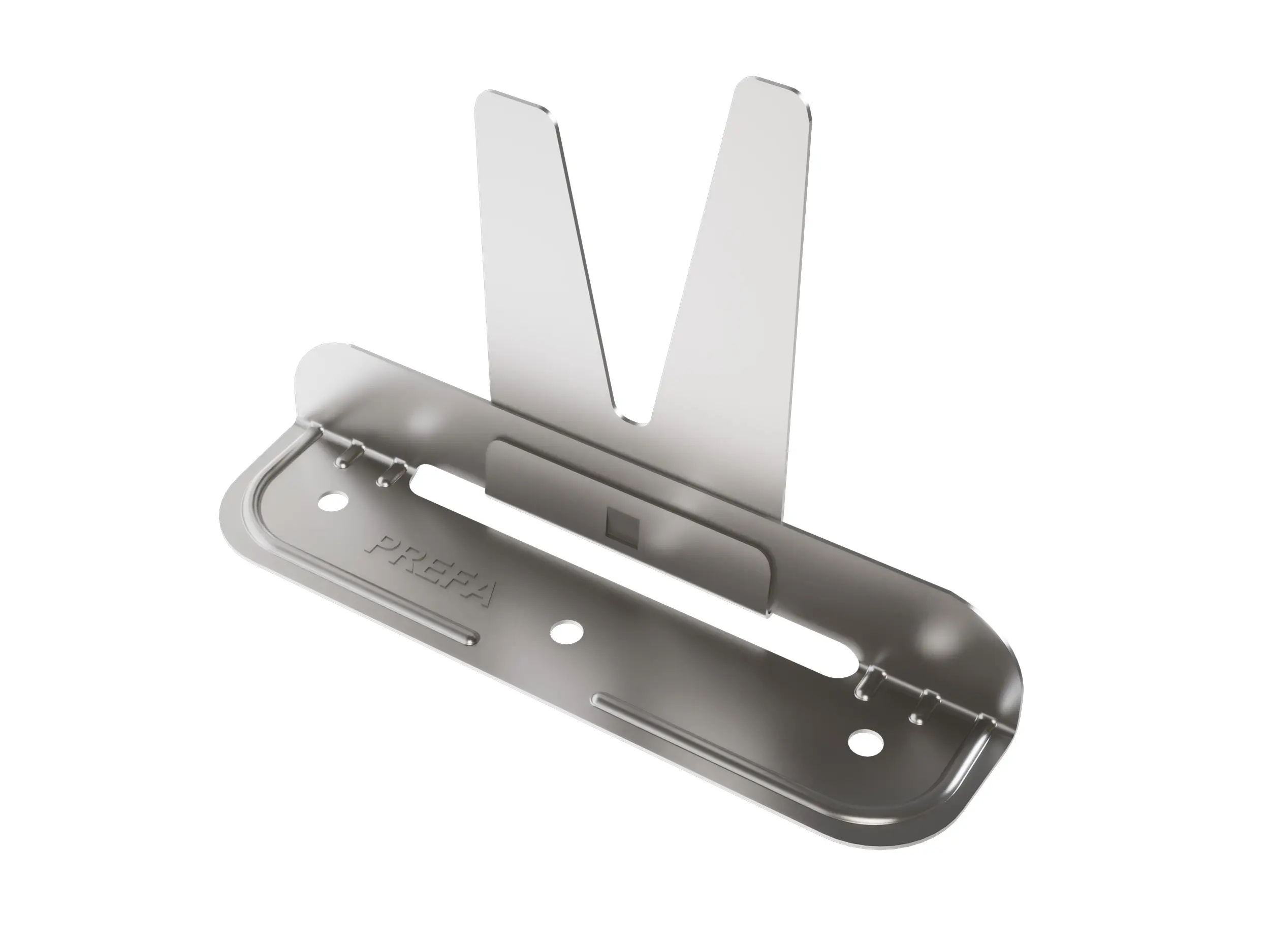

stainless steel fish tailed sliding clip

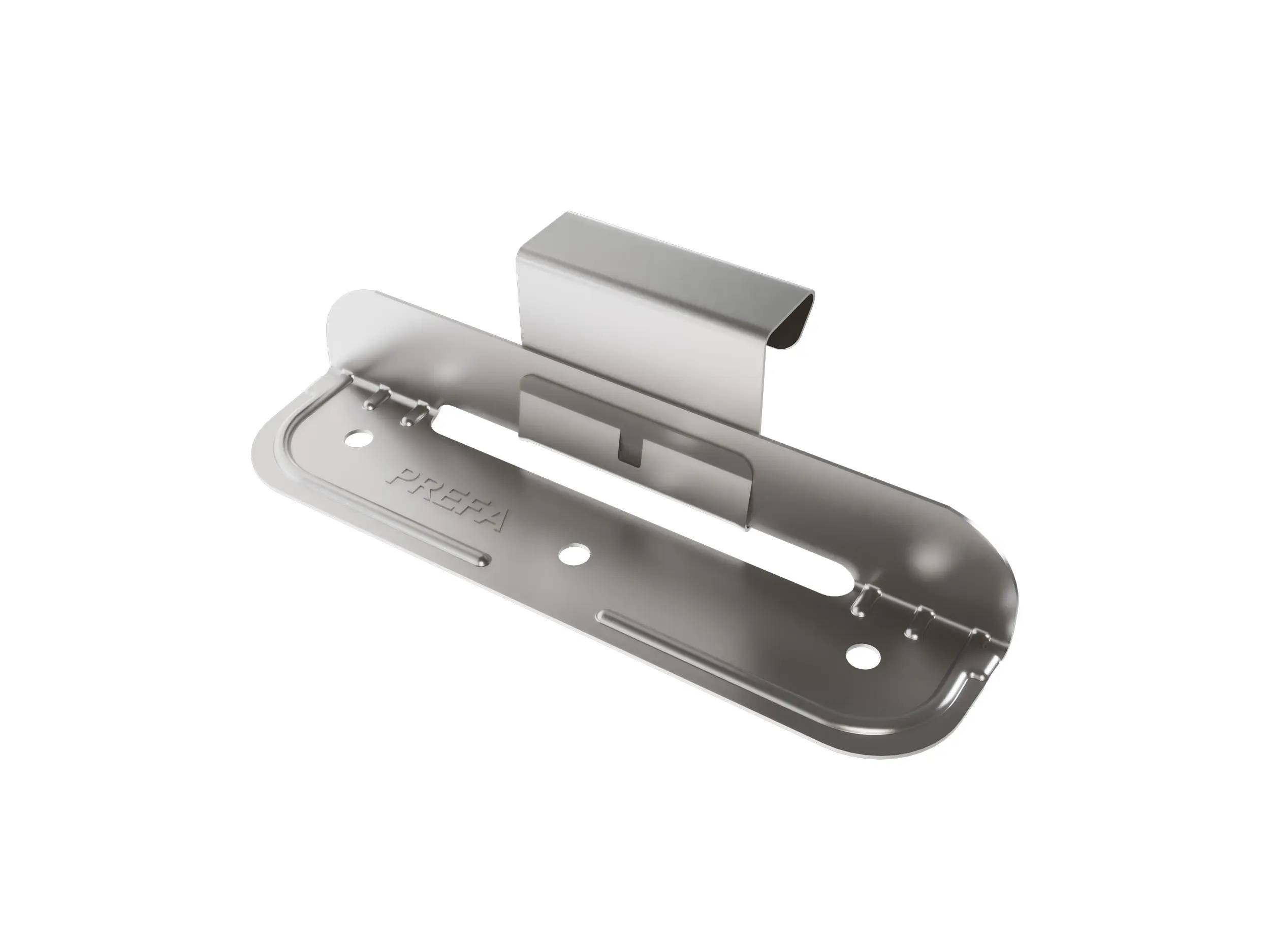

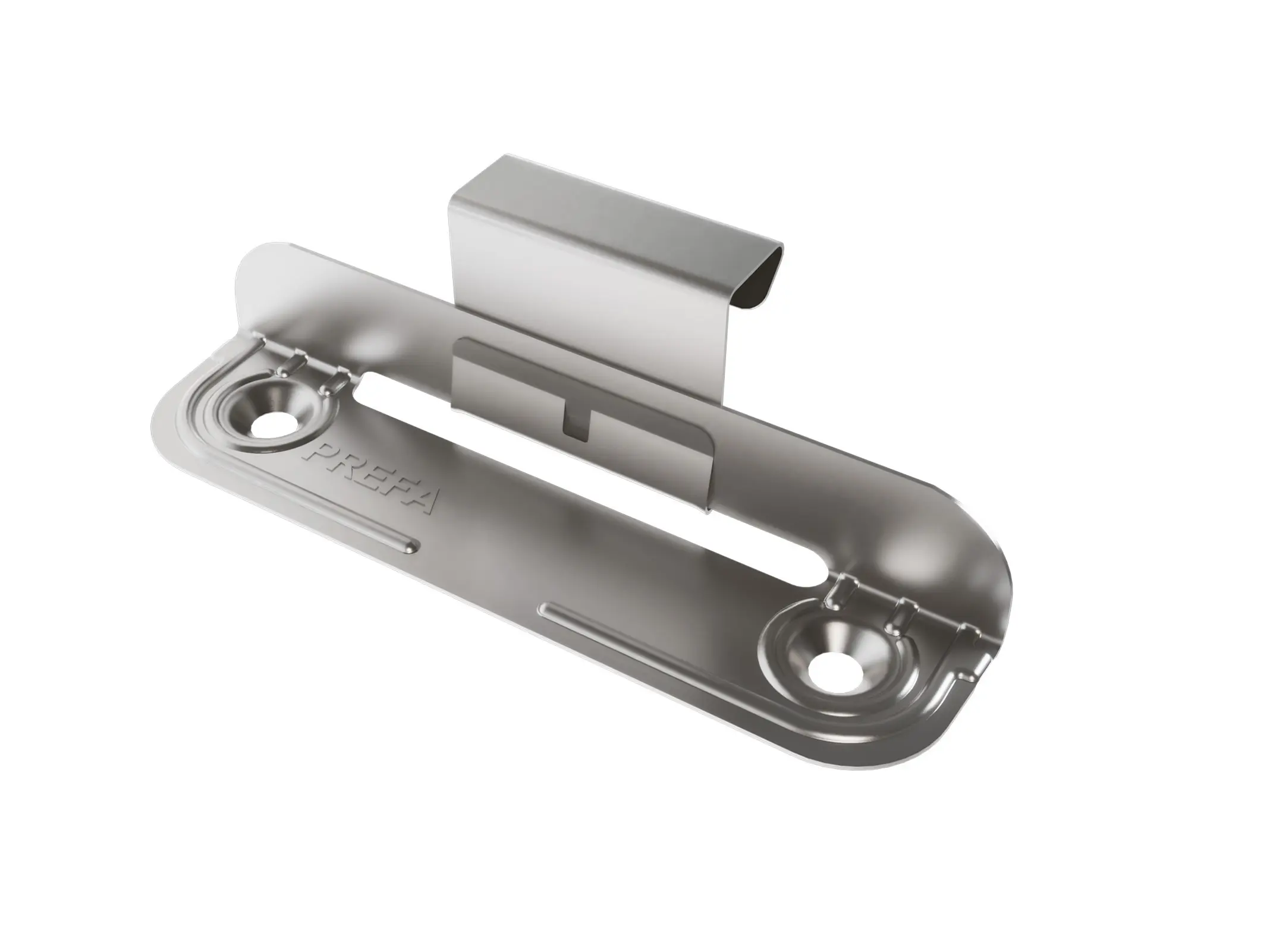

stainless steel preformed long sliding clip
tray length: 12 to 15 m
stainless steel fish tailed fixed clip
stainless steel preformed sliding clip
ventilation screen
square perforations (6 mm); colours; brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm
bird screen
